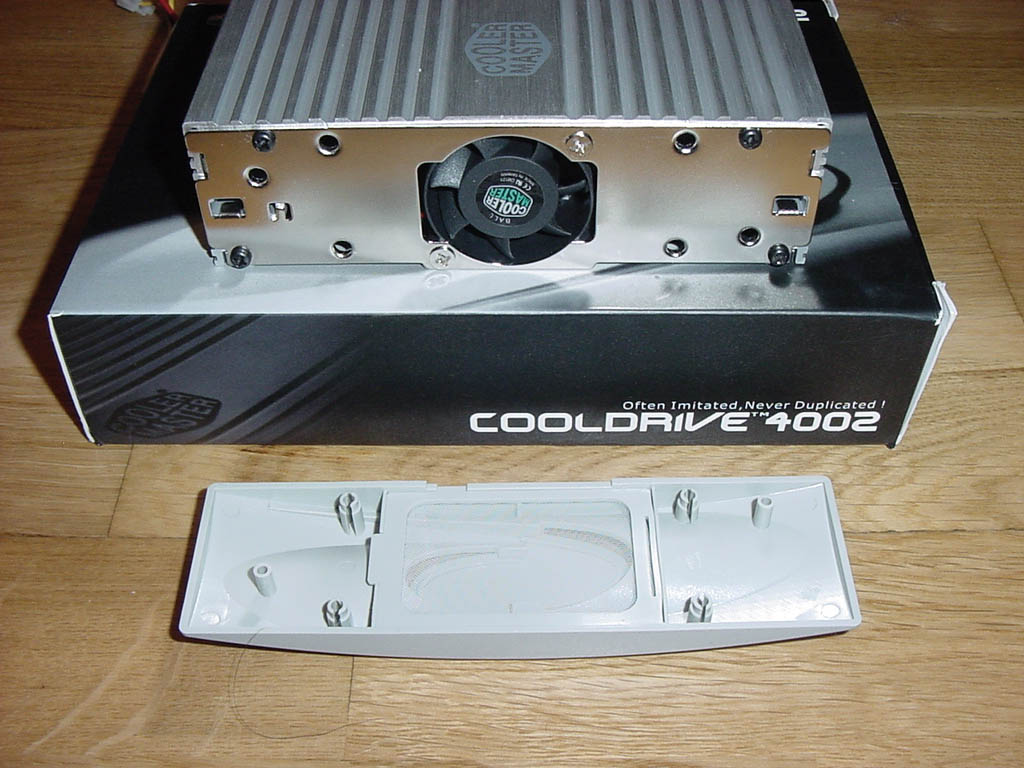

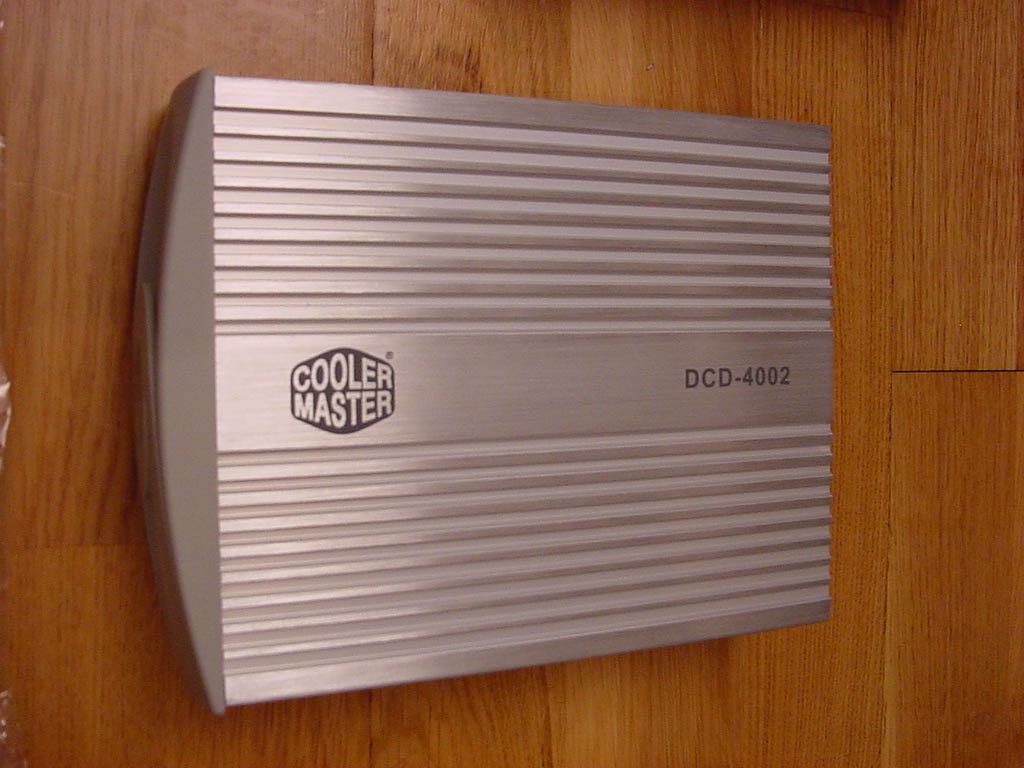

Unpacking the Cool Drive 4002

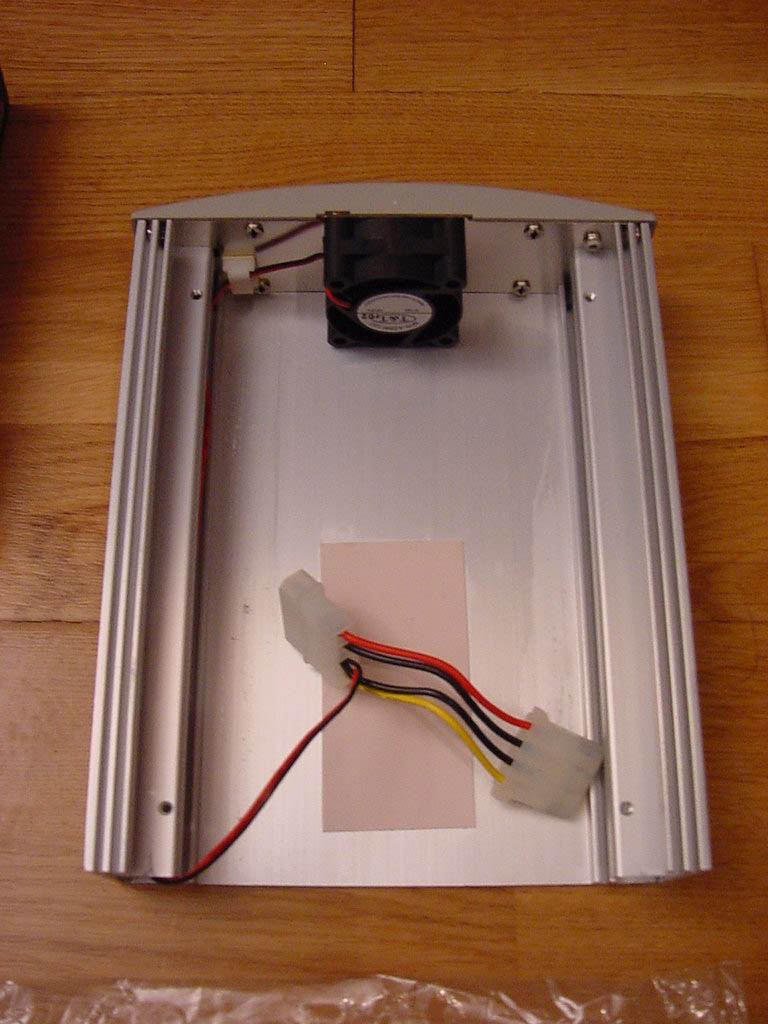

Manual, pack of screws, aluminium case

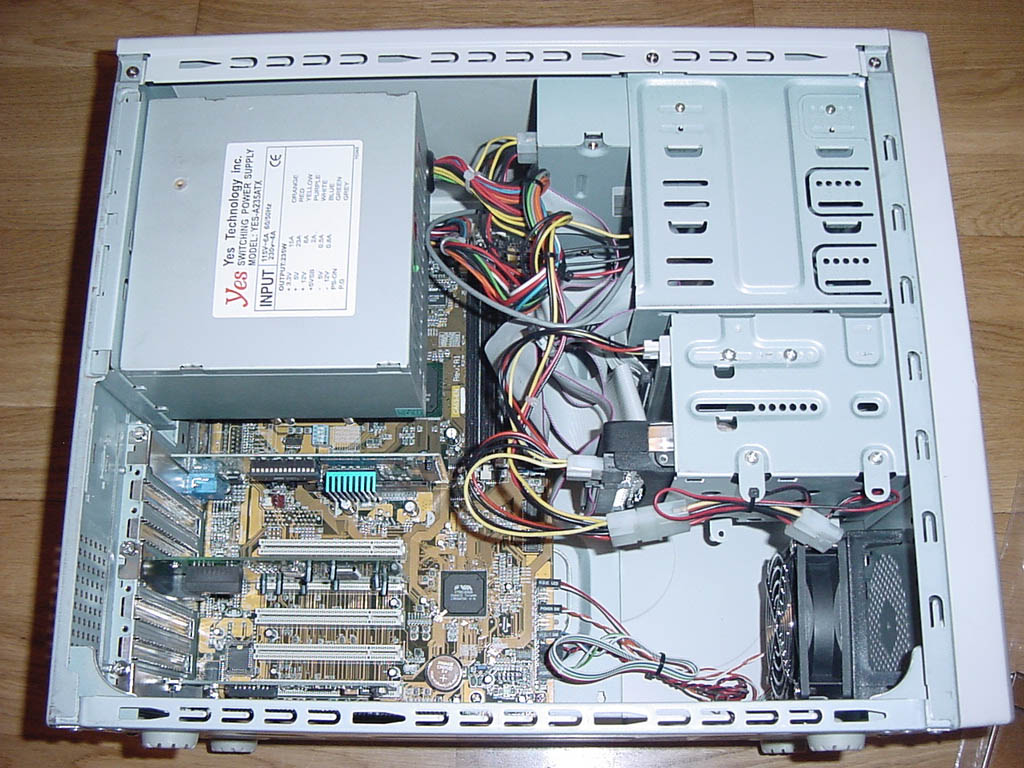

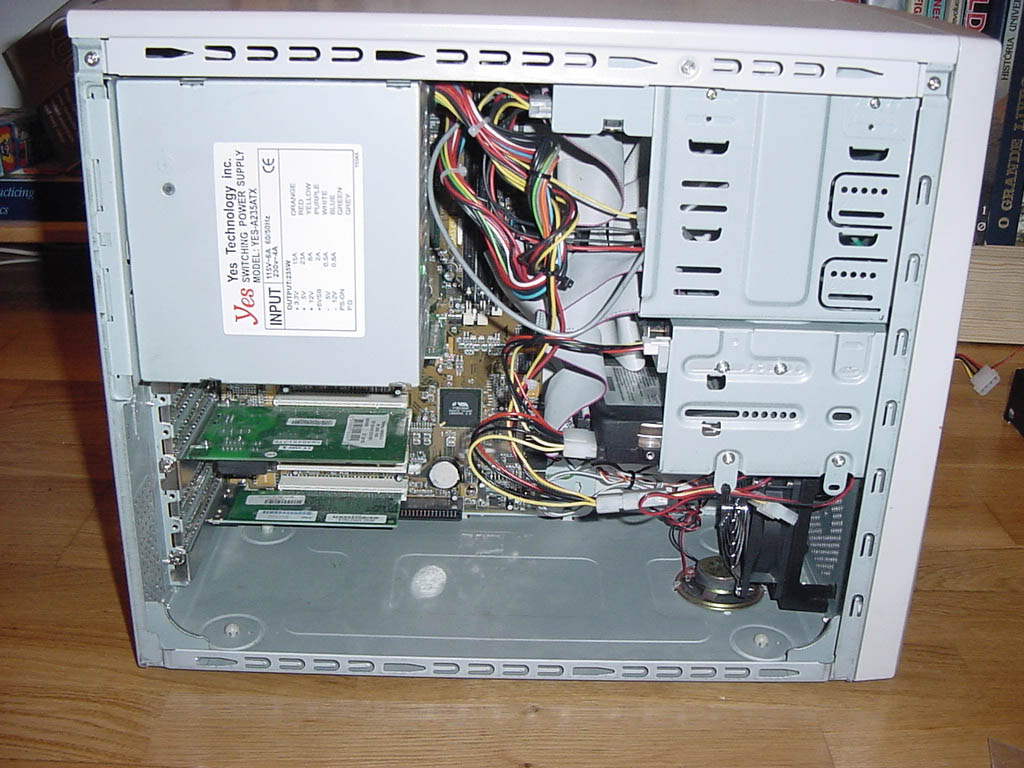

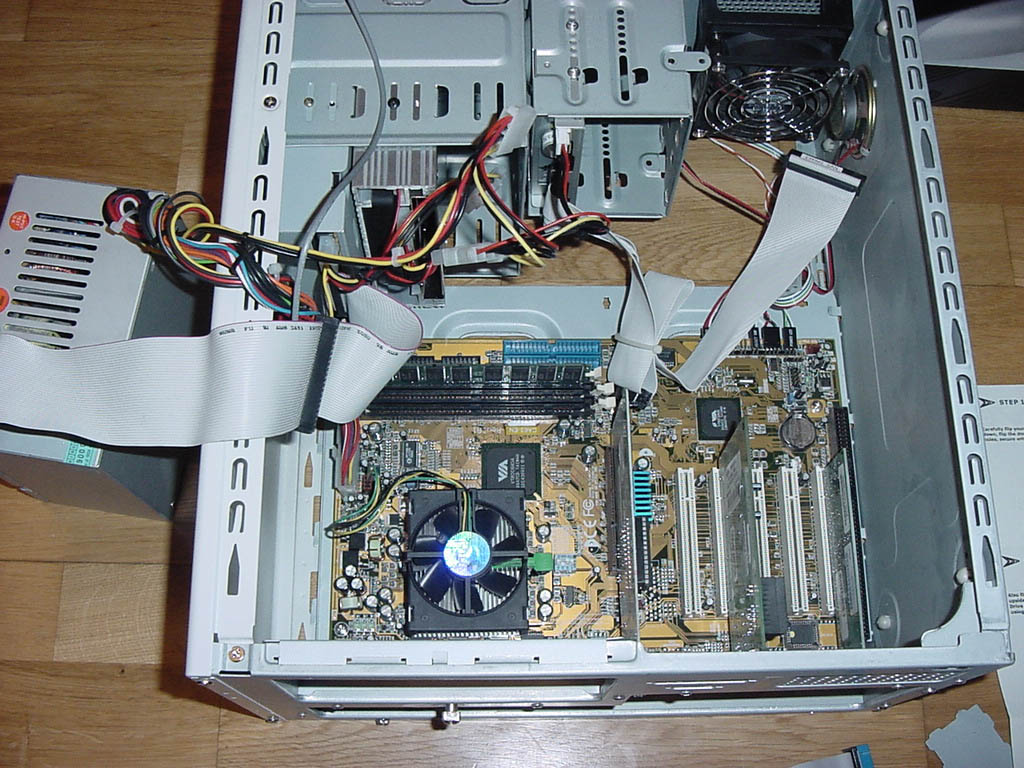

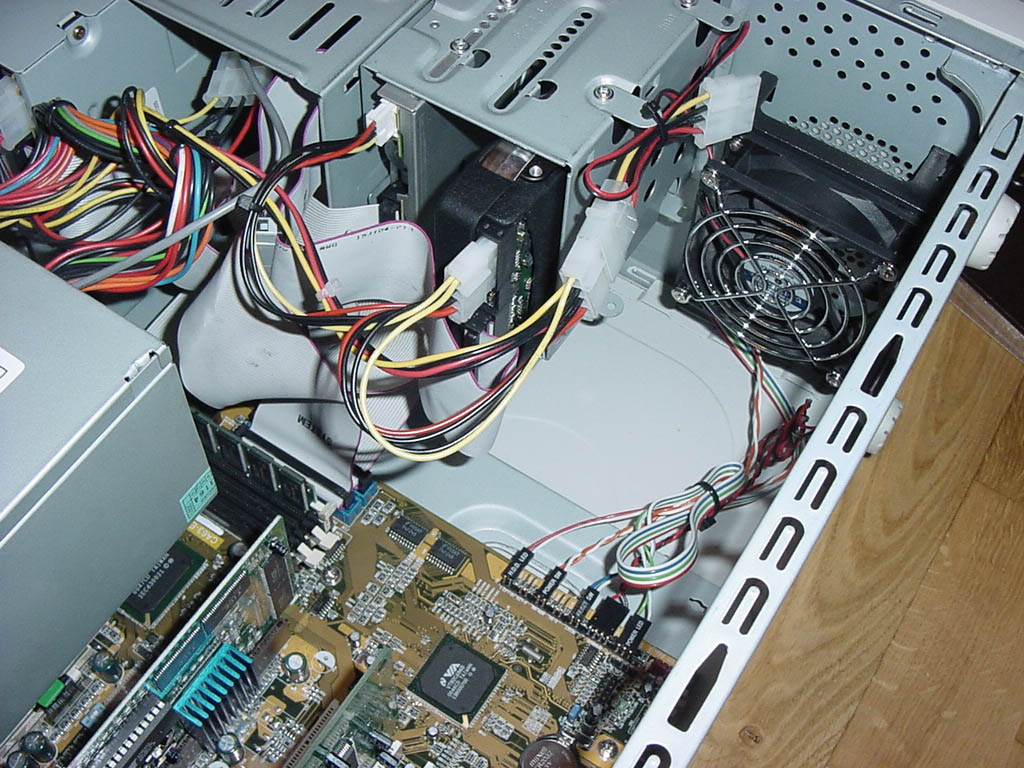

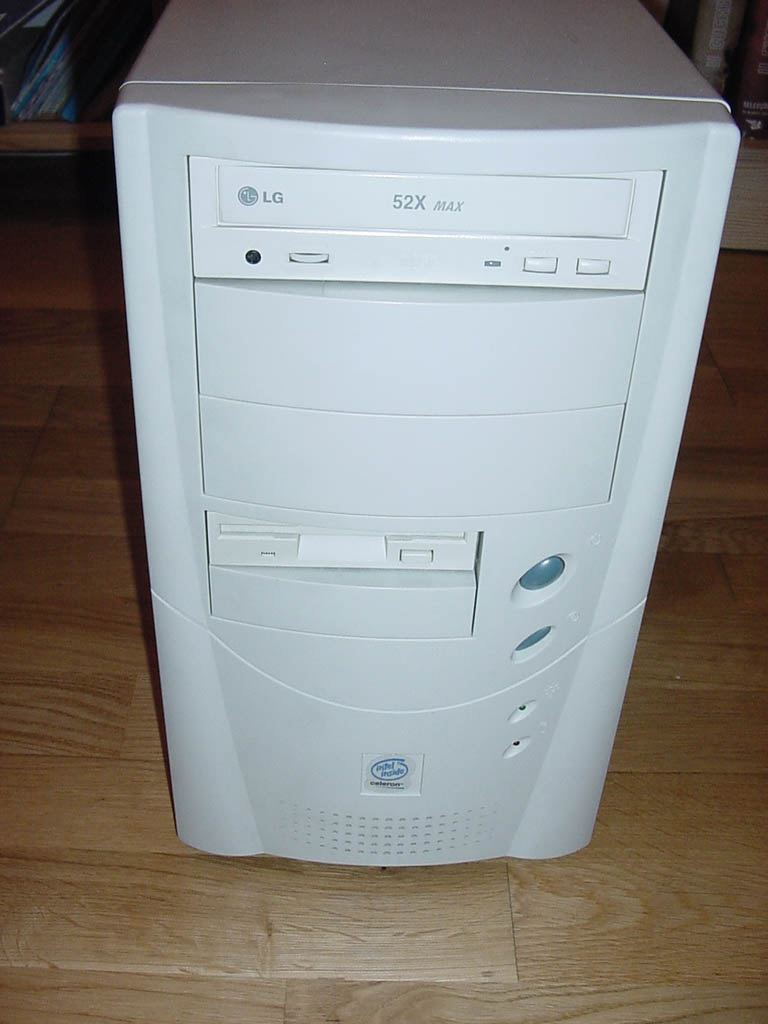

Opening the mini-tower to retrieve the hard disk from the bottom 3 1/2" bay

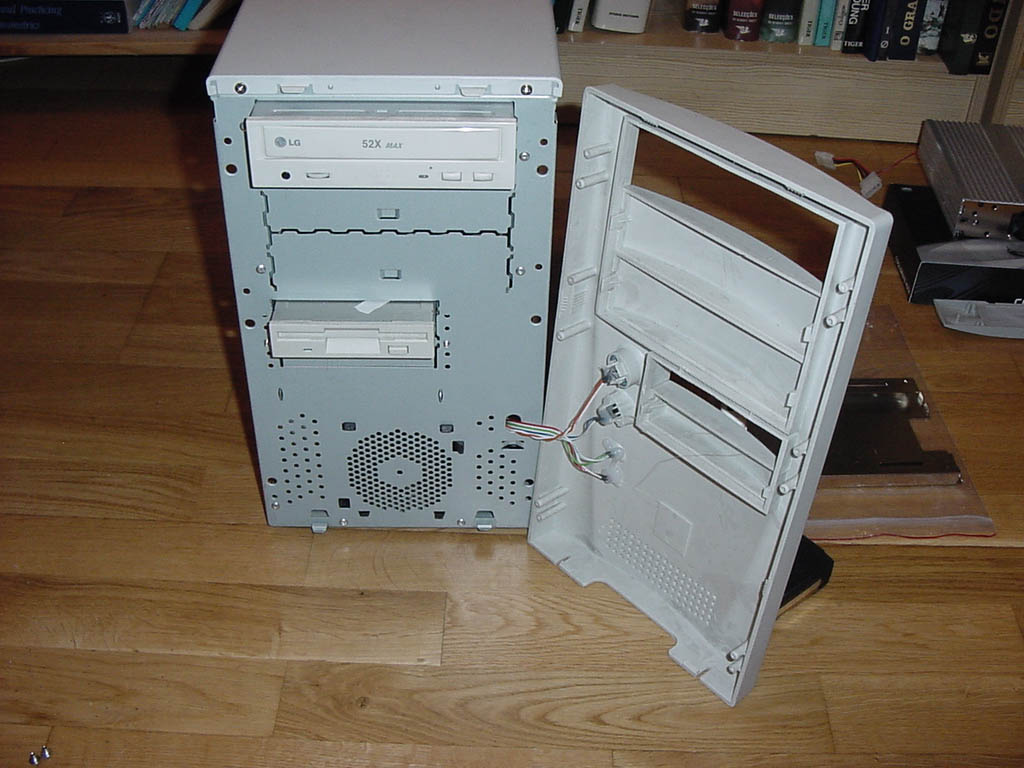

Open one top 5 1/4" bay slot to receive the Cool Drive case

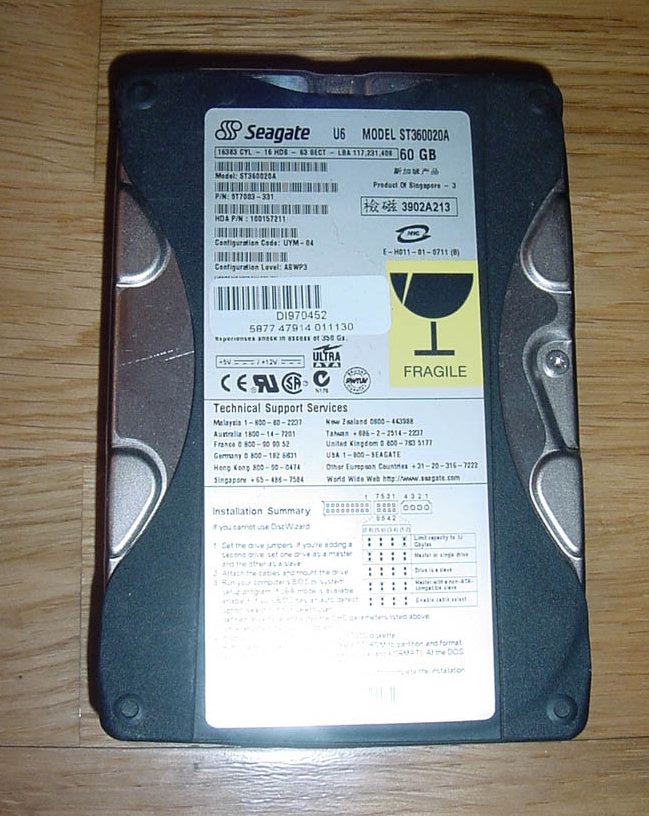

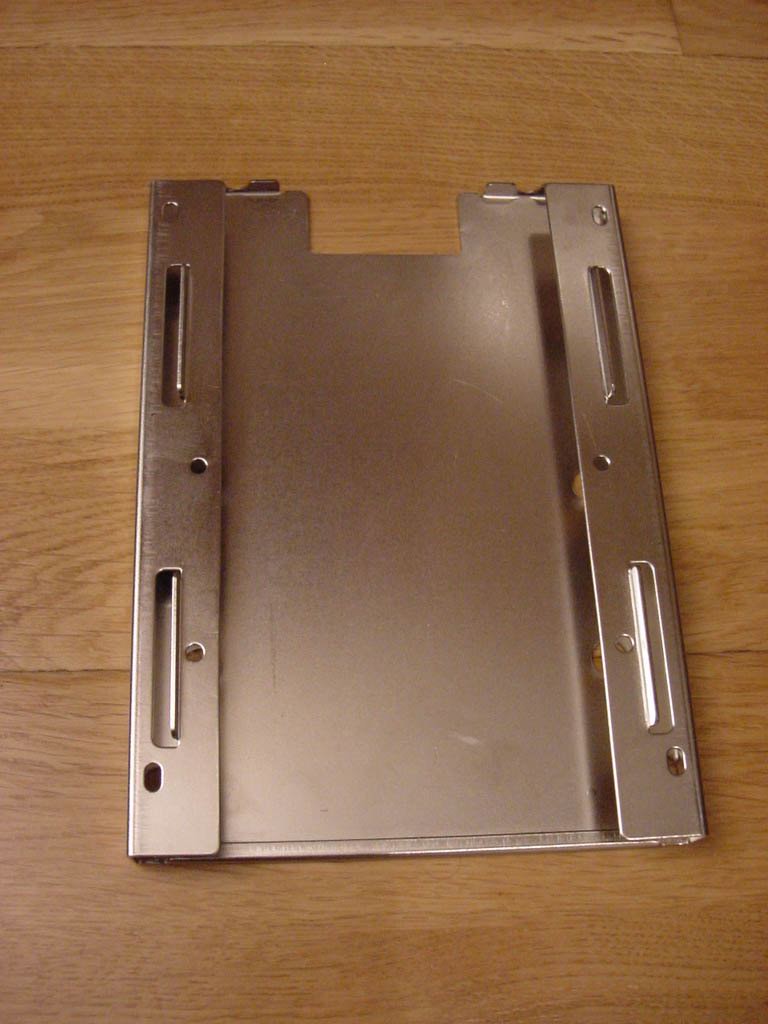

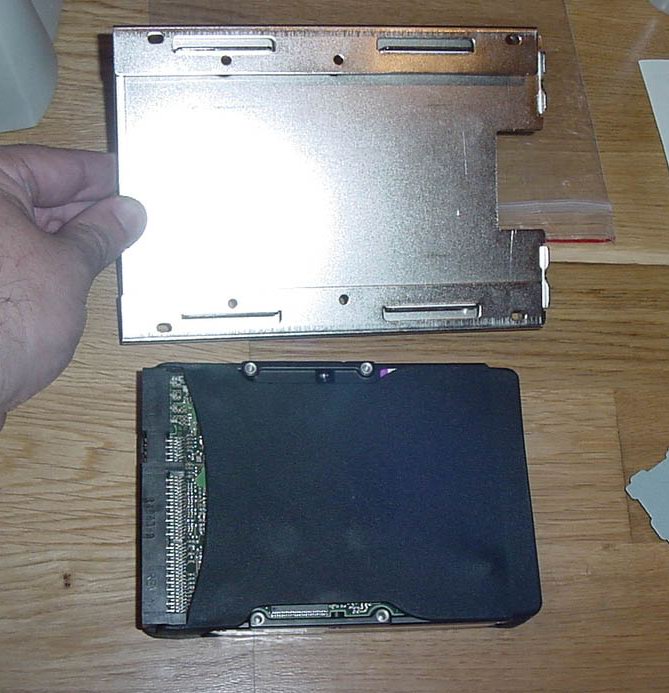

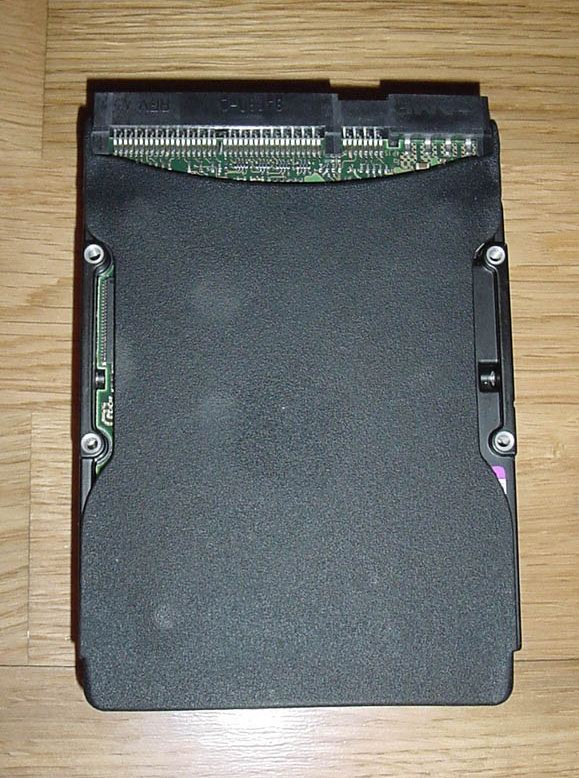

Seagate 60 Gb hard disk extracted. Fitting on Cool Drive base platform

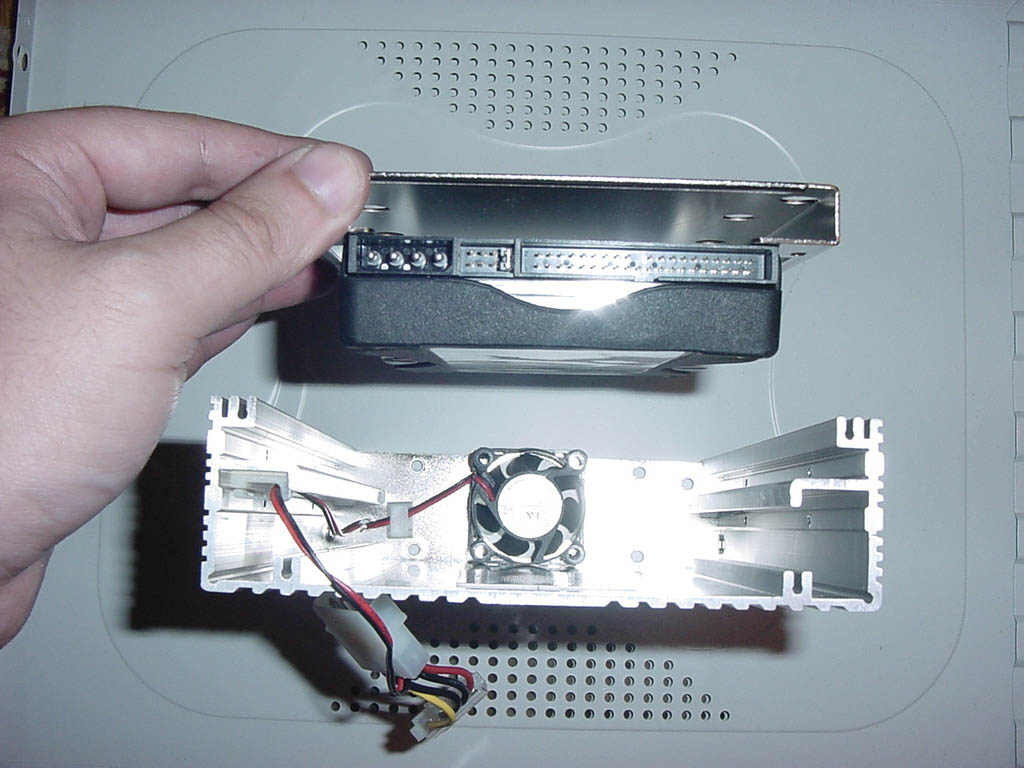

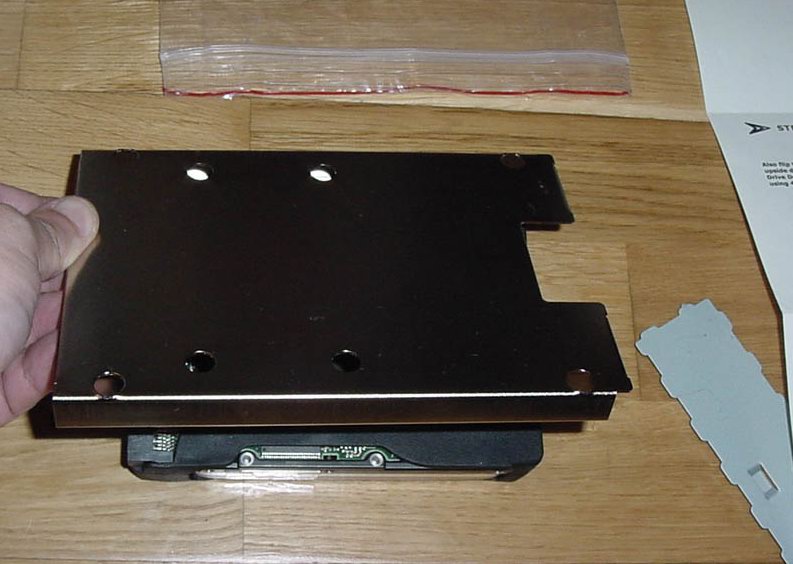

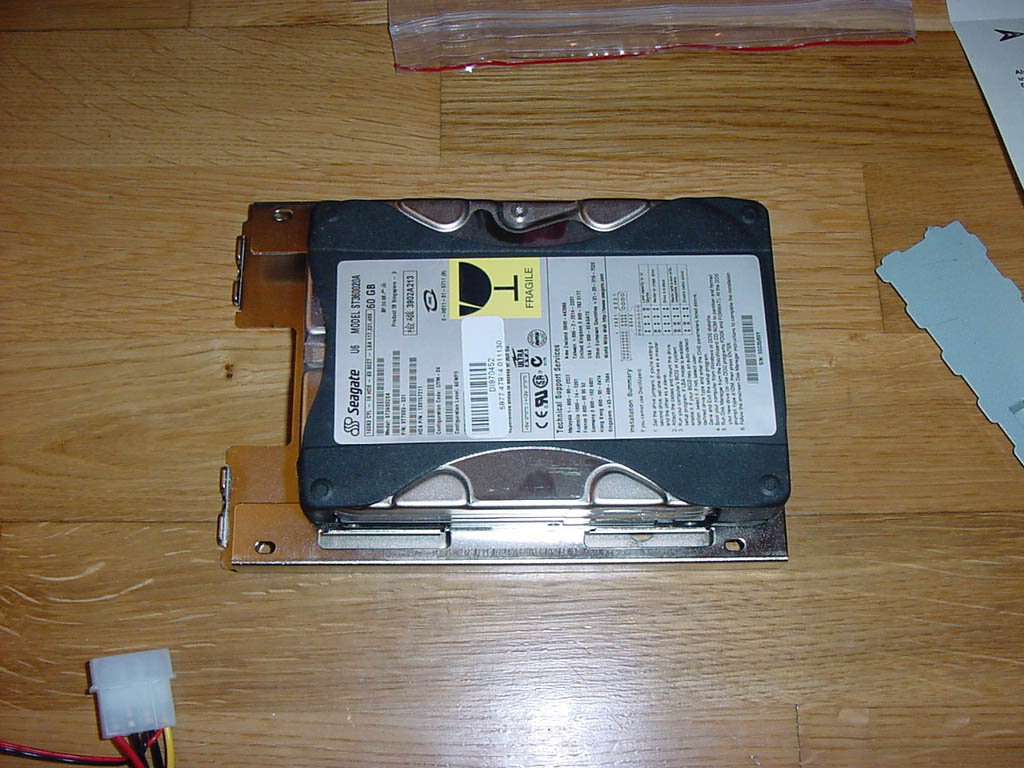

Fitting the base platform with hard disk attached on the aluminium bay case

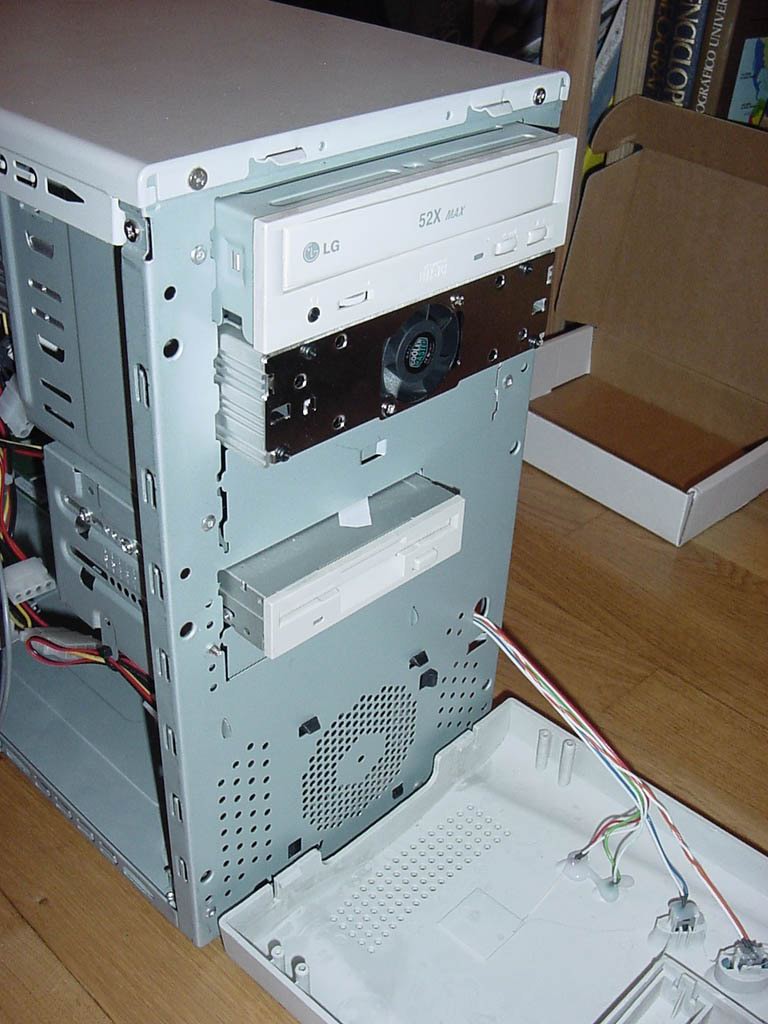

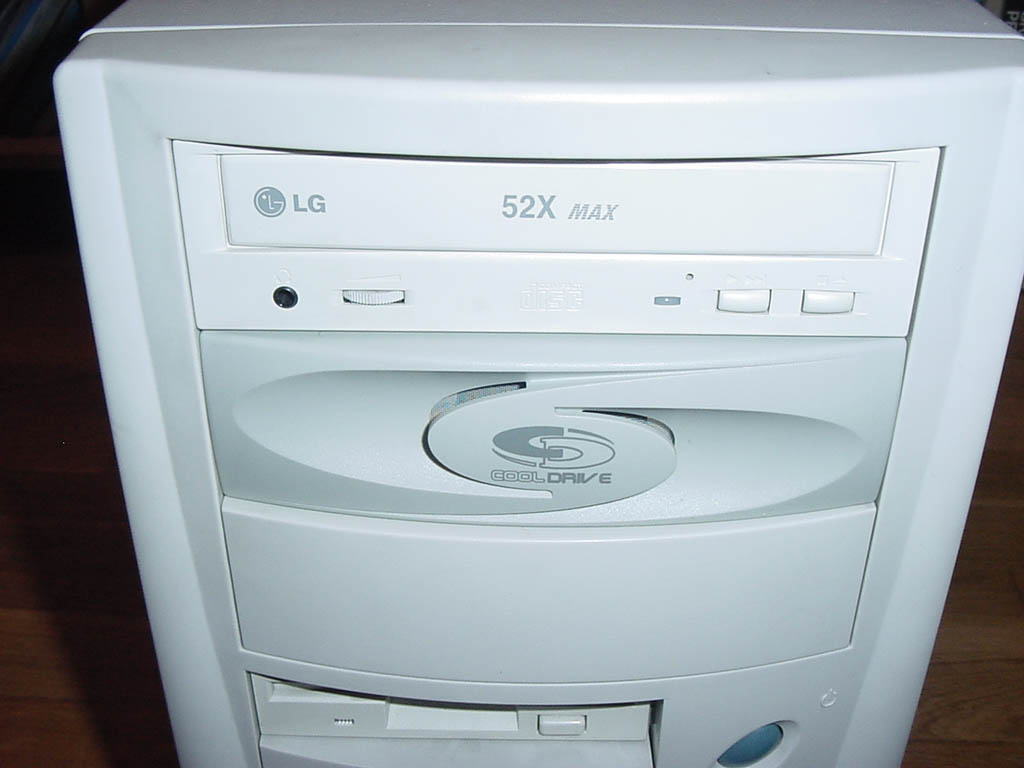

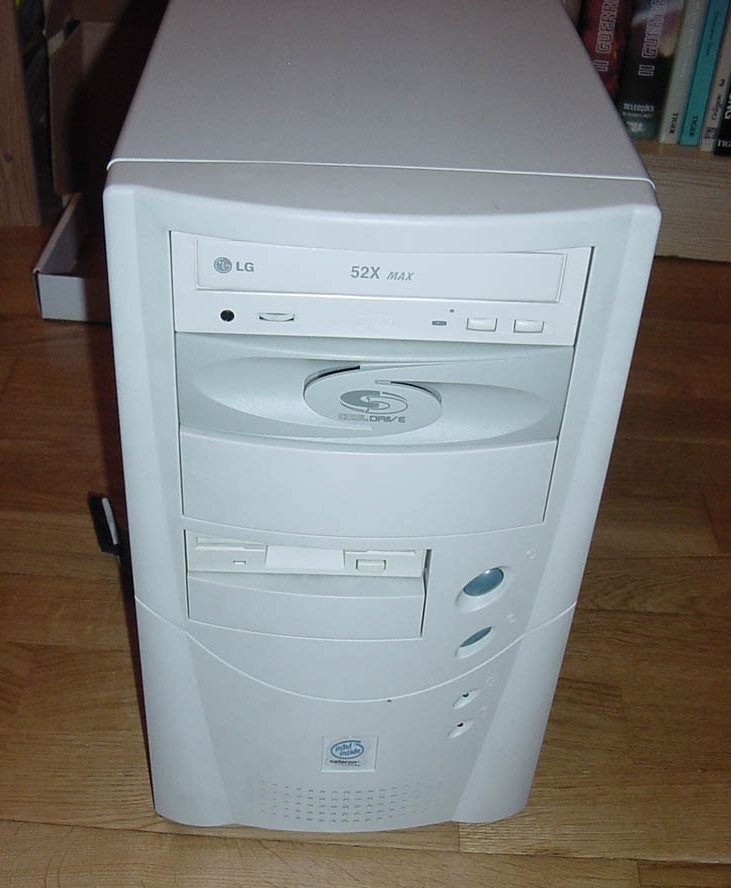

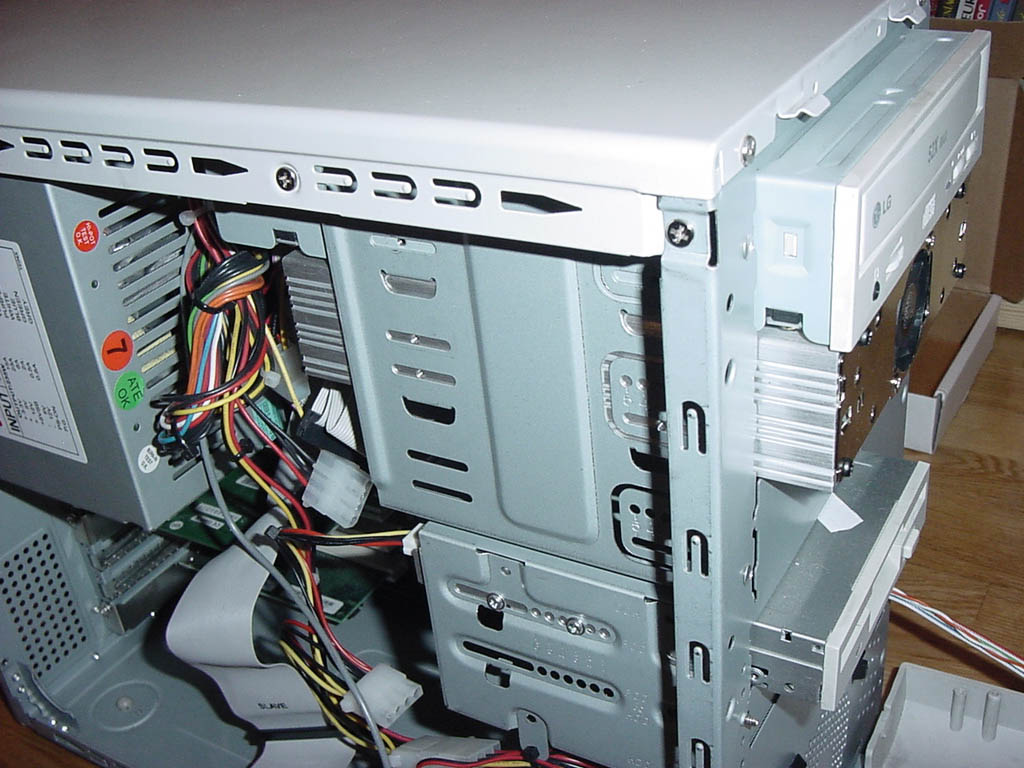

Fittin the Cool Drive fully assembled case on the 5 1/4" top bay of the mini tower

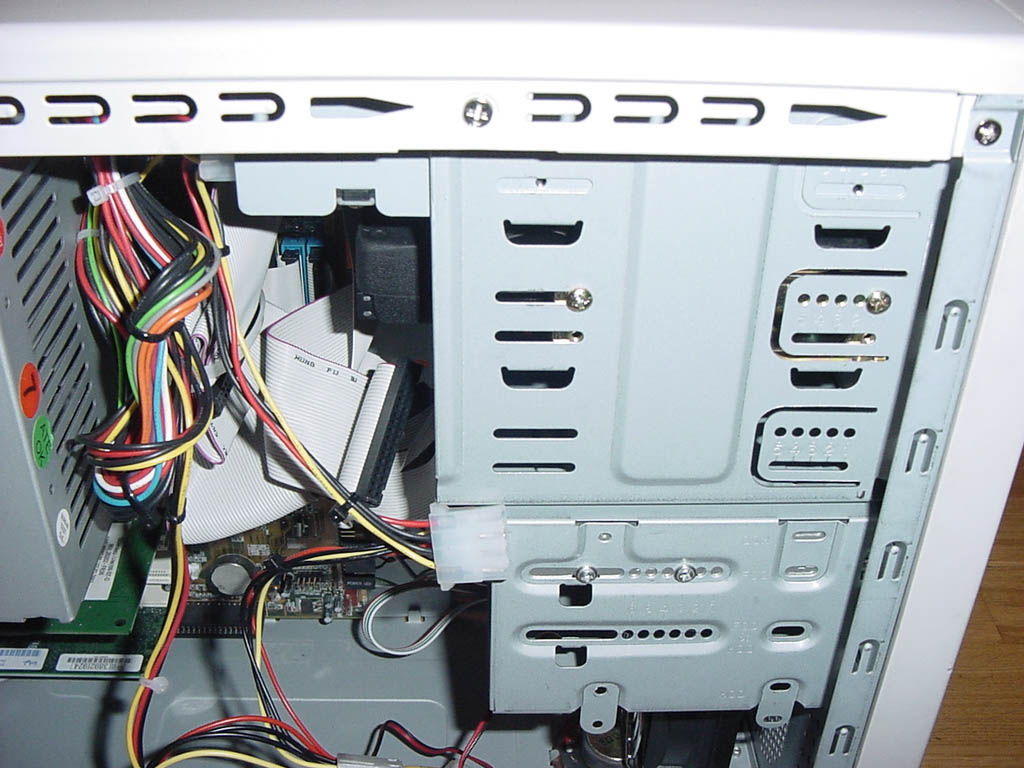

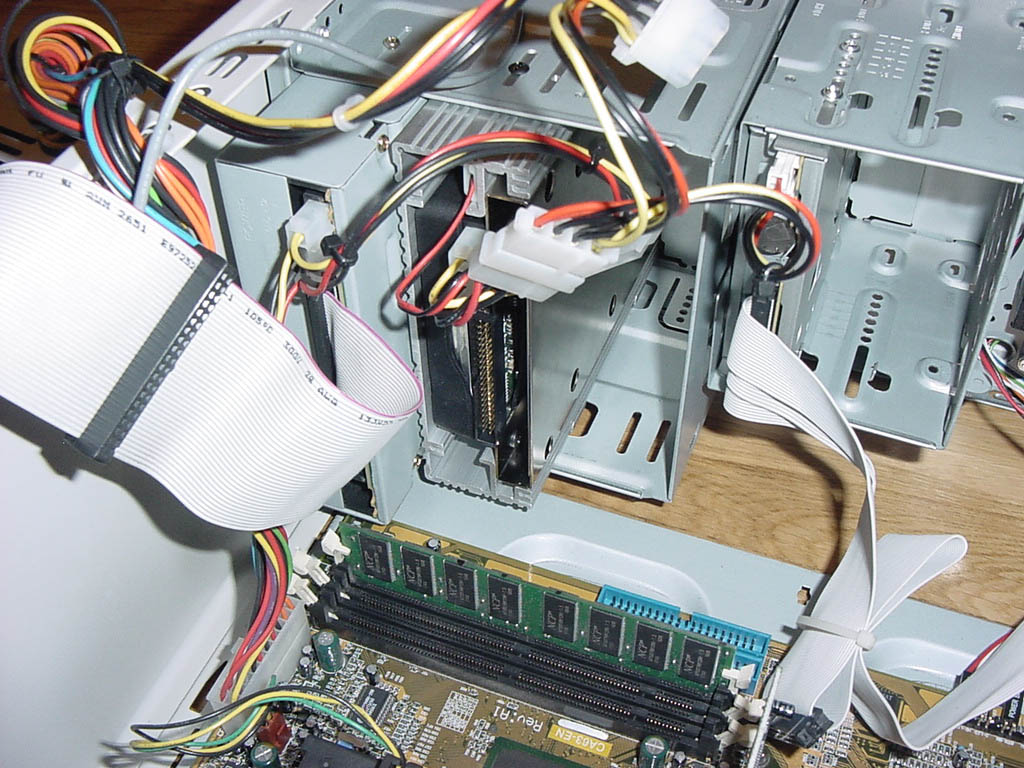

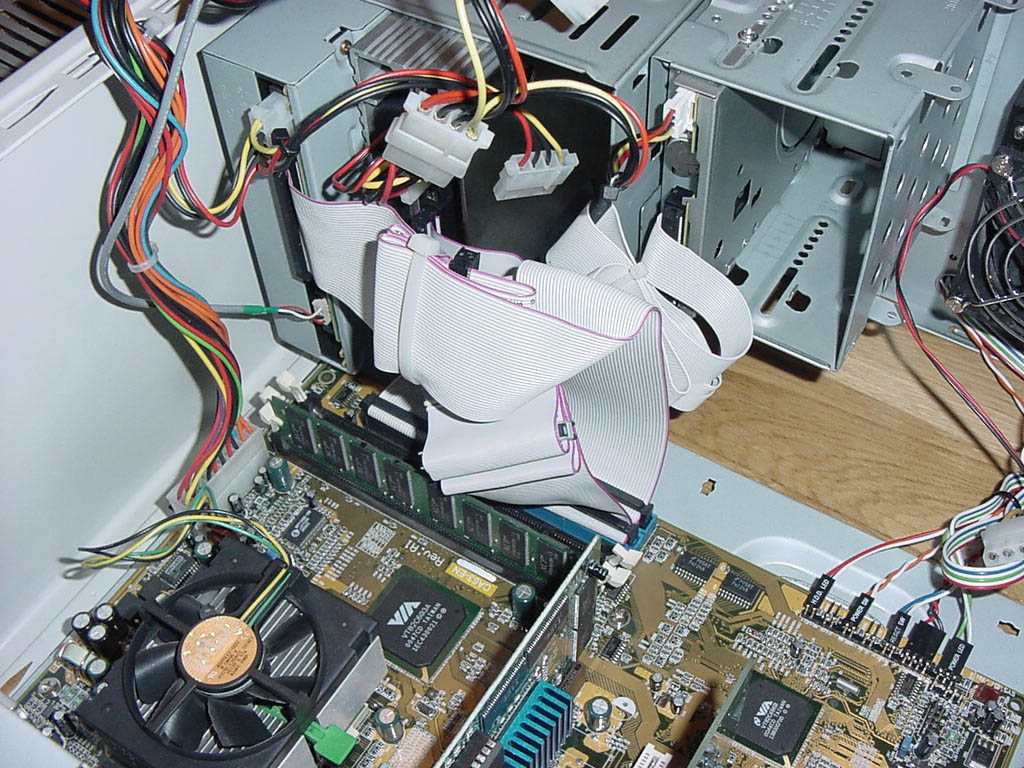

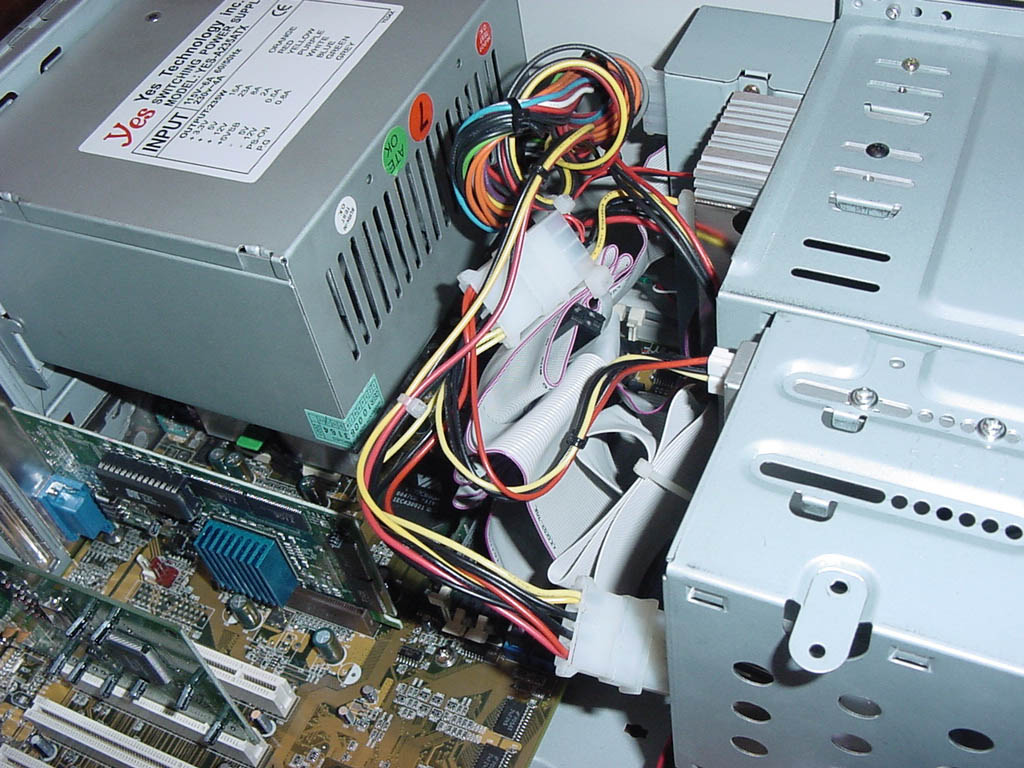

(re)Fitting of internal power and data cables

Debrief:

The CoolMaster Cool Drive 4002 40mm fan was very noisy.
A very high pitch sound (very persistent) made it a "no go"
after 10 mins of testing.

Just on the side of this mini tower is a Chieftec full tower fully equiped
with 5 x 80mm fans plus 1 x 92mm fan and nothing compares to the
high pitch that the single 40mm fan on the Cool Drive produces.

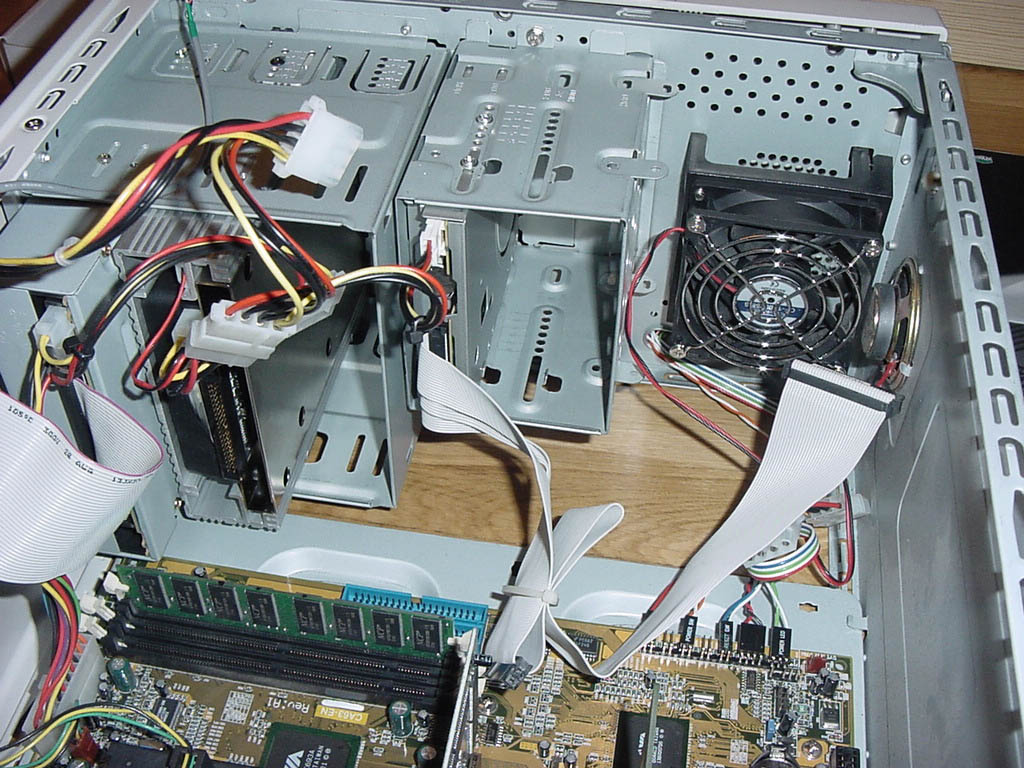

Plan B: Re-fitting the hard disk back on the mini tower,
still on the 5 1/4" bay using 3 1/2" to 5 1/4" rail adapters

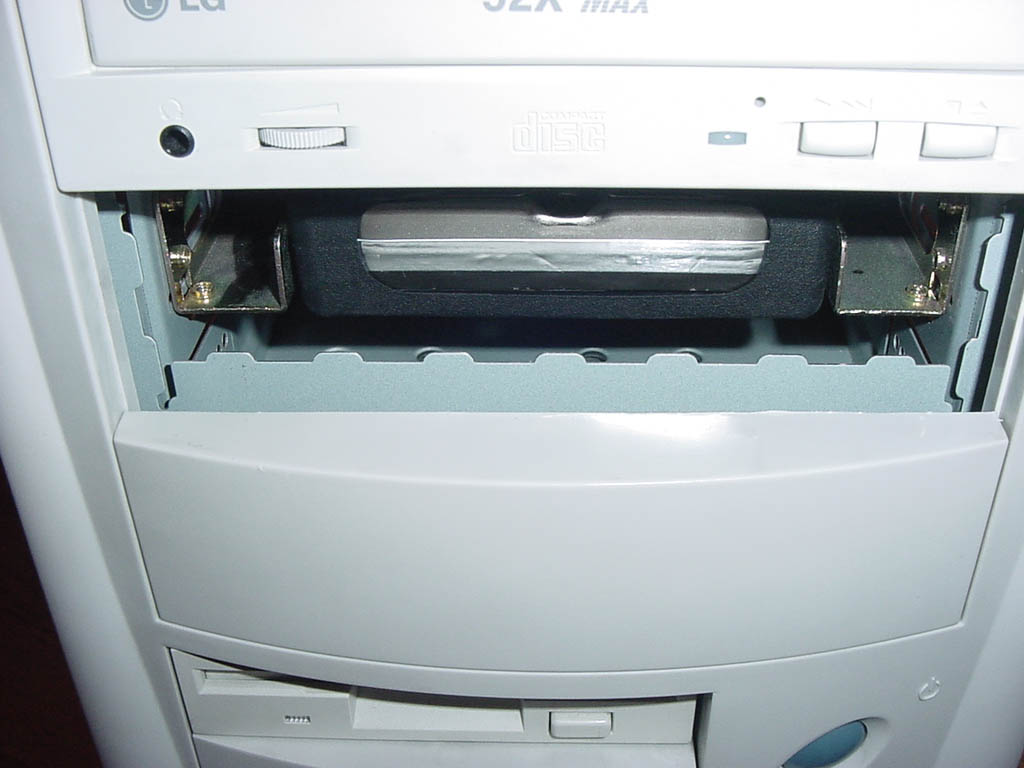

Done. Hard disk fitted on top bay with no Cool Drive
and with no high pitch fan noise.


Setup and photos by P. Mateus , webmaster@air-arms.com
Published: 20th September, 2002
