N e w M o t h e r Bo a r d :
E P O X 4 P E A+
H a r d D i s k s a n d Ca b l e A d j
u s t i n g
After installing the new motherboard, an
EPOX 4PEA+,

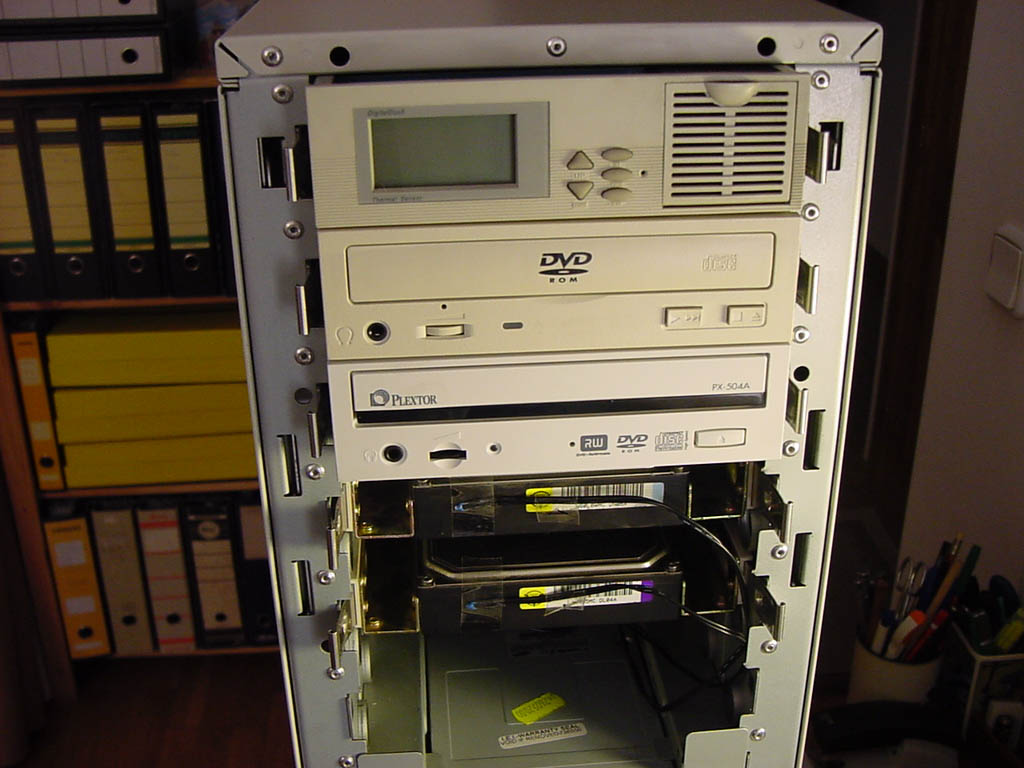

the two MAXTOR 5.400 RPM 40 Gb HD were moved to
top position with 5 1/4" rack adapters. The position of
the AGP slot and gfx board no longer made it possible for the
disks to stay on the bottom hard disk cage. Please note the
two blue tipped temperature probes from the
DigiDoc5 monitor on the front side of the Hard Disks.

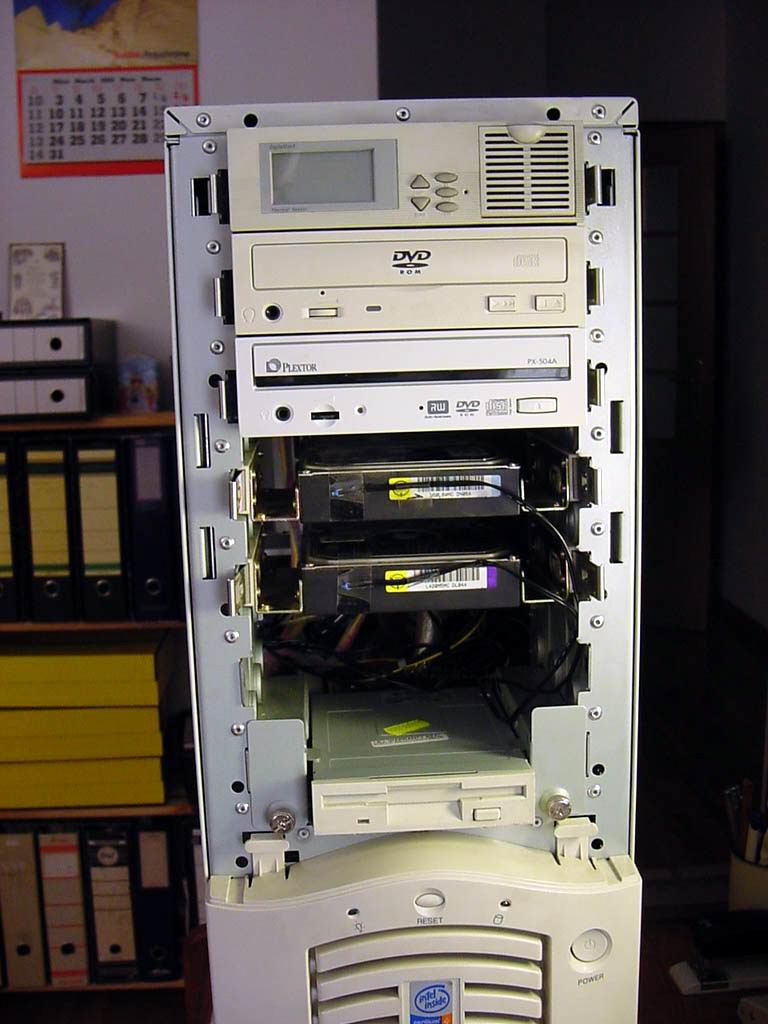

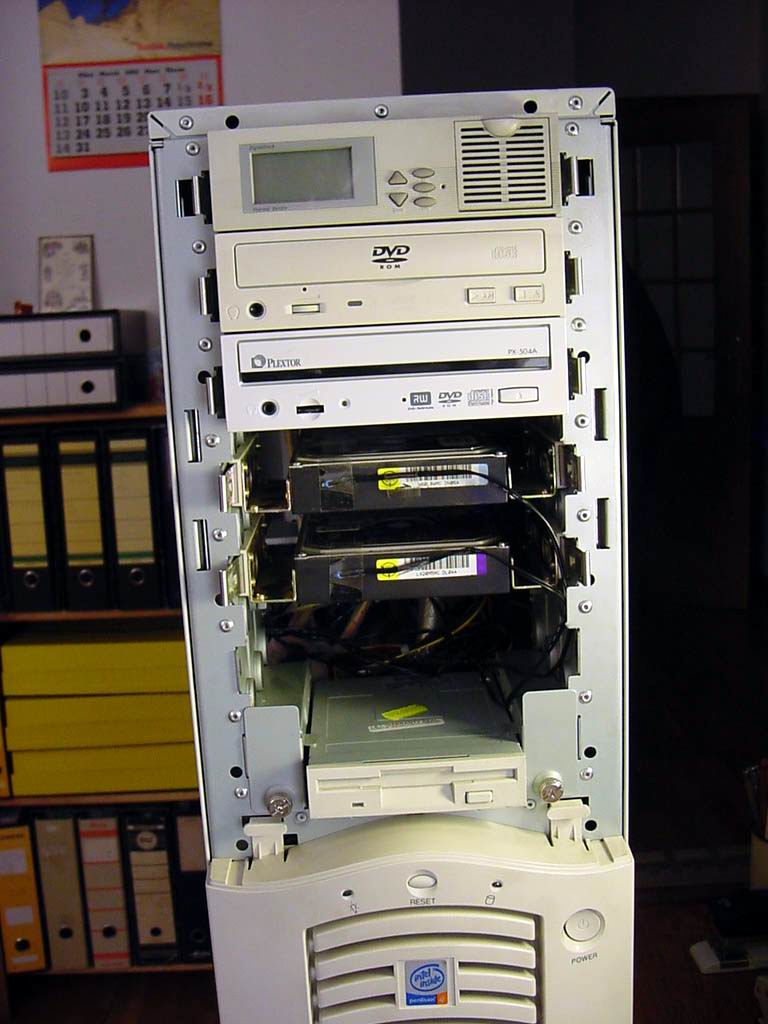

On the drive bay are please note
a new
Plextor DVD+R/RW PX404A

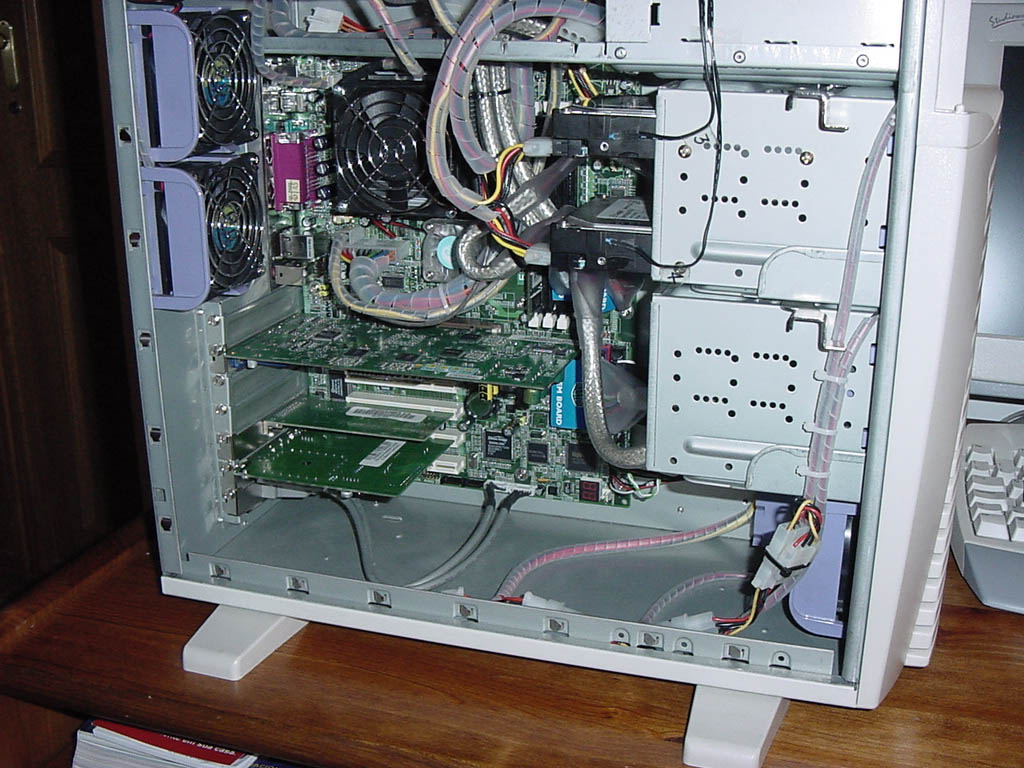

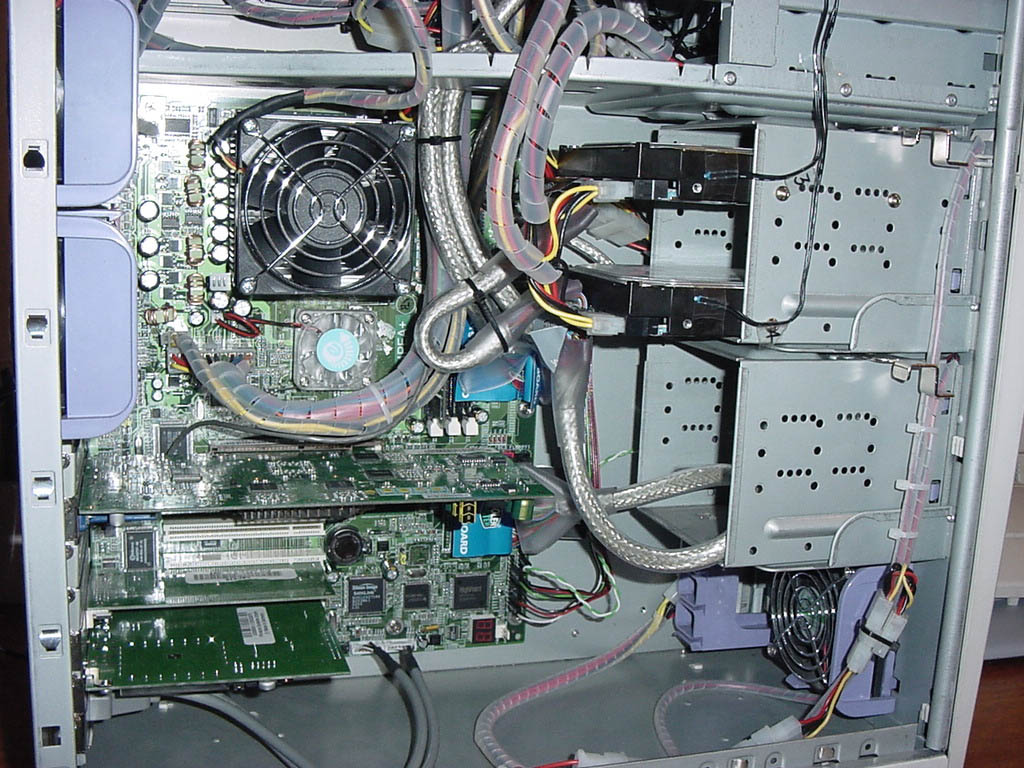

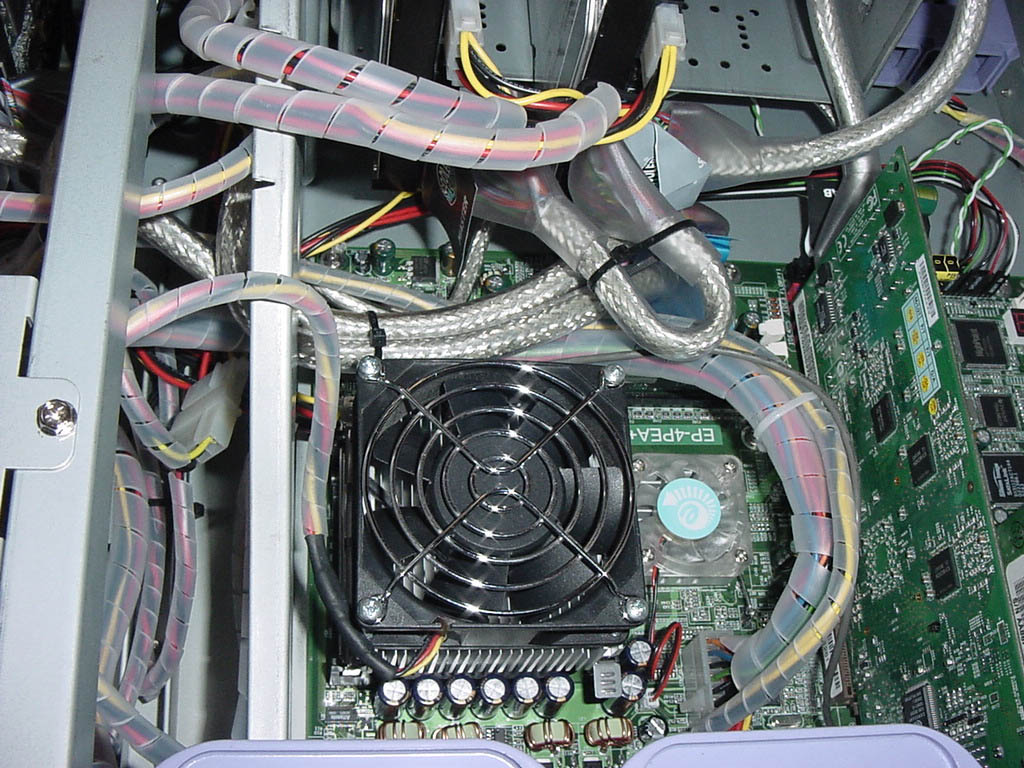

The cooler for the PIV 2.2 Ghz is a
CoolerMaster DI4-8KD3B-OL >>
Fitted with a SUNON 3500 RPM fan and stainless fan gril
Full load (CPU Burn-in 1.01) rates at 40 Celsius.
Fanner
420 thermal
paste

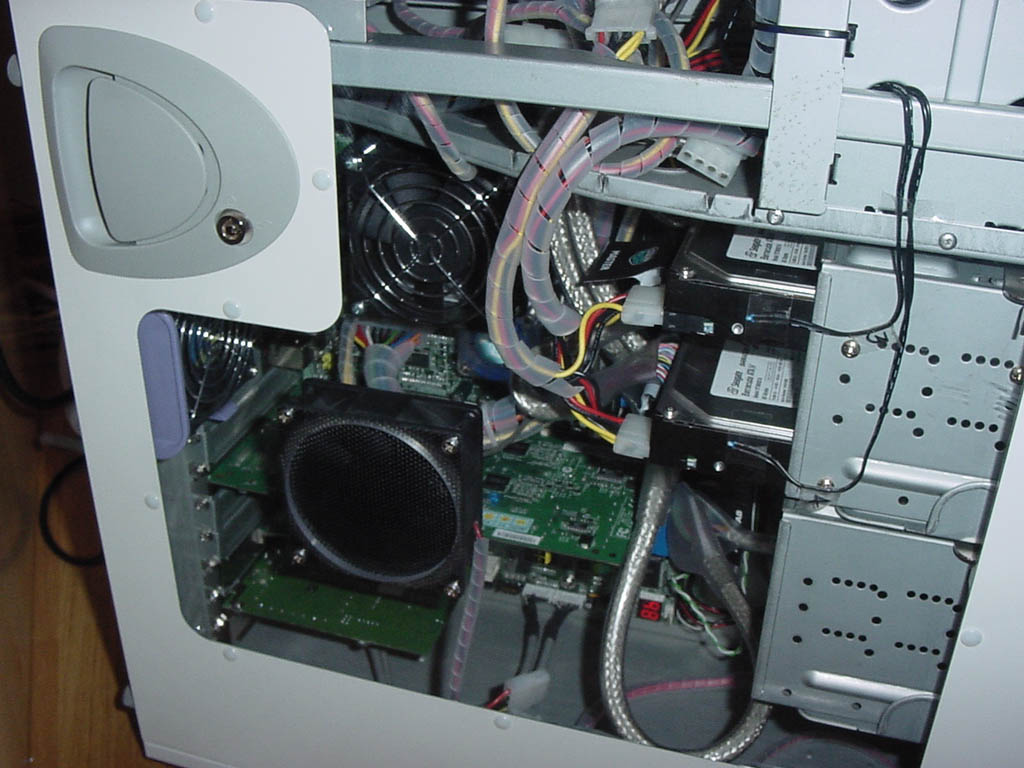

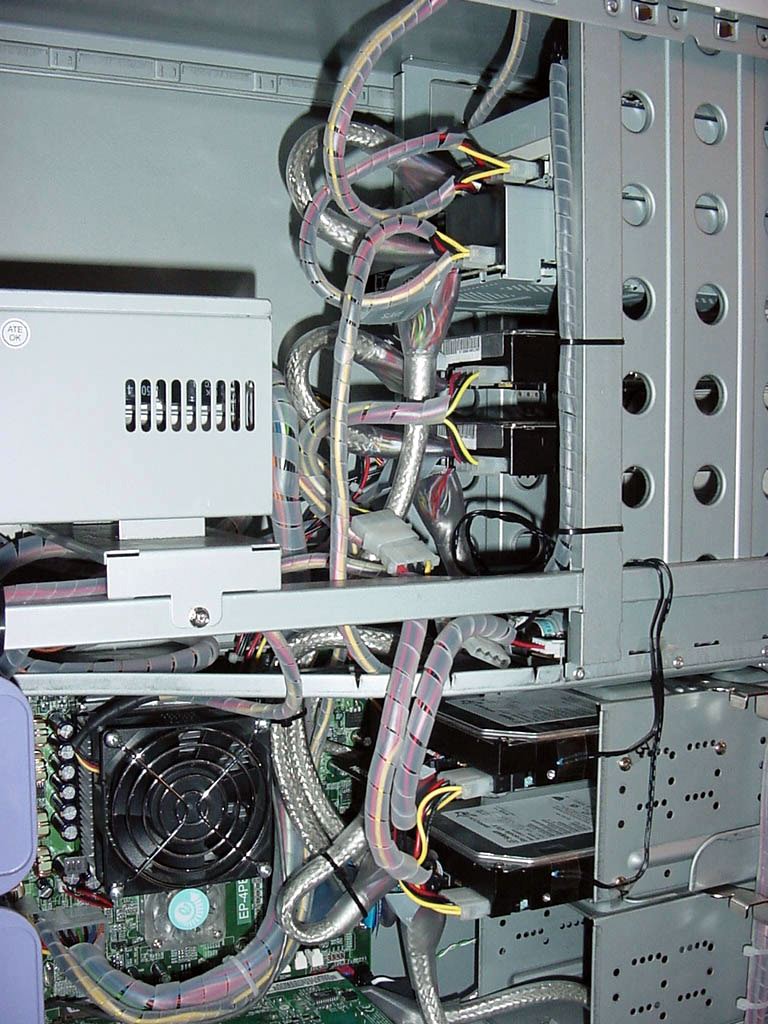

On the hard disk cage, right of the CPU, you can notice the
thin black cables (labeled/numbered 3 and 4) with blue terminal
tips from the DigiDoc5 temperature probes.
All IDE cables are by CoolerMaster (roundend, 80 conductors).

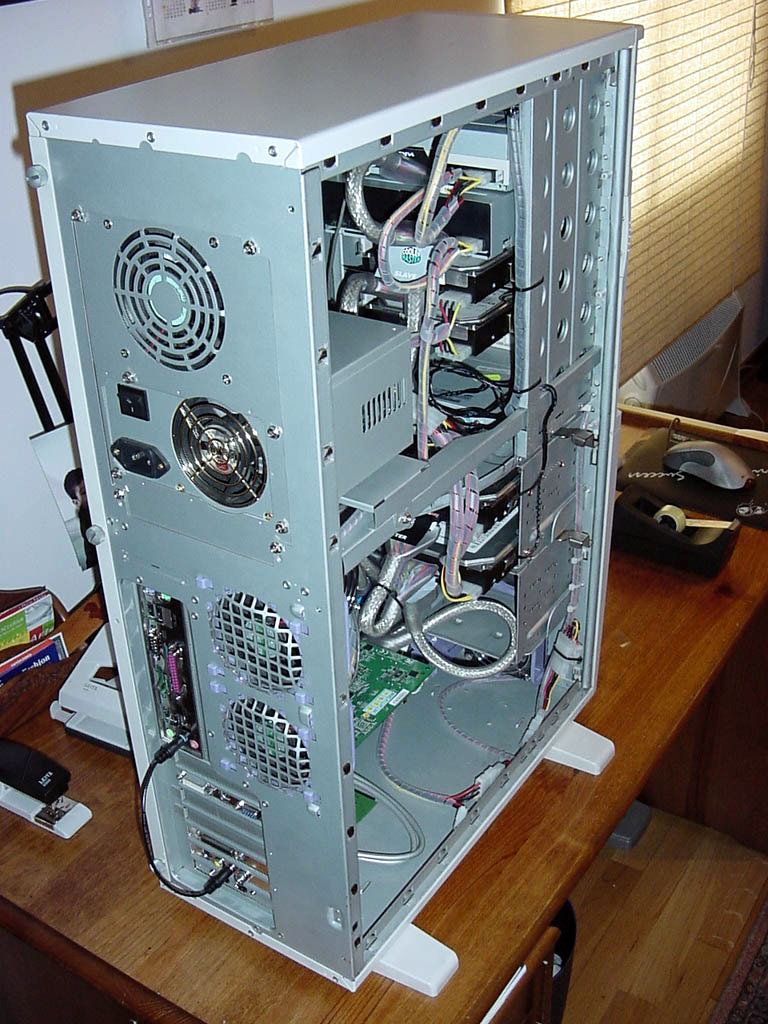

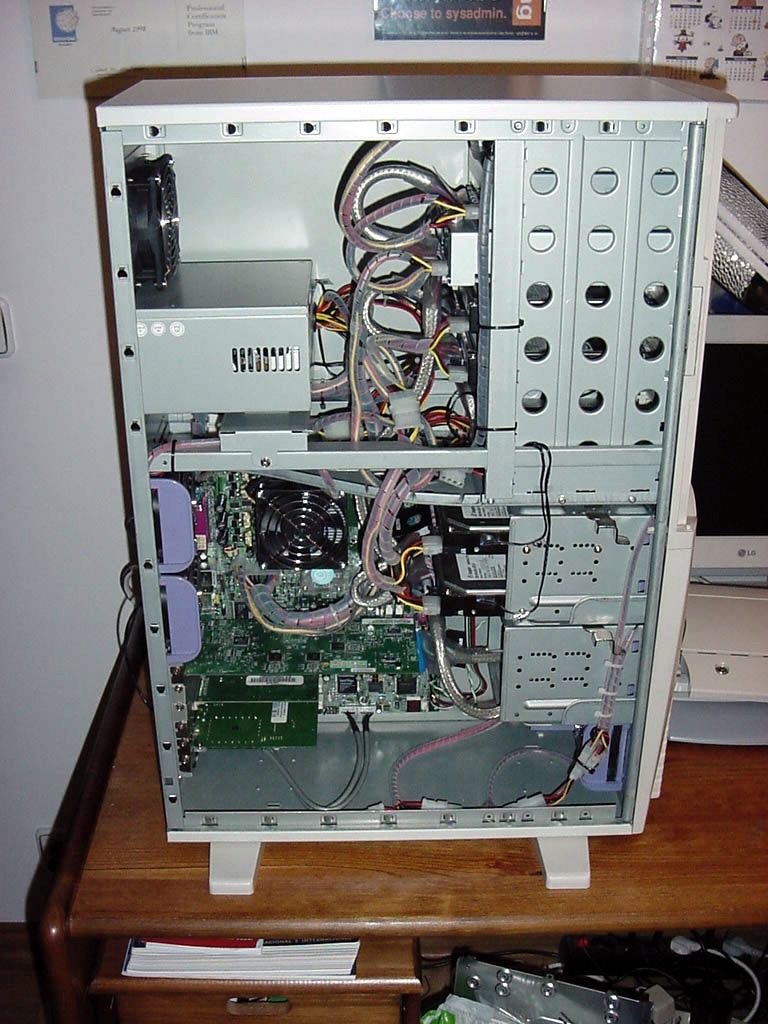

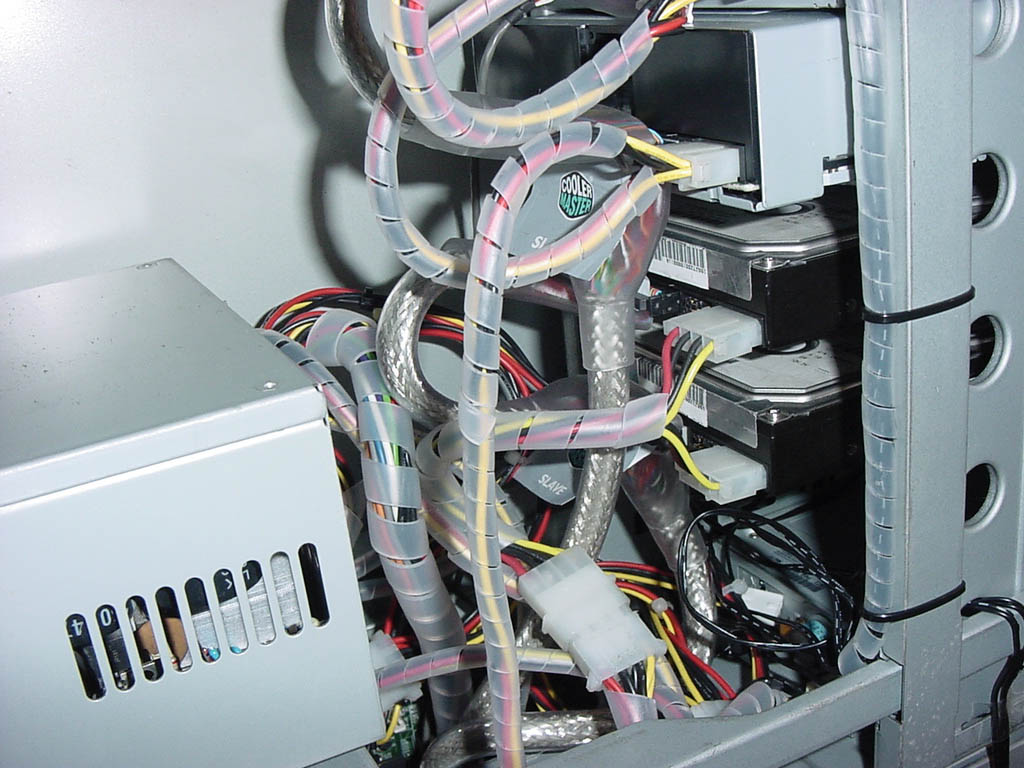

Almost all power cables were wraped up and arrested
with plastic straps for stable positioning and better air flow.

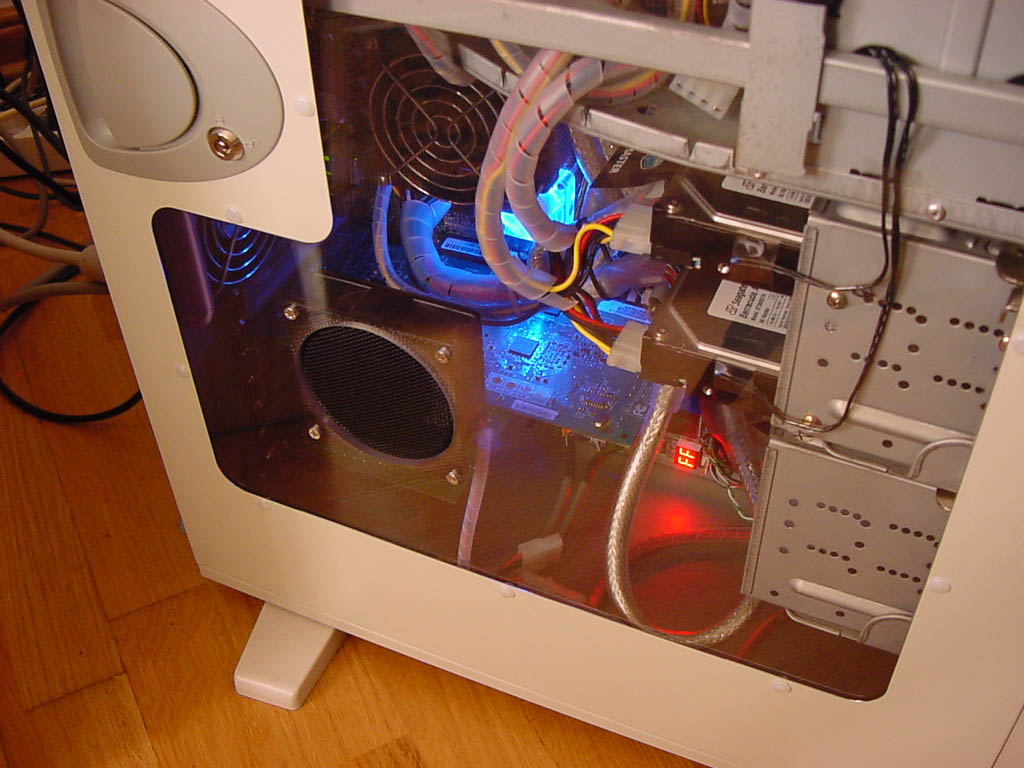

The EPOX 4PEA+ board comes with a chipset cooler and fan
with a blue neon light and with a two
red led debug/info led for
Bios / Board detail.
Case Mod and photos by P.
Mateus , webmaster@air-arms.com
Detailed step by step
photos of the original full case mode here >>
|
Setup: |
