240 Liters Freshwater Planted Aquarium
Initial Setup





   Setup date:
27 December 2006
   Aquarium:
MP Aquarien, Model Karat 120, 240 Liters, 120x40x50
   Substrat:  Medium and small gravel (2-4 mm, aprox. 40 Kgs) plus JBL ProFlora Start (aprox. 3 Kgs)
   Other: 2 large driftwood logs/roots
   Filter: EHEIM Professionel II 2026 950 Liters/Hour
   Thermostat: 2 x JAGER Eheim Aquatics Typ TSRH, 125 W, Total 250 W
   Lighting: 144W, 4x36W, Power Compacts, LifeTech, 10000K Daylight (10 hours) )
   C02: JBL Profi2 Set with solenoid valve and diffuser, 1-2 bubbles per second (10 hours).
   Thermother: Digital (0.1 Celsius precision)
   Water change: 30-40% every week
   Water elements: average PH 6.8, average temperature: 28 Celsius

   Flora:
Pogostemon helferi, Anubias barteri var. nana, Anubias barteri var. barteri, Echinodorus bleheri,
  Hygrophila polysperma  "Rosanervig", Echinodorus "Red Special", Microsorum pteropus,
  Microsorum "narrow" and Microsorum pteropus 'Windelov'
   Fauna: approx. 6 "Red Cherry" shrimps,  approx. 10 Physa snails

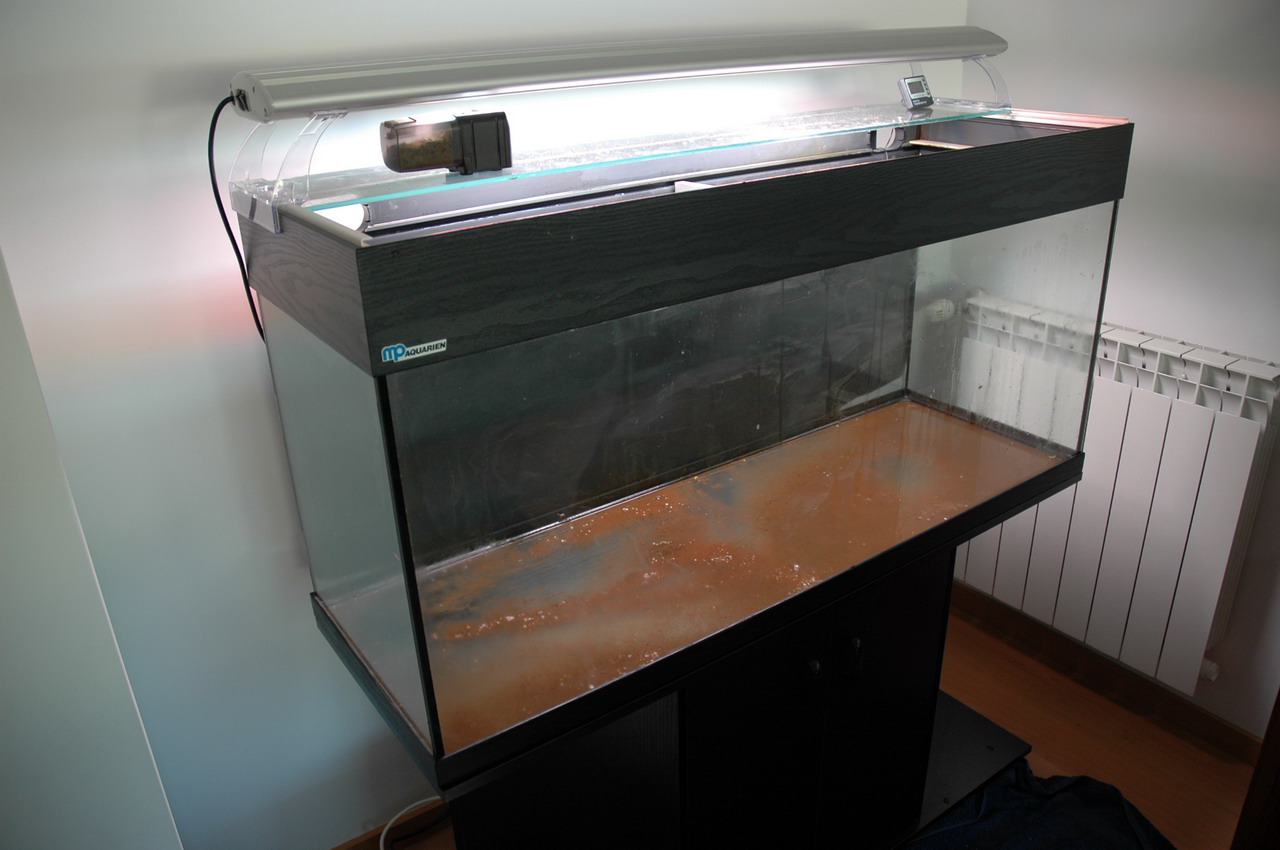

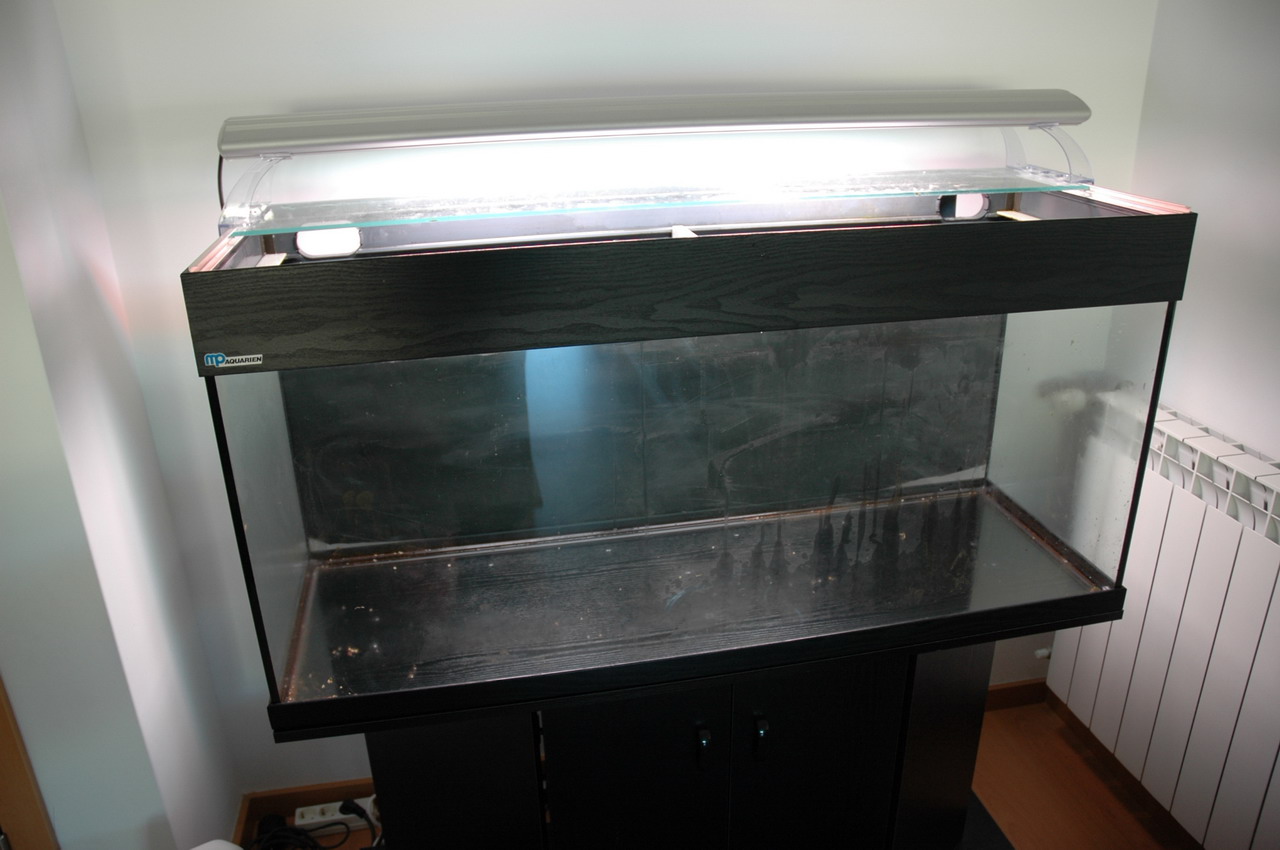

Cleaning up from previous layout

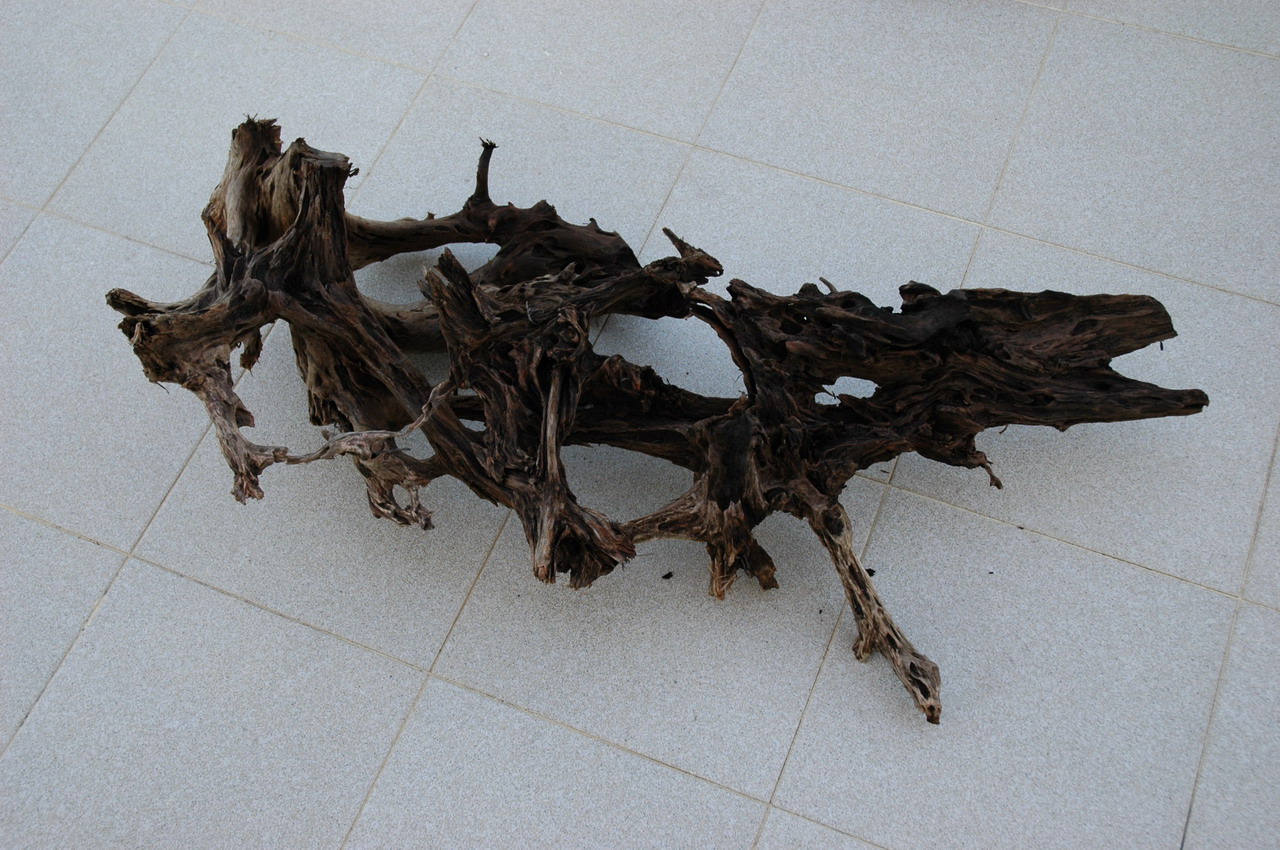

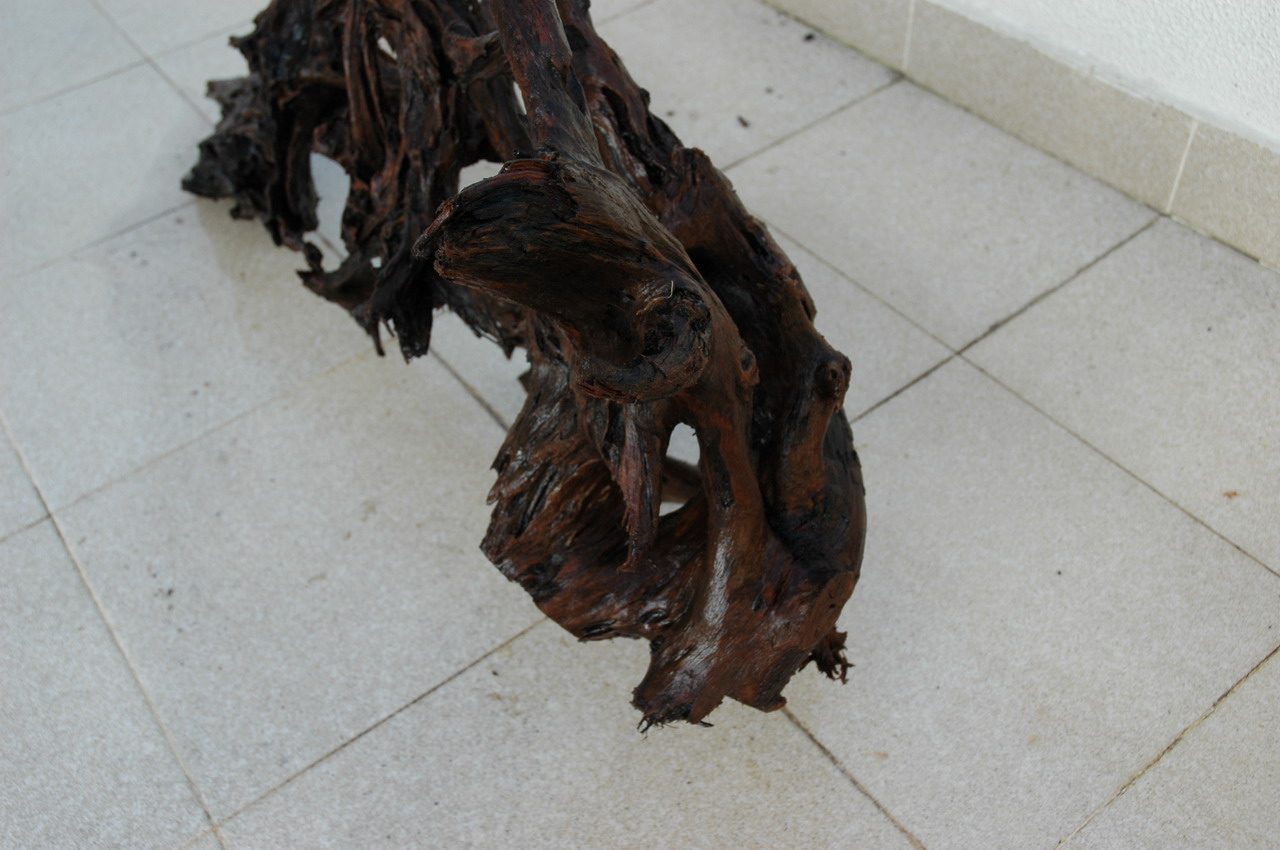

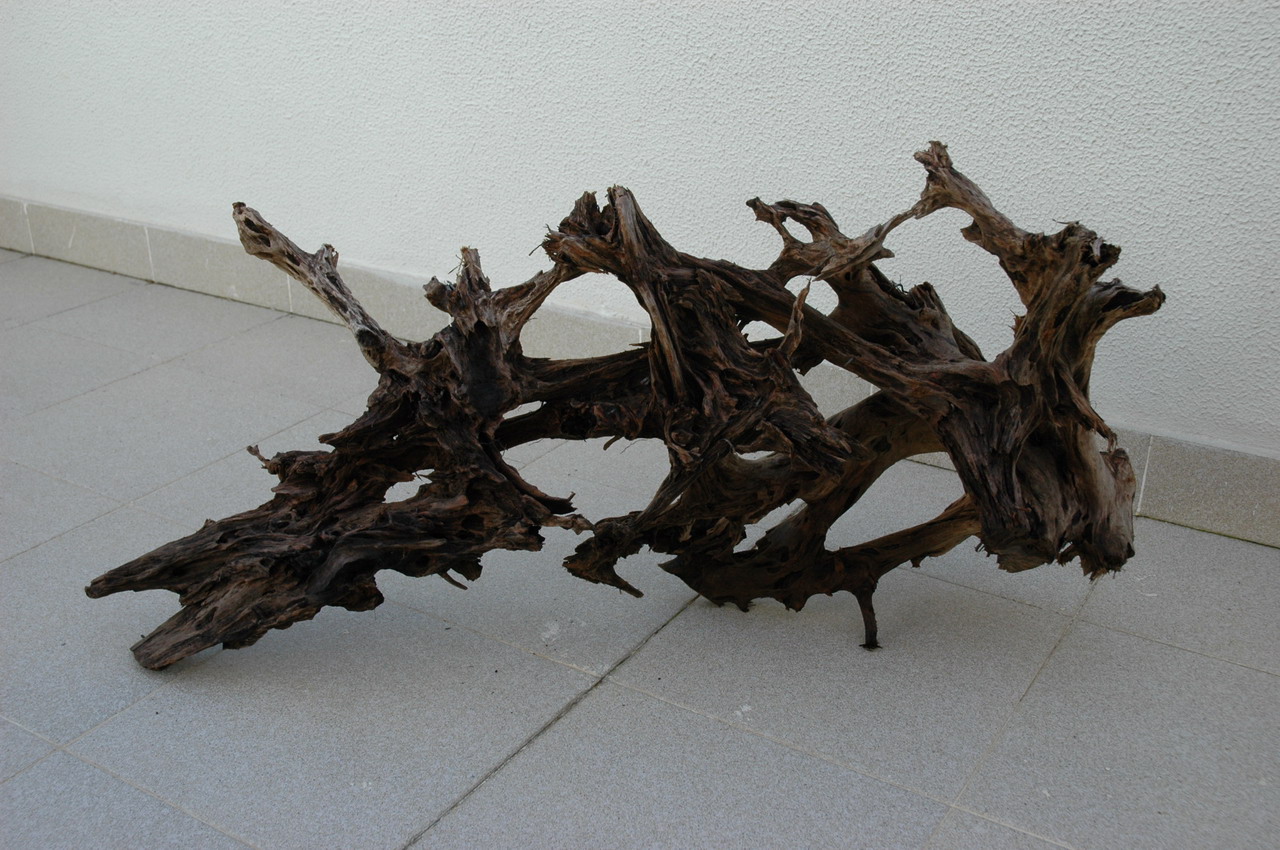

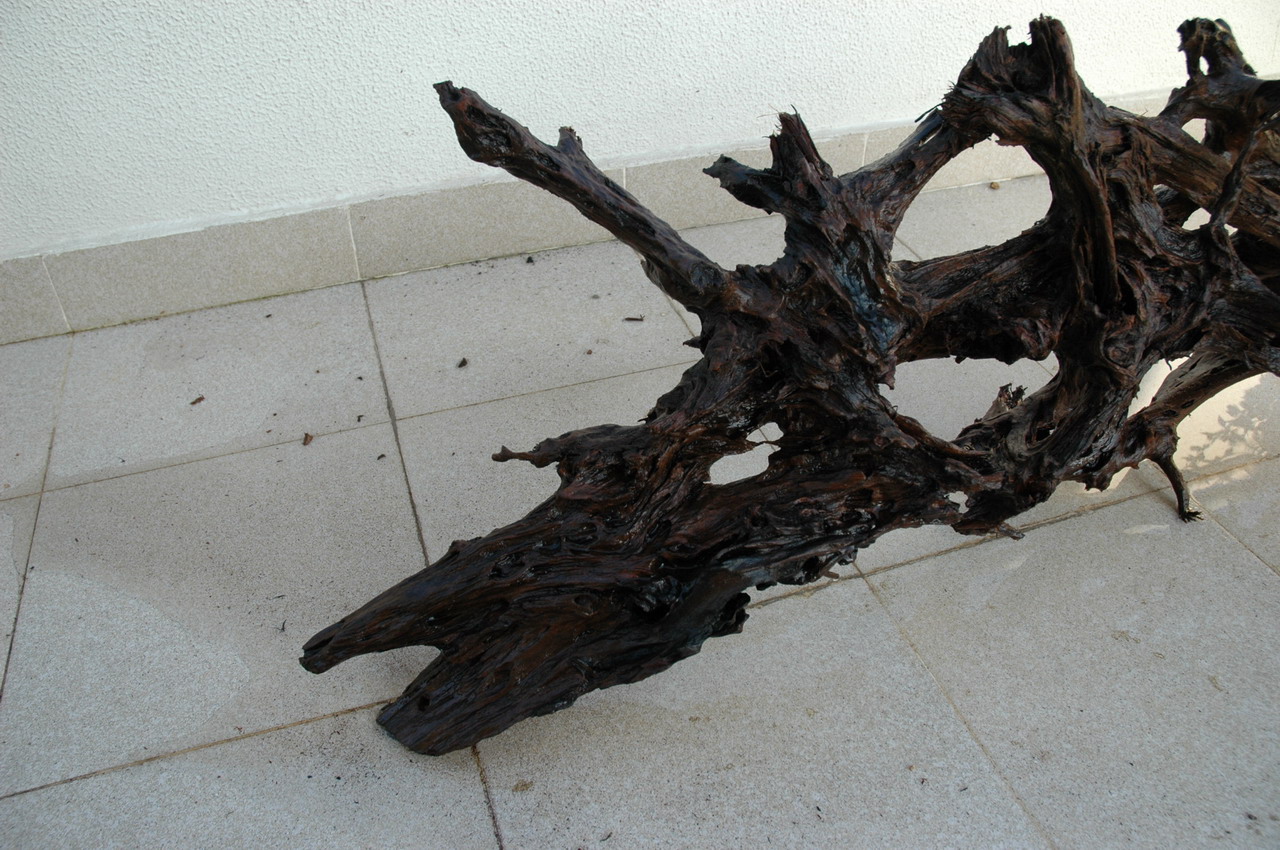

Large driftwood (approx. 1 meter long)

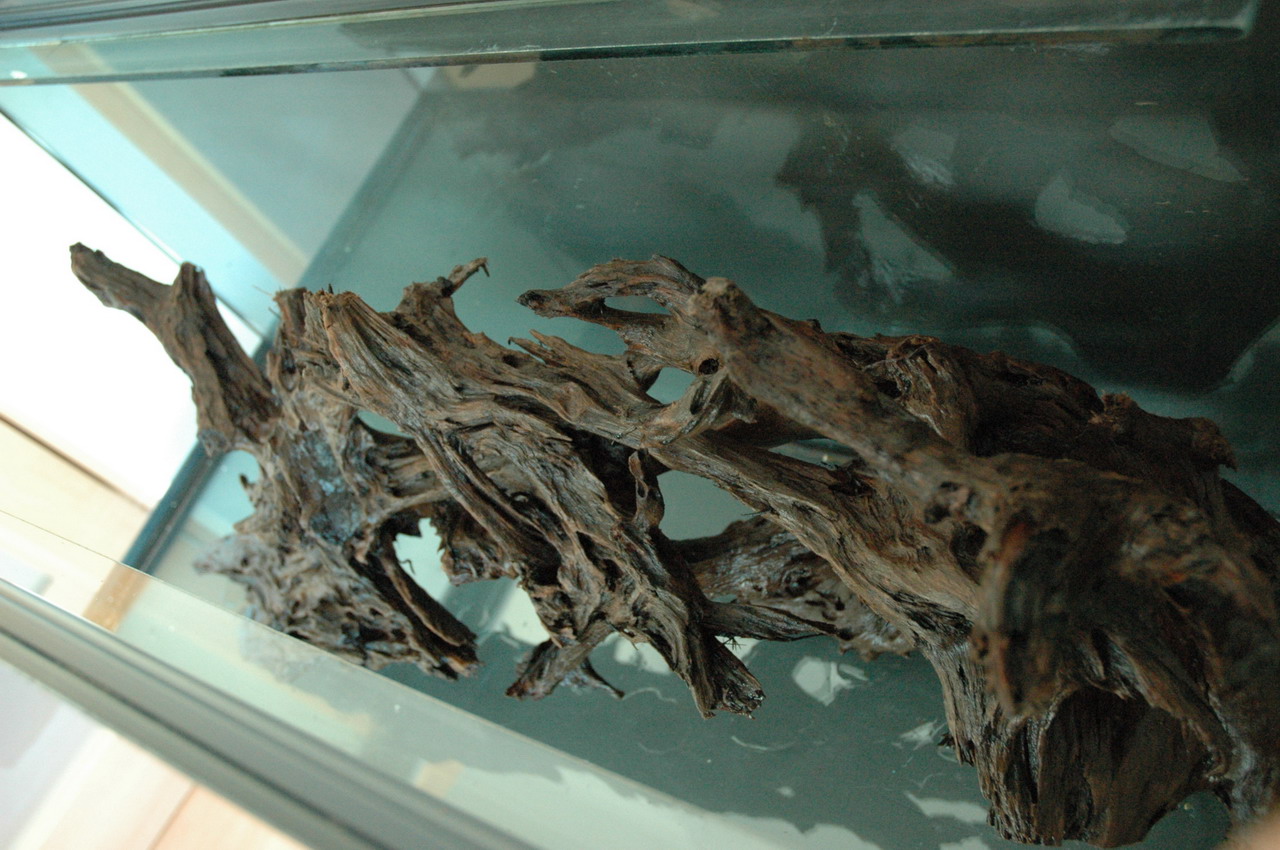

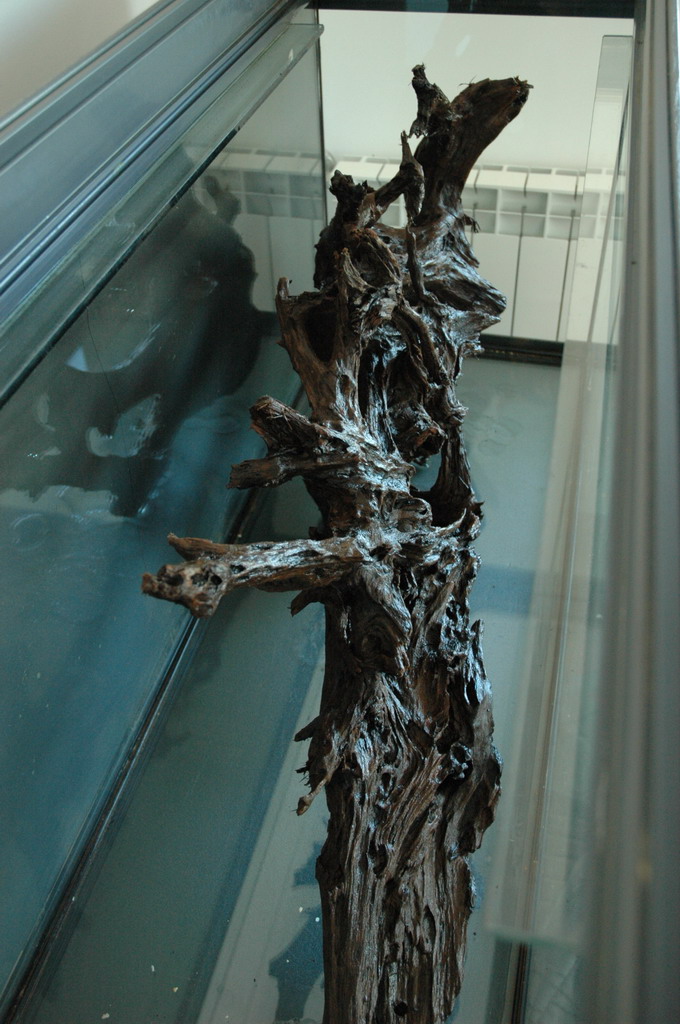

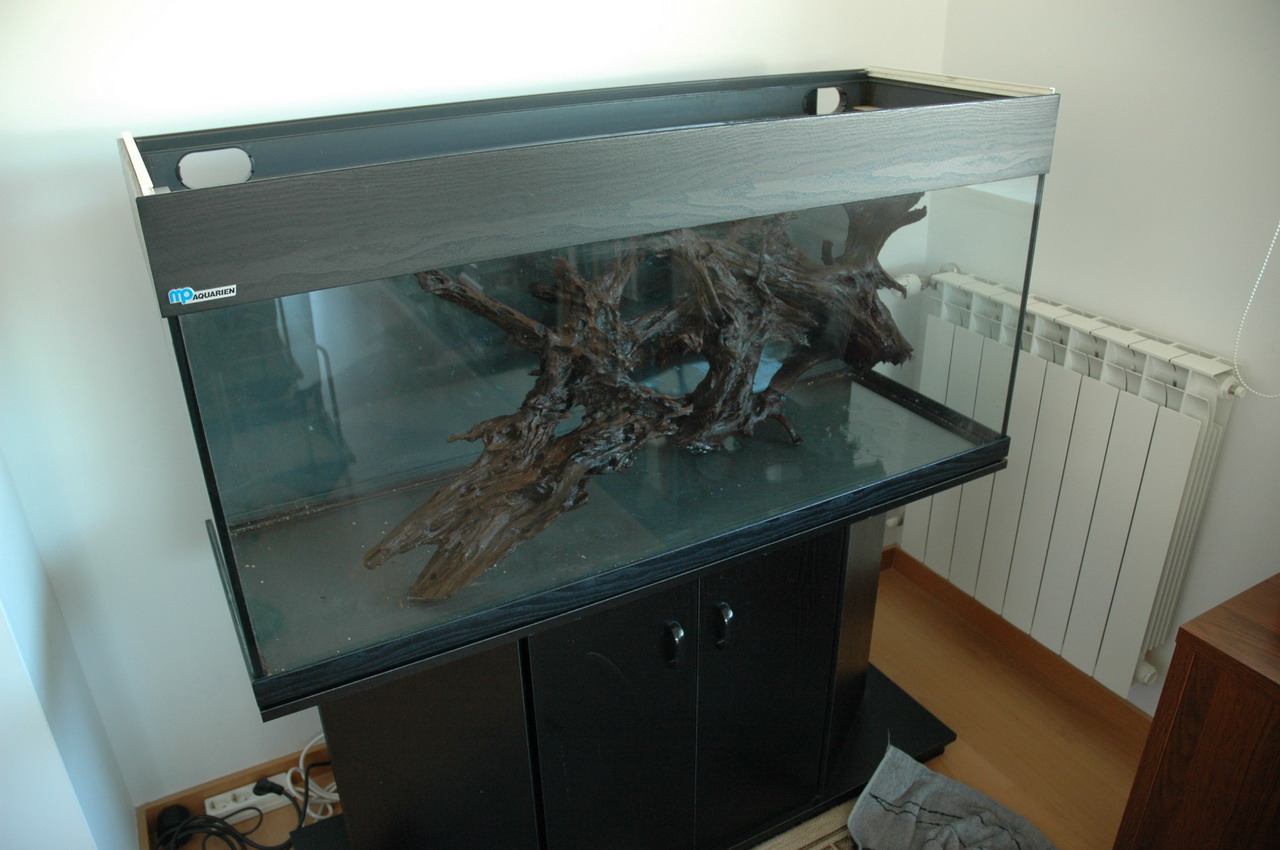

Layout and fitting test for the large driftwood

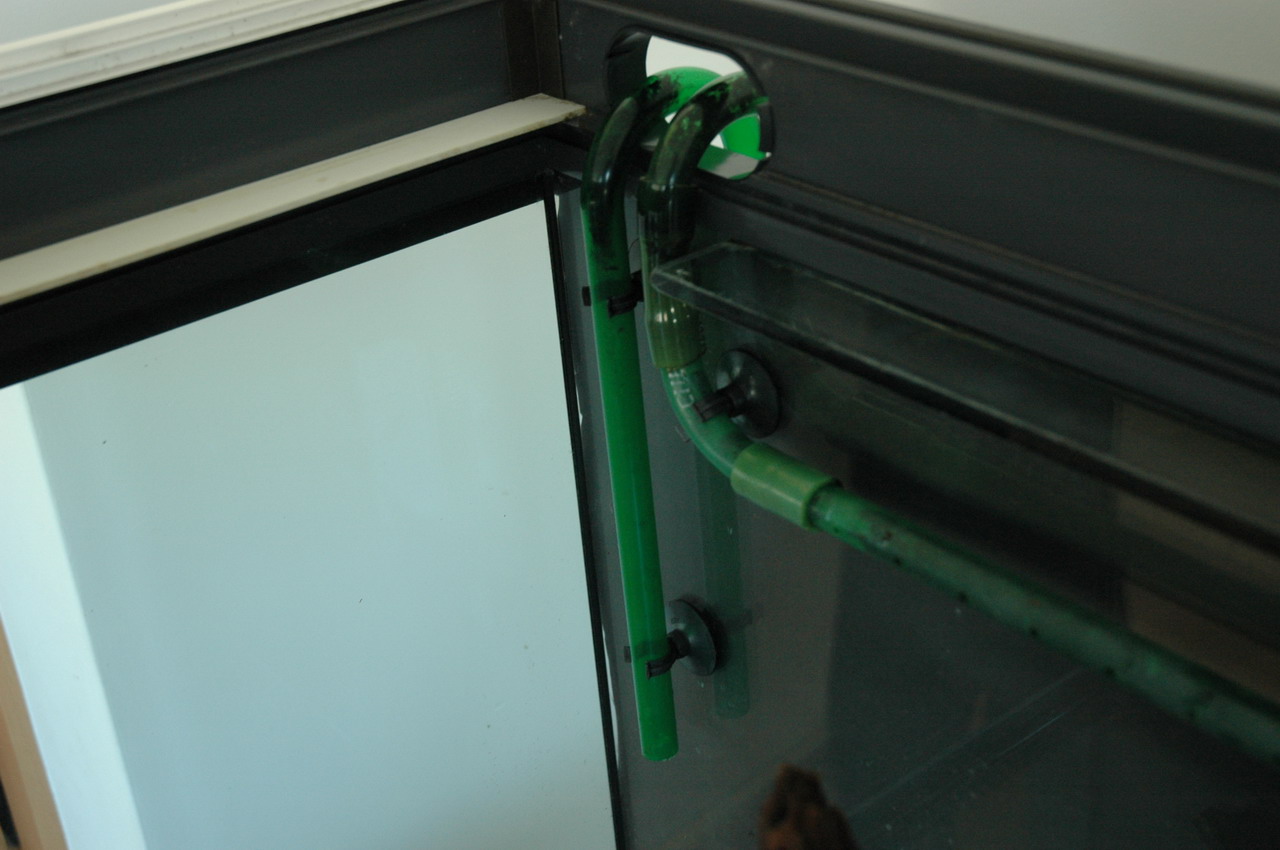

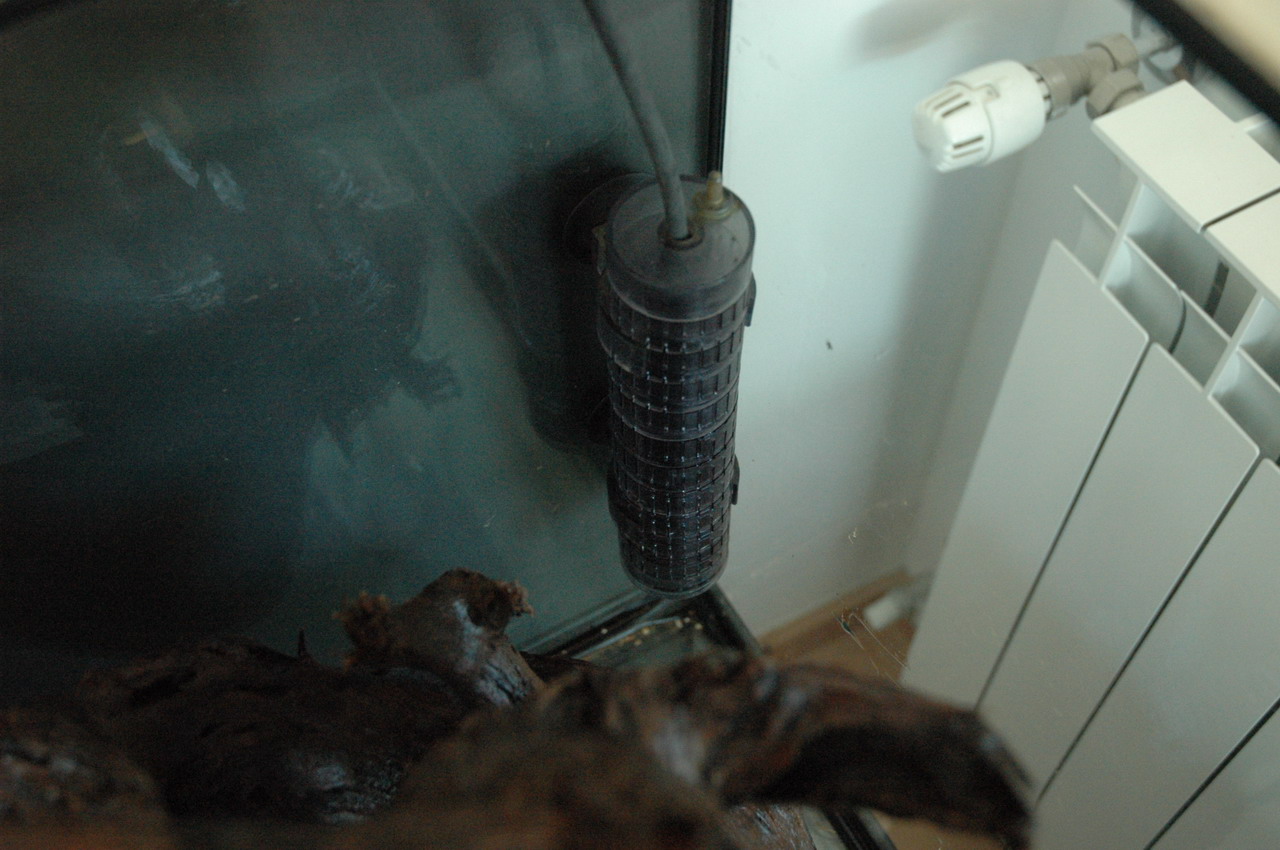

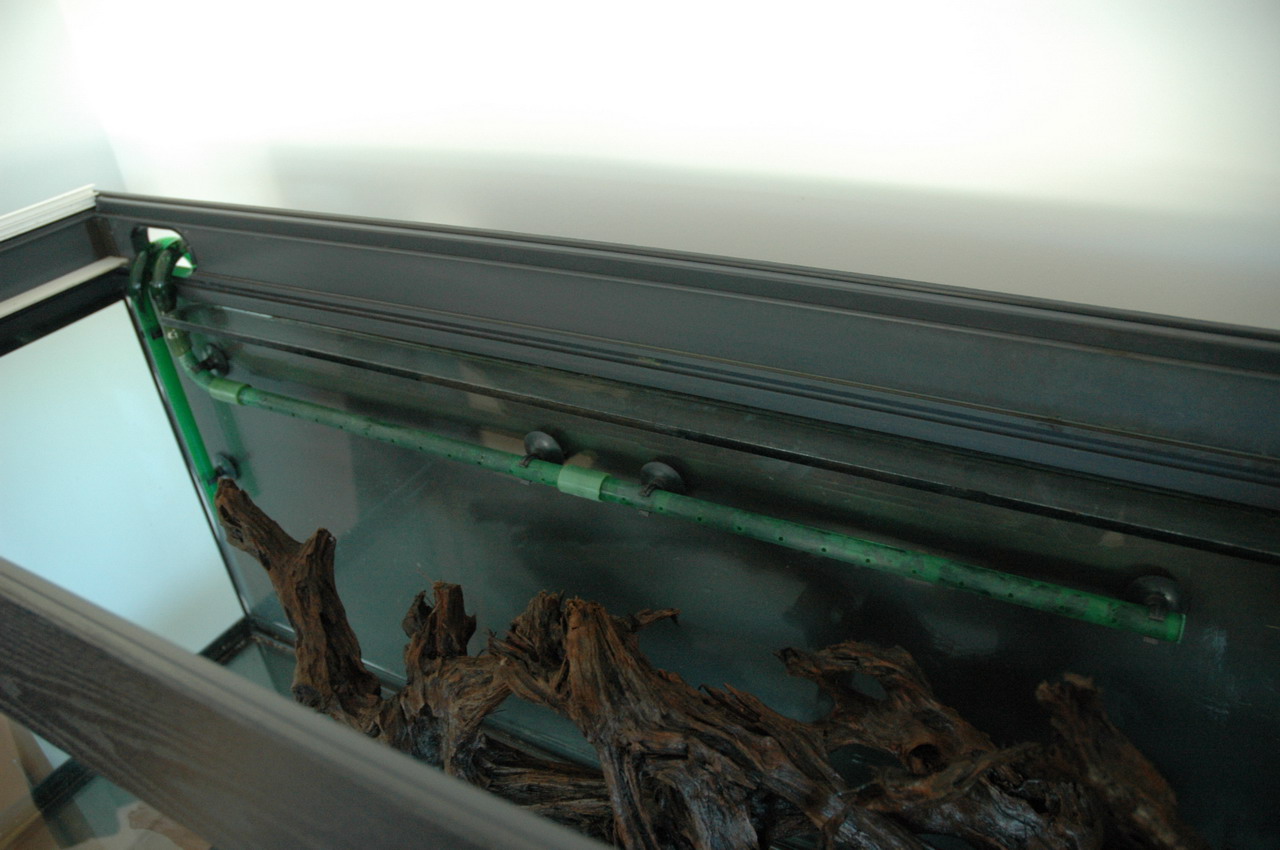

Details on the water in and out flow tubing and C02 reactor (JBL)

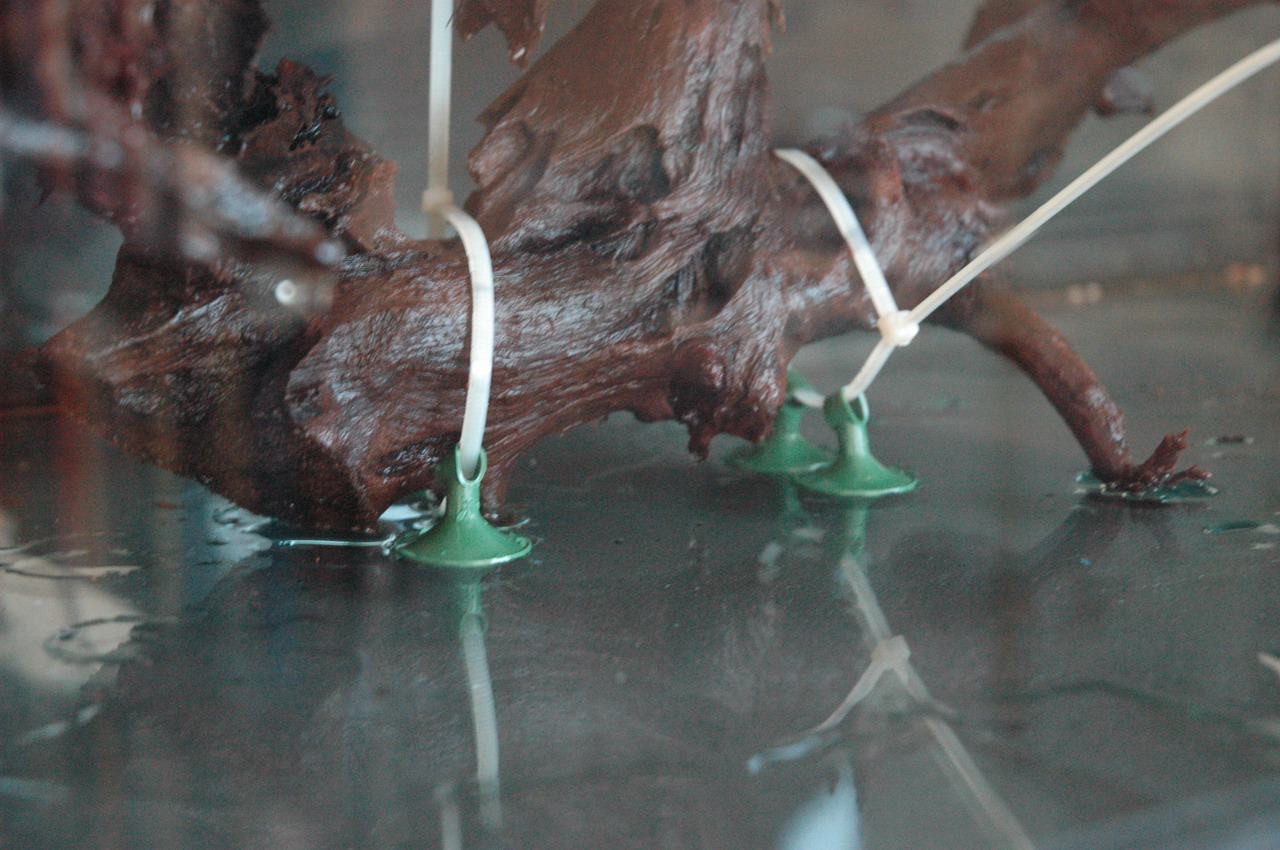

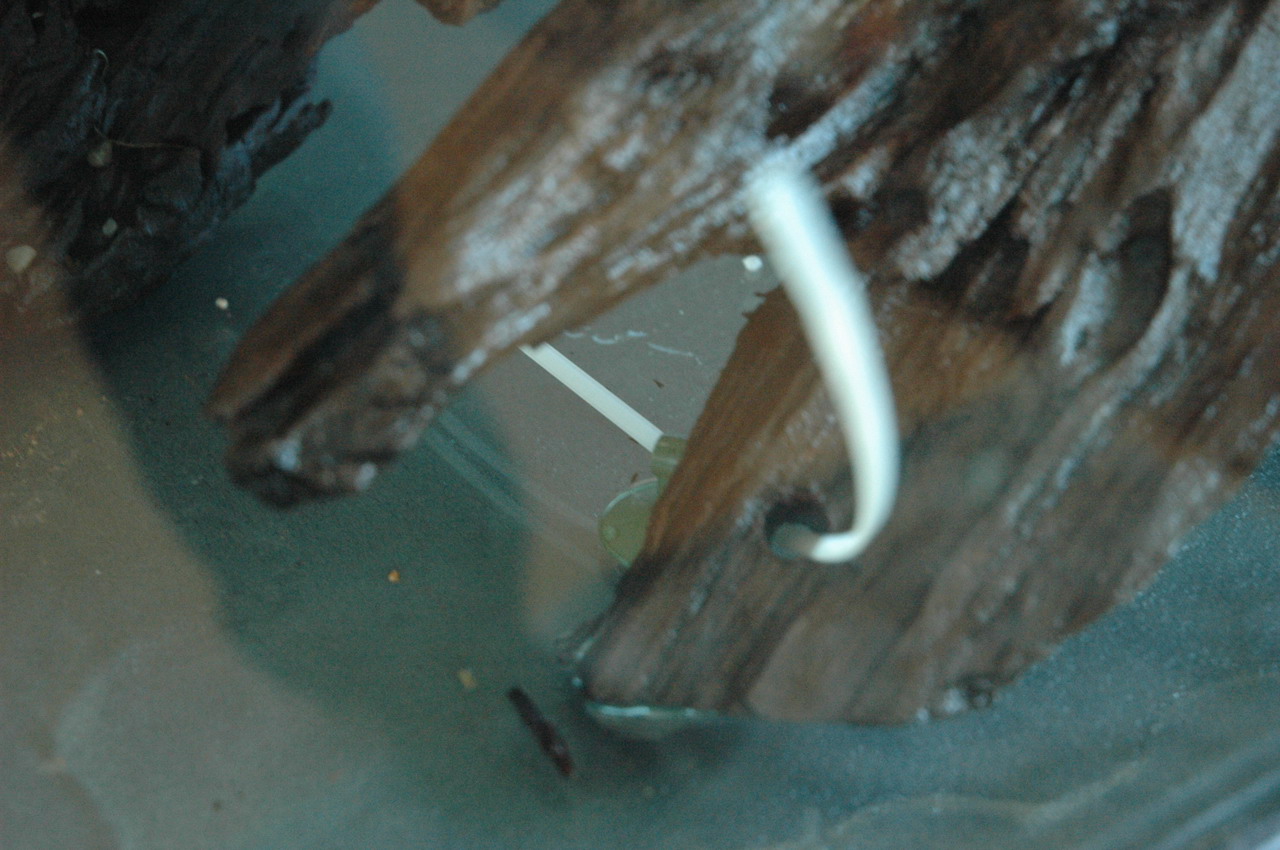

Suction cups and nylon straps to prevent movement of the large root

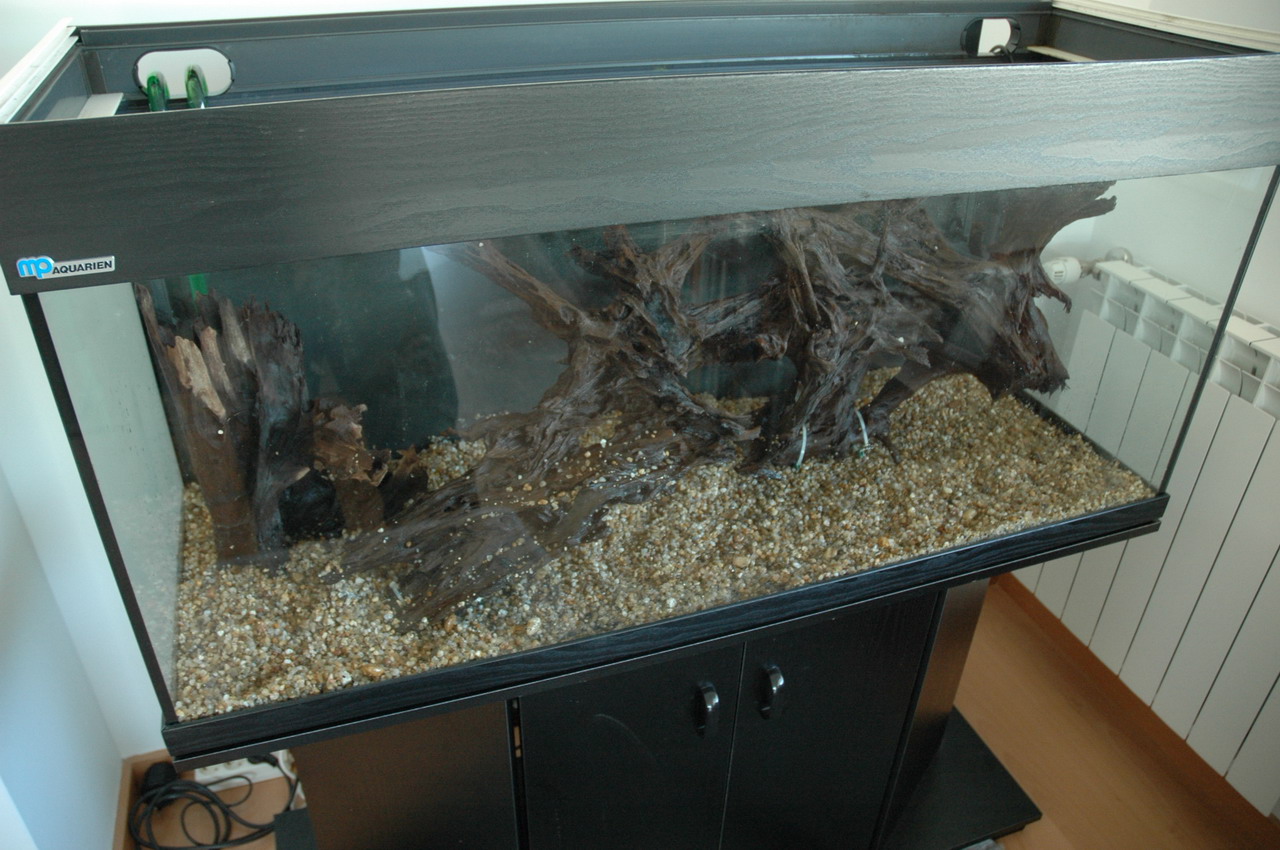

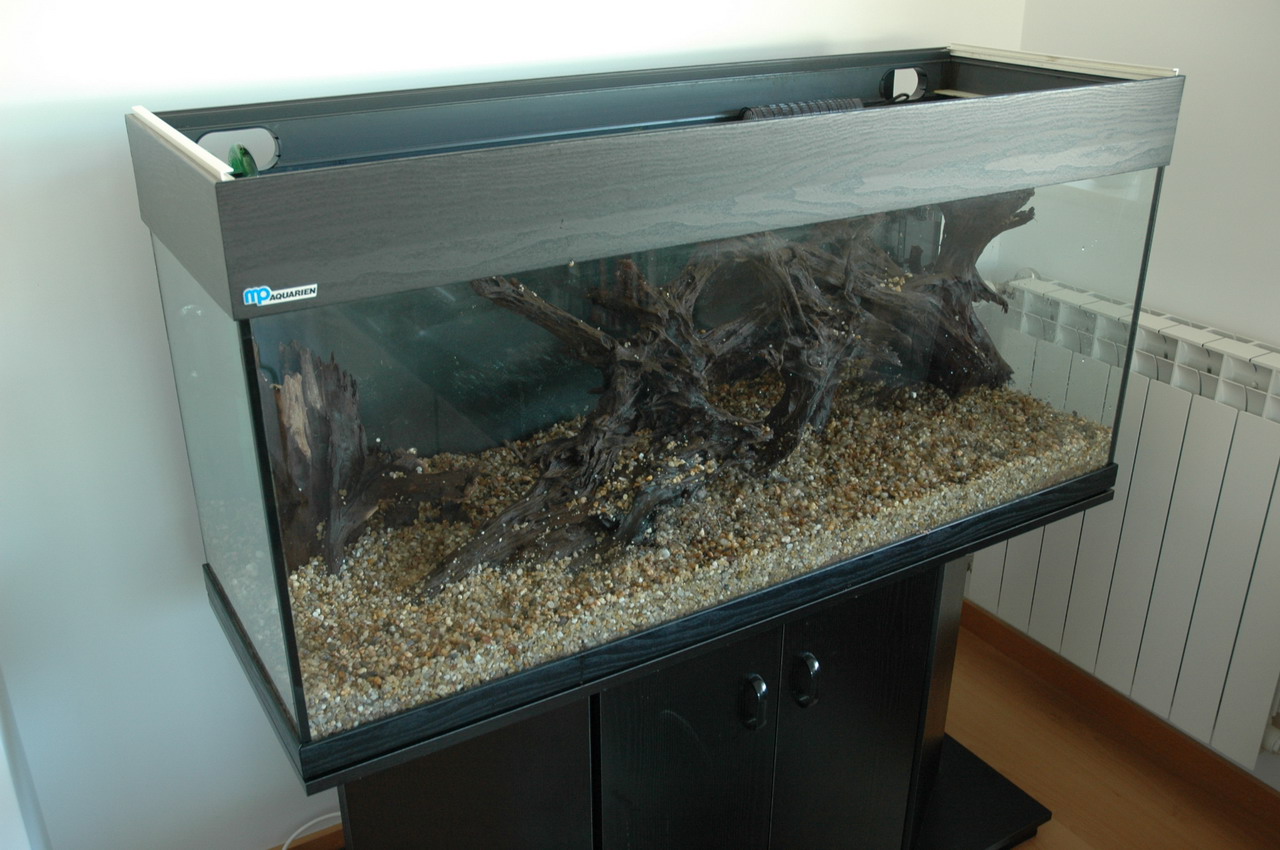

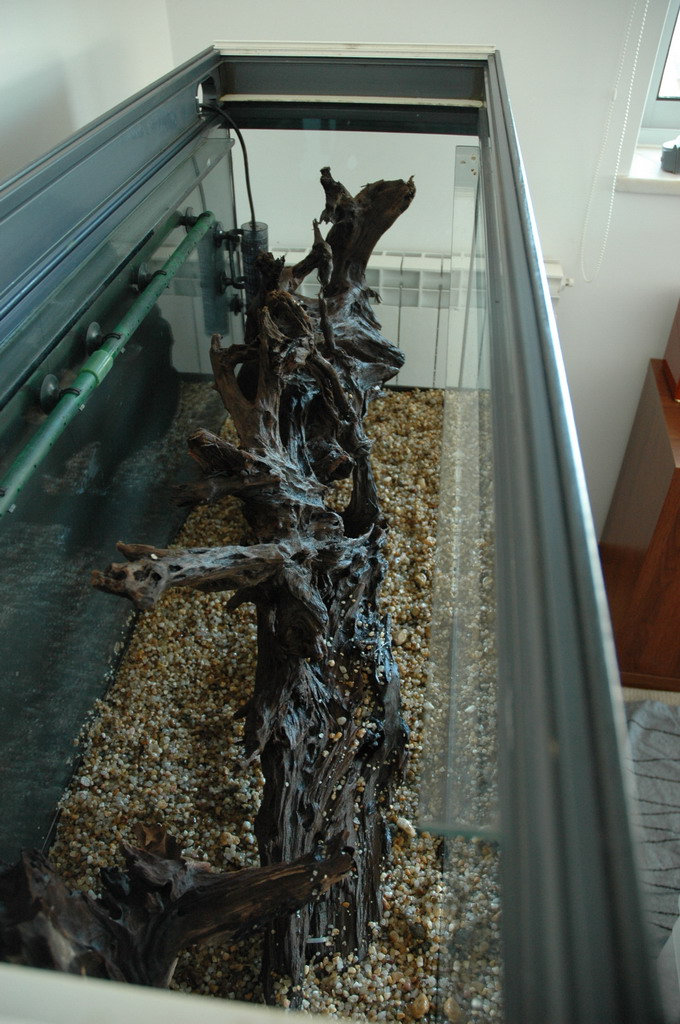

Large and small (left) driftwood in place along with a first layer of gravel

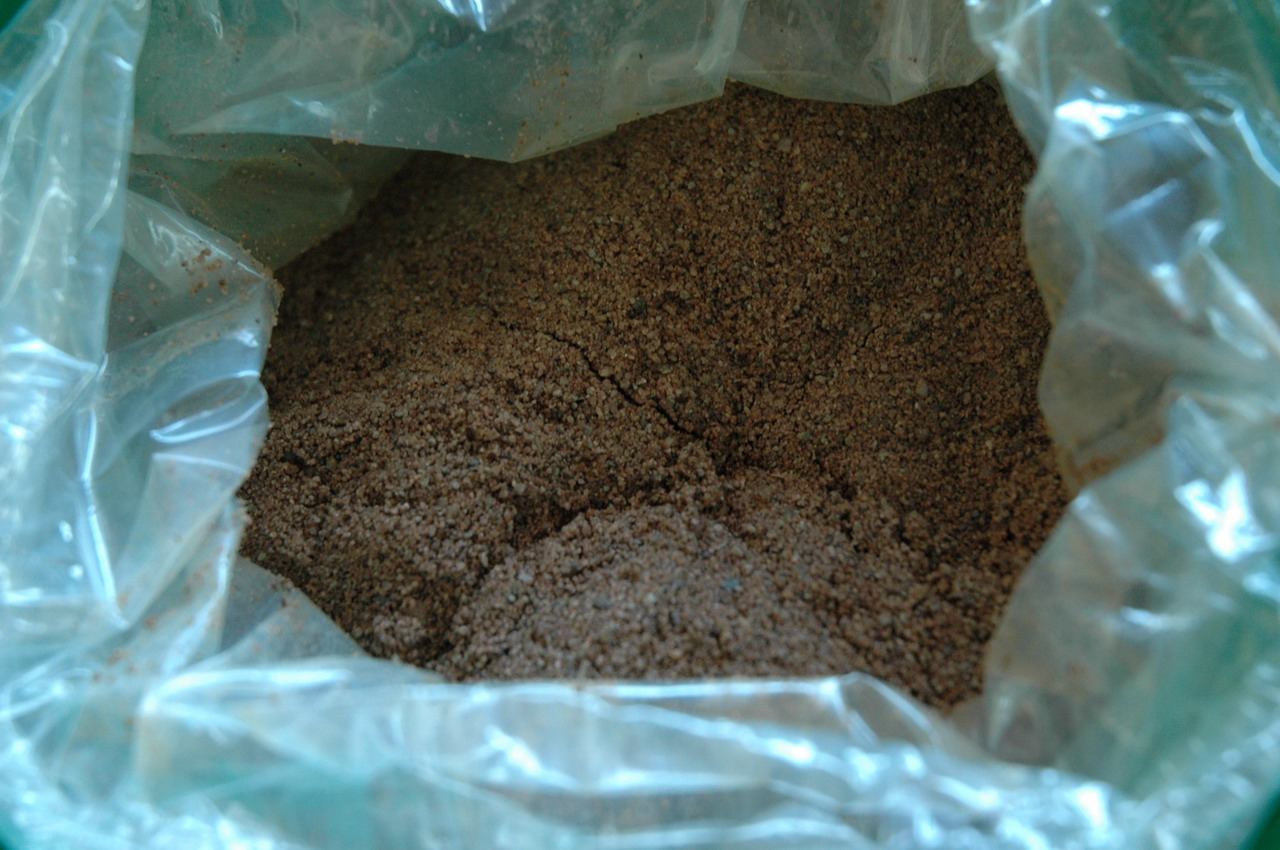

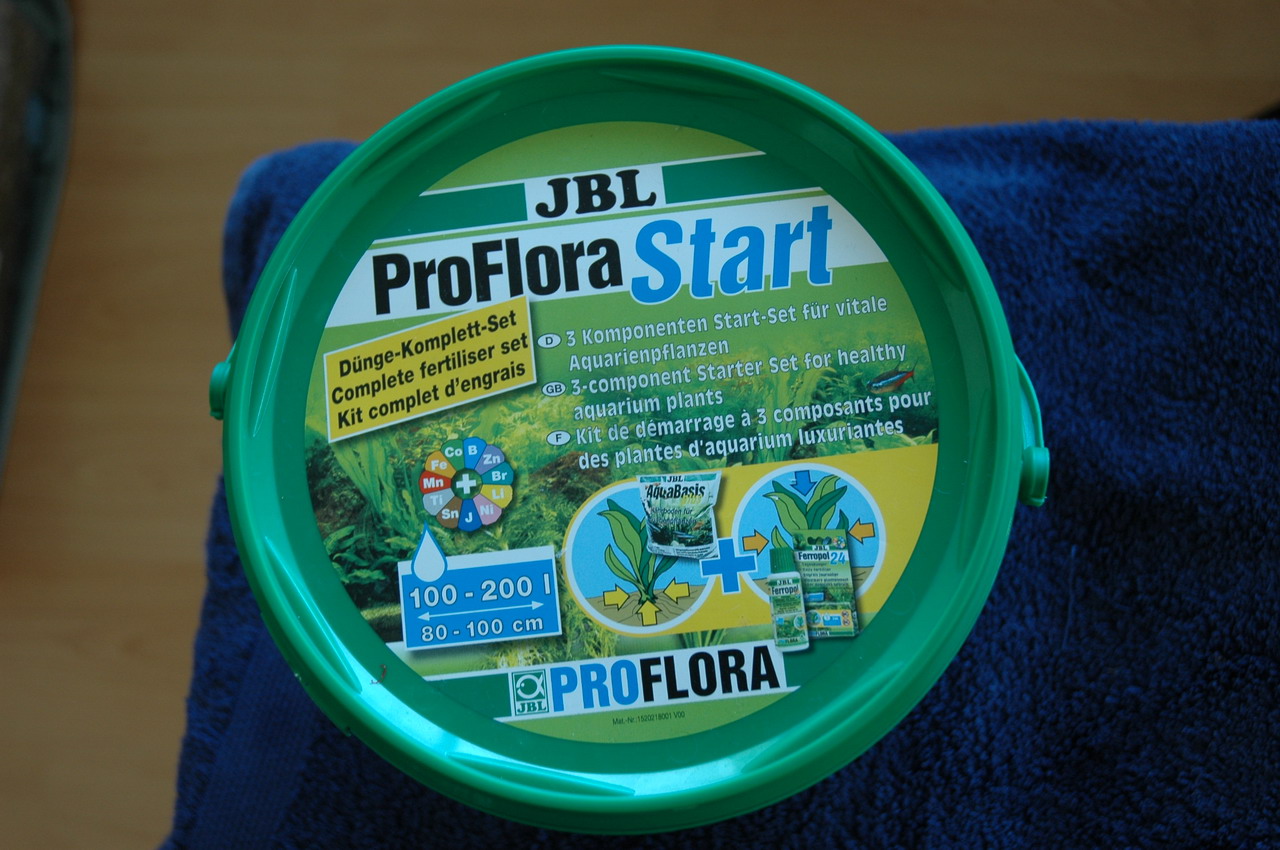

JBL ProFlora Start. Fertile component layer to be spread on top of the first layer of gravel



Dsitributing the fertile component on the to be planted sections



Final gravel layer on top of fertile layer. Hard landscape completed

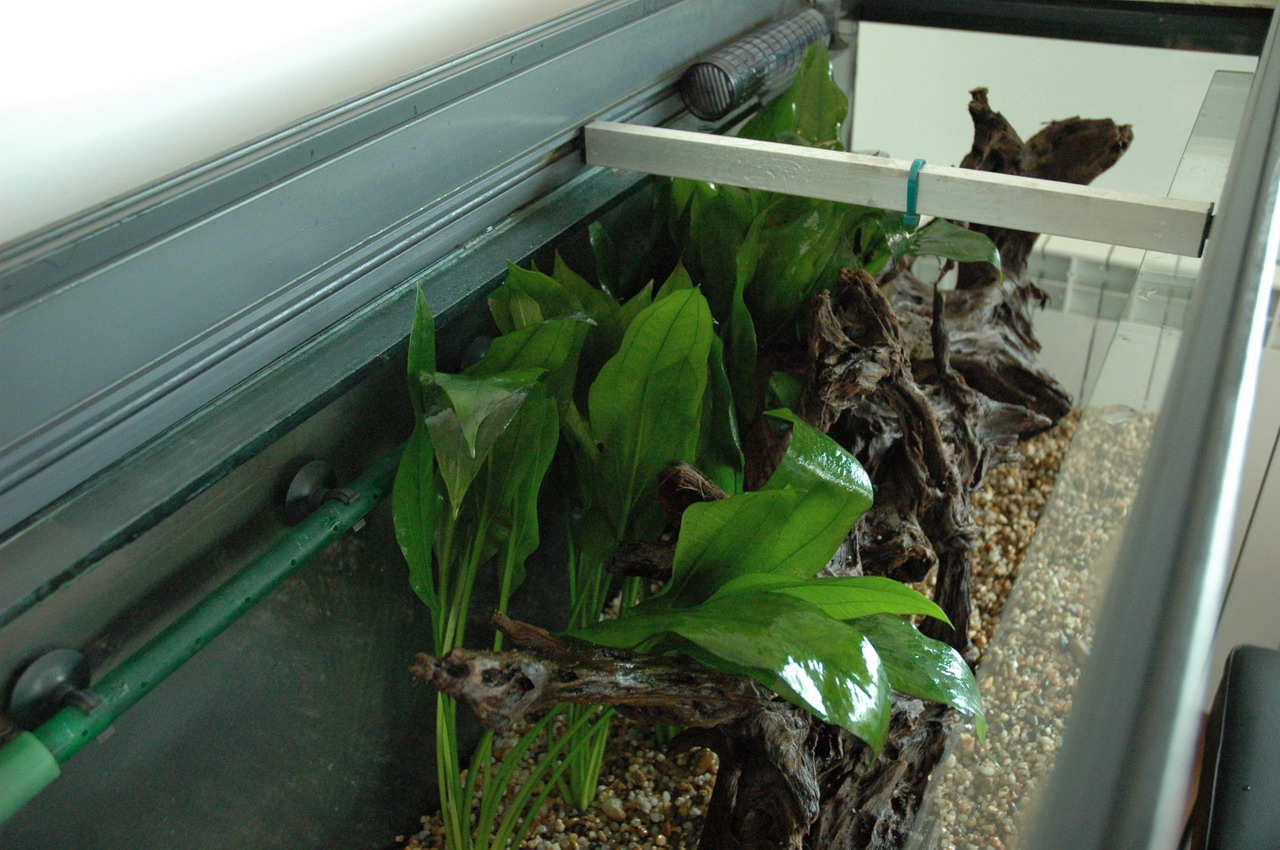

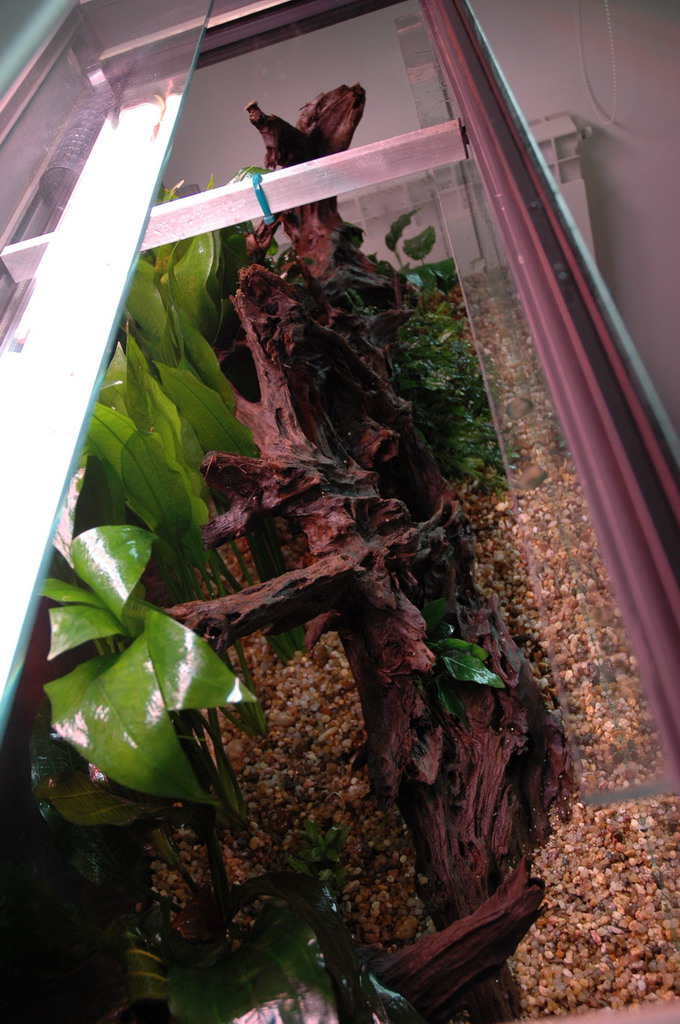

Planting...

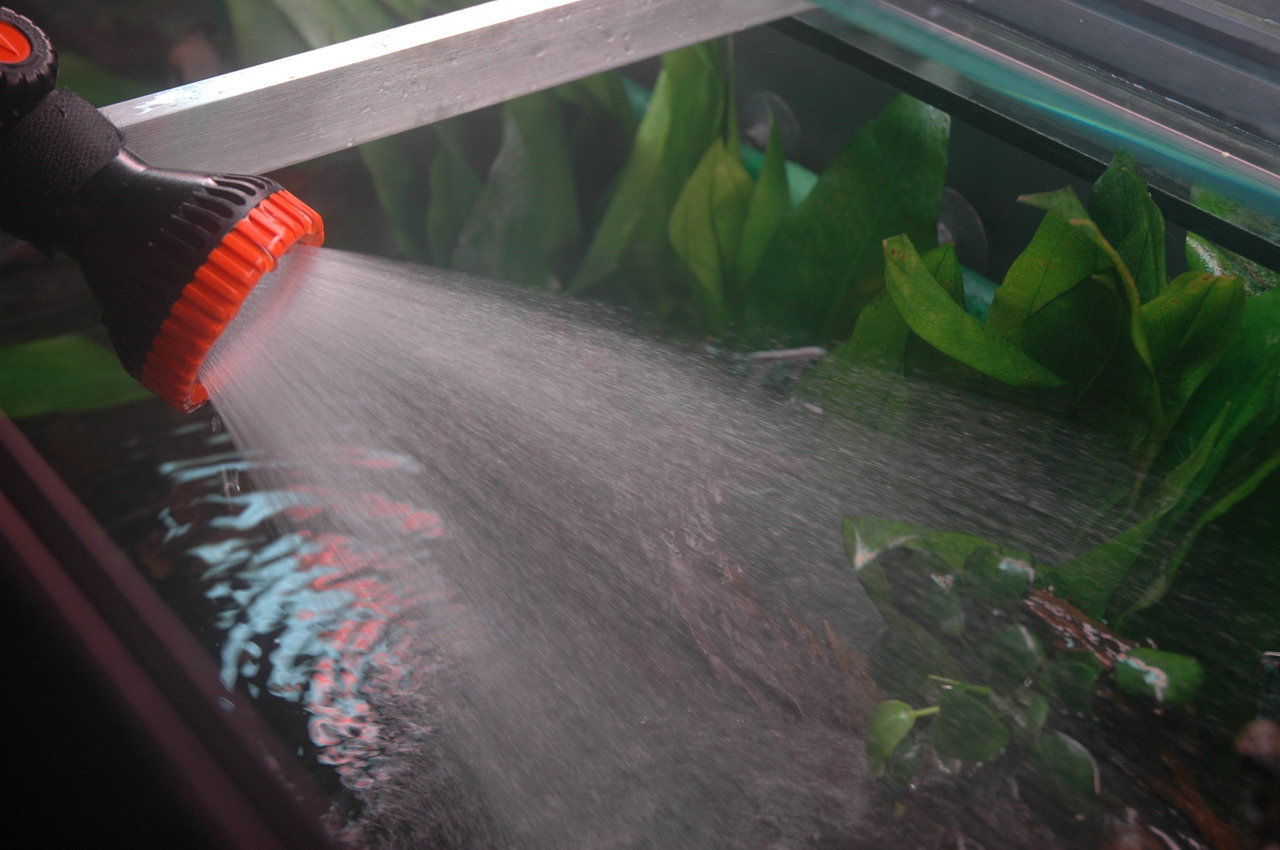

Filling up...

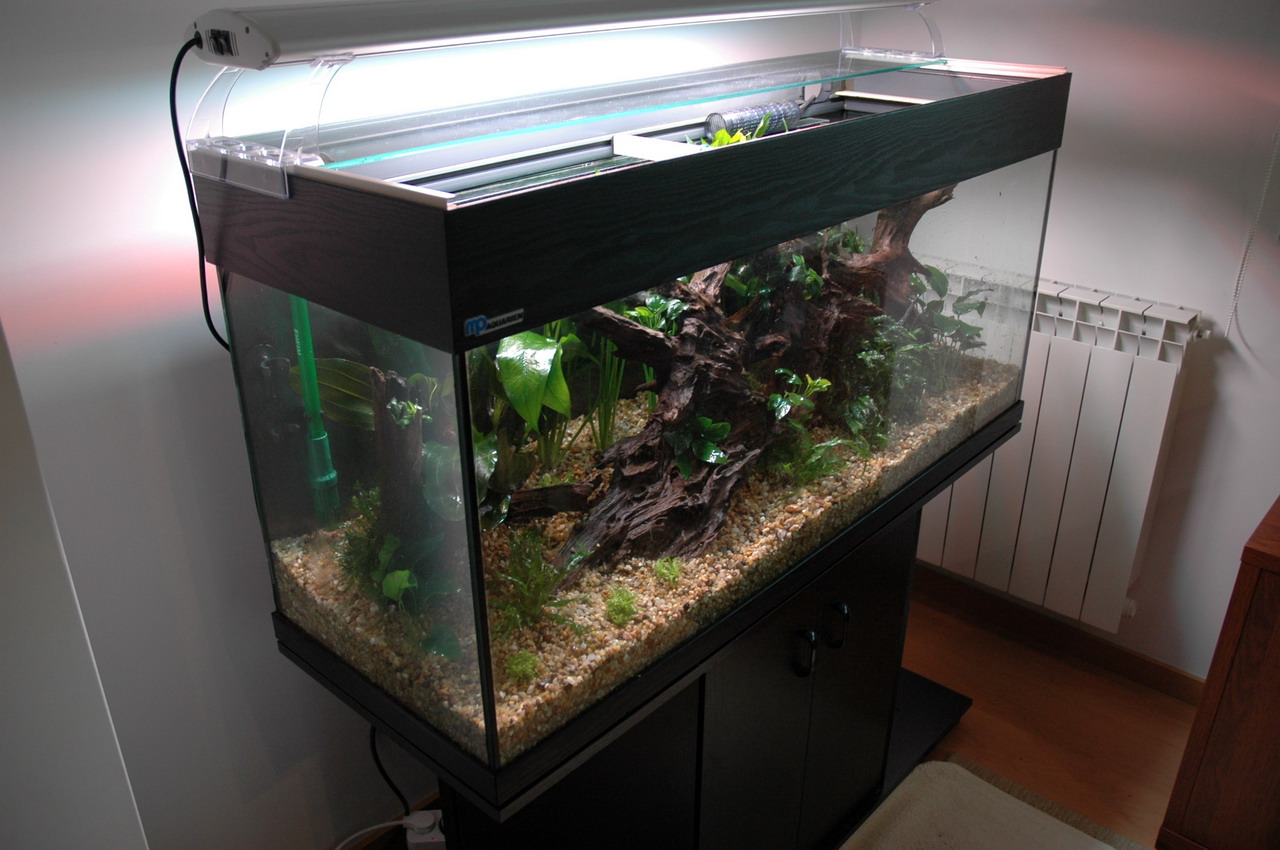

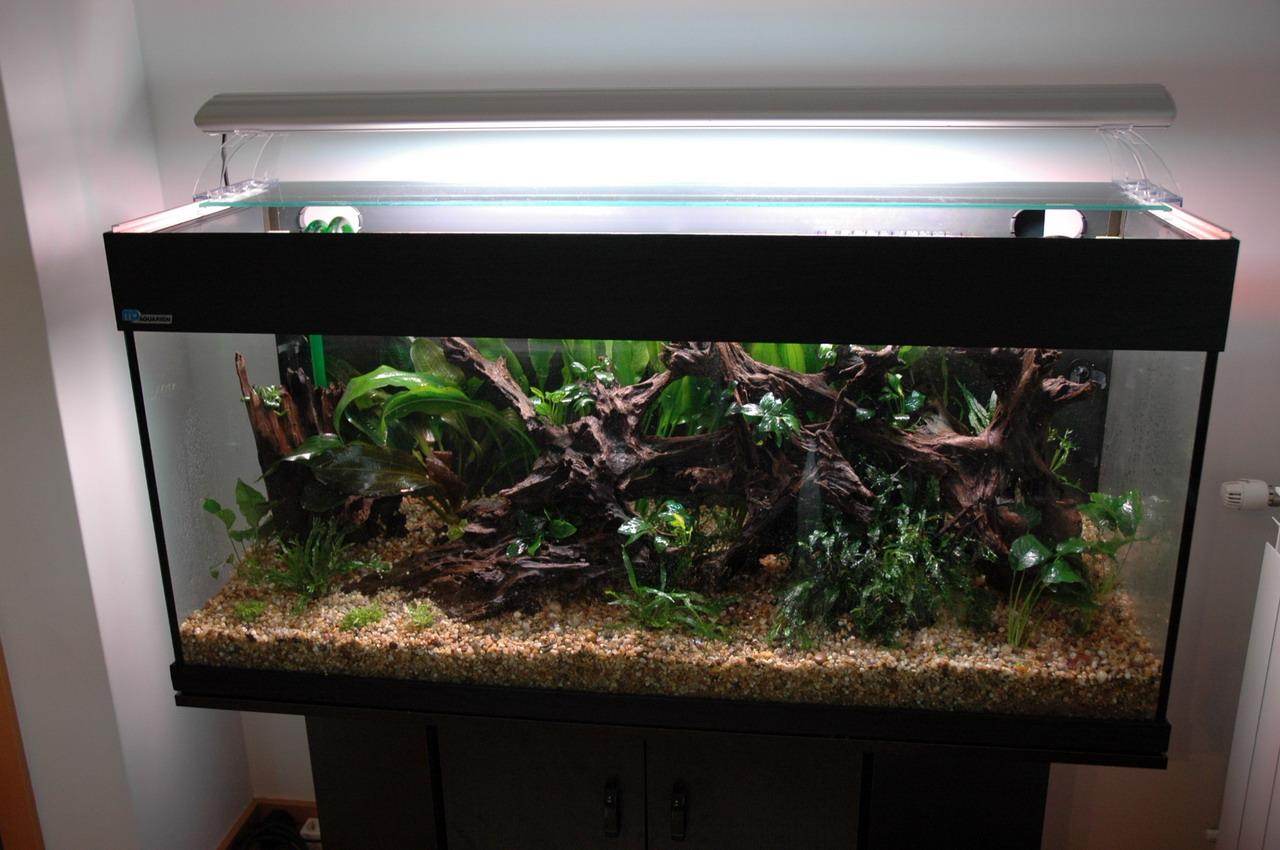

Water filling completed. Initial setup concluded



Detail of a "Red Cherry" shrimp bellow the
leaves of one Anubias barteri var., nana
