240 Liters Freshwater Planted Aquarium
Setup and photos by Pedro Mateus (Portugal)
Permission required for reproduction.
All rights reserved.
E-mail: pedro.mateus@gmail.com




Member of "The Aquatic Gardeners Association"

http://www.aquatic-gardeners.org/




   Initial setup date: 03 September 2004
   Aquarium:
MP Aquarien, Model Karat 120, 240 Liters, 120x40x50
   Substrat: AMTRA Plant Depot (2000 ml) plus 50 KG 5-6 cm river bed gravel 3-4 mm grains
   Filter: EHEIM Professionel II 2026 950 Liters/Hour
   Thermostat: JAGER Eheim Aquatics 3607, 200 W
   Lighting: 76W, 2x38W, Flora Sun Max Plant Growth and Tropic Sun 5500K Daylight (12 hours)
   Thermother: Digital (0.1 Celsius precision)

   Flora:
Vallisneria, Anubias Barterri e Nana, Microsorium Pteropus,
   Echinodorus Bleheri and Hygrophila Polysperma
   Fauna: 3 Cory, 1 Cory Albina, 2 Ancistrus, 1 Japonica



DSC02238.jpg (167776 bytes) DSC02239.jpg (234919 bytes) DSC02241.jpg (191012 bytes) DSC02243.jpg (162236 bytes)
DSC02245.jpg (164046 bytes) DSC02246.jpg (208838 bytes) DSC02259.jpg (155595 bytes) DSC02264.jpg (172160 bytes) DSC02265.jpg (161539 bytes) DSC02267.jpg (155284 bytes)

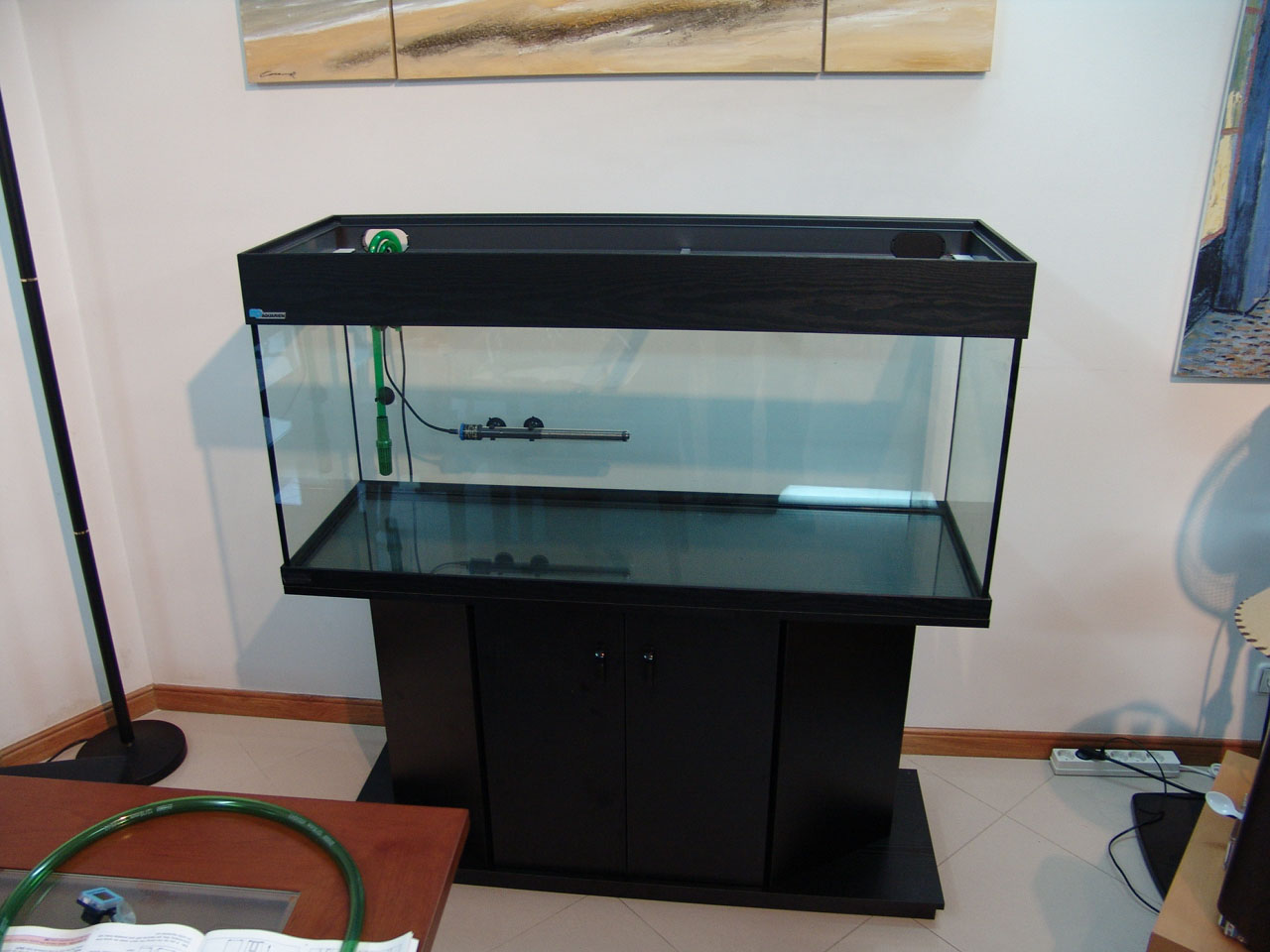

Aquarium and support stand setup.

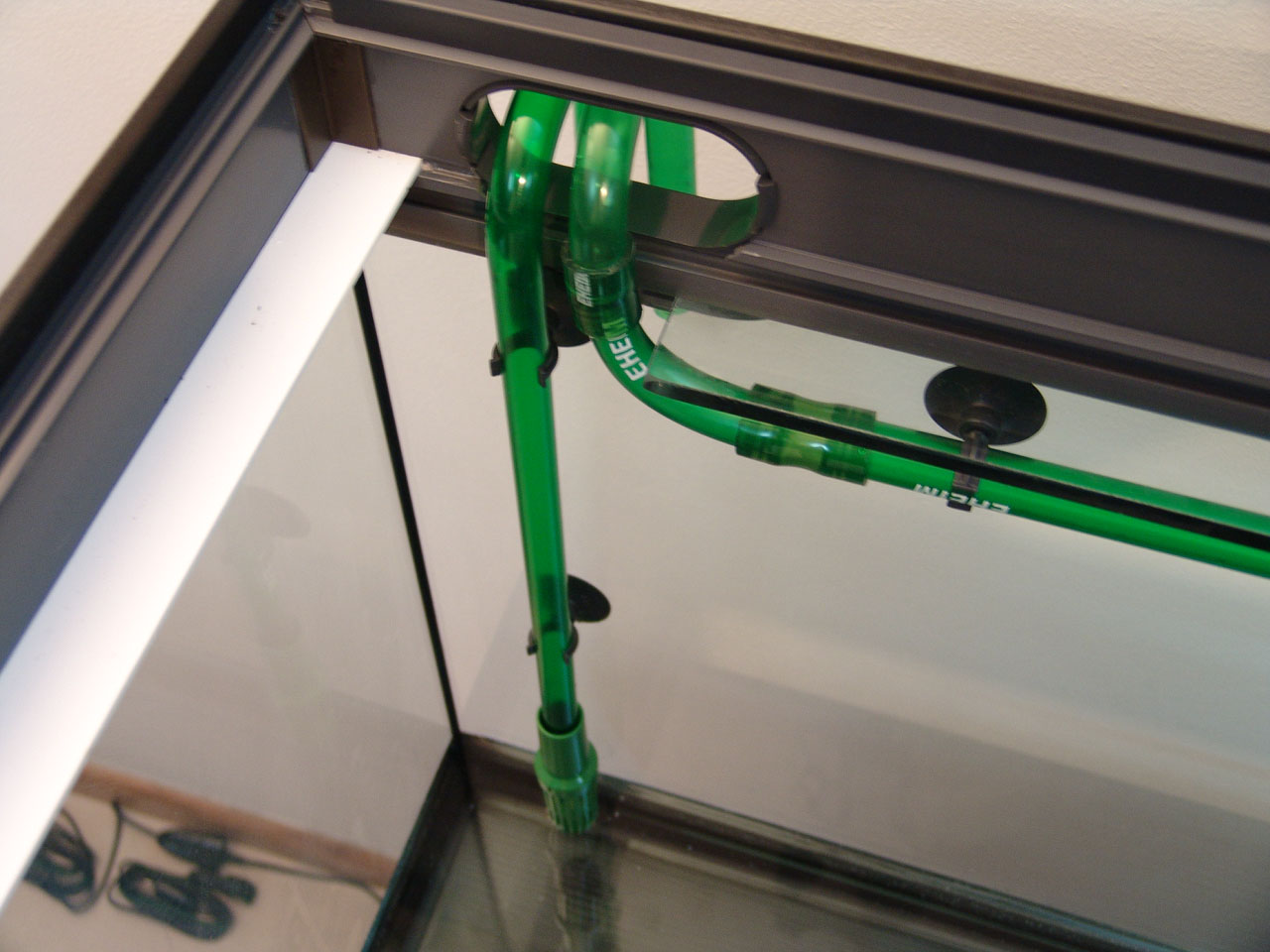

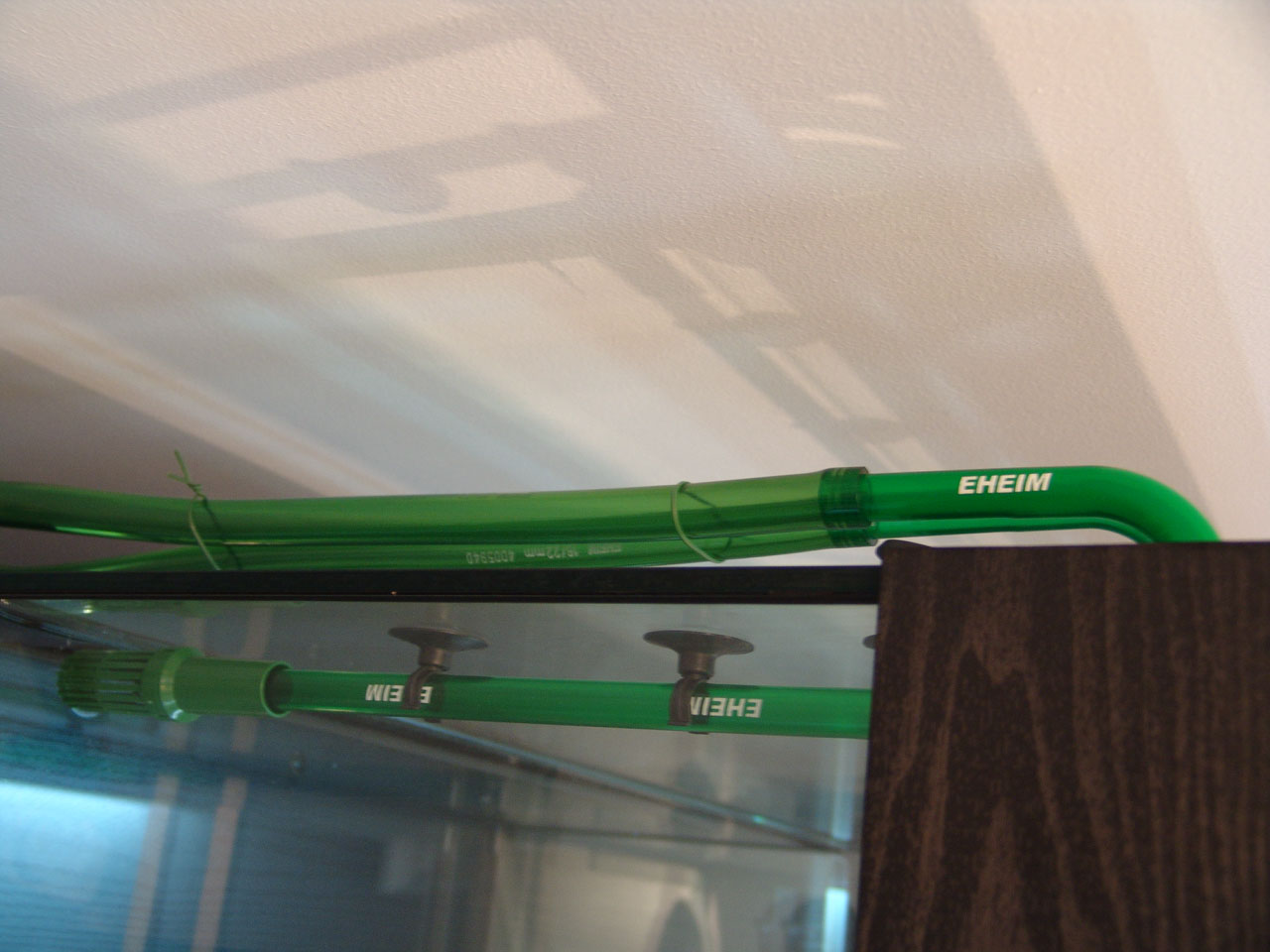

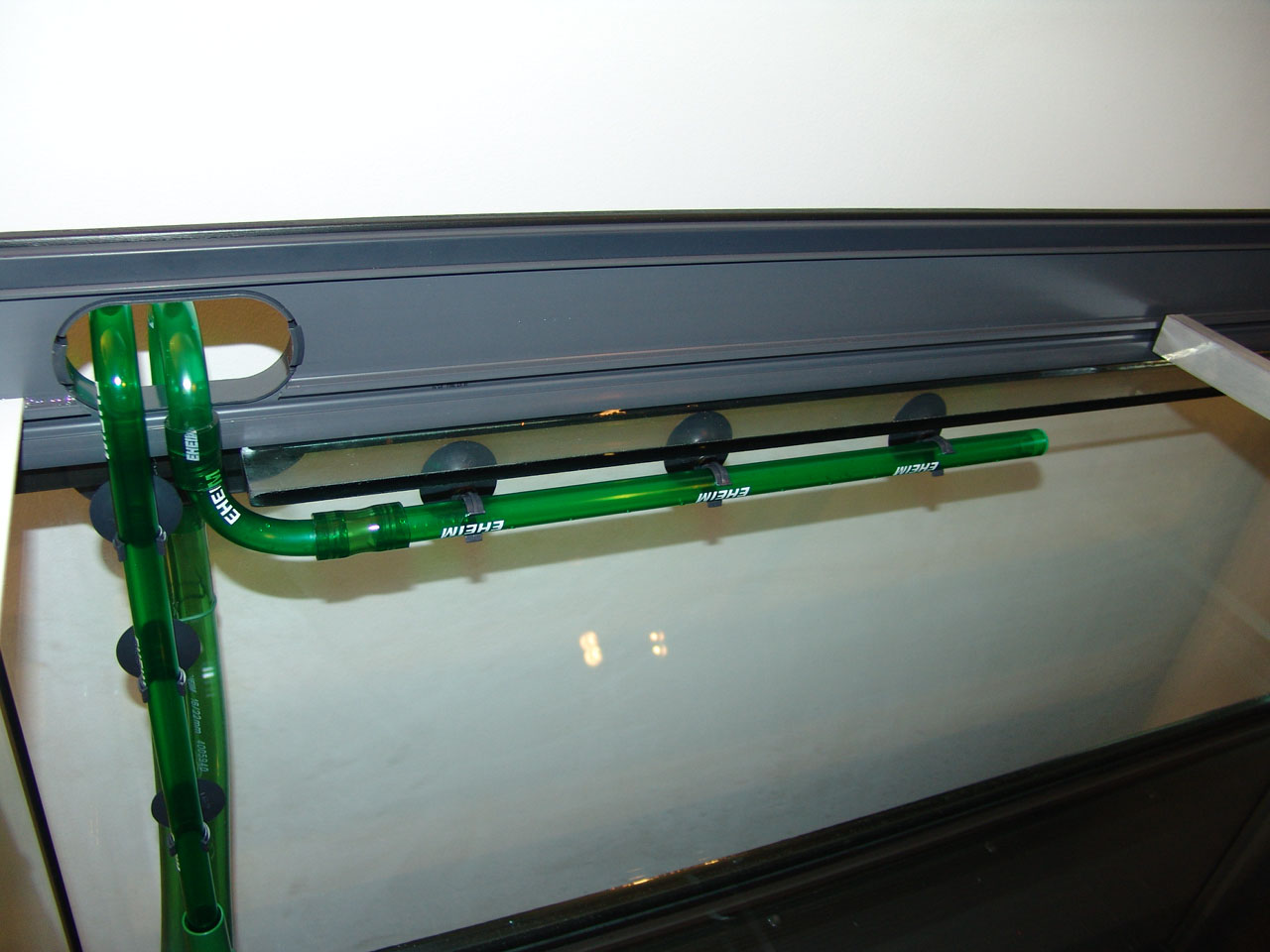

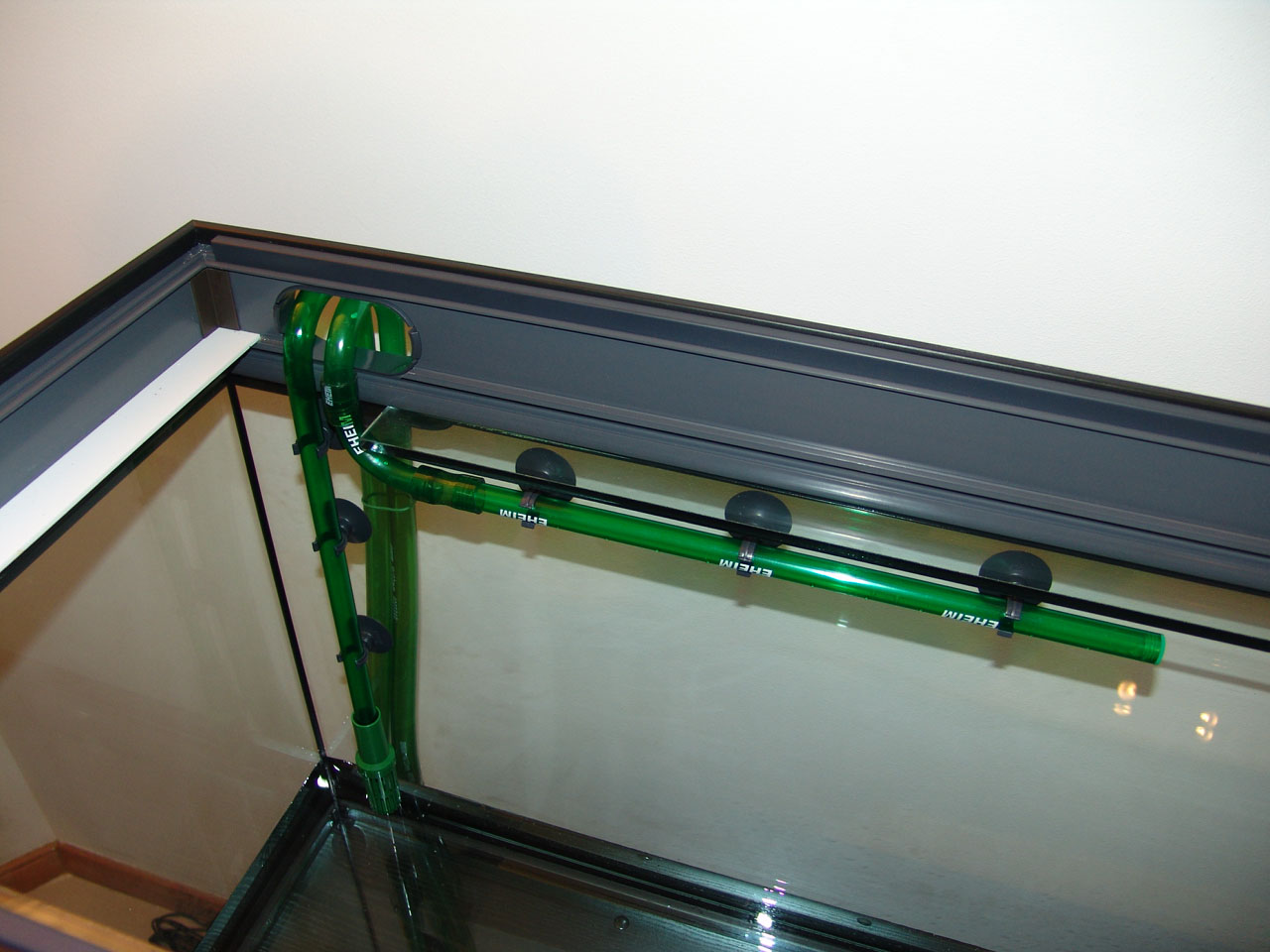

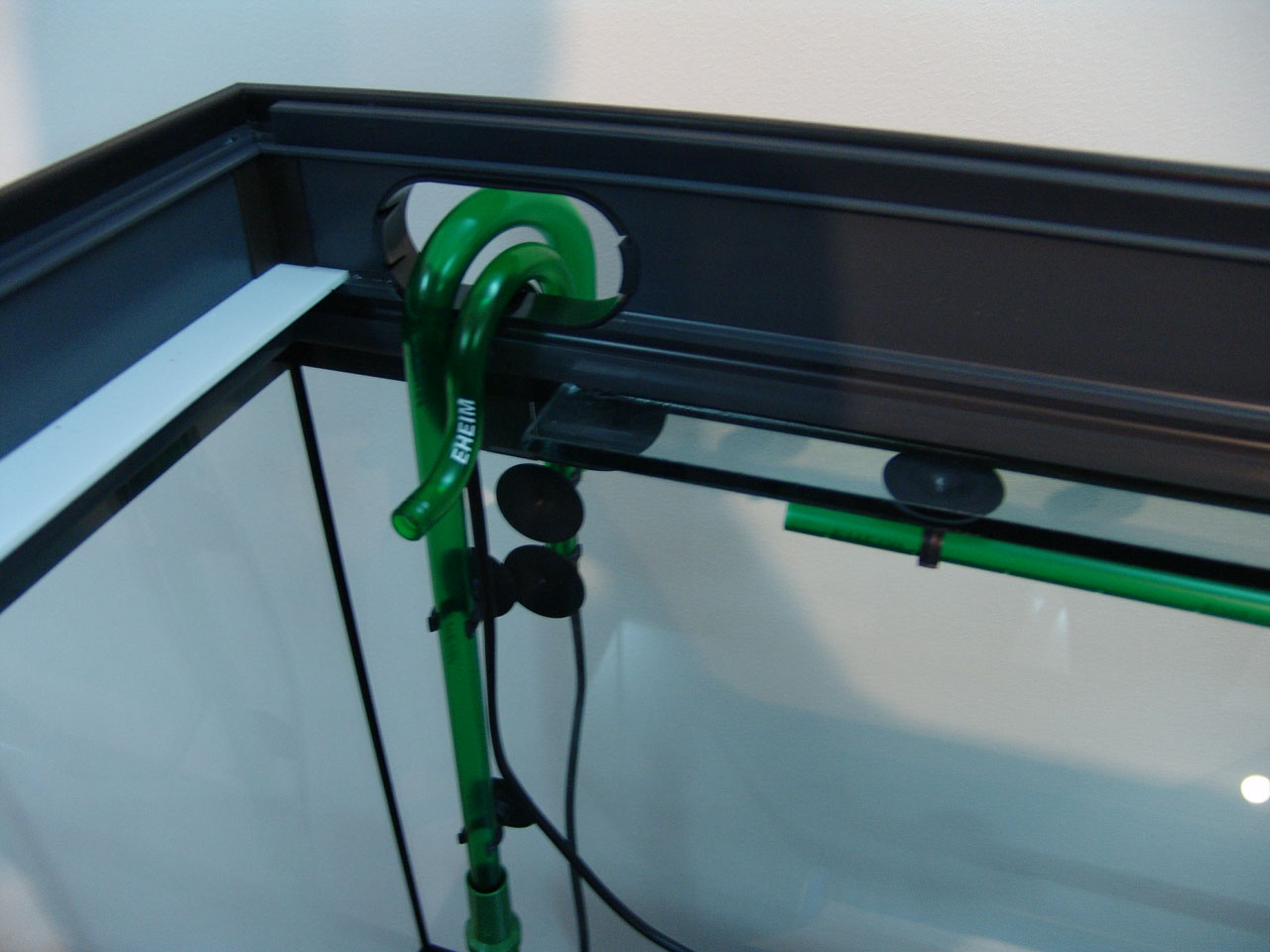

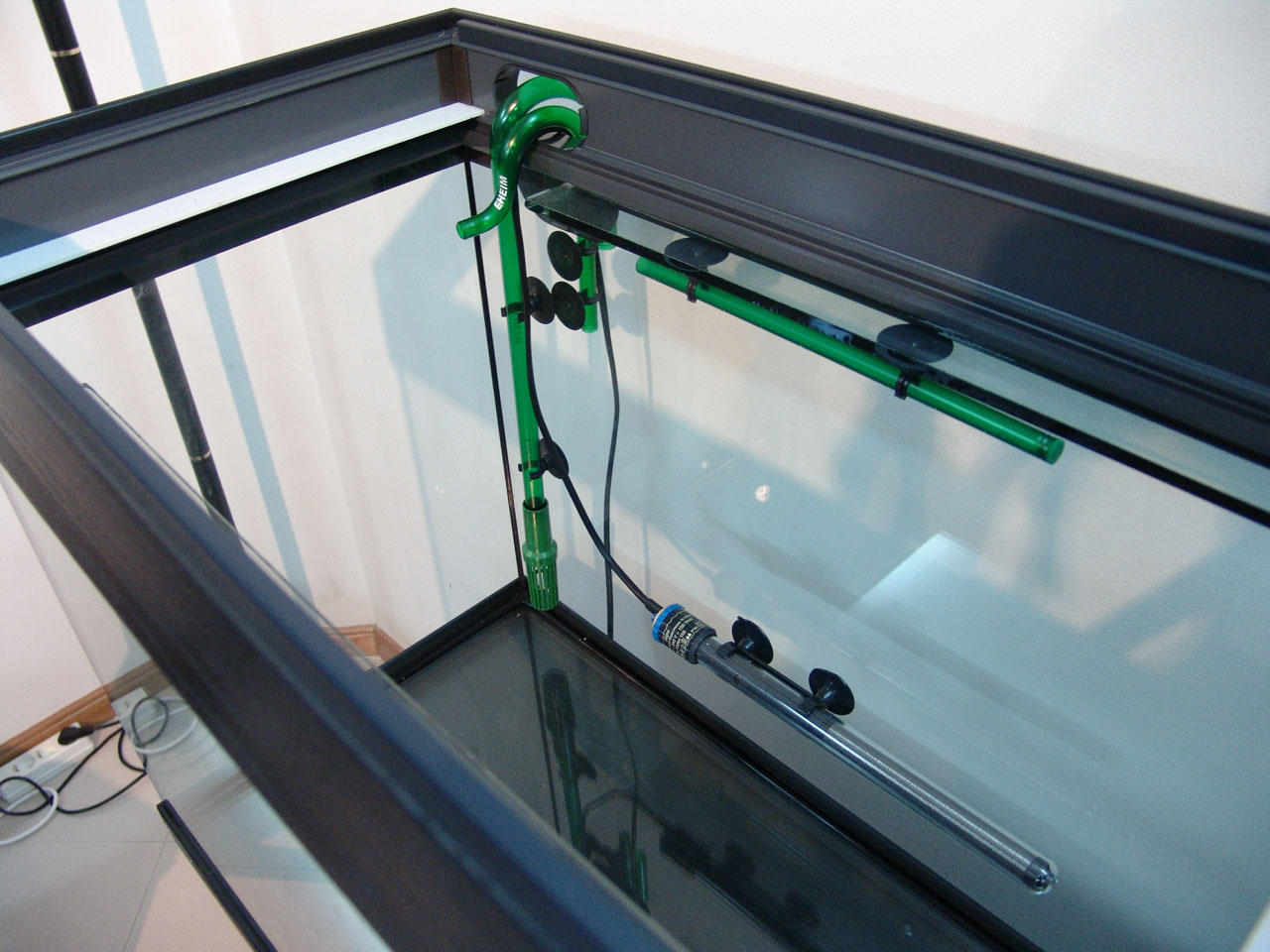

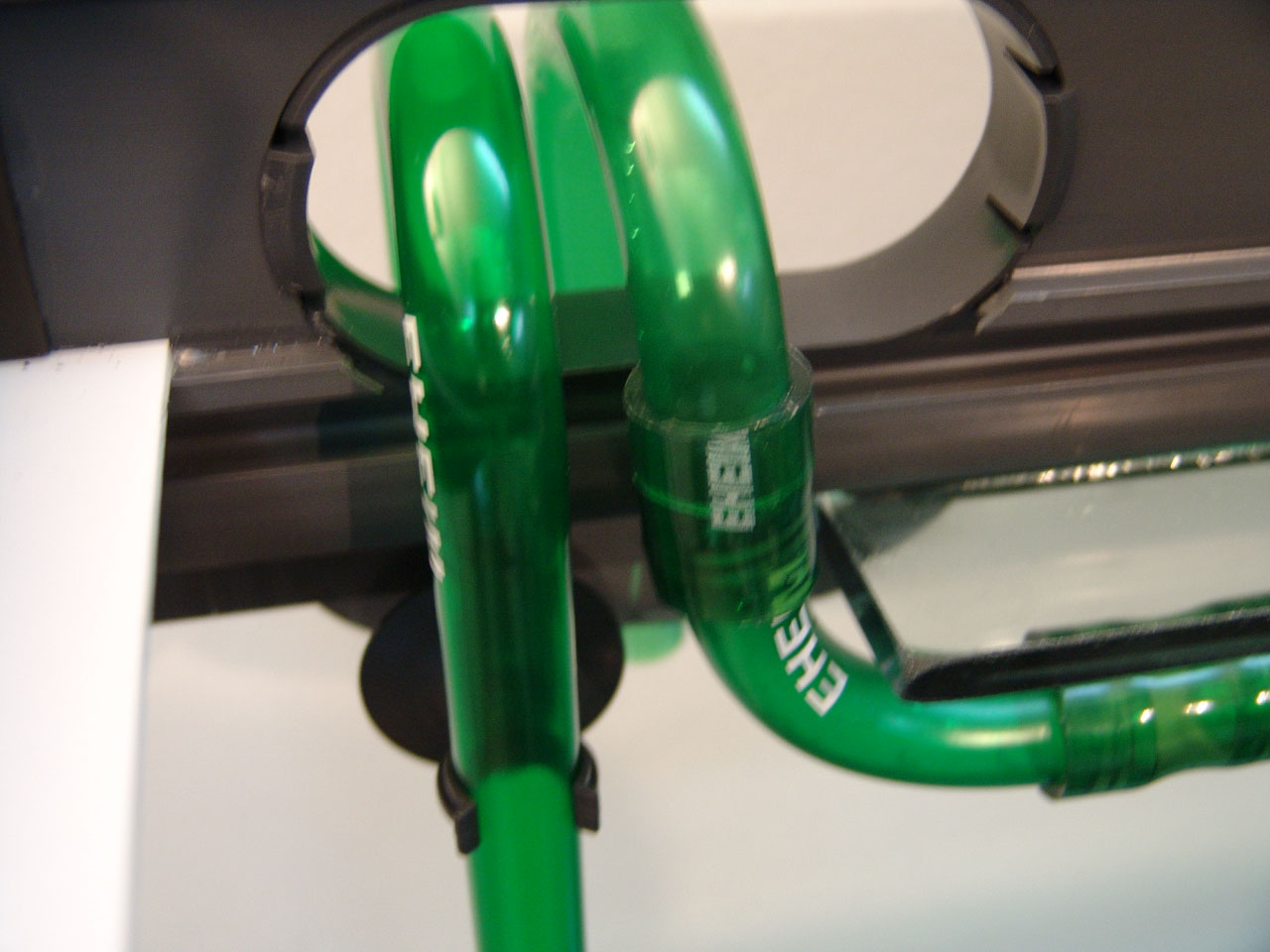

Intake and outake rigid pvc pipe setup for EHEIM filter.

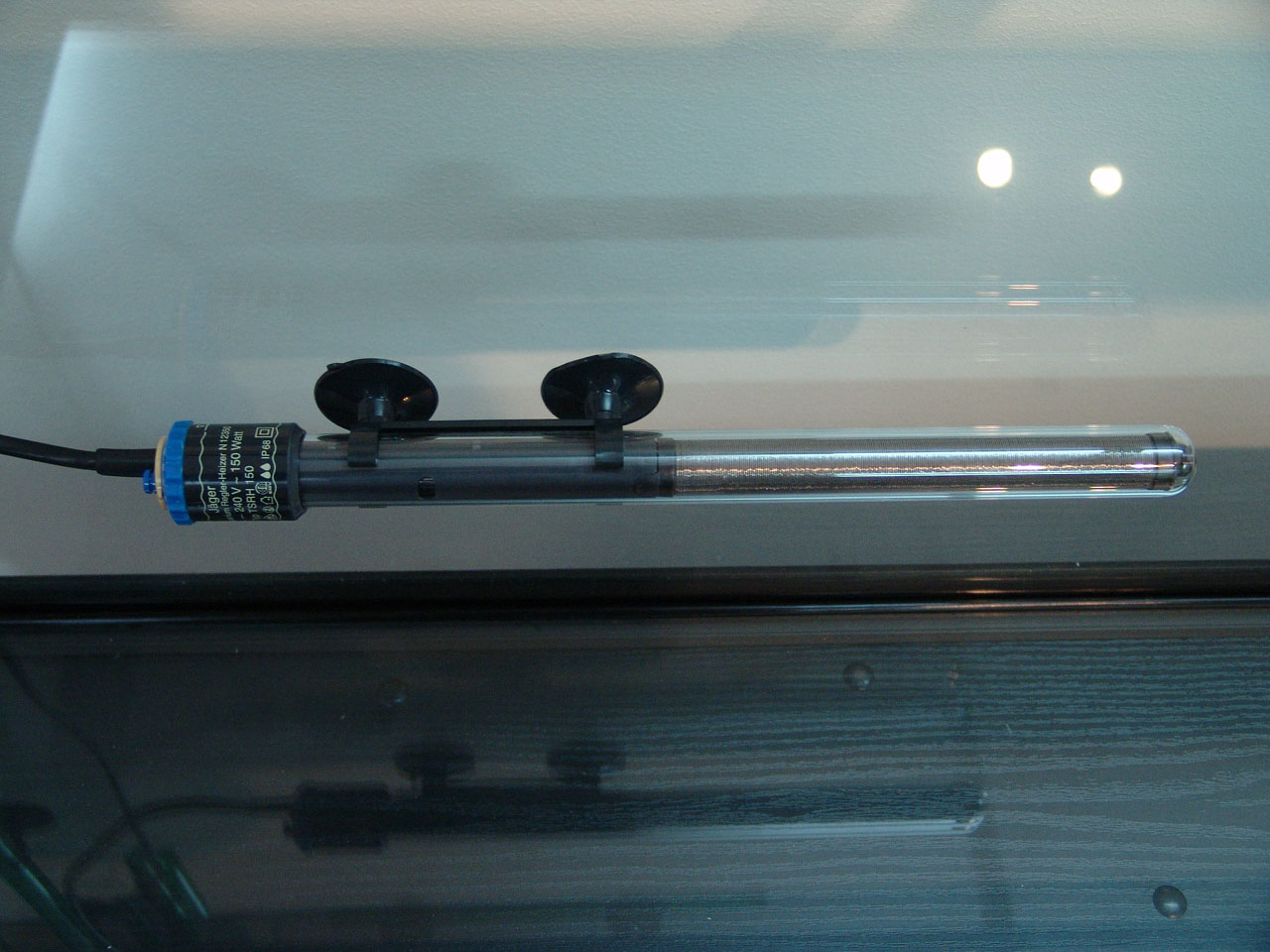

JAGER thermostat fiting



DSC02269.jpg (242156 bytes) DSC02270.jpg (171644 bytes) DSC02273.jpg (194394 bytes) DSC02274.jpg (263851 bytes)
DSC02276.jpg (143756 bytes) DSC02277.jpg (166182 bytes) DSC02278.jpg (238537 bytes) DSC02279.jpg (228190 bytes) DSC02280.jpg (240524 bytes) DSC02281.jpg (338676 bytes) DSC02282.jpg (251605 bytes) DSC02283.jpg (265844 bytes) DSC02284.jpg (212527 bytes) DSC02285.jpg (174746 bytes) DSC02287.jpg (193941 bytes) DSC02288.jpg (173377 bytes) DSC02289.jpg (137063 bytes) DSC02290.jpg (164226 bytes) DSC02293.jpg (157587 bytes) DSC02302.jpg (206749 bytes)

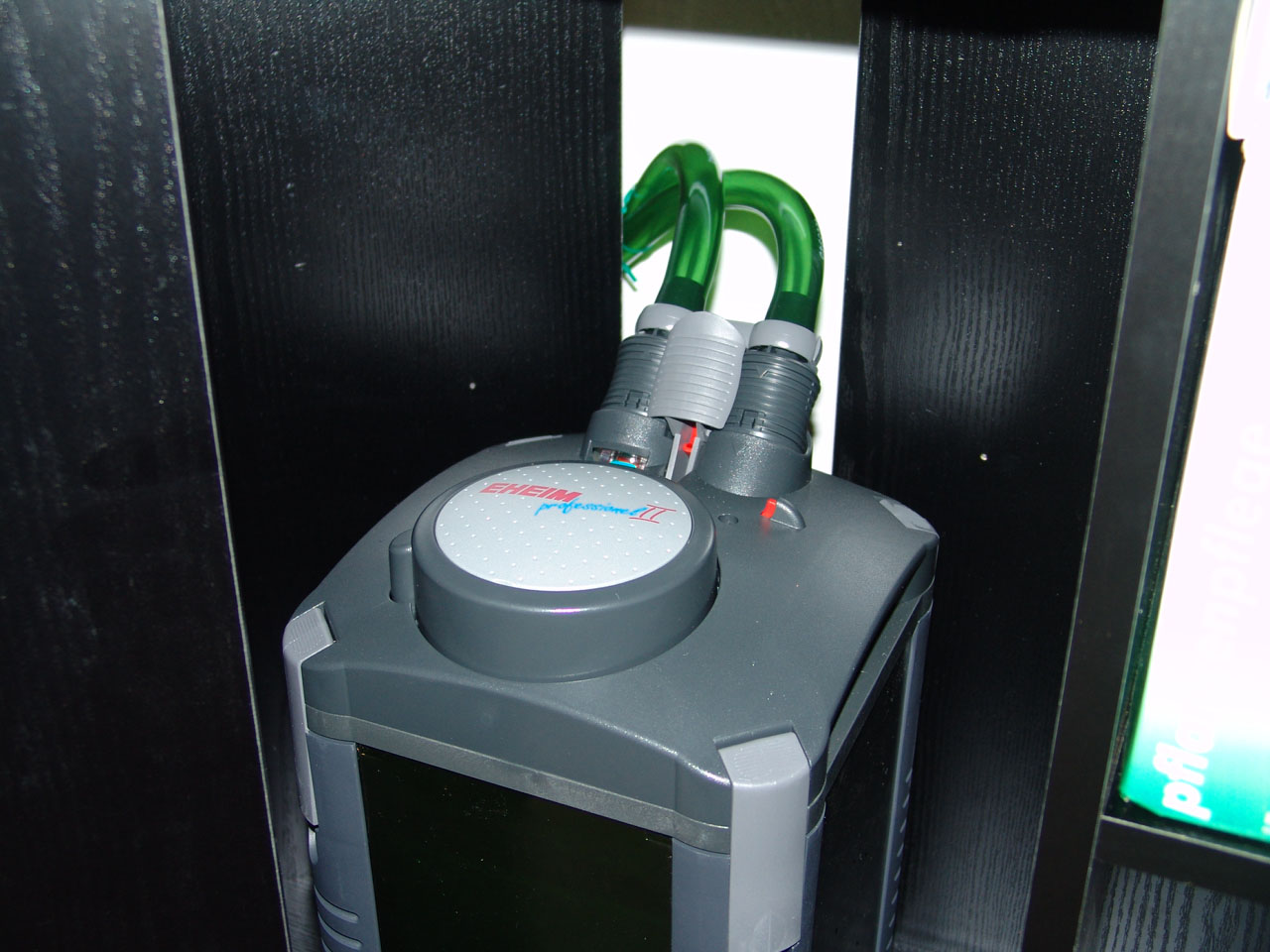

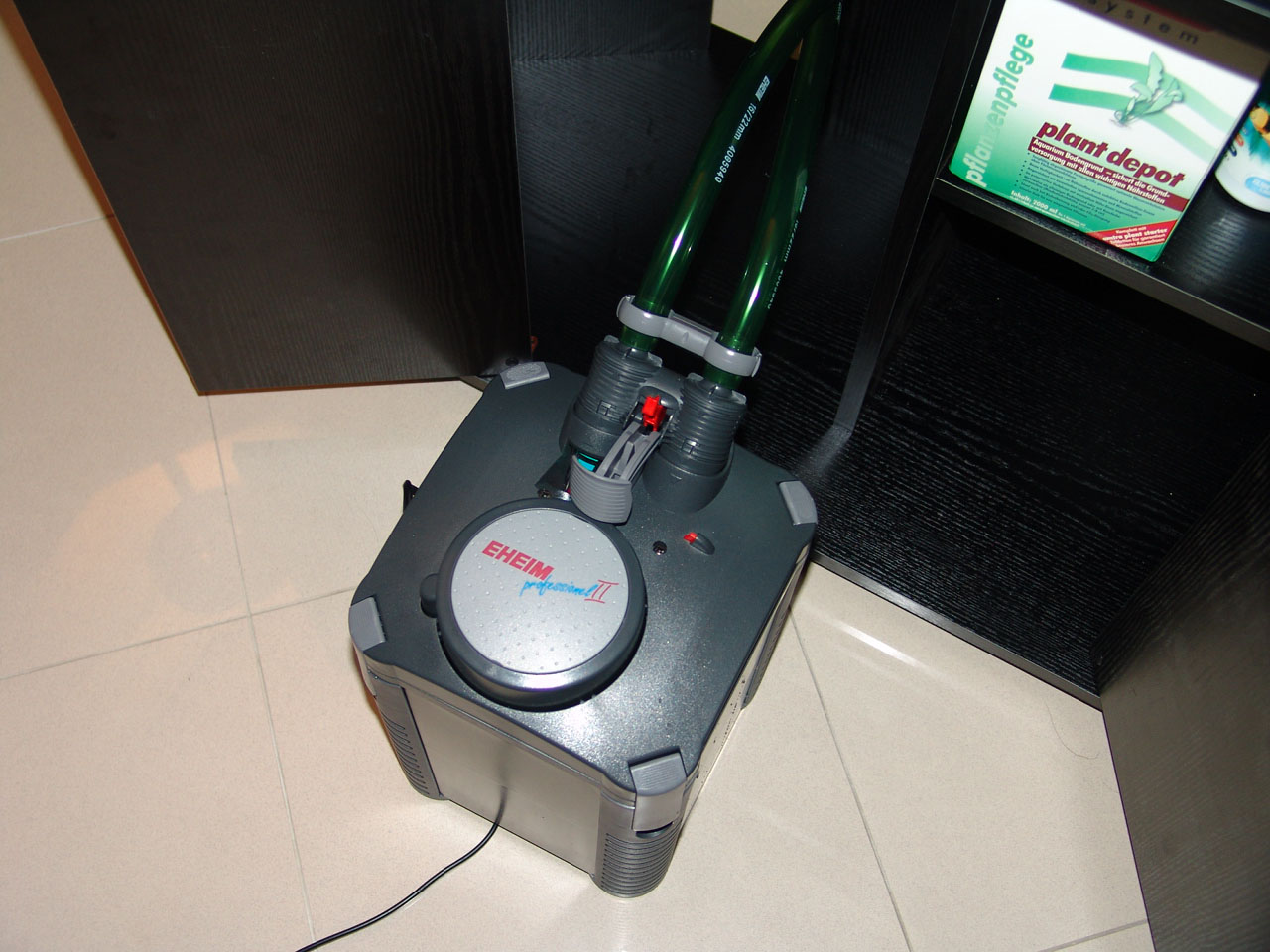

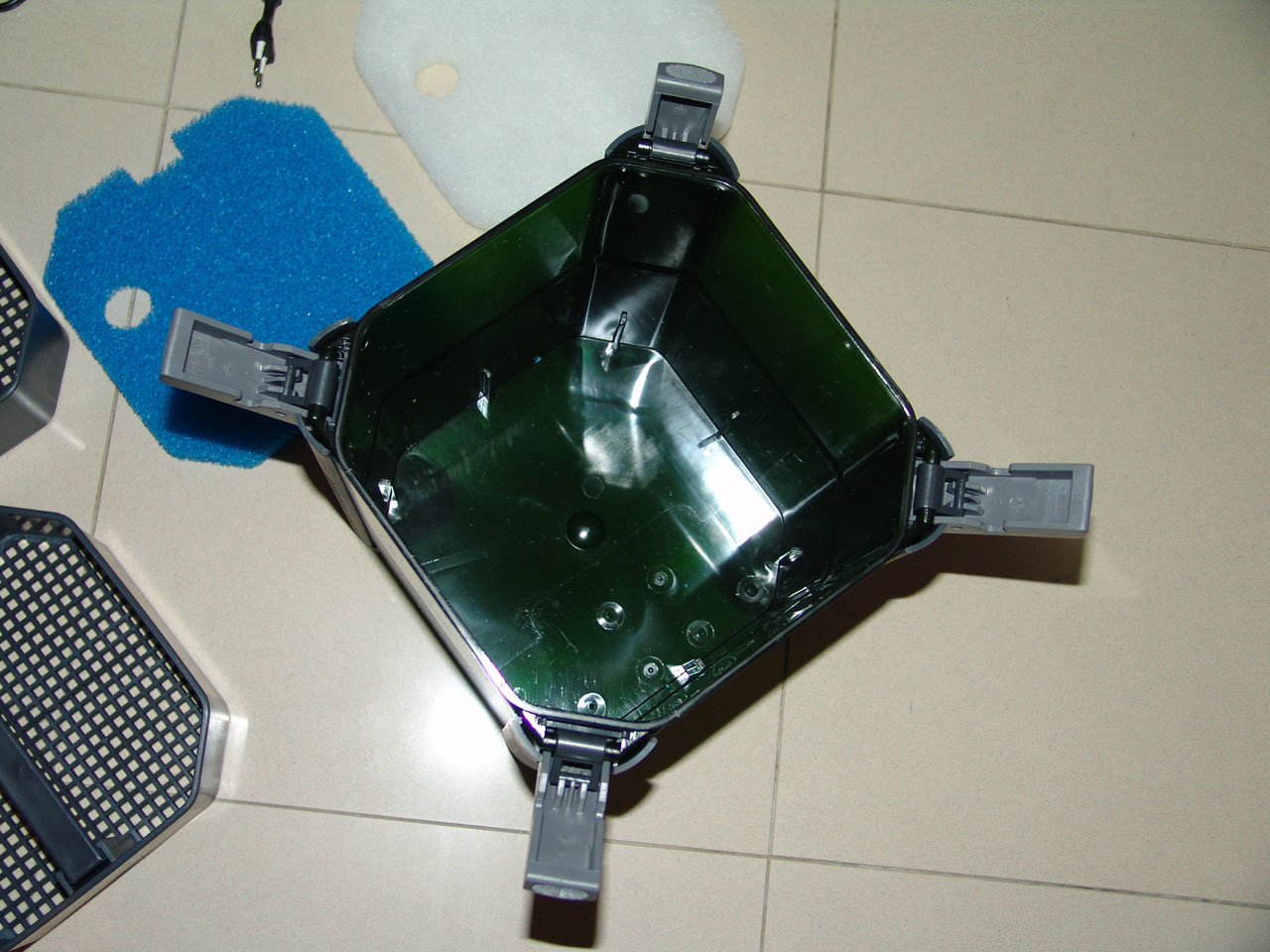

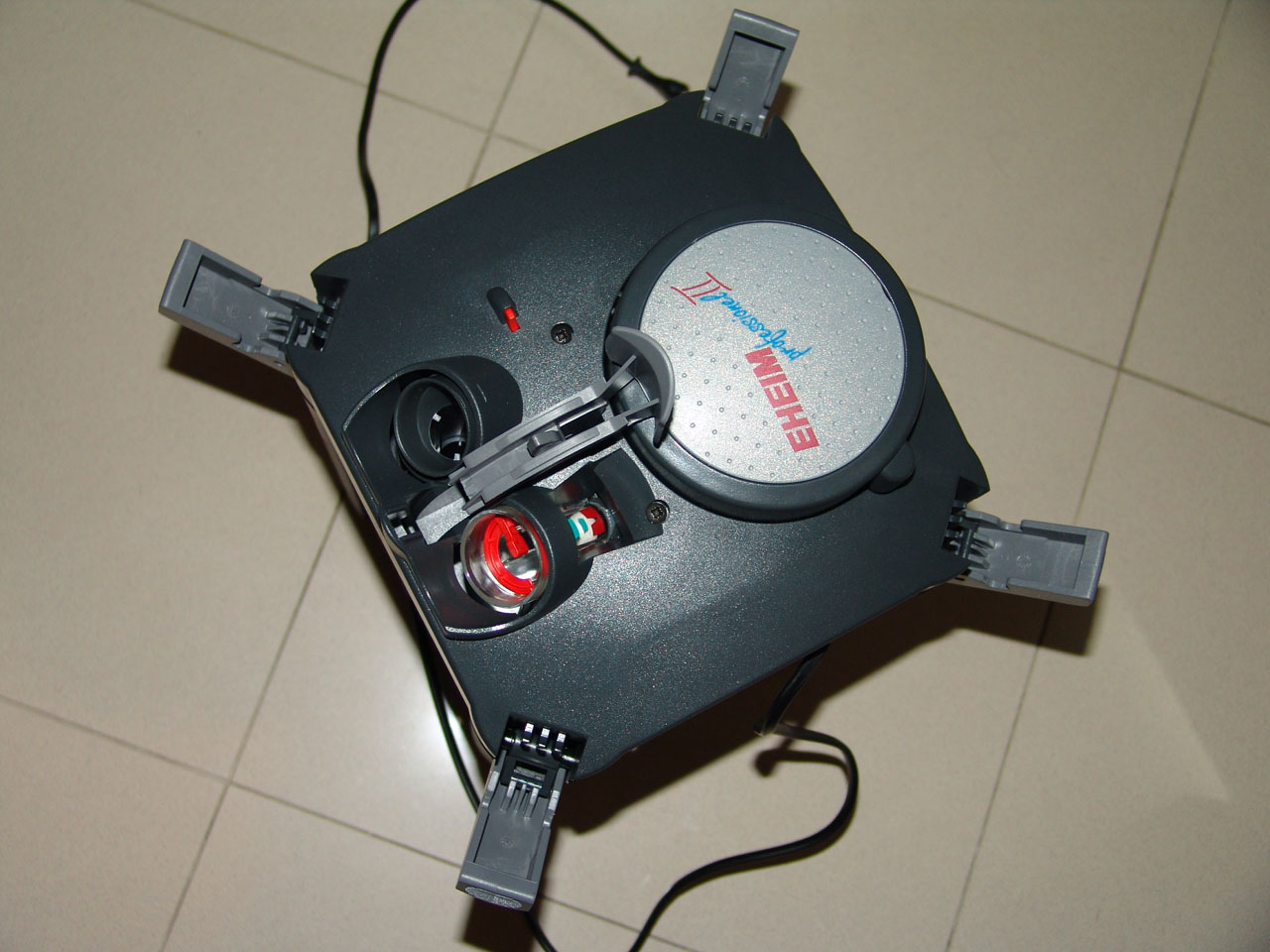

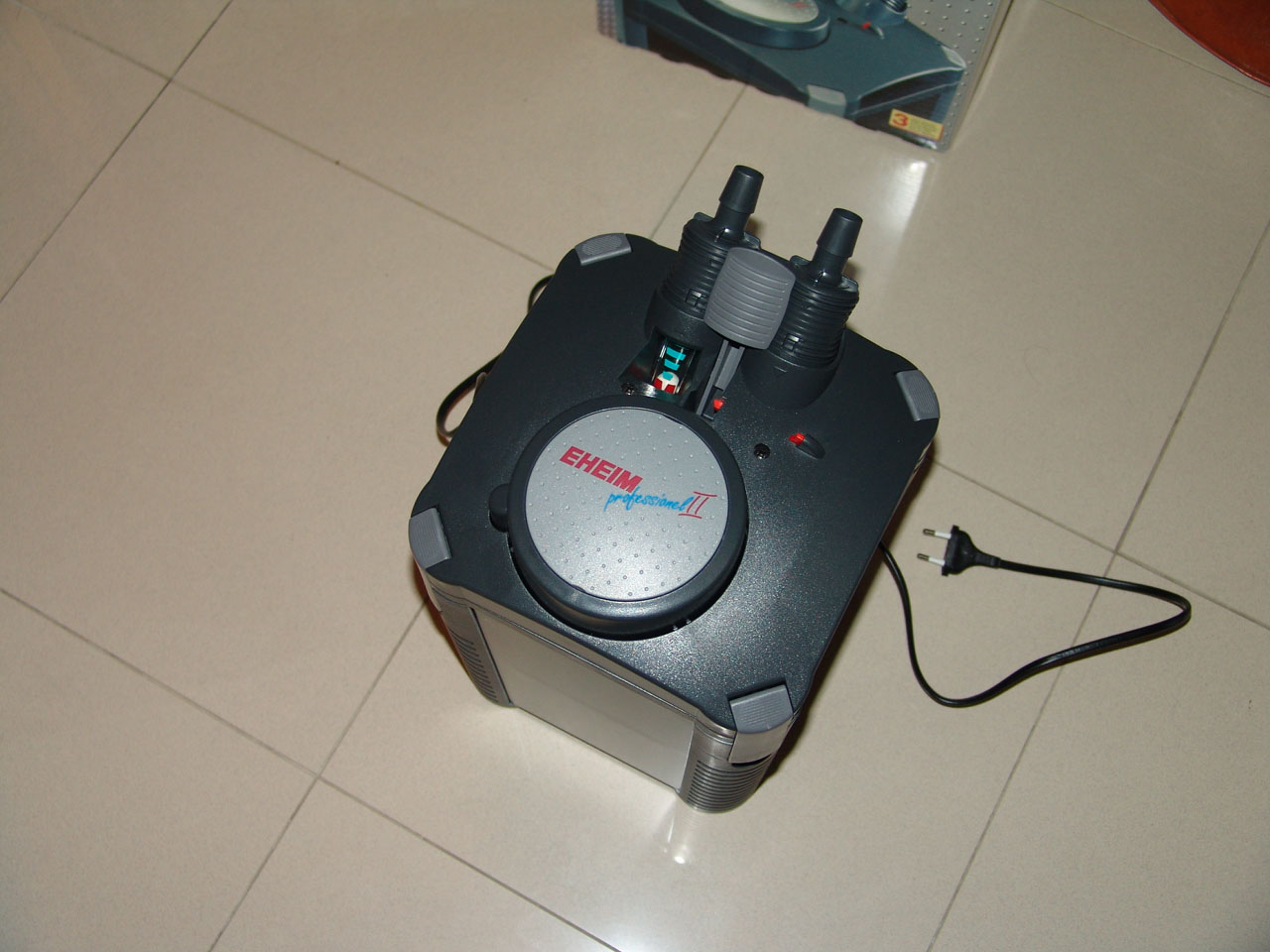

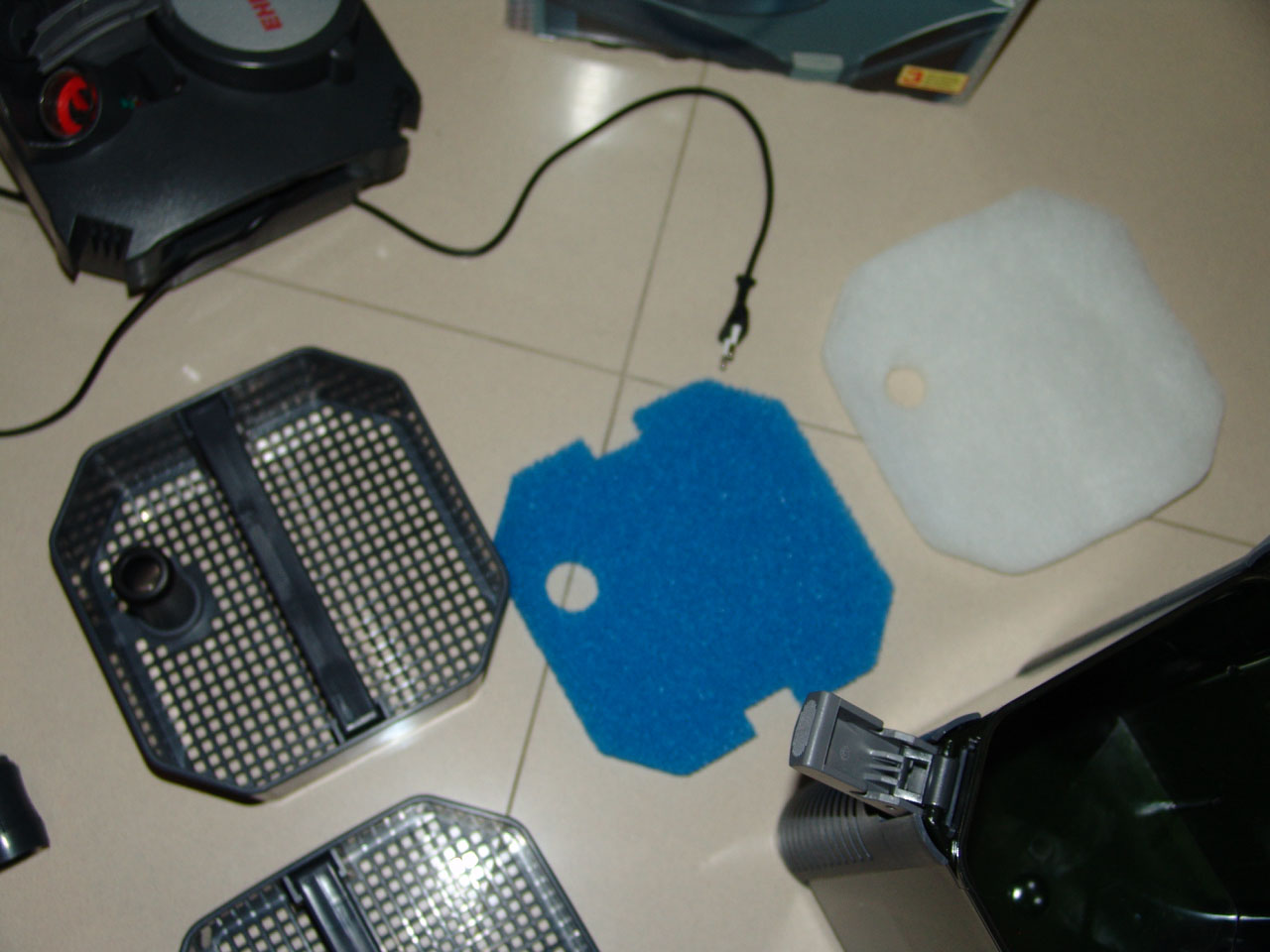

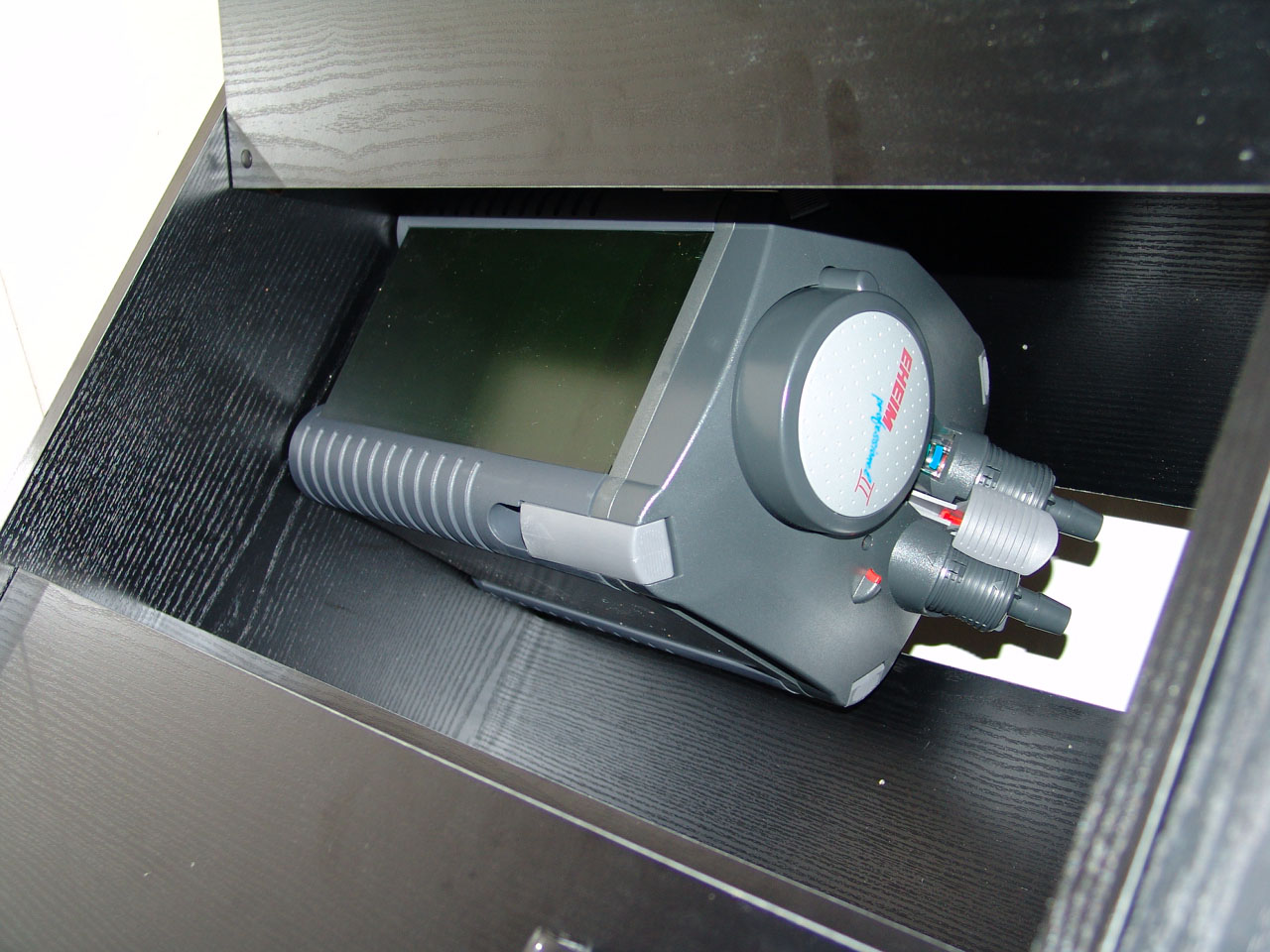

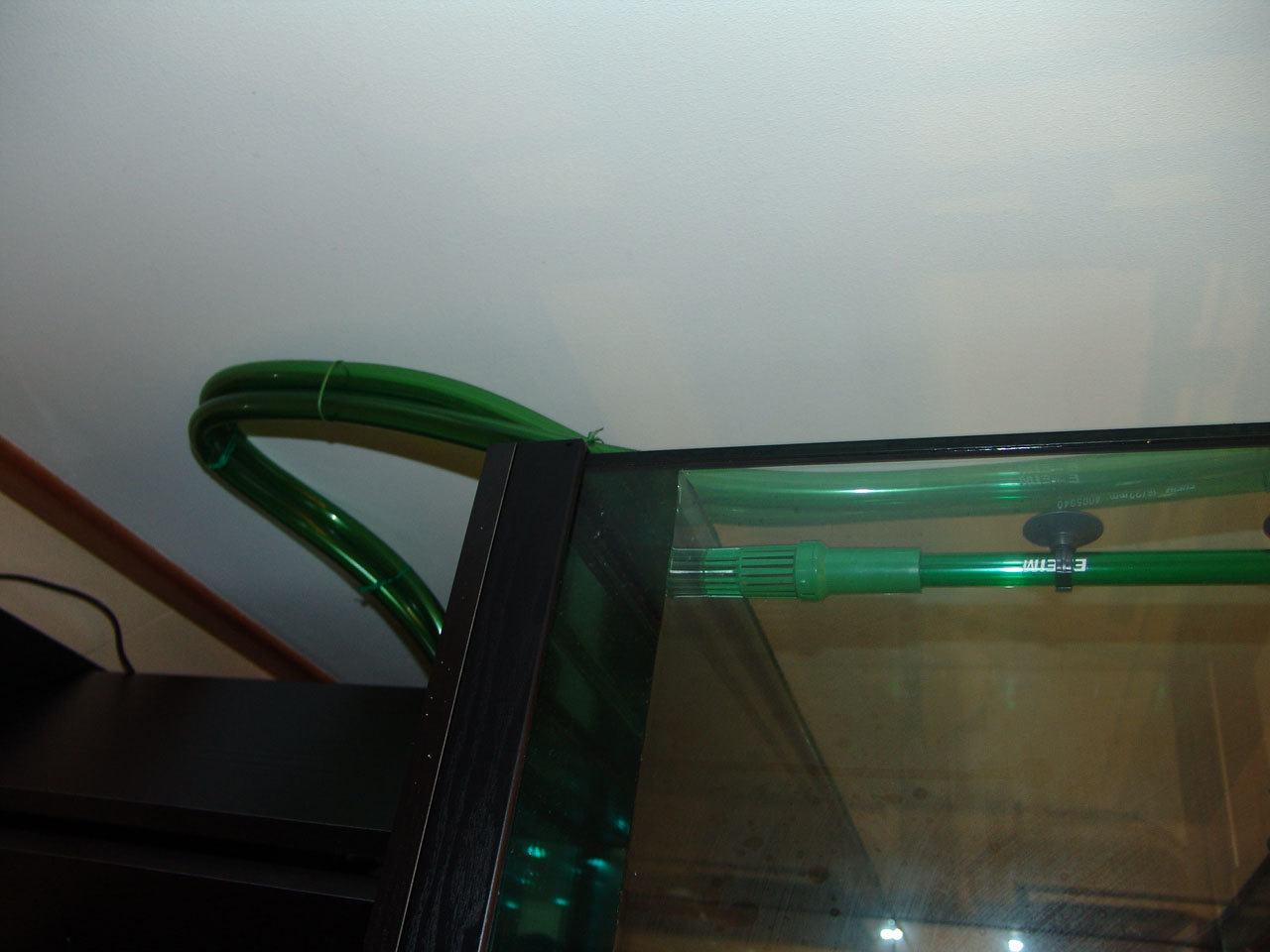

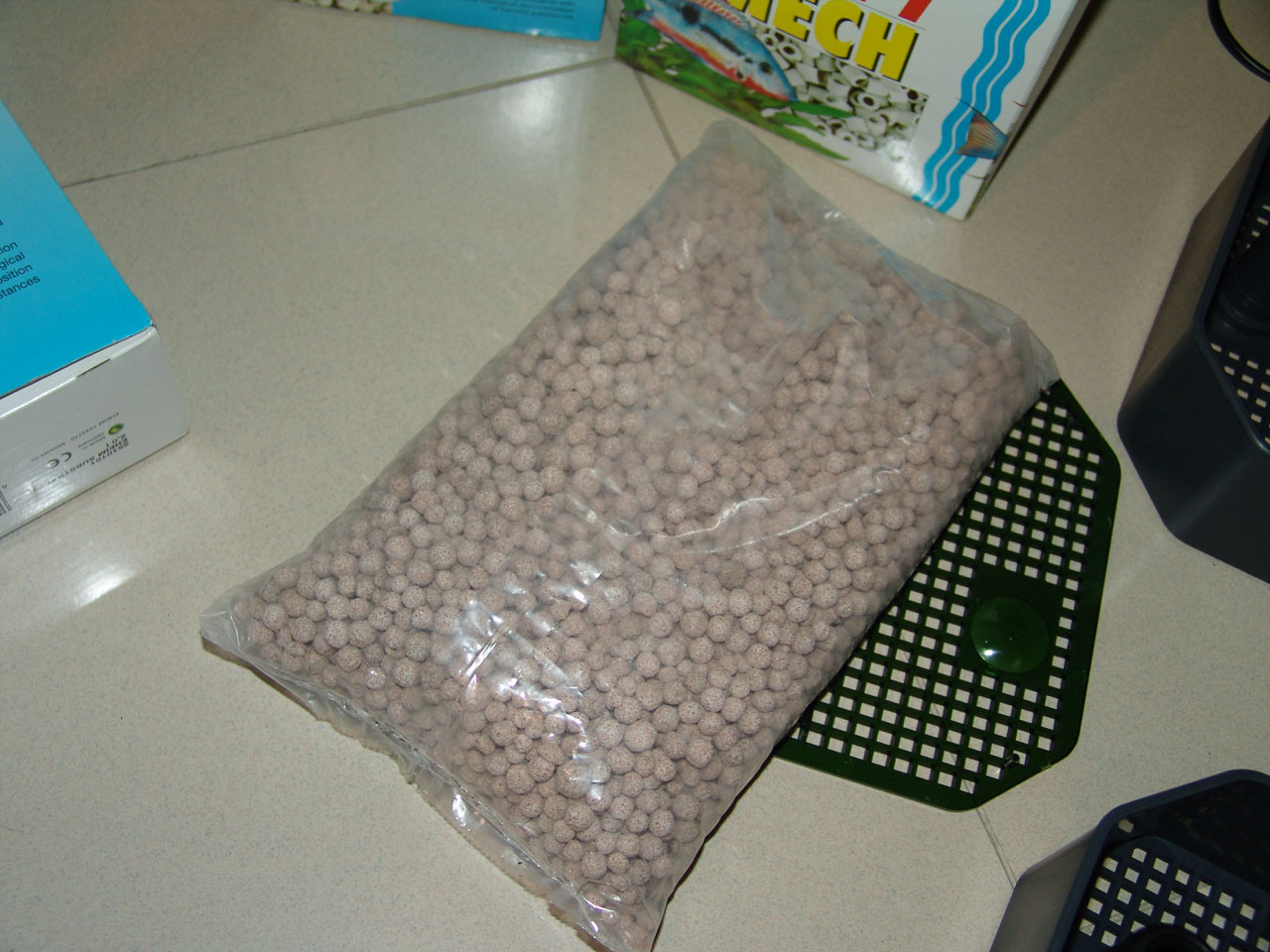

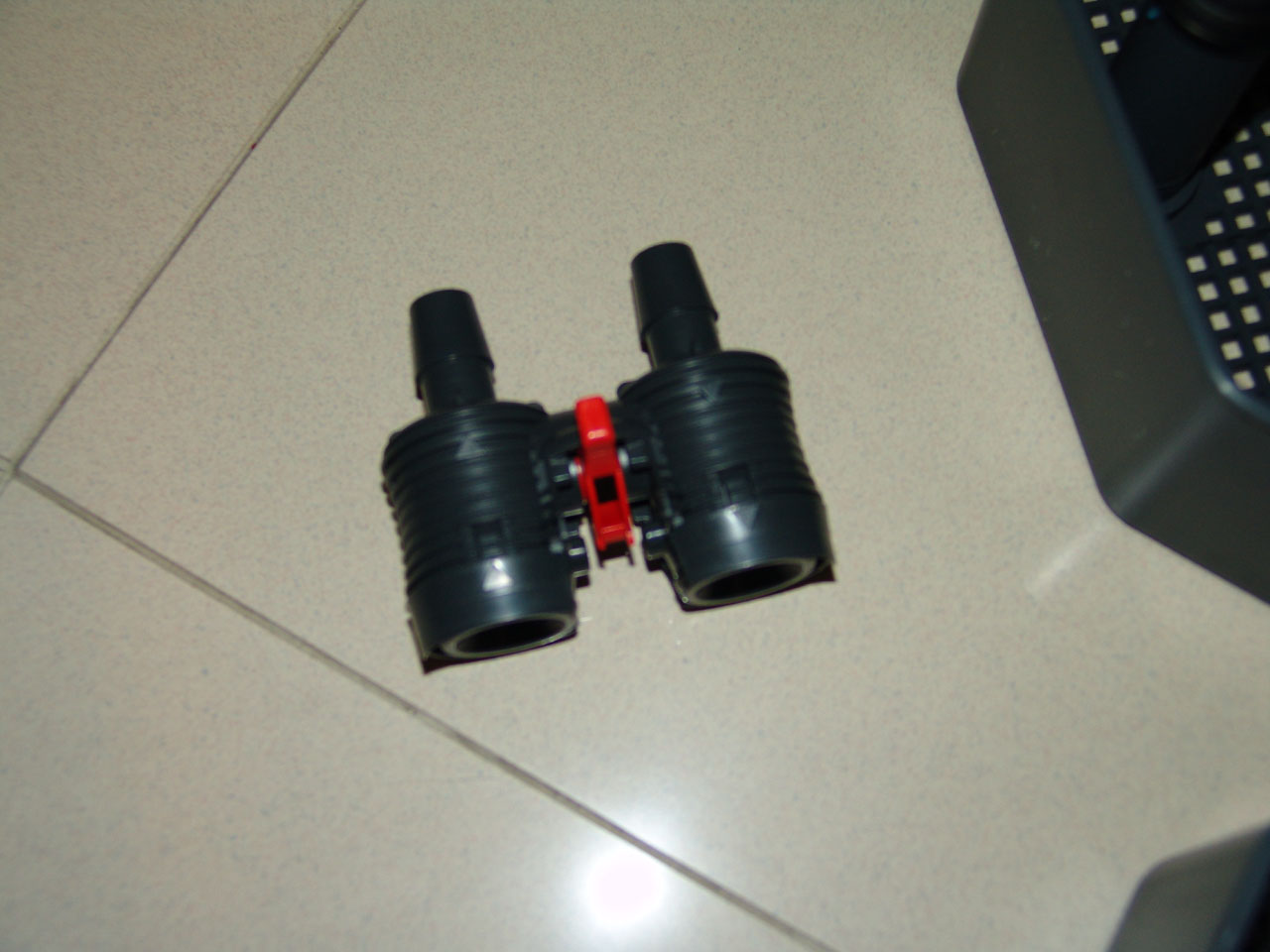

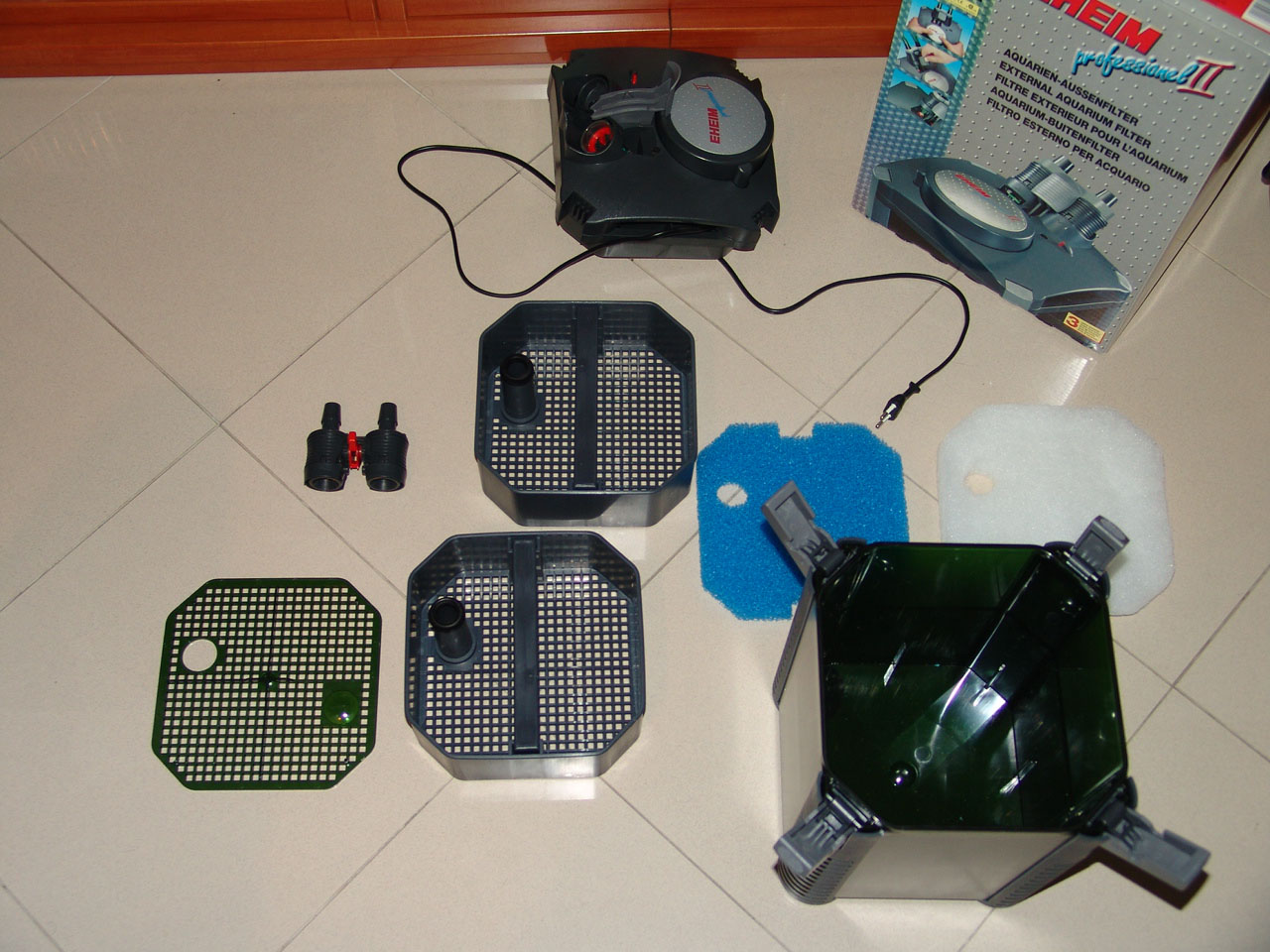

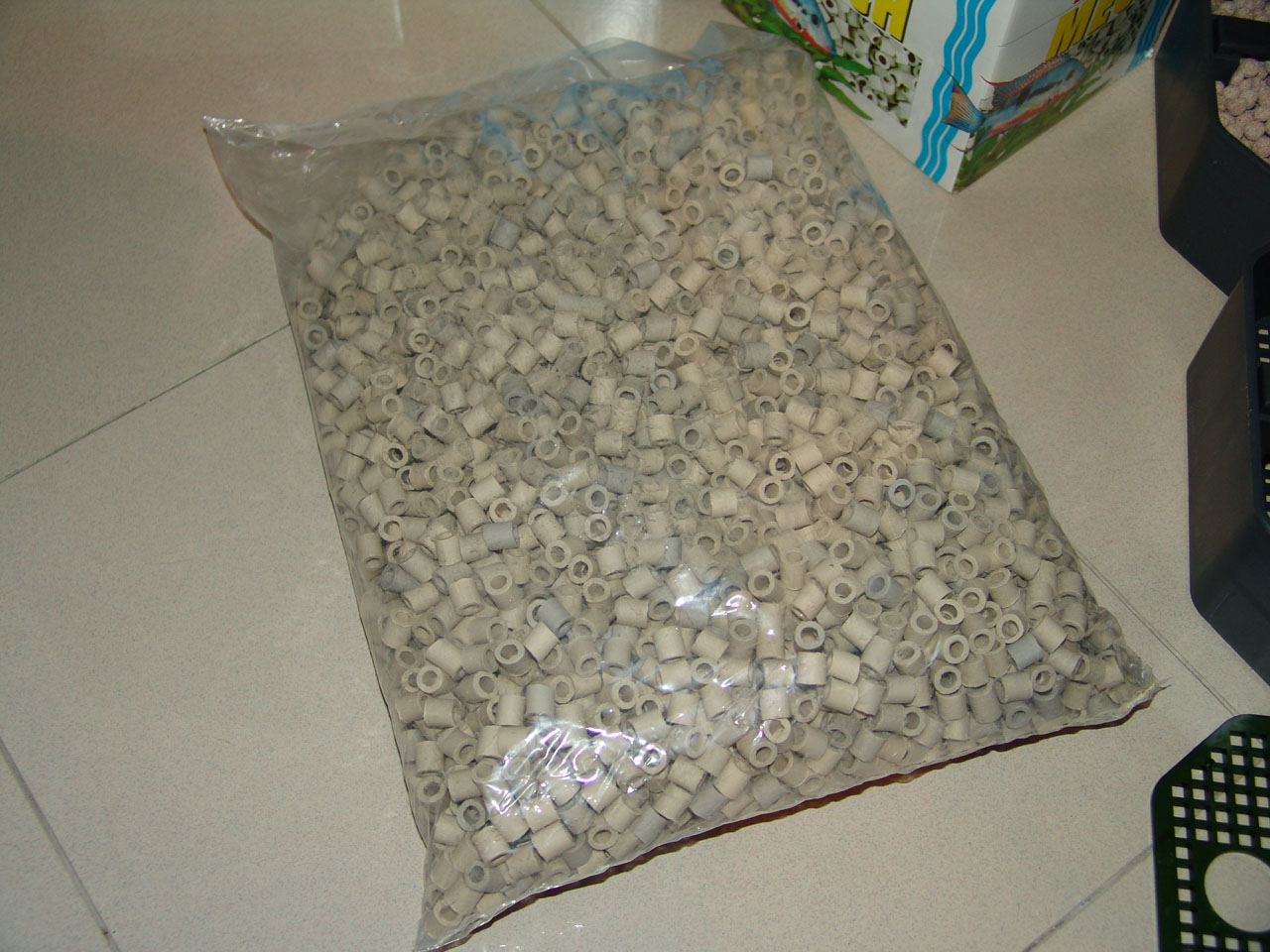

EHEIM 2026 filter setup. Two sponges and two filter material layers, one, mechanical filtration filled with  EHEIM EHFI Mech (hollow cilindric ceramics) and another, for biological filtration filled with EHEIM Substrat (bacteria supporting balls). Filter includes priming aid, filtering debit visual indicator and quick safe release of pipes. Flexible pvc pipes installed connecting to the intake and outake rigid pvc pipes already installed.



DSC02303.jpg (195263 bytes) DSC02304.jpg (160176 bytes) DSC02305.jpg (263841 bytes) DSC02307.jpg (304640 bytes) DSC02309.jpg (191295 bytes) DSC02310.jpg (262239 bytes) DSC02314.jpg (189887 bytes) DSC02315.jpg (210524 bytes) DSC02316.jpg (210099 bytes) DSC02318.jpg (356870 bytes)

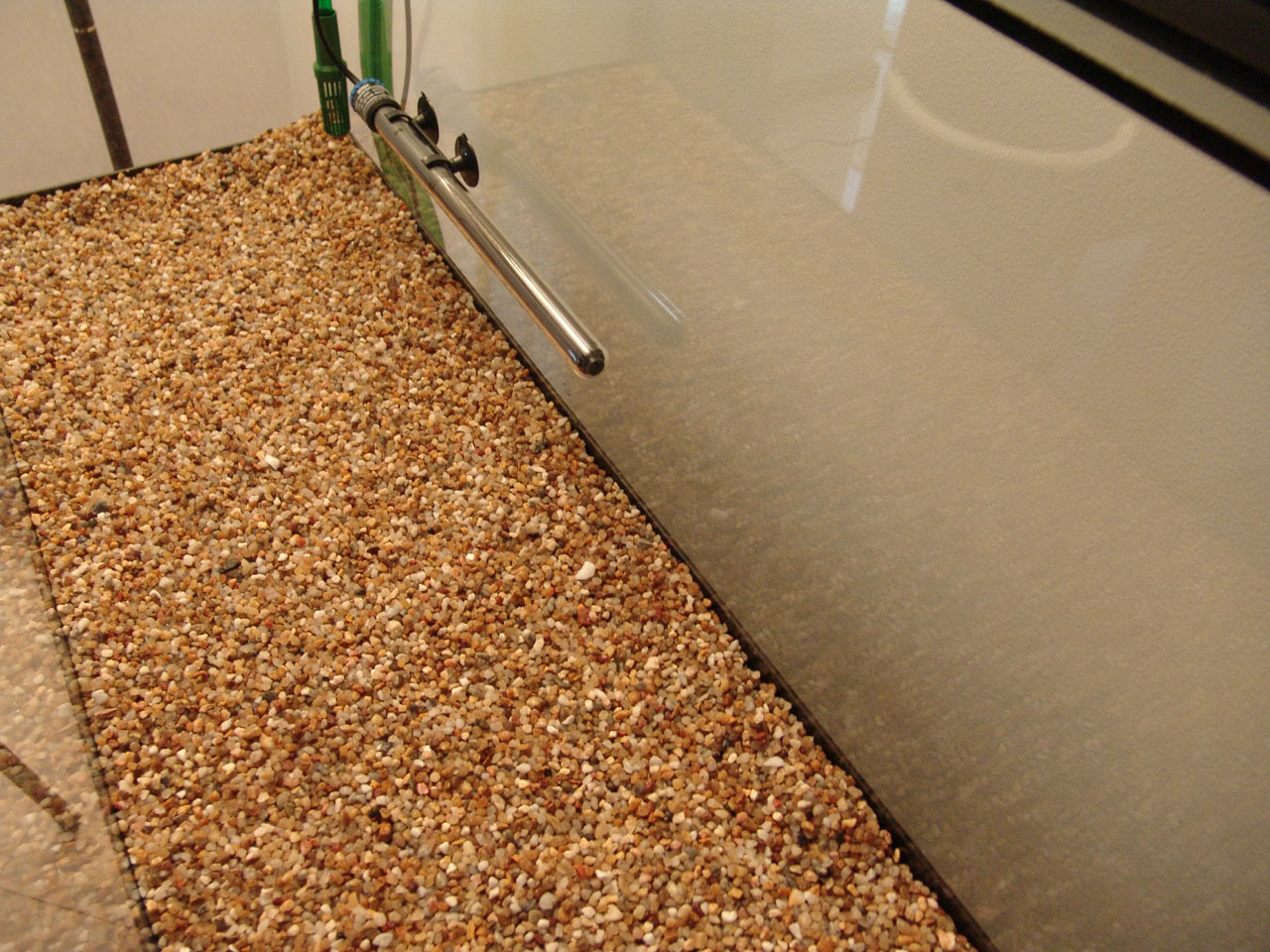

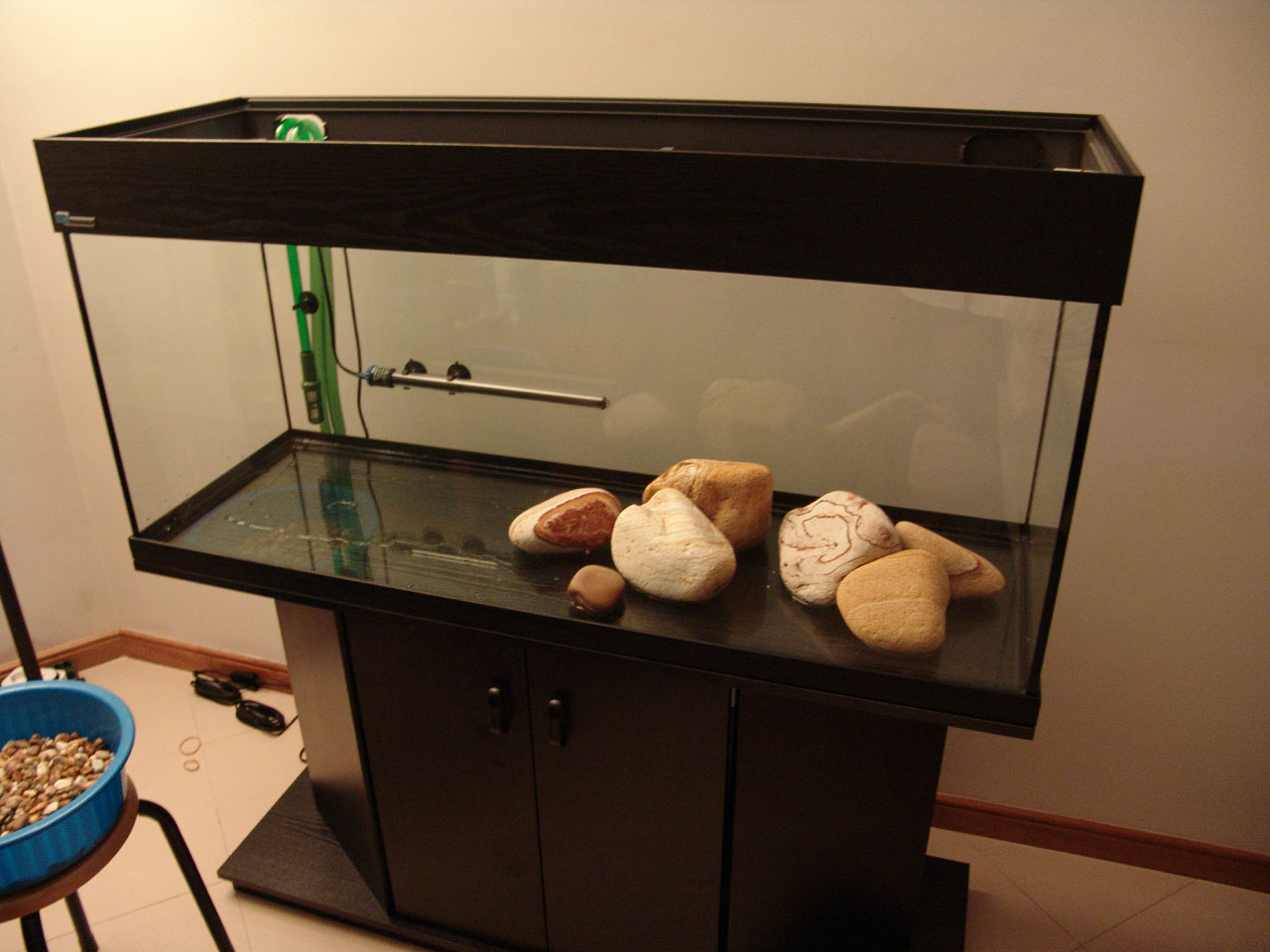

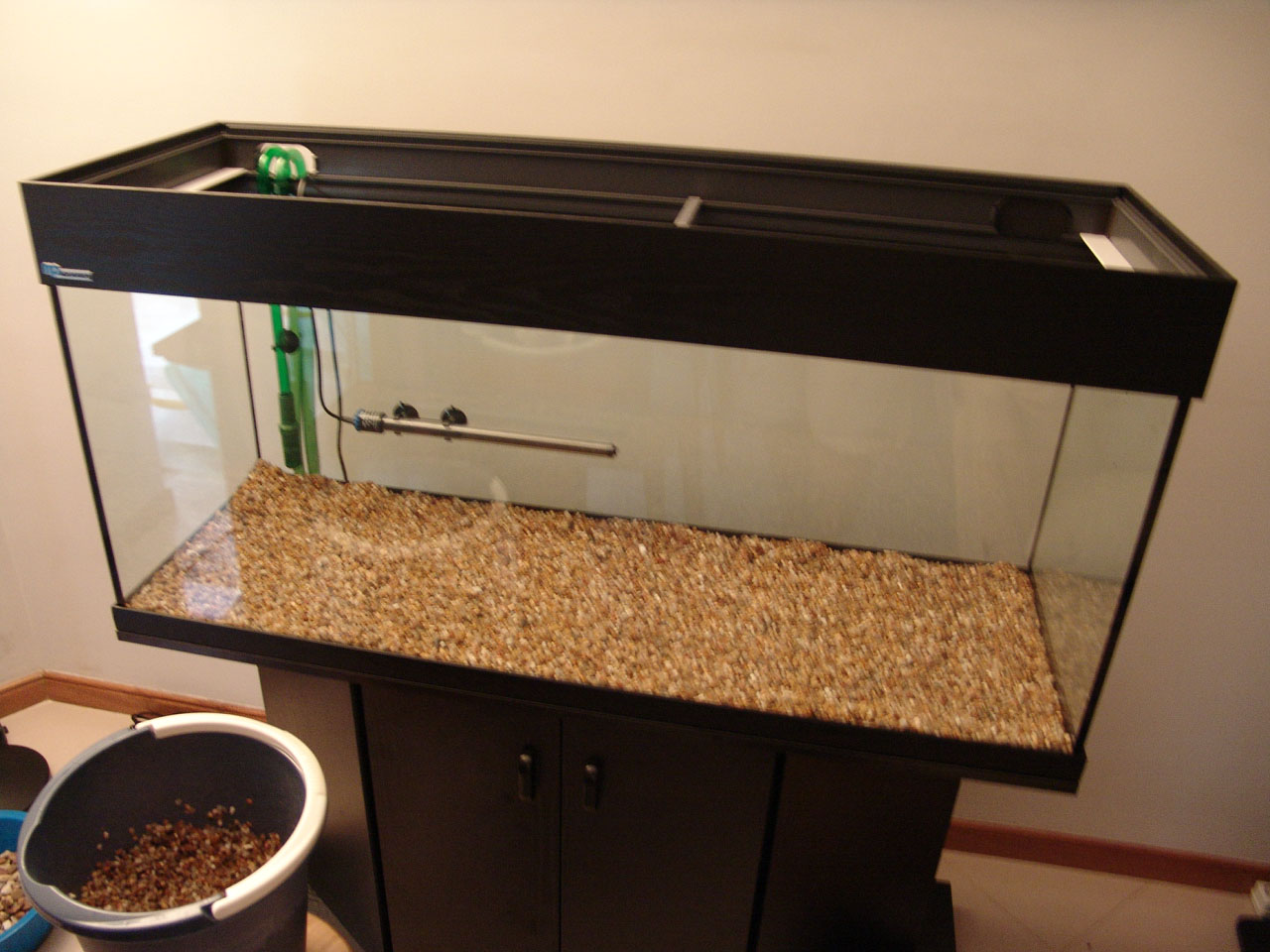

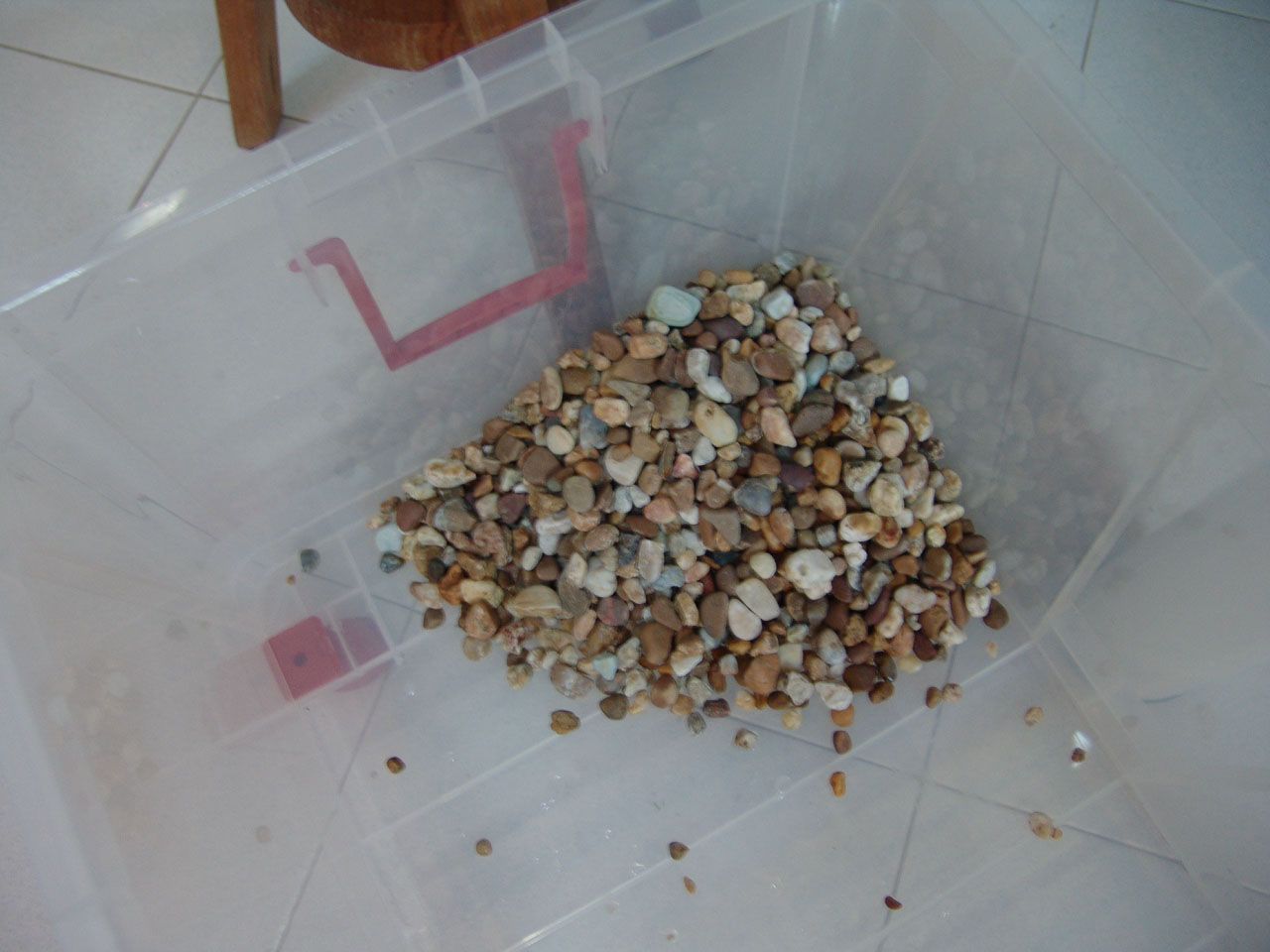

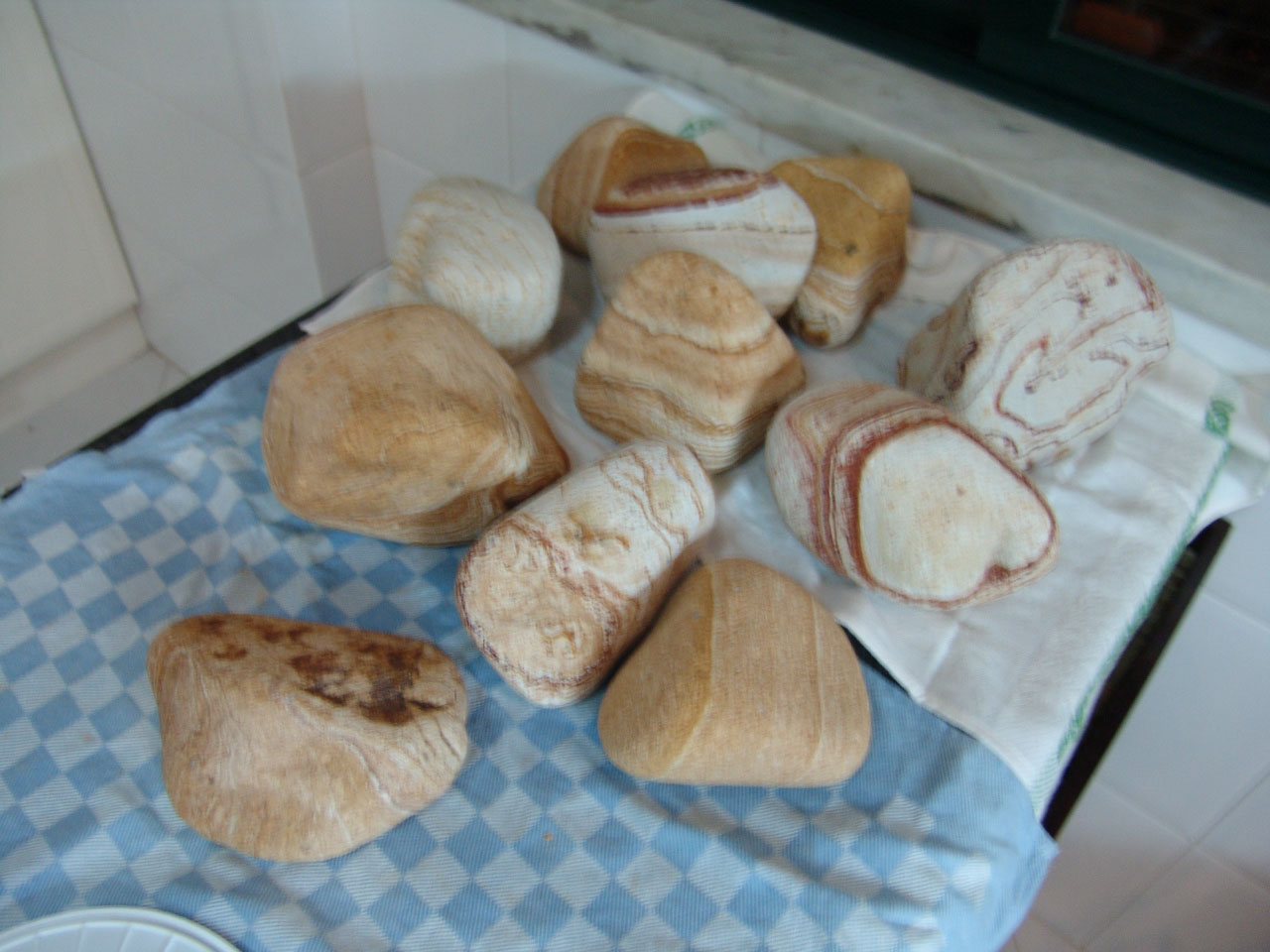

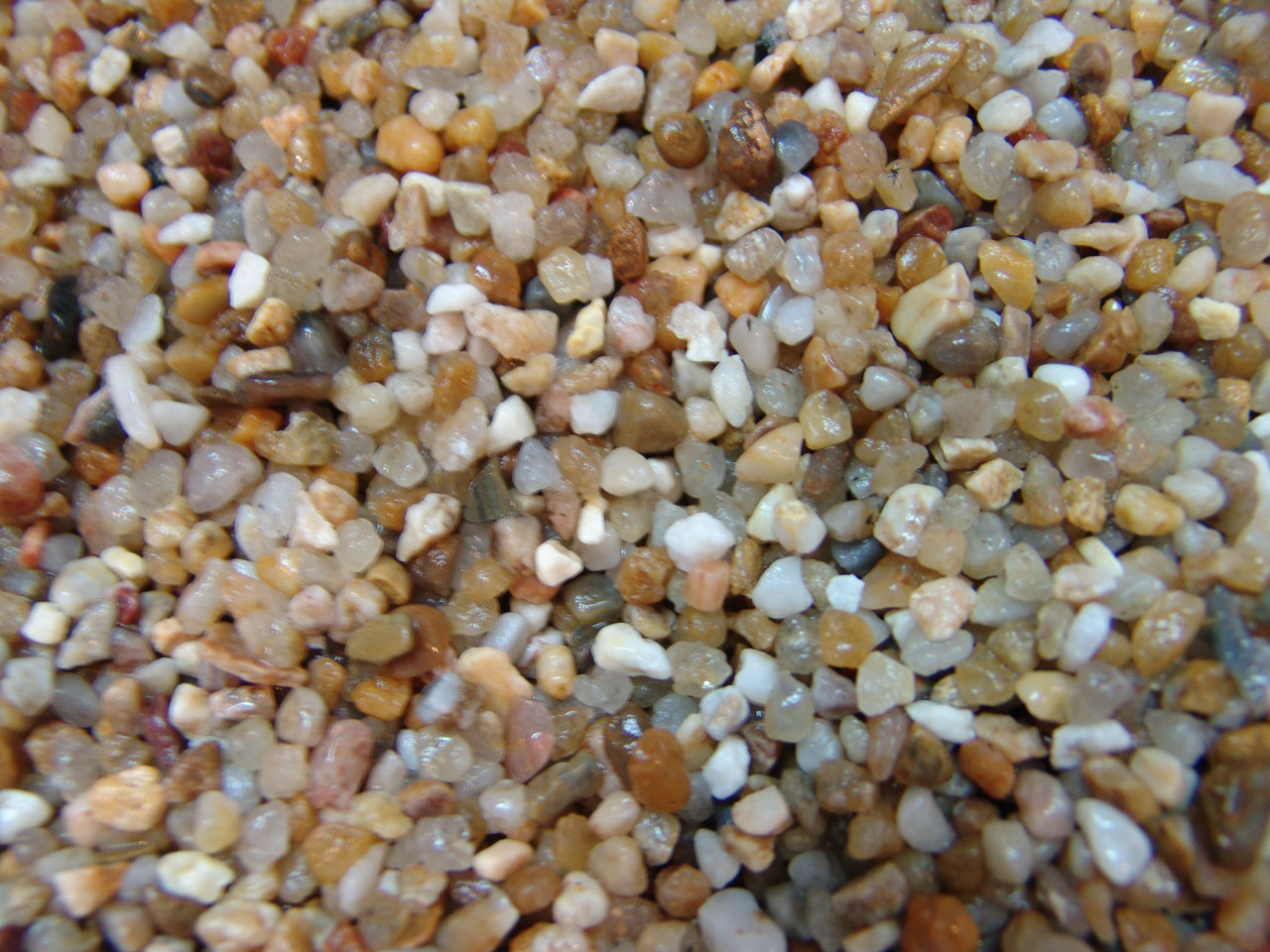

15 KG river rocks and 40 KG river bed gravel (3-4 mm grains) were washed and boiled.
For some details approx. 5 KG of 1mm fine gravel and 1 KG of coarsers gravel (10-12mm) were also used.

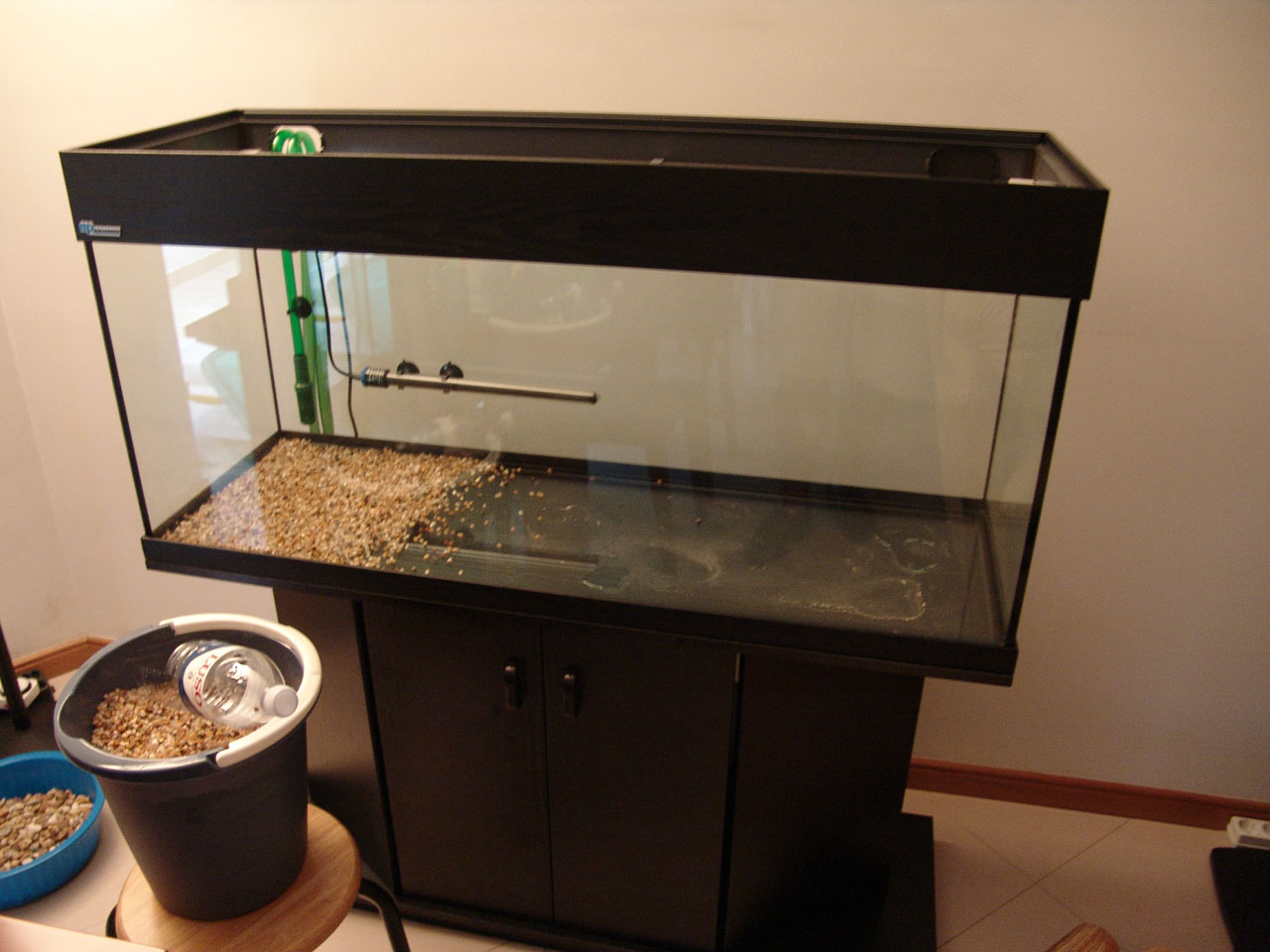

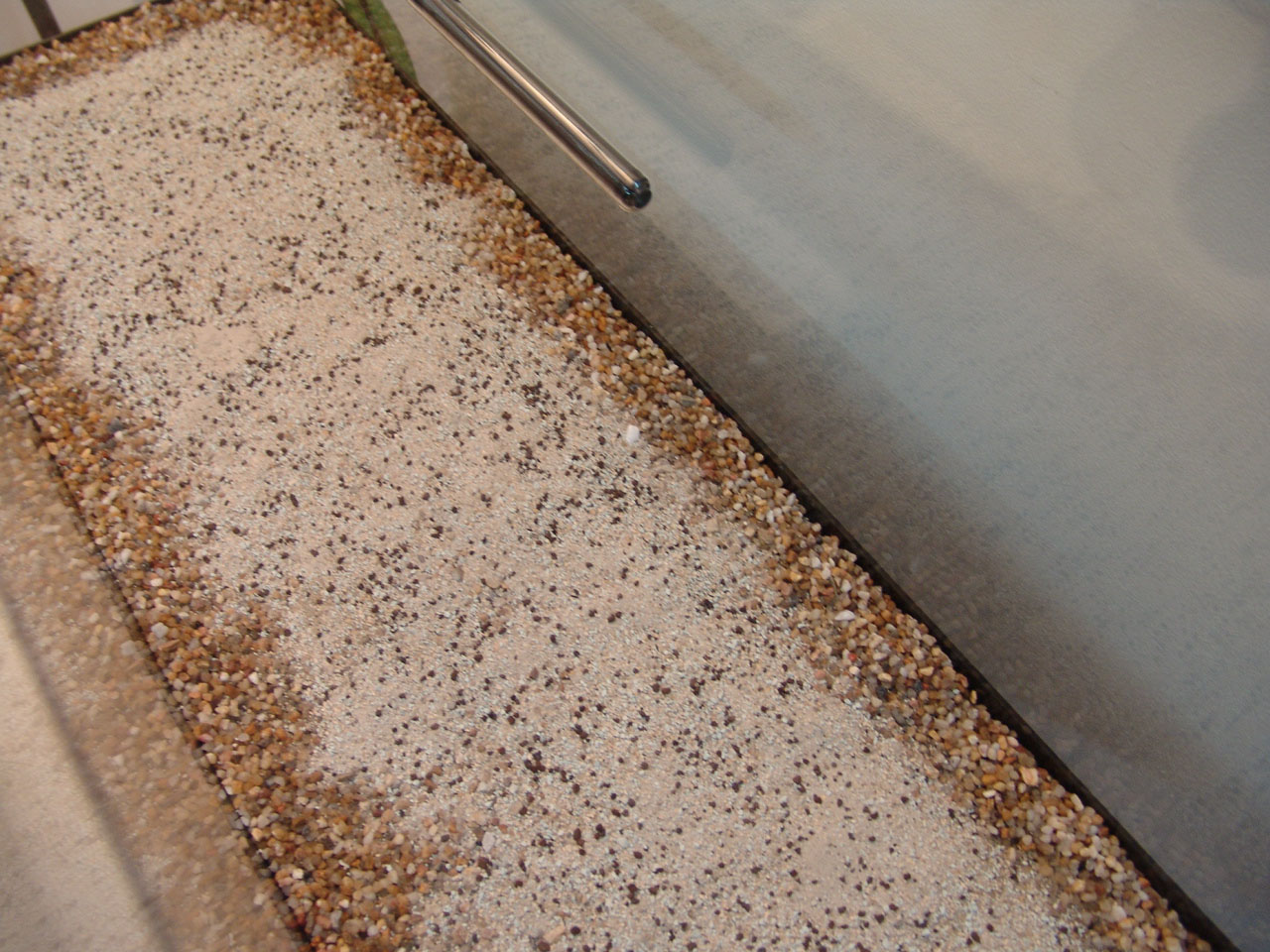

A very thin layer of gravel was layed just to cover the bottom glass prior to the fertile substrat layer addition.

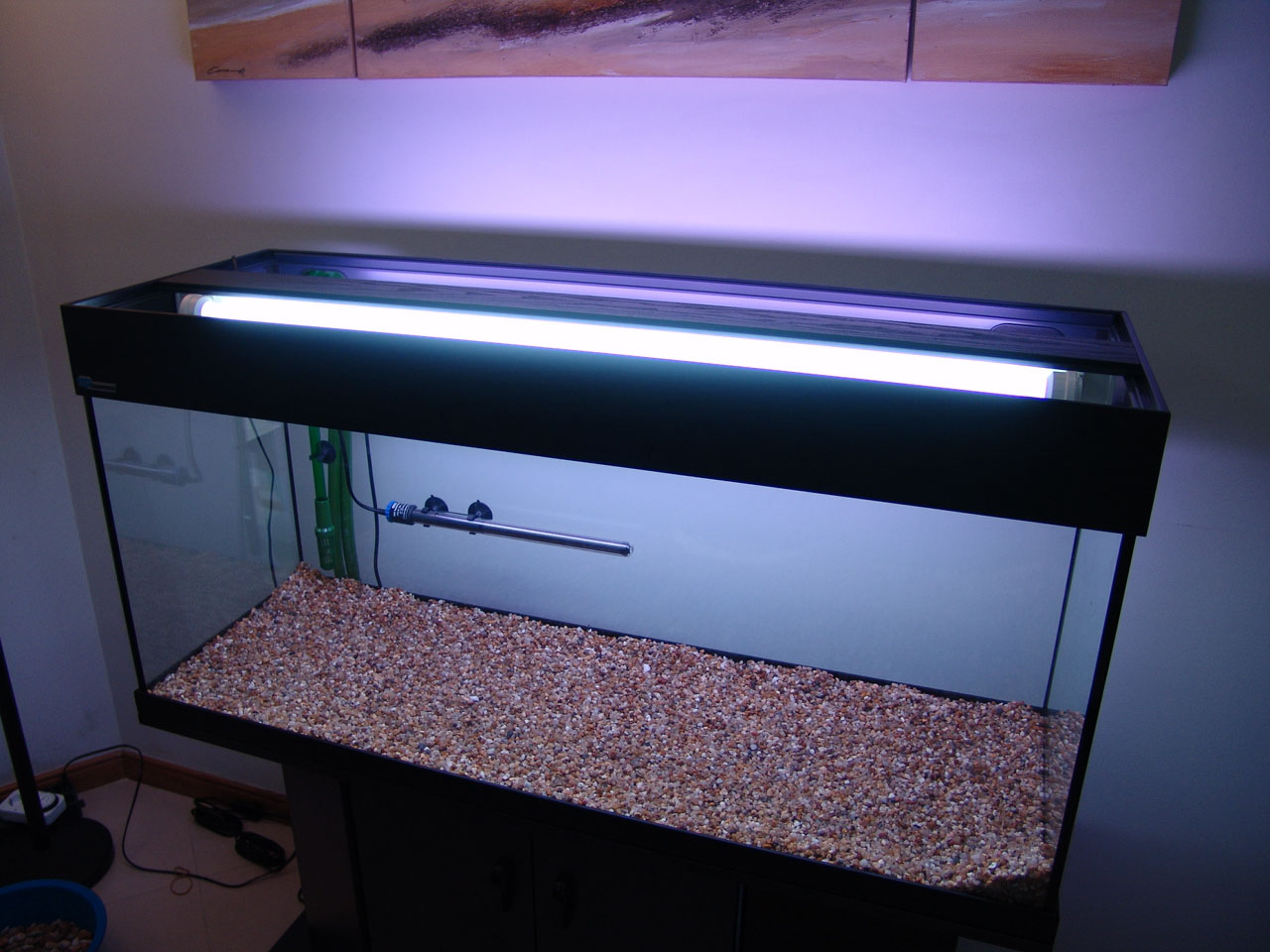

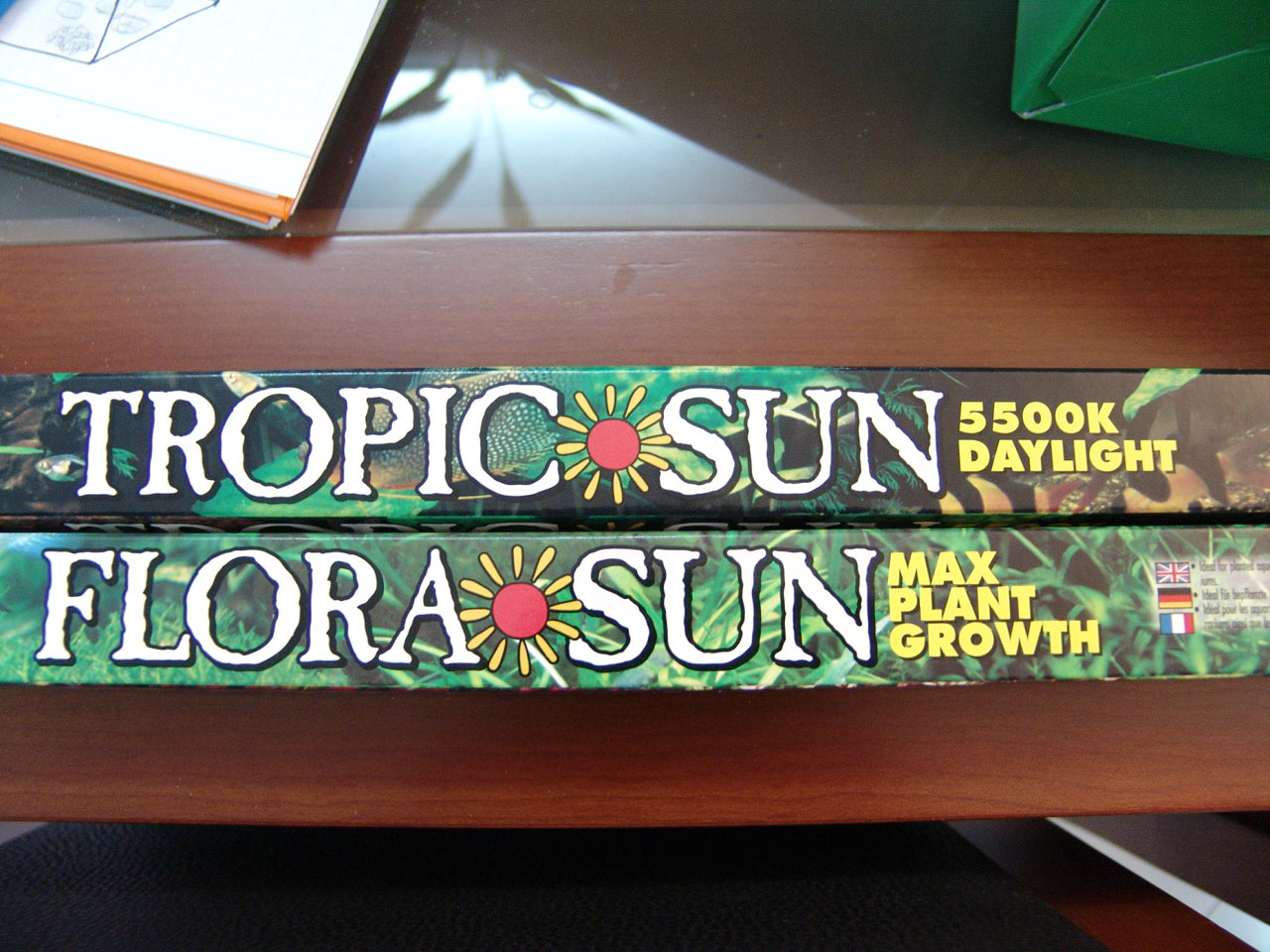

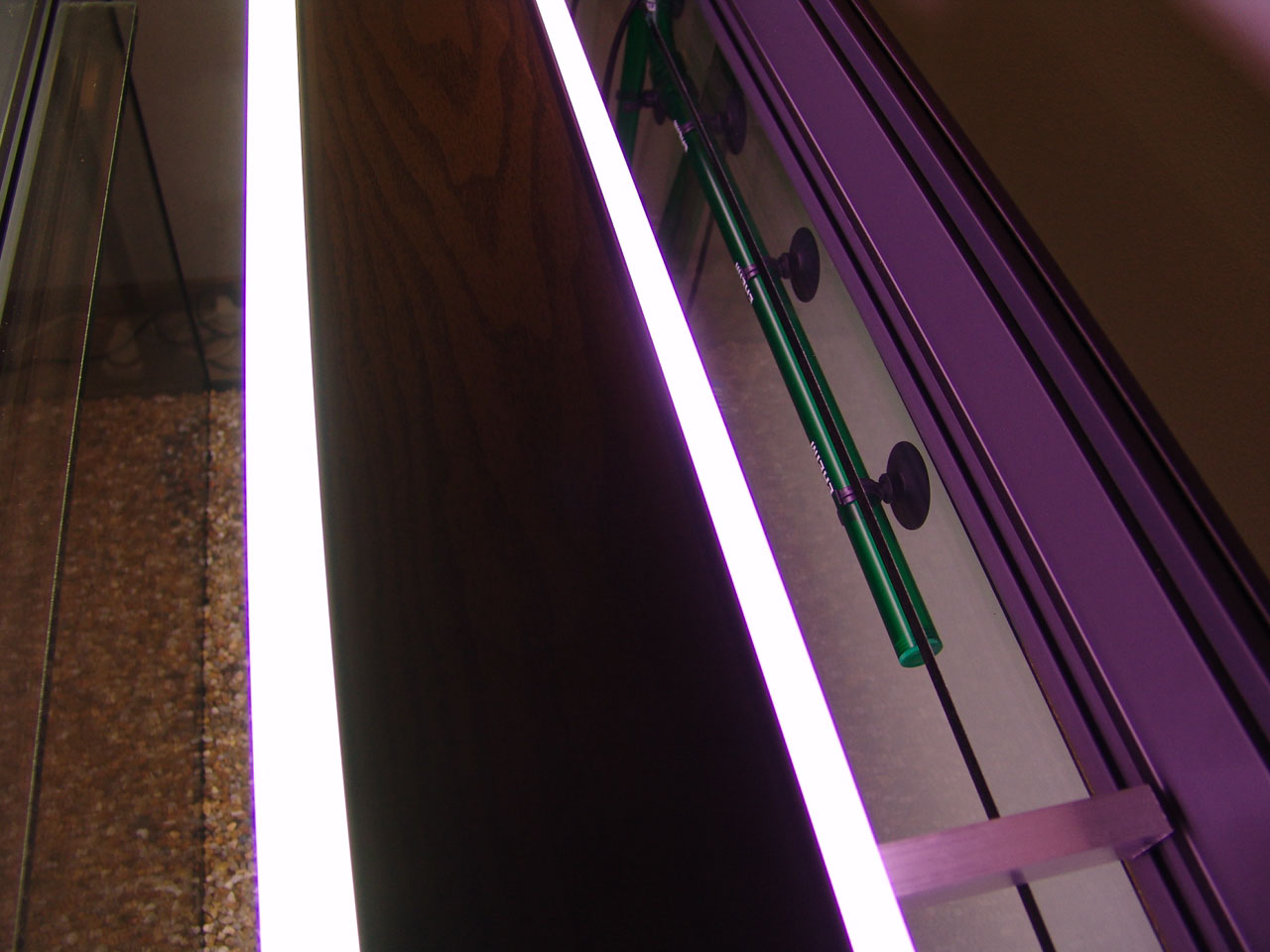

Light setup and first test. 76W, 2x38W, Flora Sun Max Plant Growth and Tropic Sun 550K Daylight.

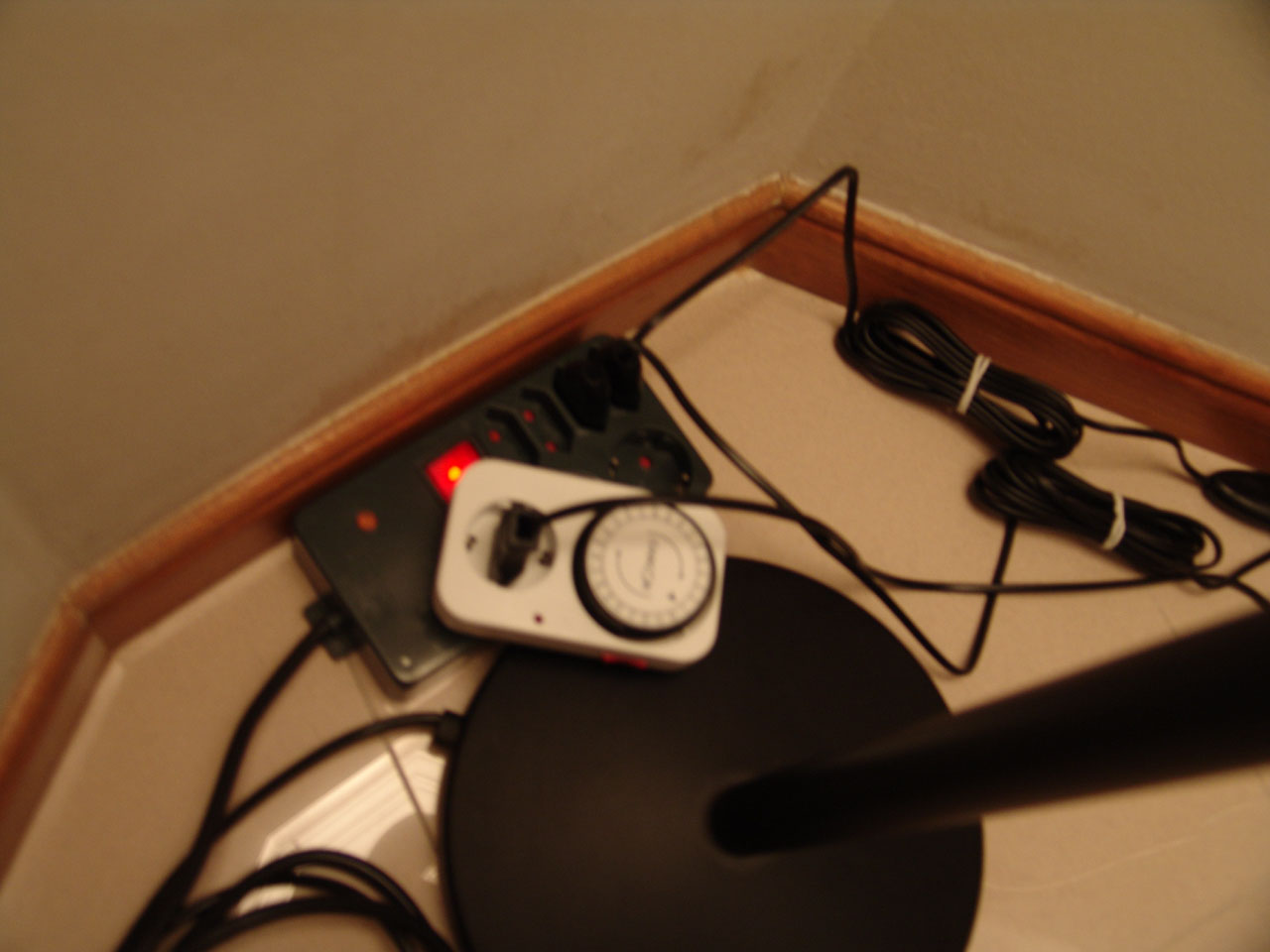

Electrical setup with power surge enabled extension cords and automatic 24 Hrs timer for lights.

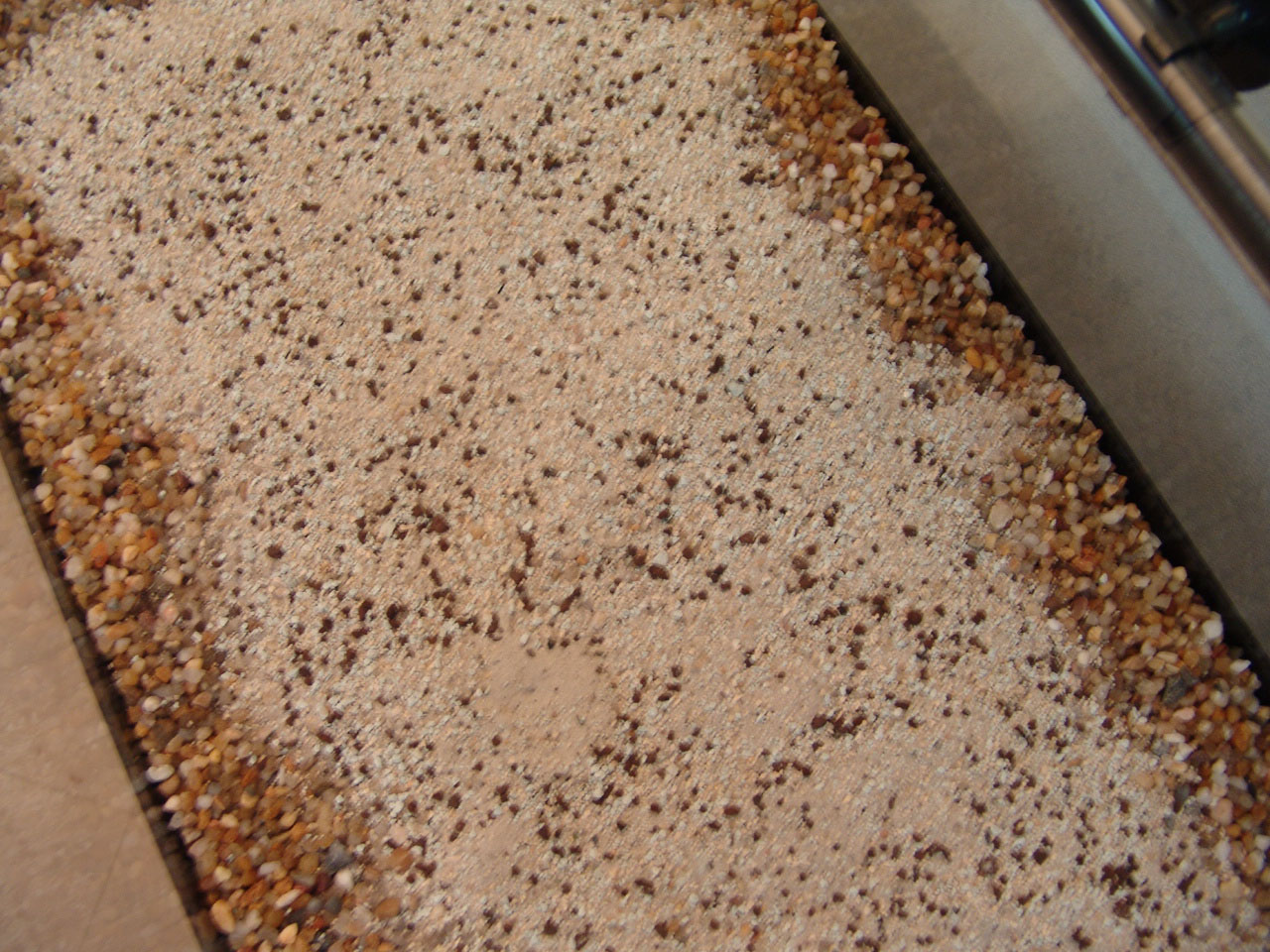

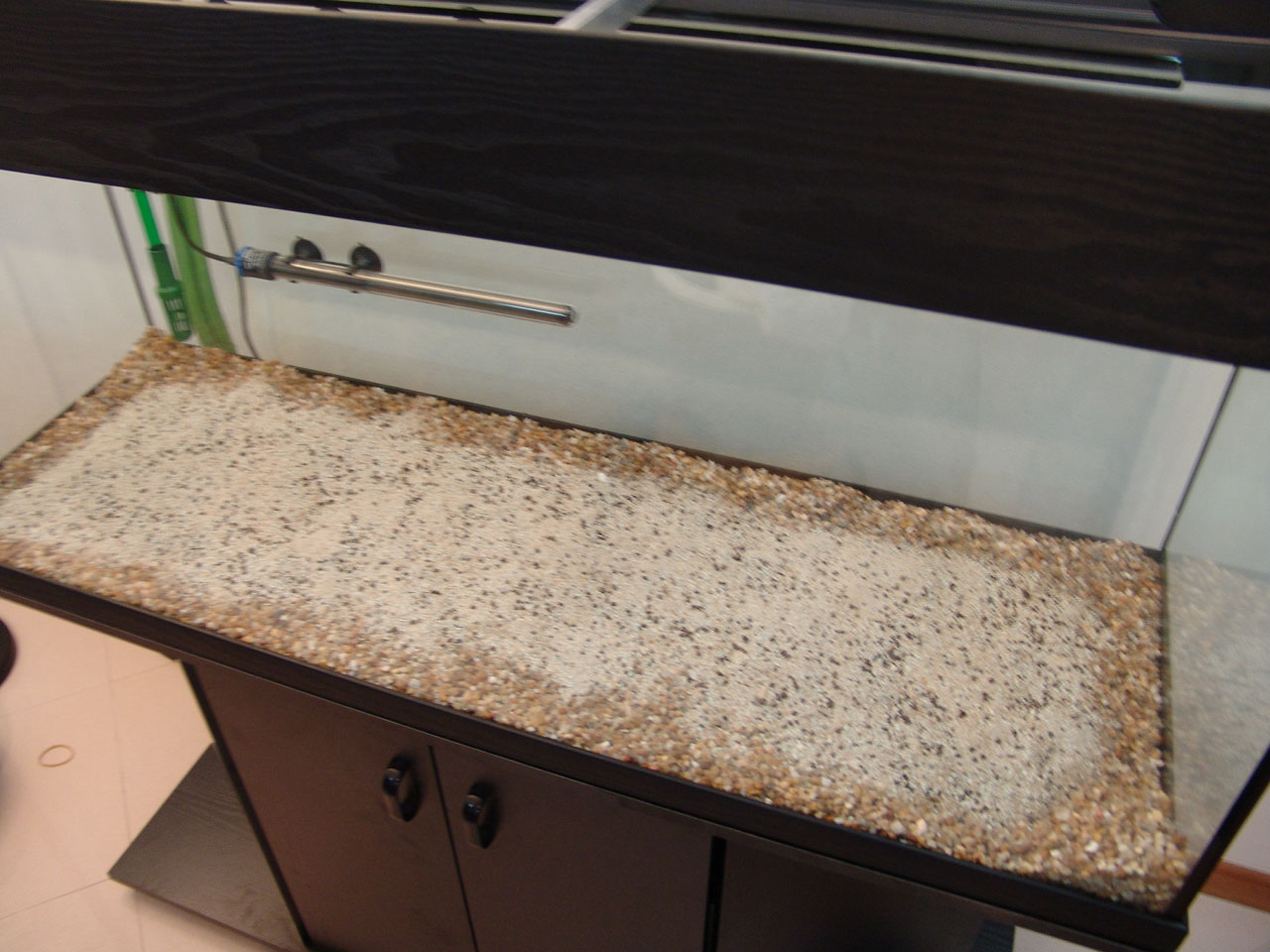

2000 ml fertile layer substrat from AMTRA Plant Depot.
Additional root fertilizer and iron supplements were inserted during plantation.



DSC02332.jpg (215822 bytes) DSC02337.jpg (199855 bytes) DSC02340.jpg (347151 bytes) DSC02341.jpg (260958 bytes) DSC02342.jpg (331852 bytes) DSC02346.jpg (311198 bytes) DSC02347.jpg (267815 bytes) DSC02343.jpg (189005 bytes)

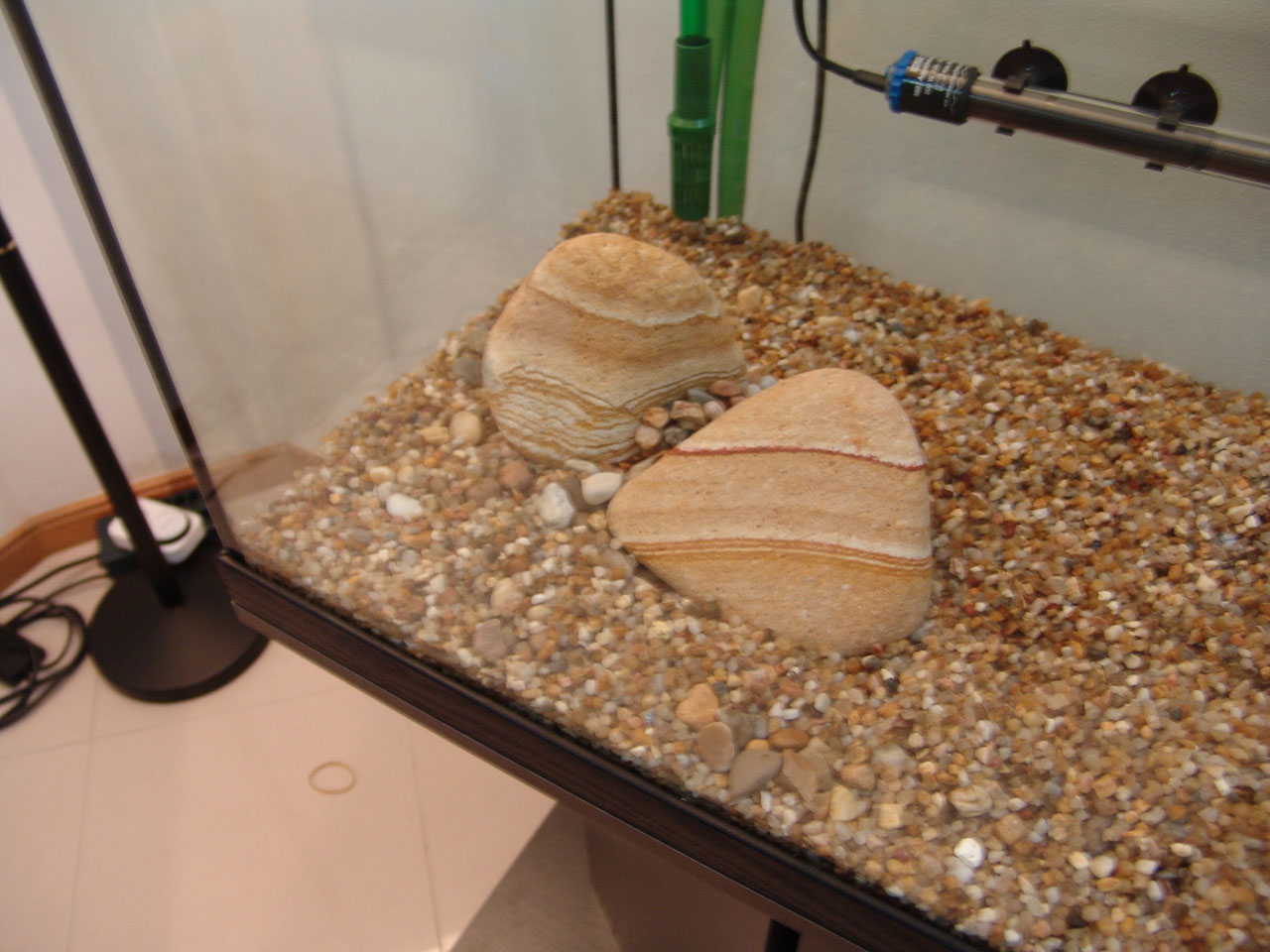

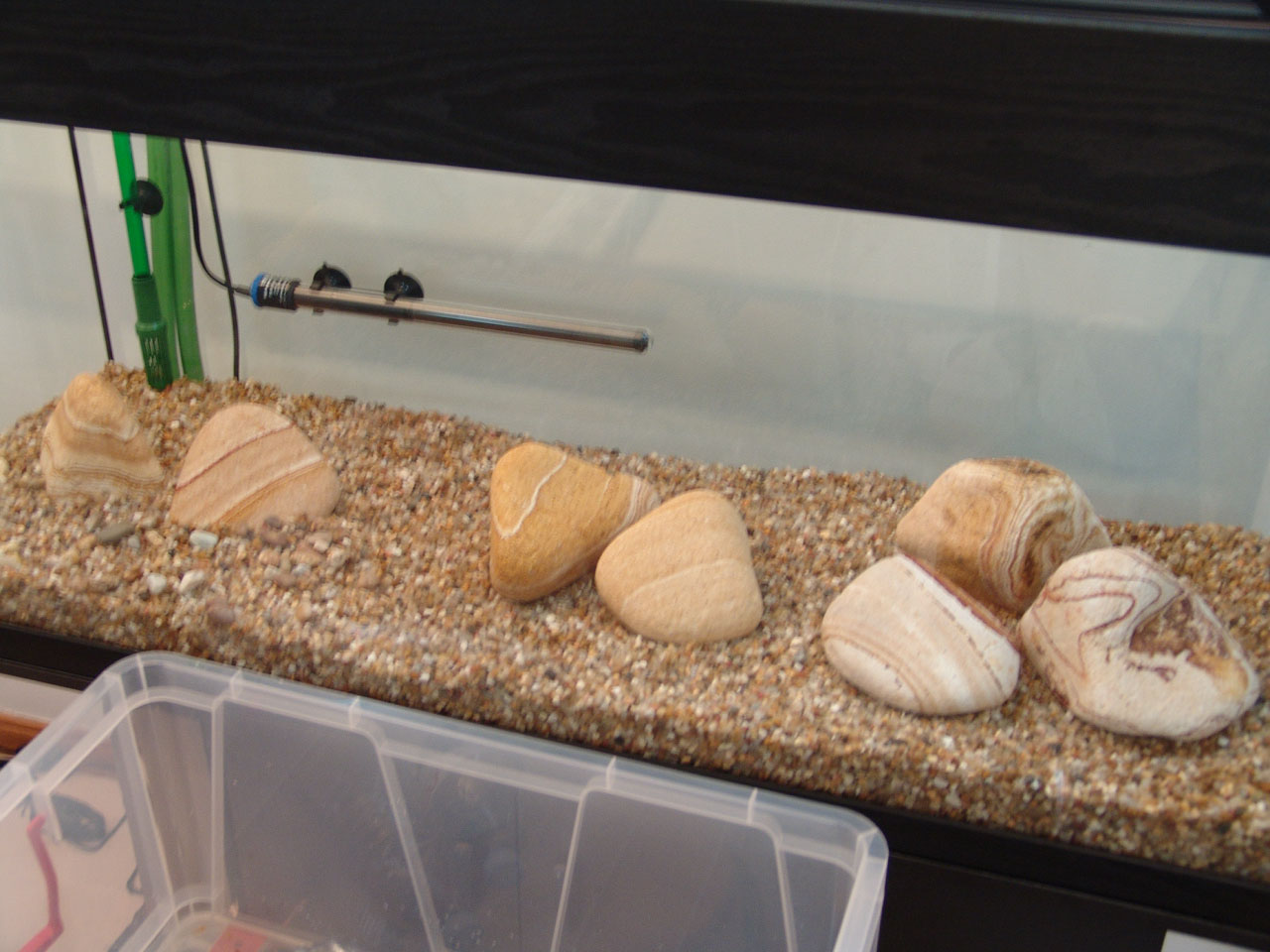

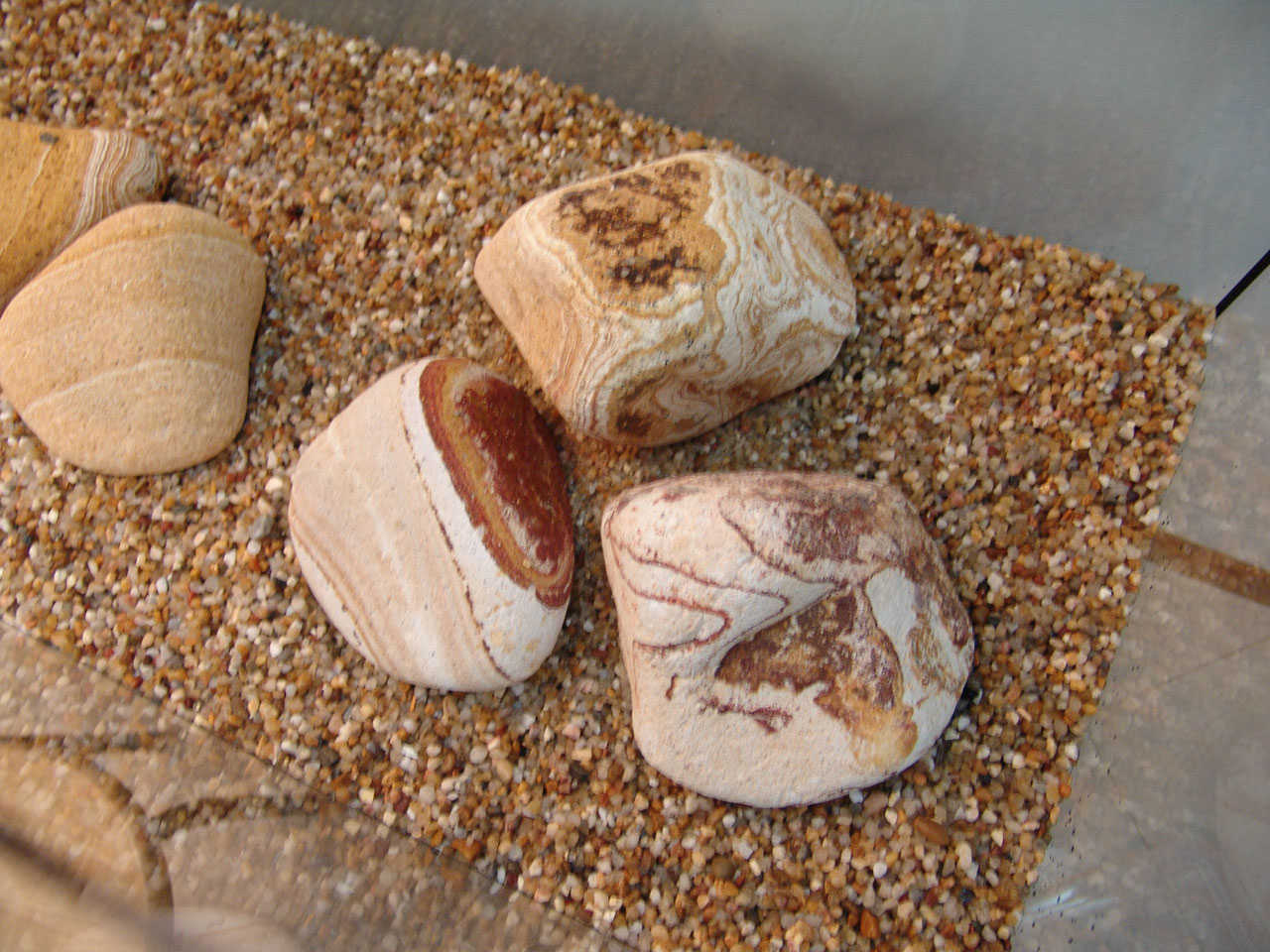

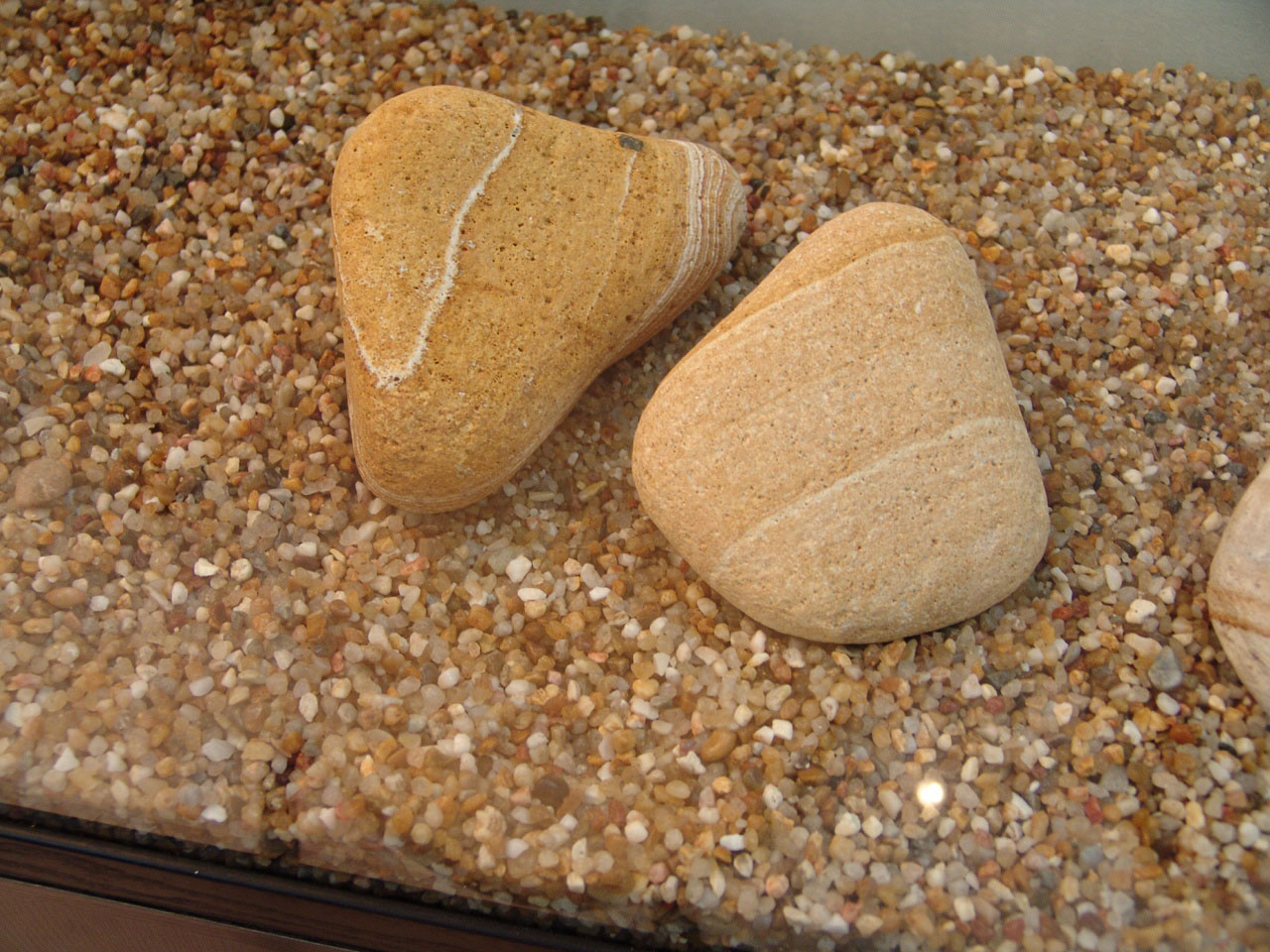

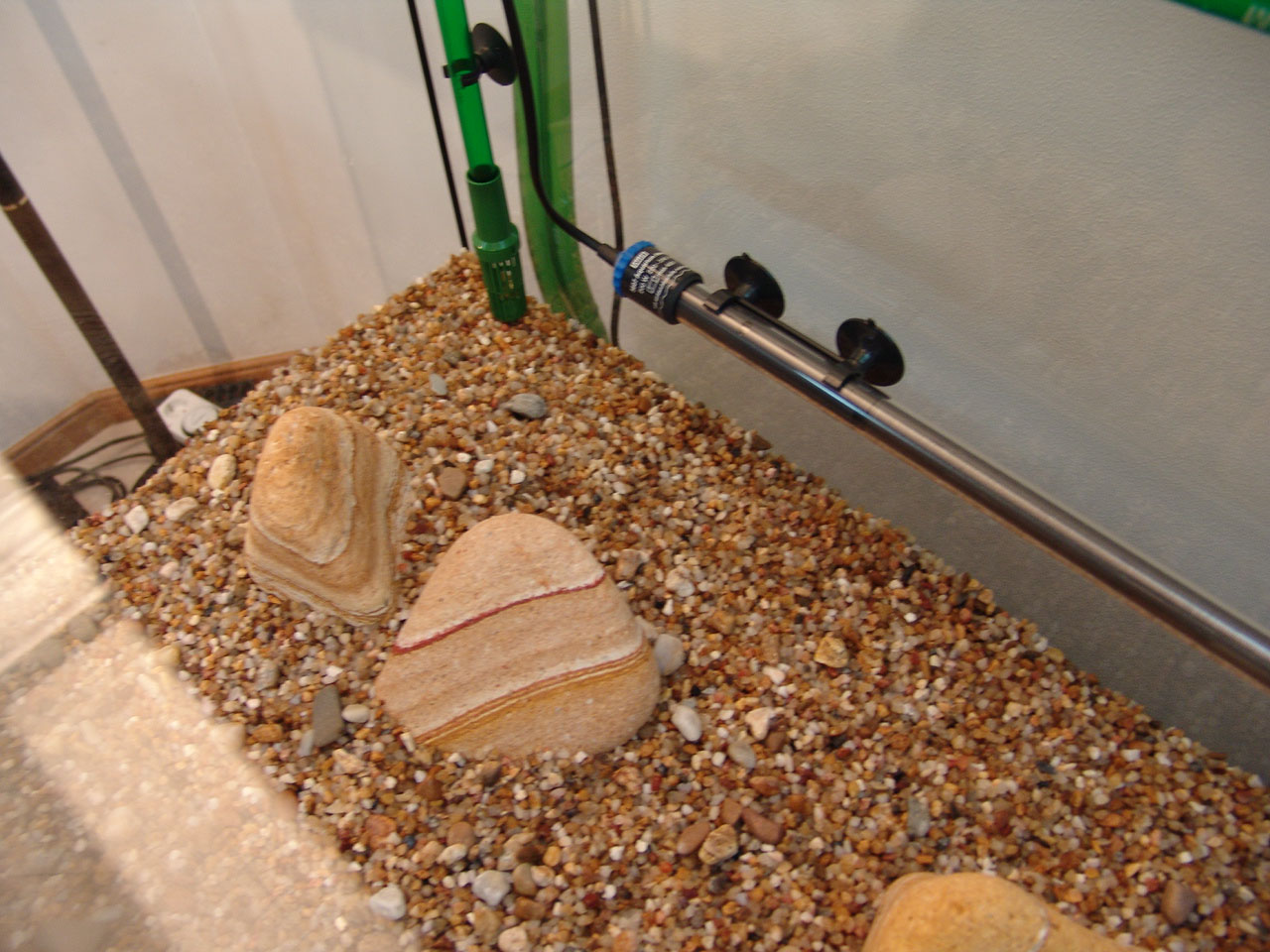

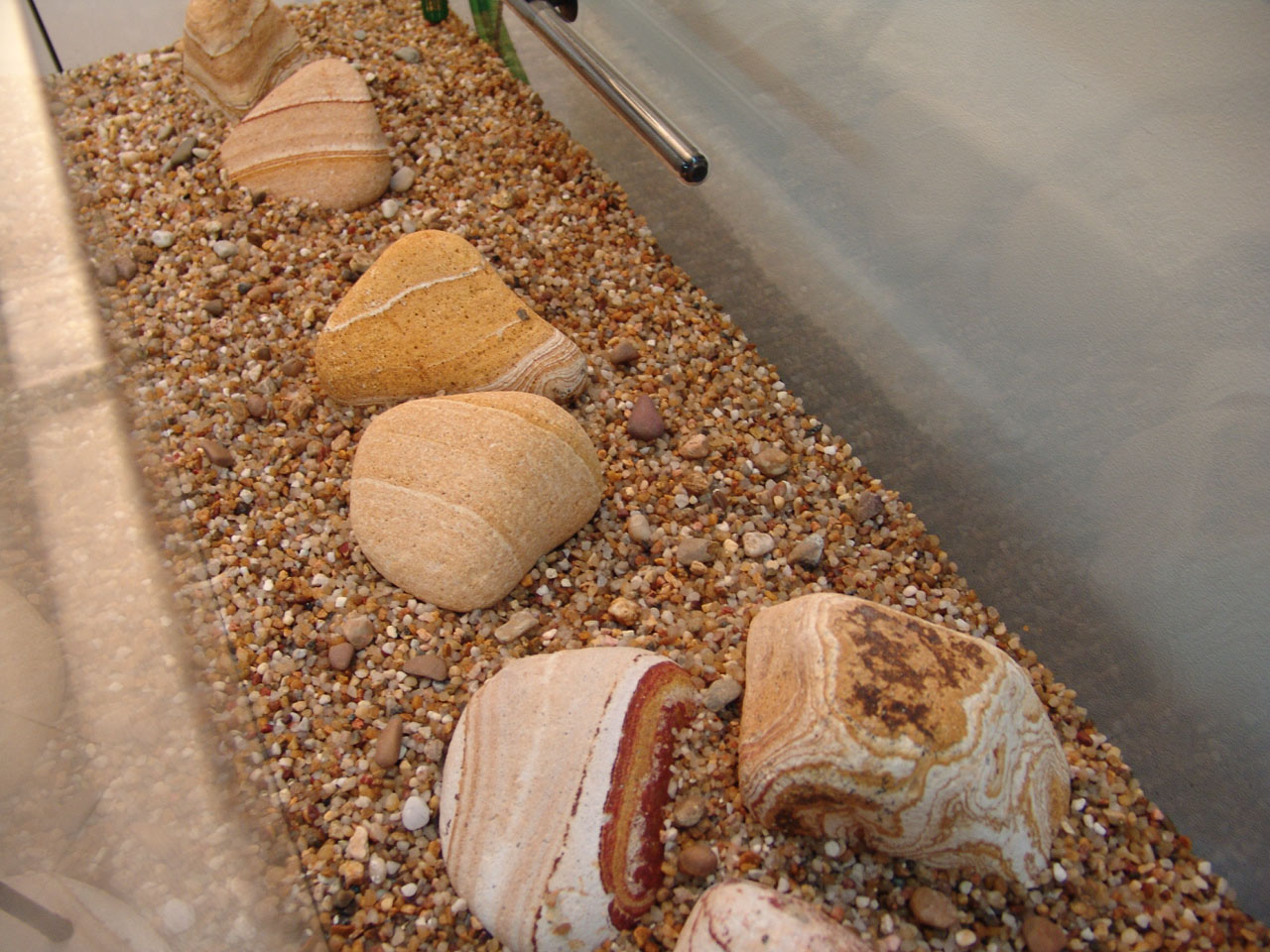

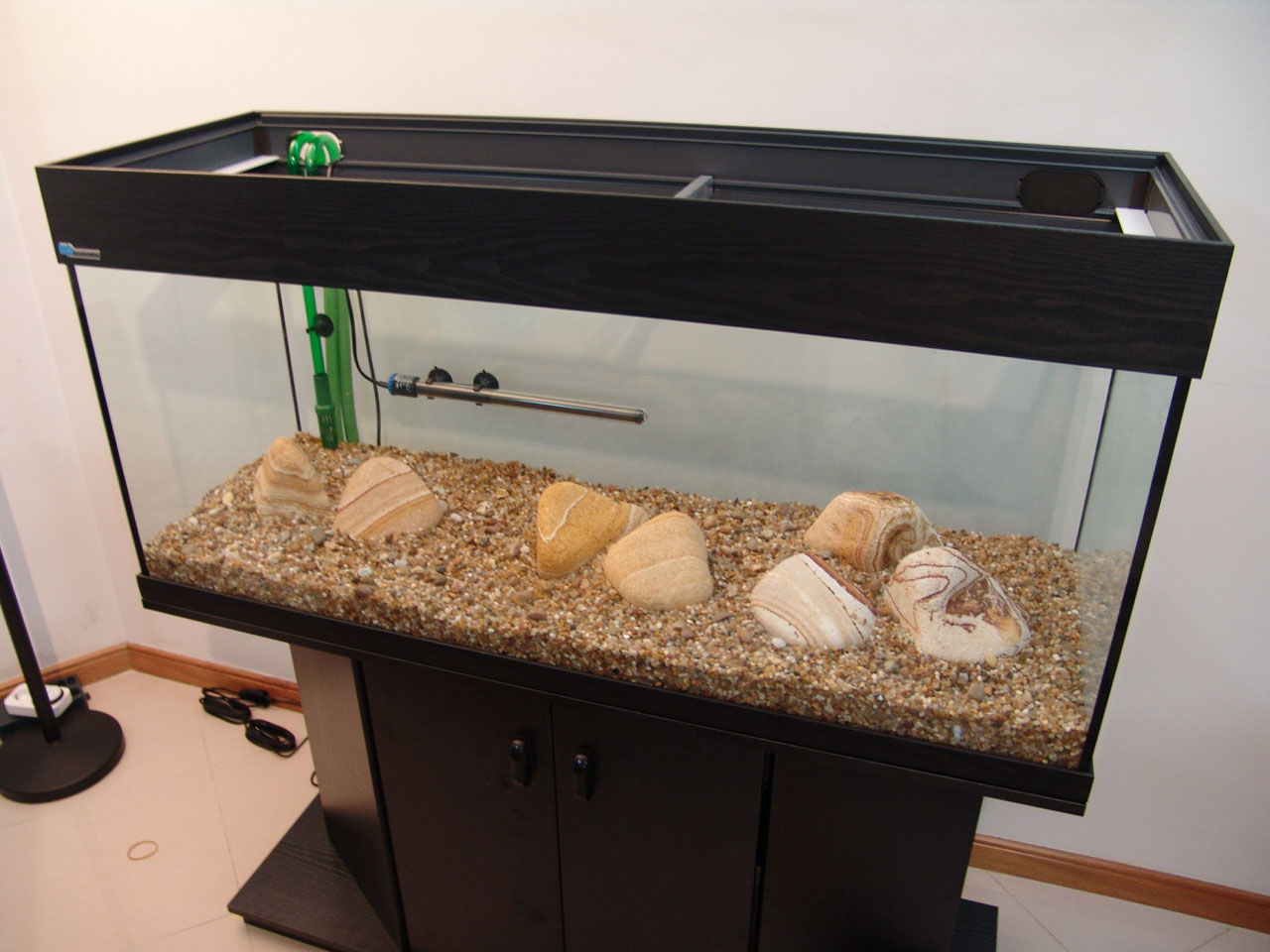

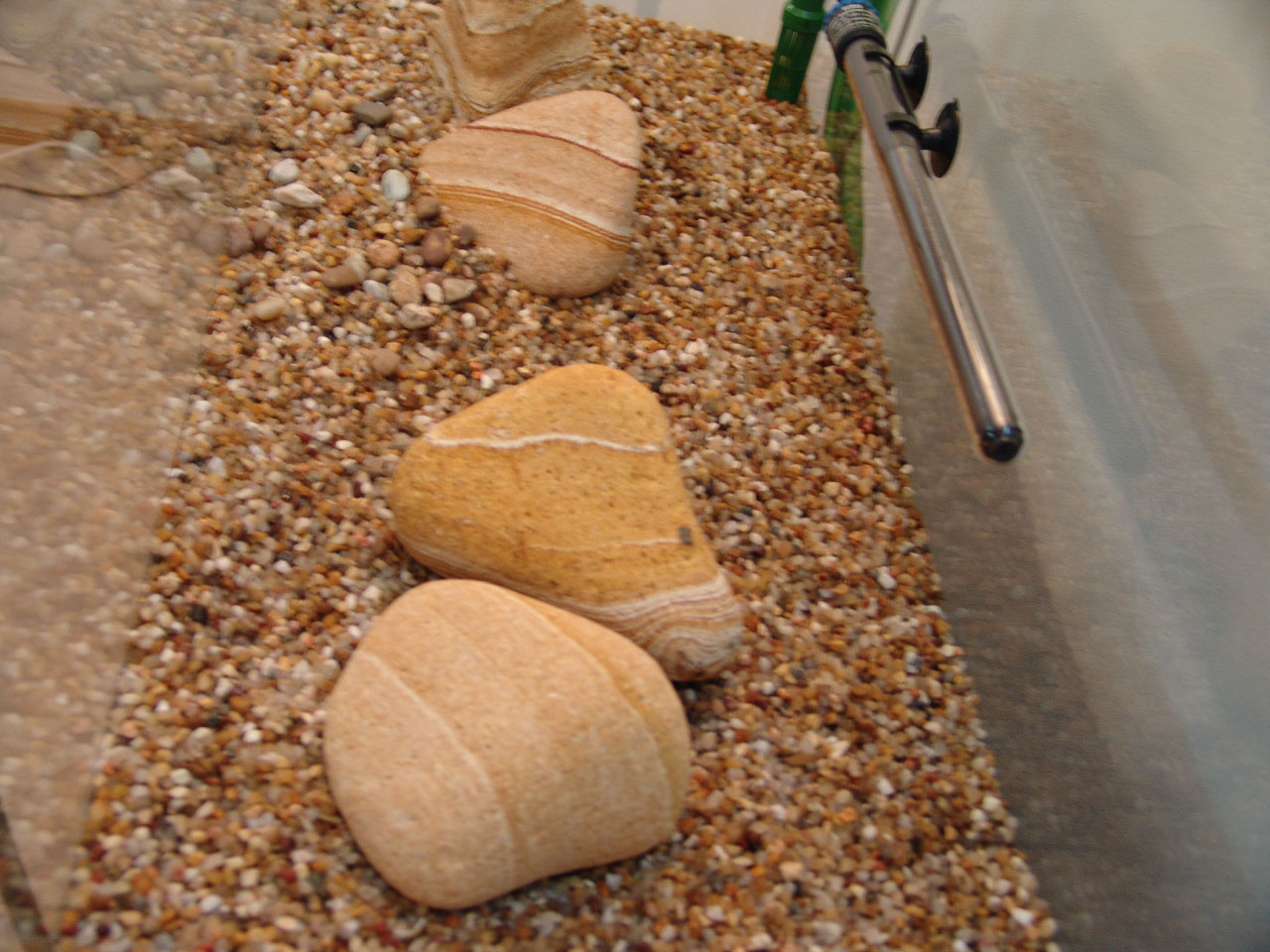

Rocks and 5-6 cms gravel layers setup. Rocks were setup and medium thick gravel layer so that a upper gravel layer will make them more natural and burried looking.



DSC02257.jpg (221796 bytes) DSC02358.jpg (249221 bytes) DSC02350.jpg (315143 bytes) DSC02351.jpg (354720 bytes) DSC02352.jpg (268401 bytes) DSC02353.jpg (311124 bytes) DSC02356.jpg (307143 bytes) DSC02359.jpg (285856 bytes)
DSC02360.jpg (207841 bytes) DSC02362.jpg (228413 bytes) DSC02363.jpg (169283 bytes) DSC02365.jpg (193480 bytes)
DSC02366.jpg (277971 bytes) DSC02367.jpg (220516 bytes) DSC02369.jpg (317192 bytes) DSC02370.jpg (326712 bytes)

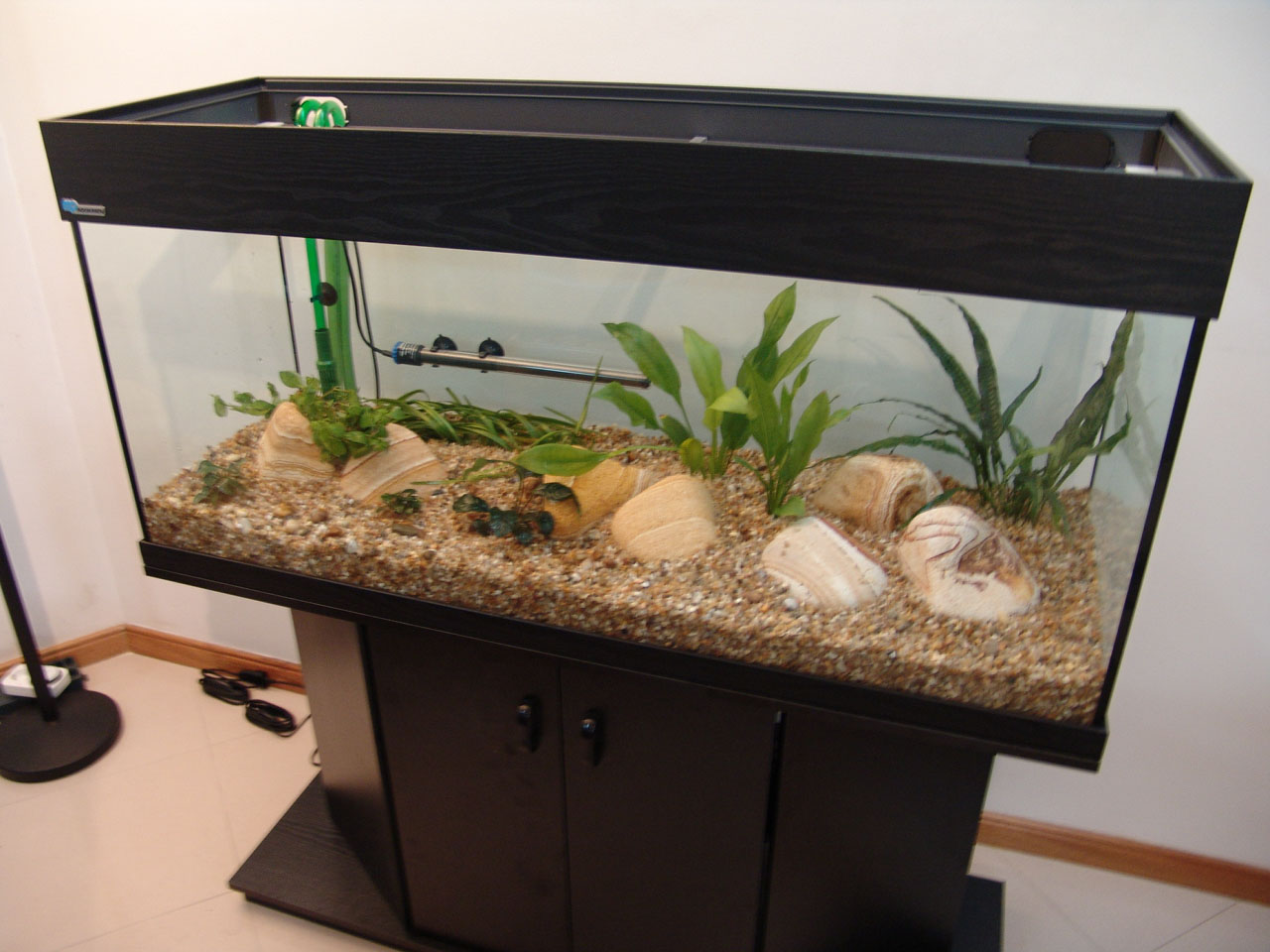

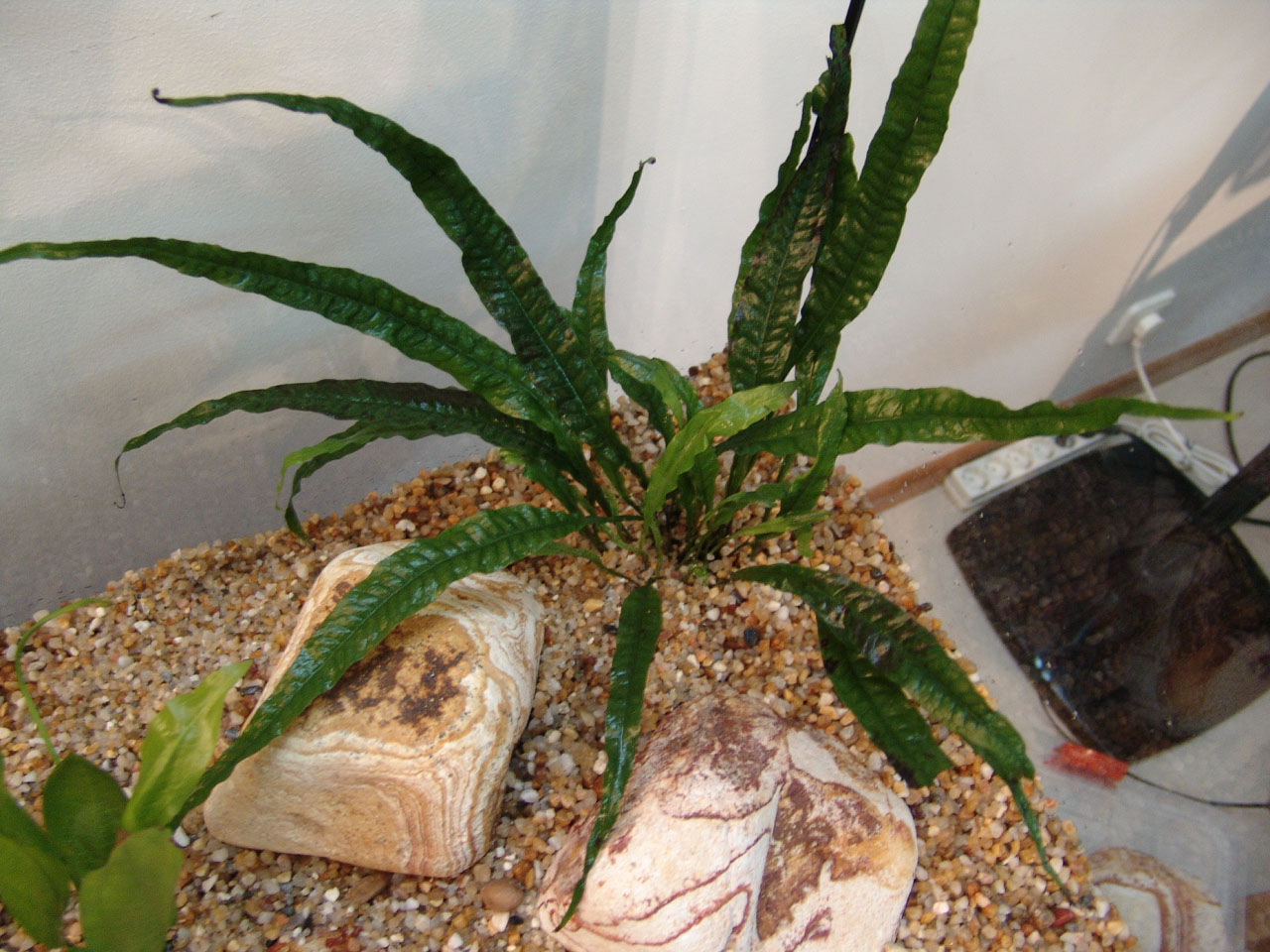

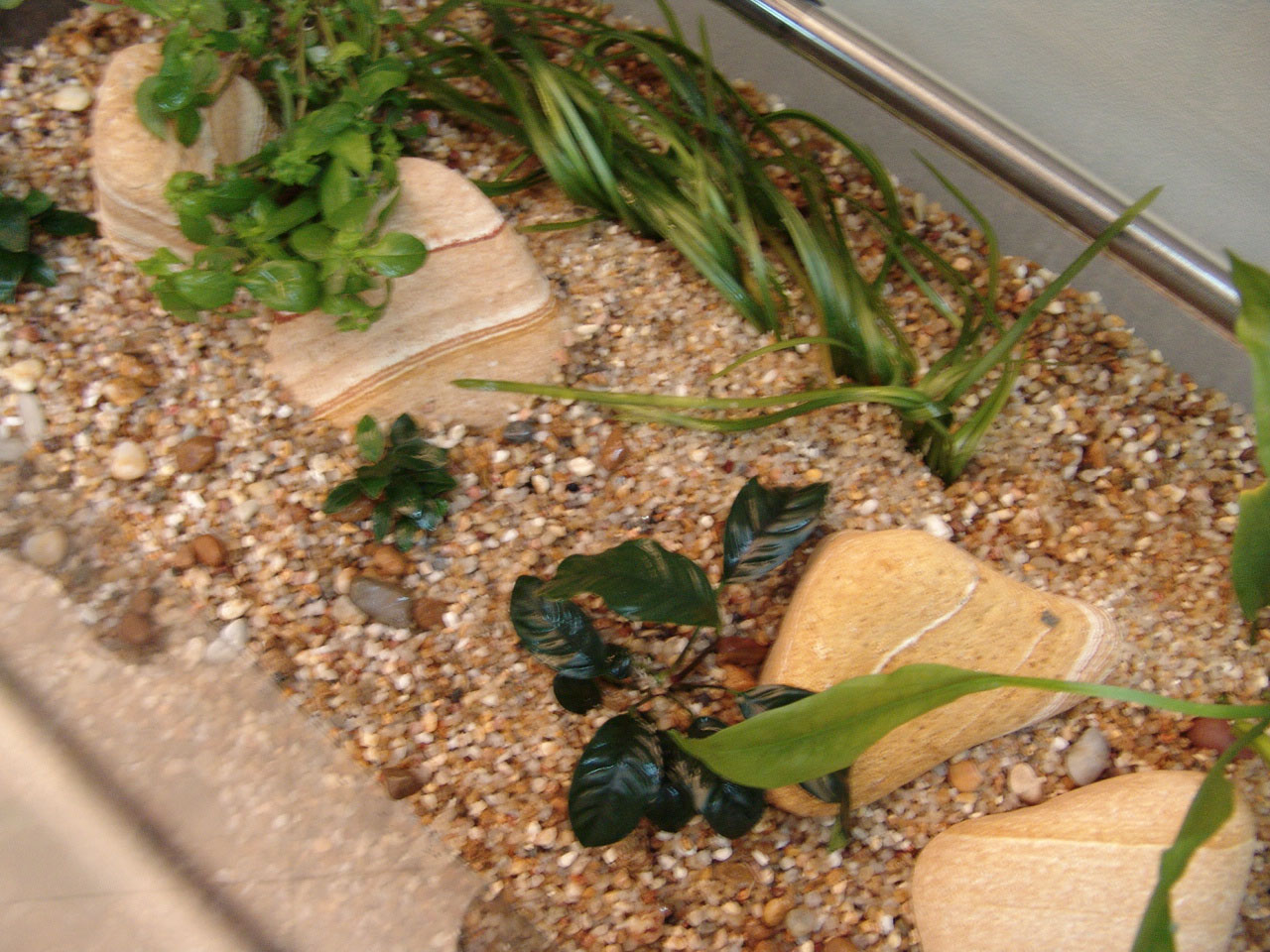

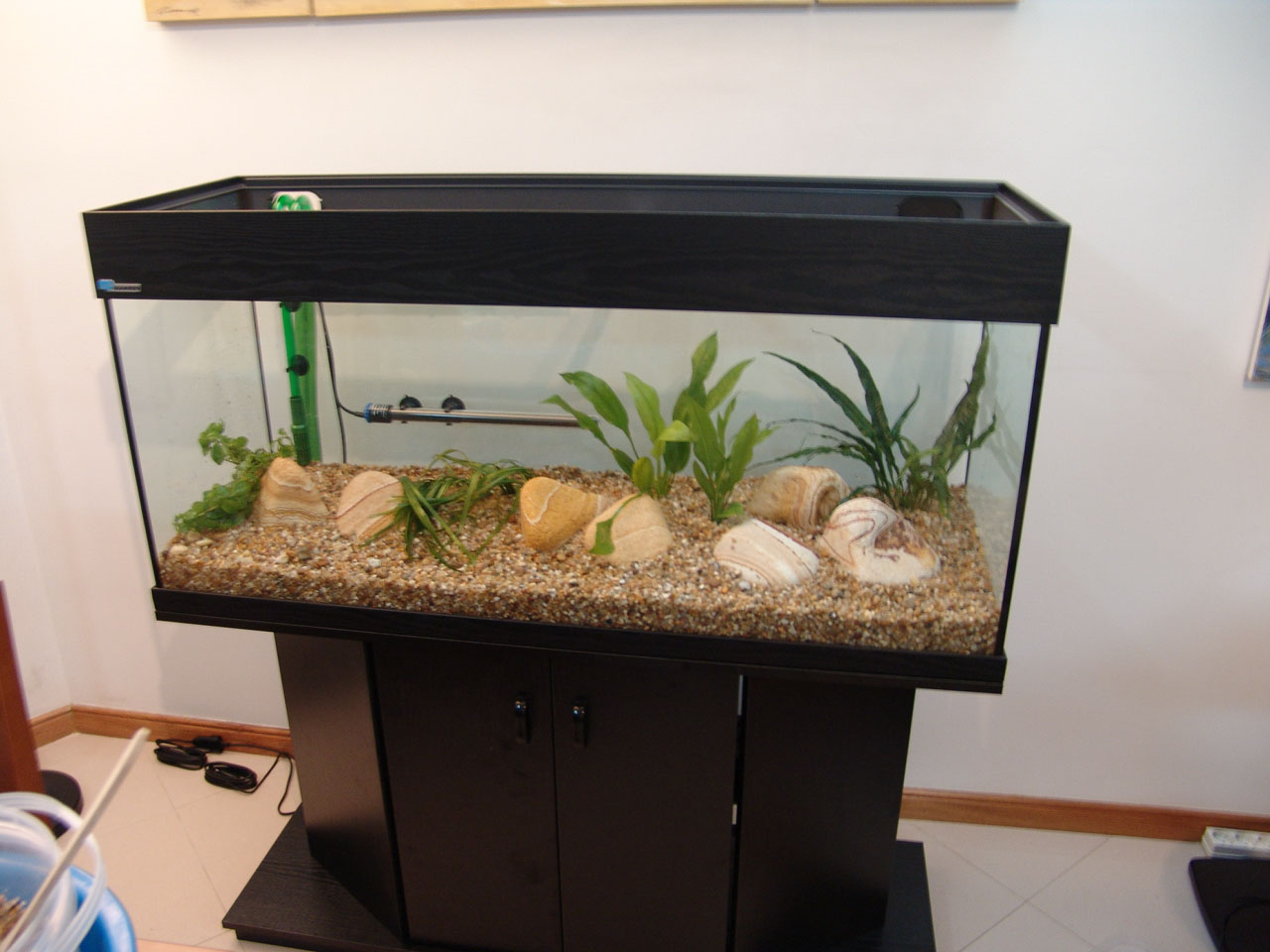

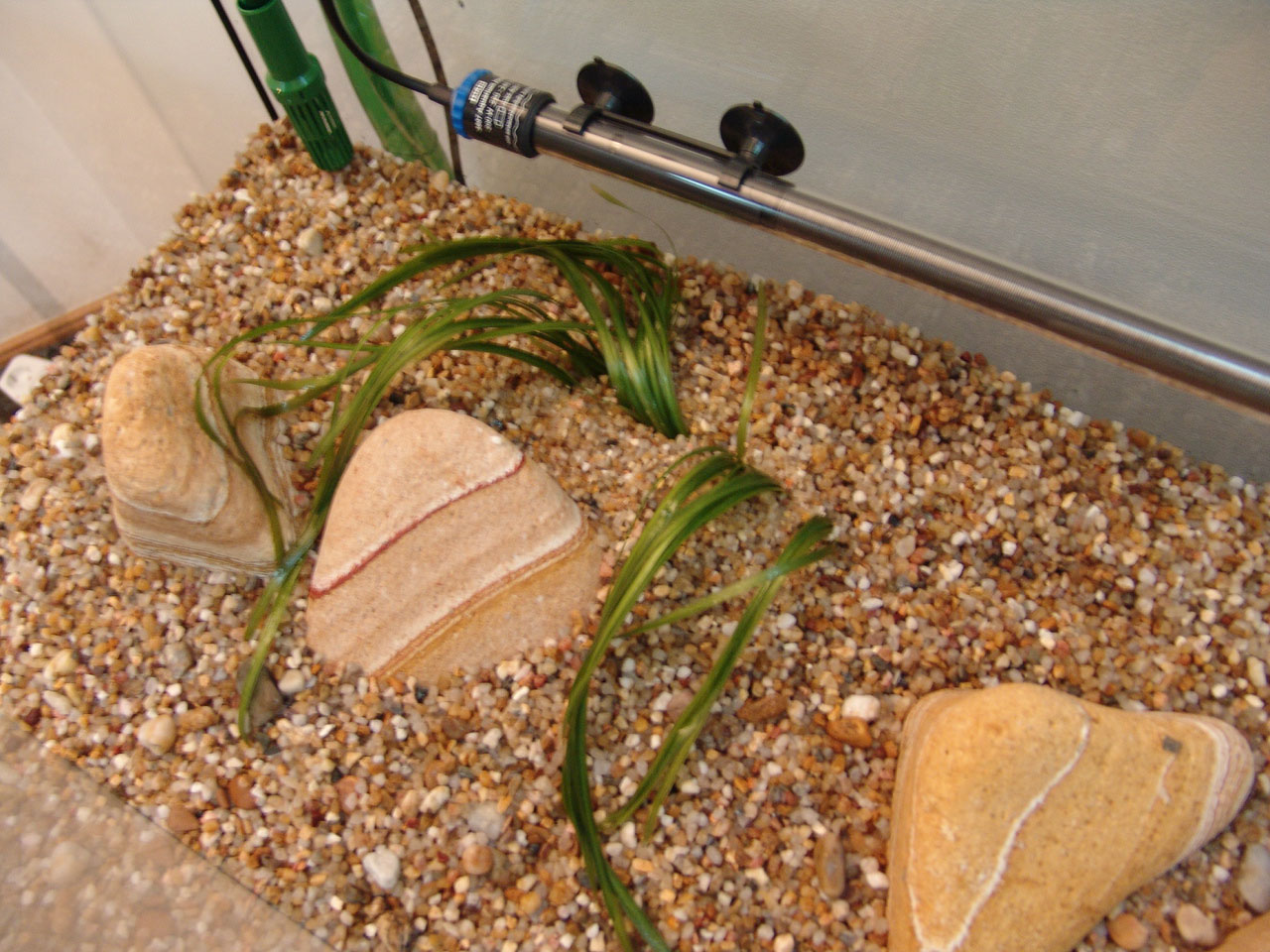

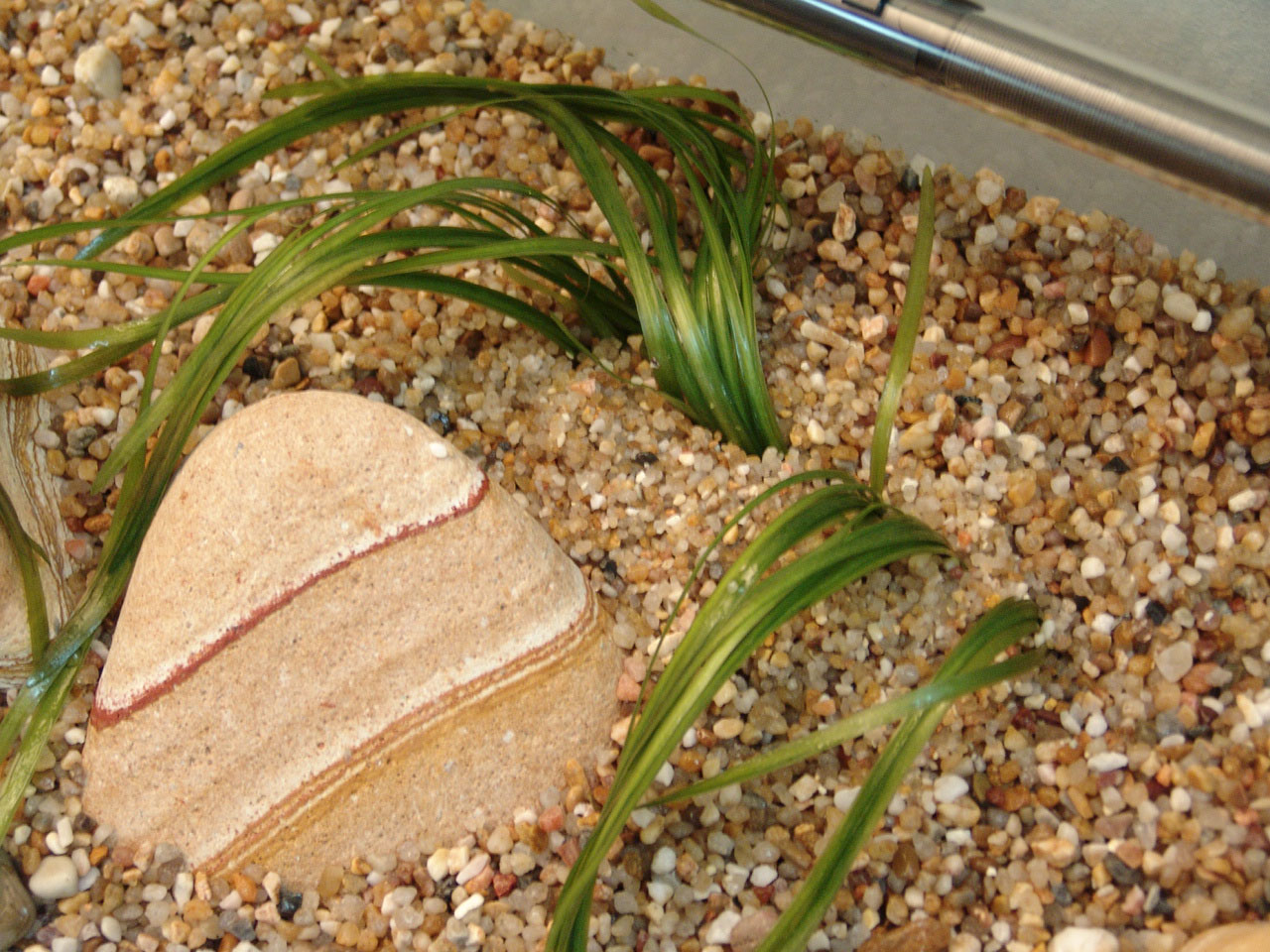

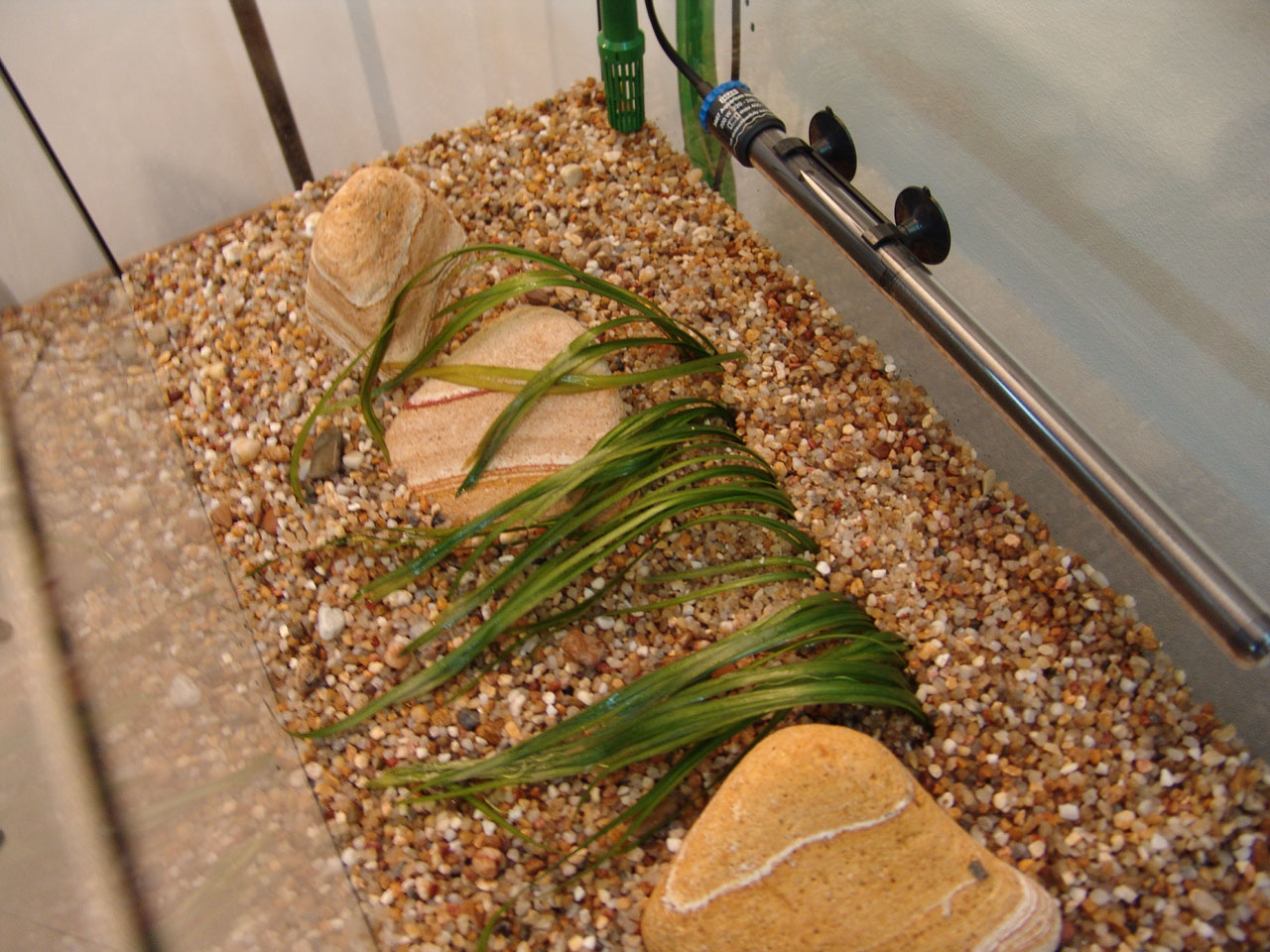

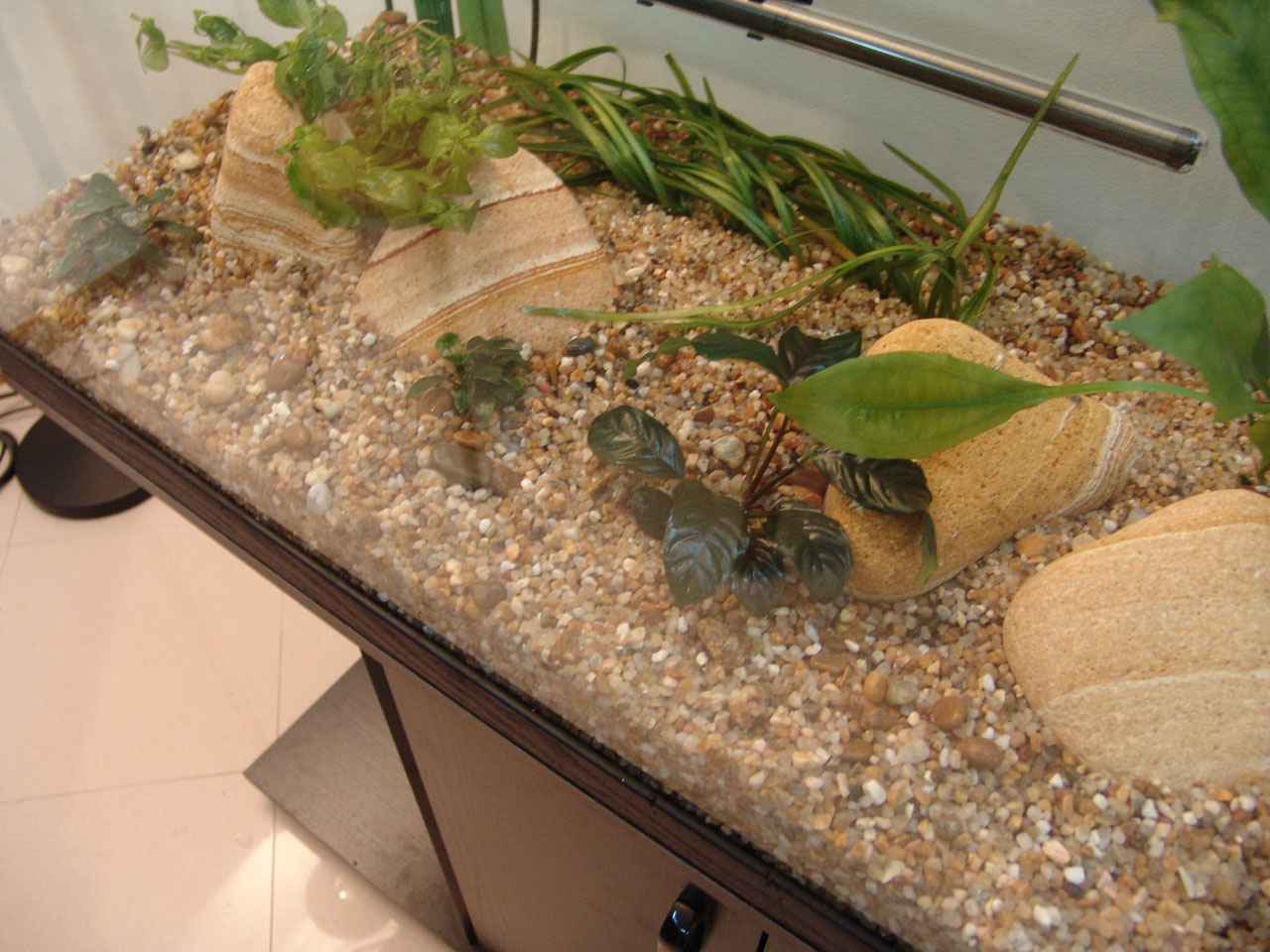

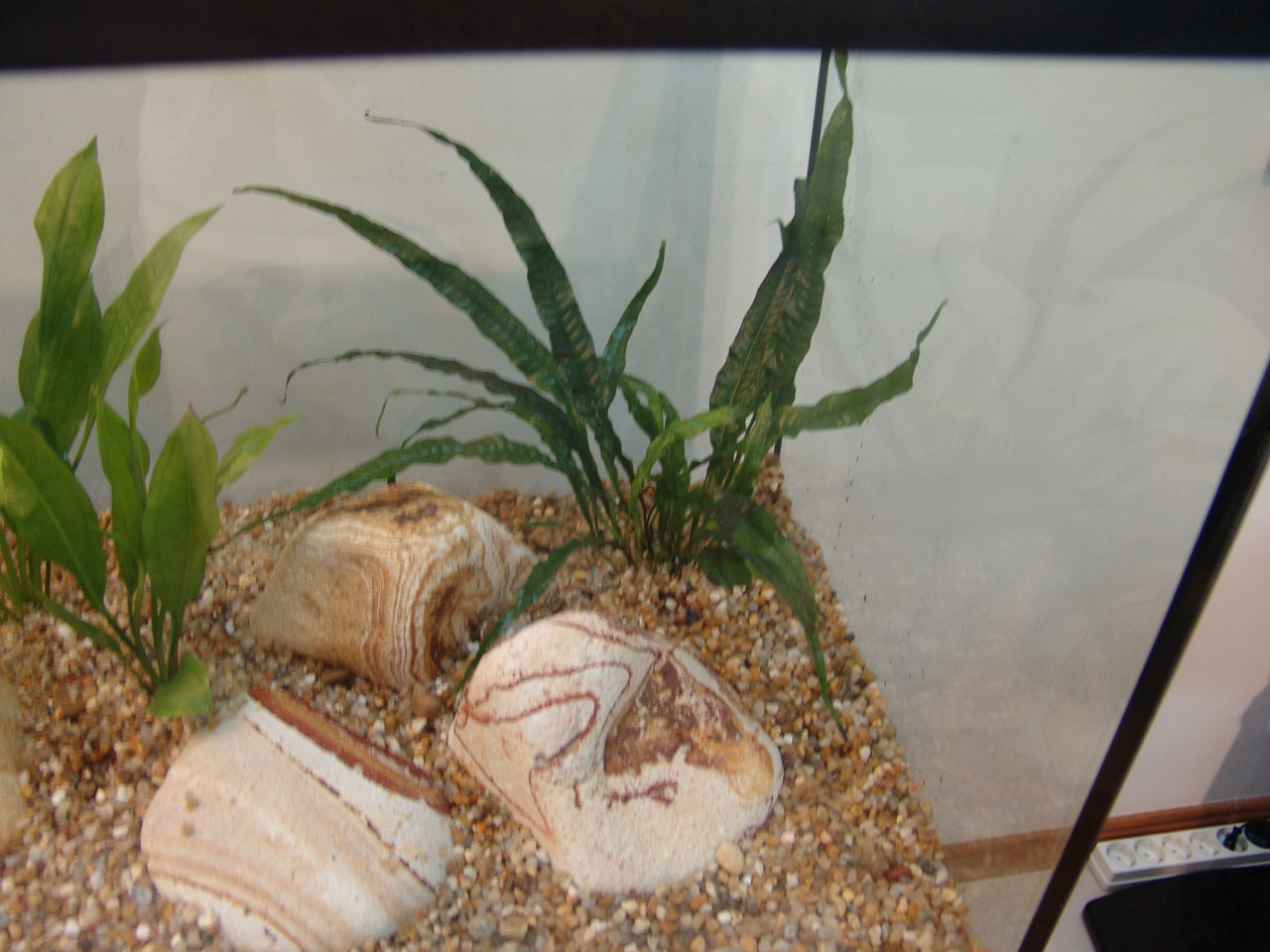

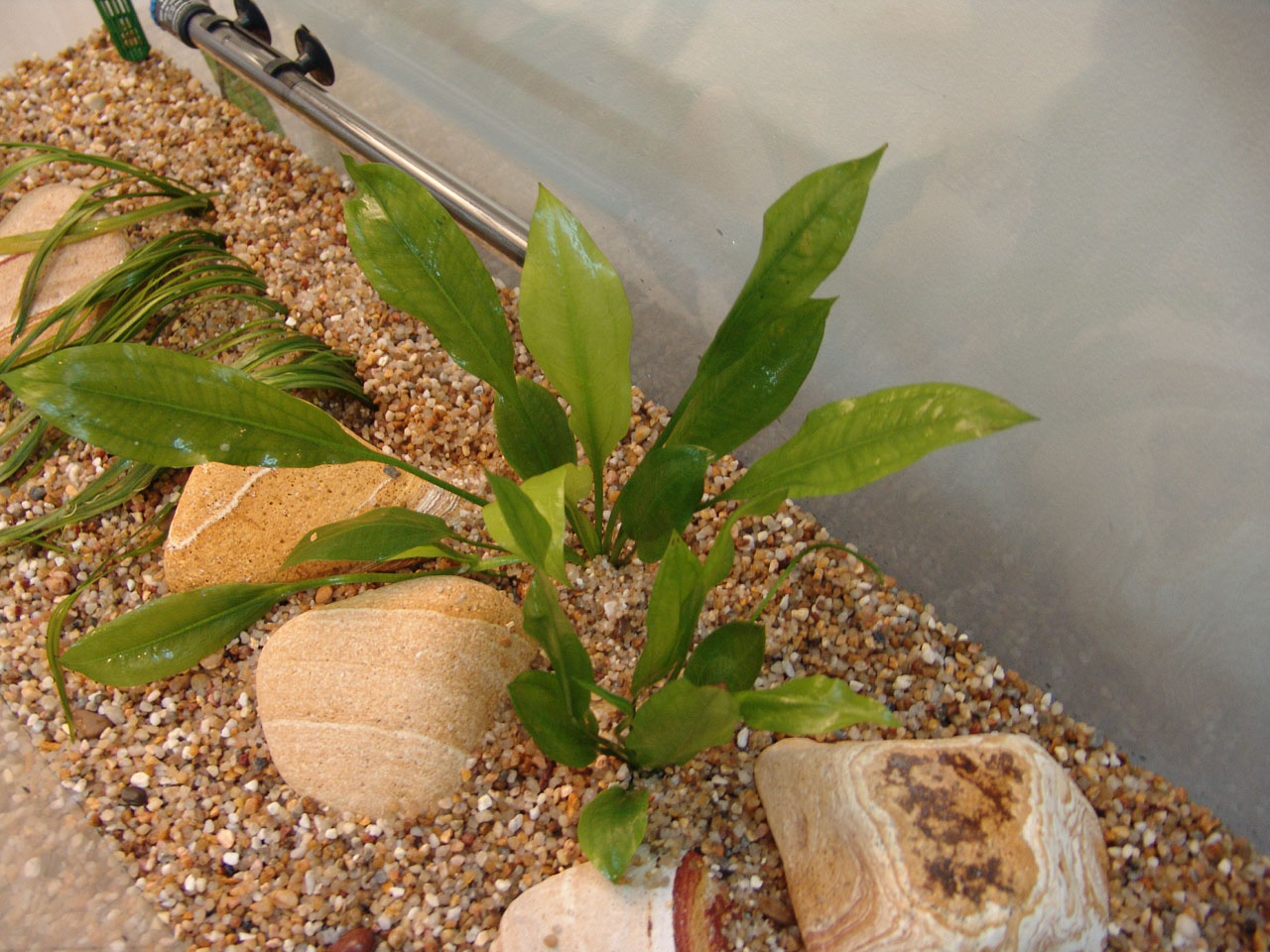

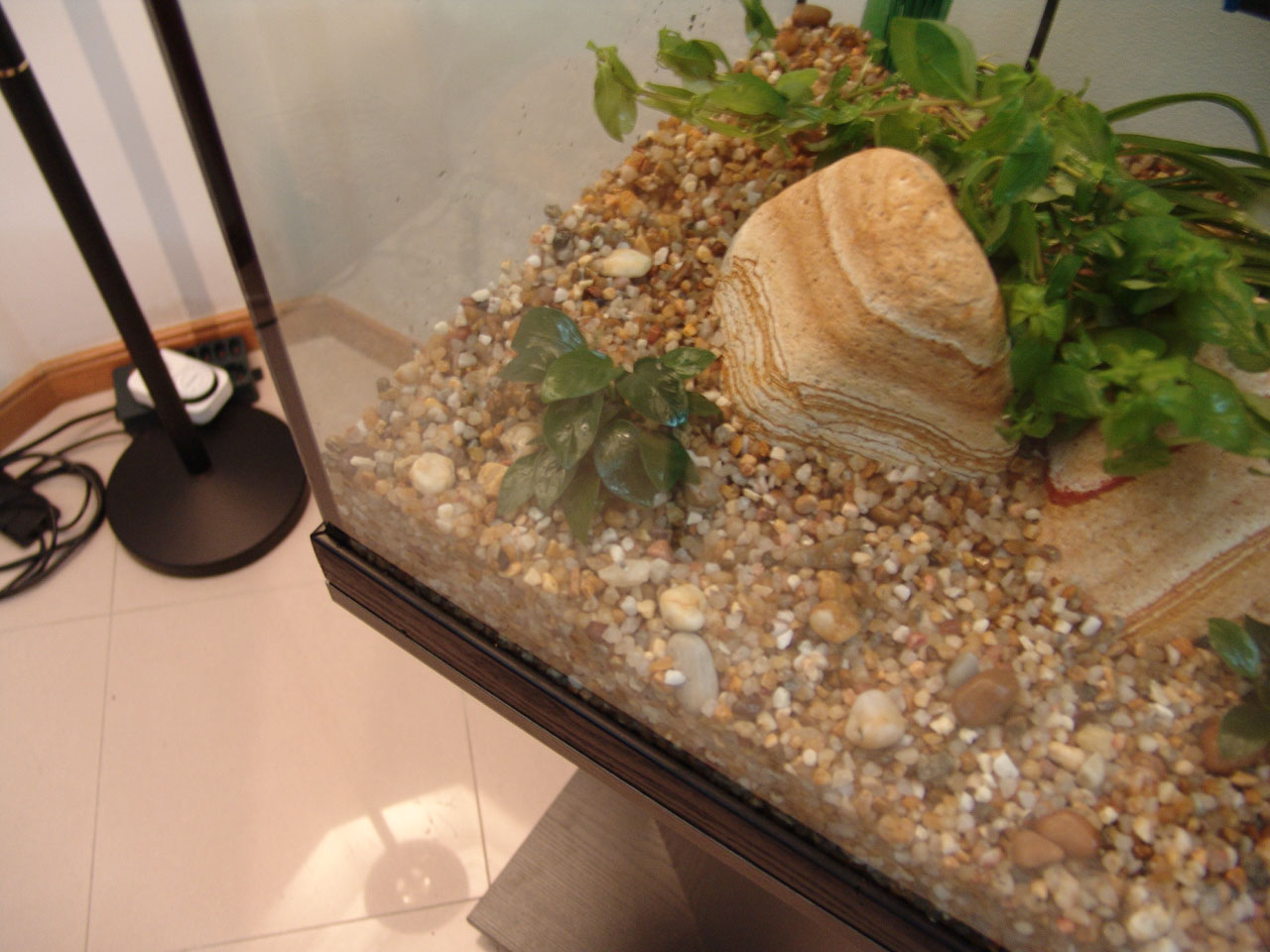

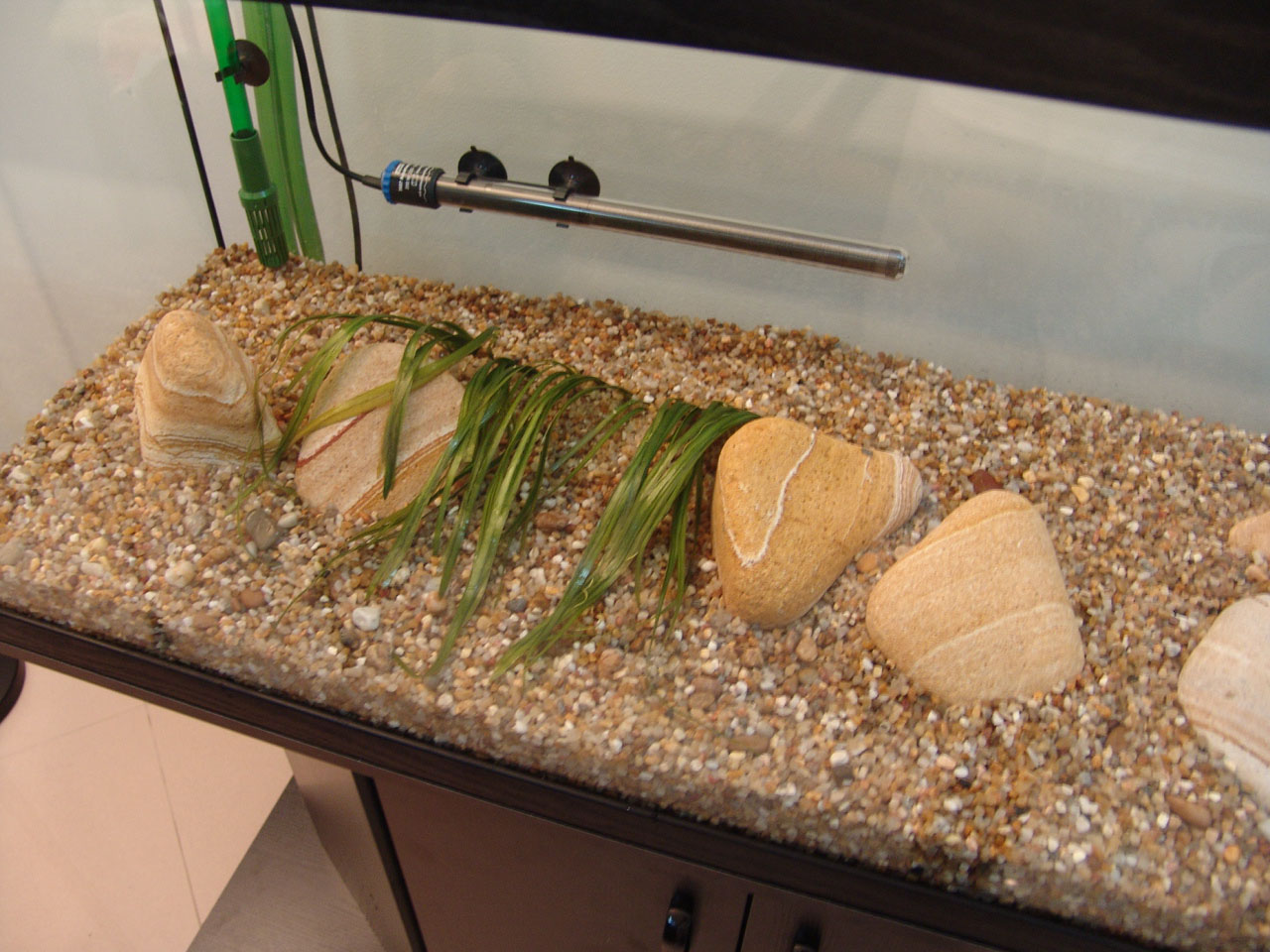

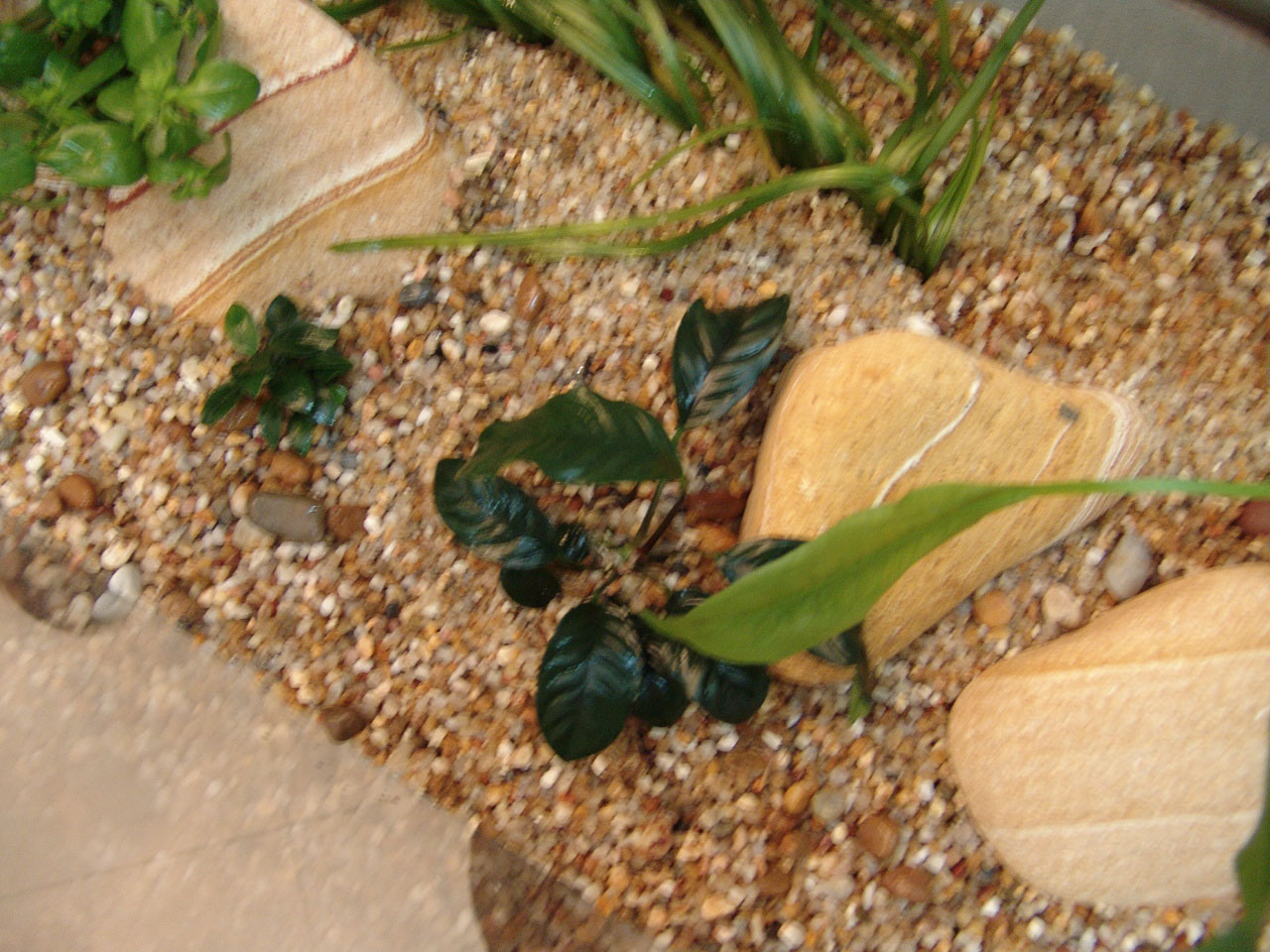

Plant setup. Vallisneria (central, in front of thermostat), Anubias Barterri Nana (front section after the large rocks on the front left side), Microsorium Pteropus (back right corner), Echinodorus Bleheri (back section after Vallisneria) and Hygrophila Polysperma (left right corner close to the the filter intake)



DSC02372.jpg (257449 bytes) DSC02375.jpg (218802 bytes) DSC02377.jpg (281874 bytes) DSC02378.jpg (267568 bytes) DSC02379.jpg (238275 bytes) DSC02380.jpg (253829 bytes) DSC02382.jpg (273546 bytes) DSC02383.jpg (223276 bytes)

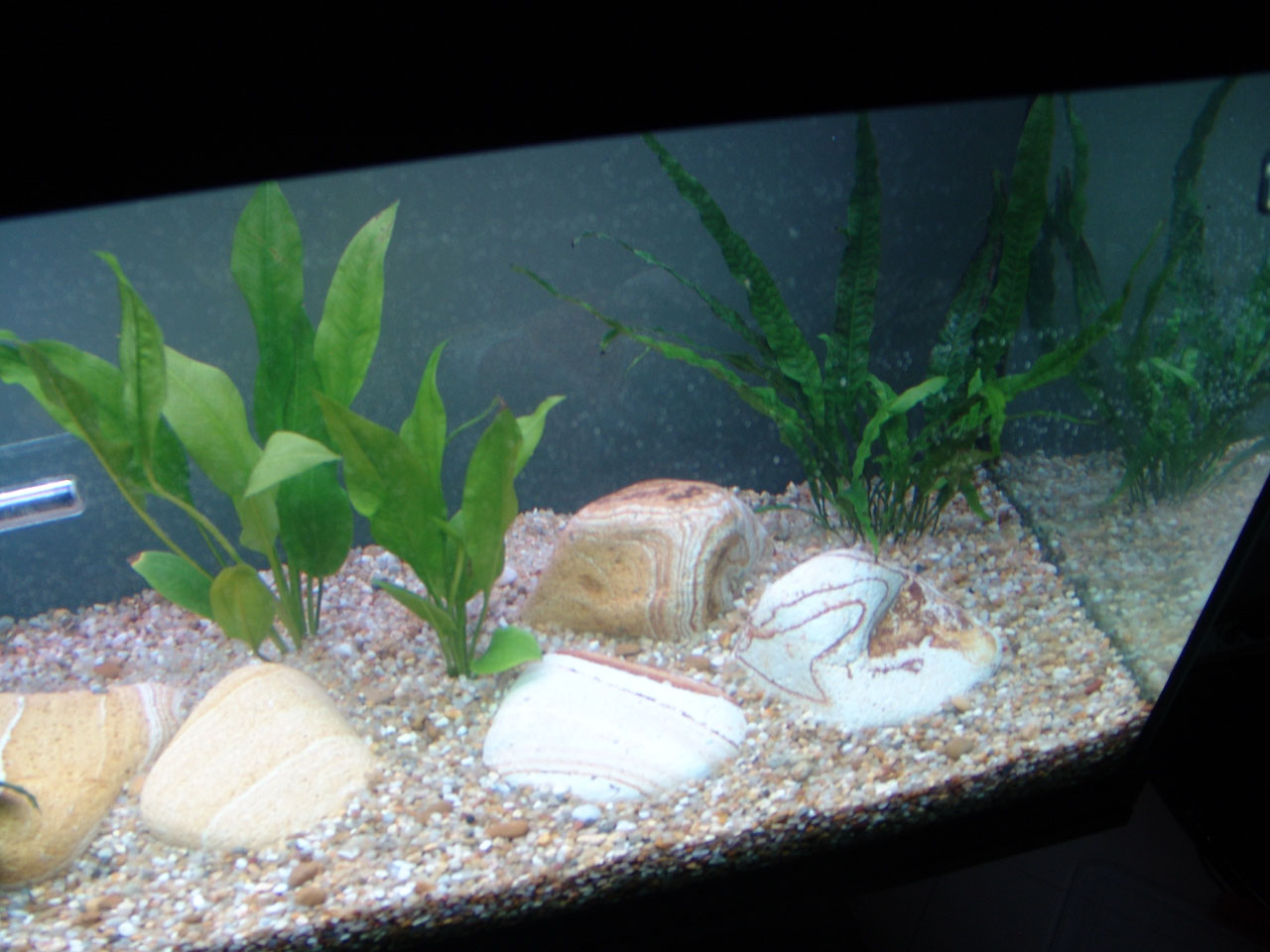

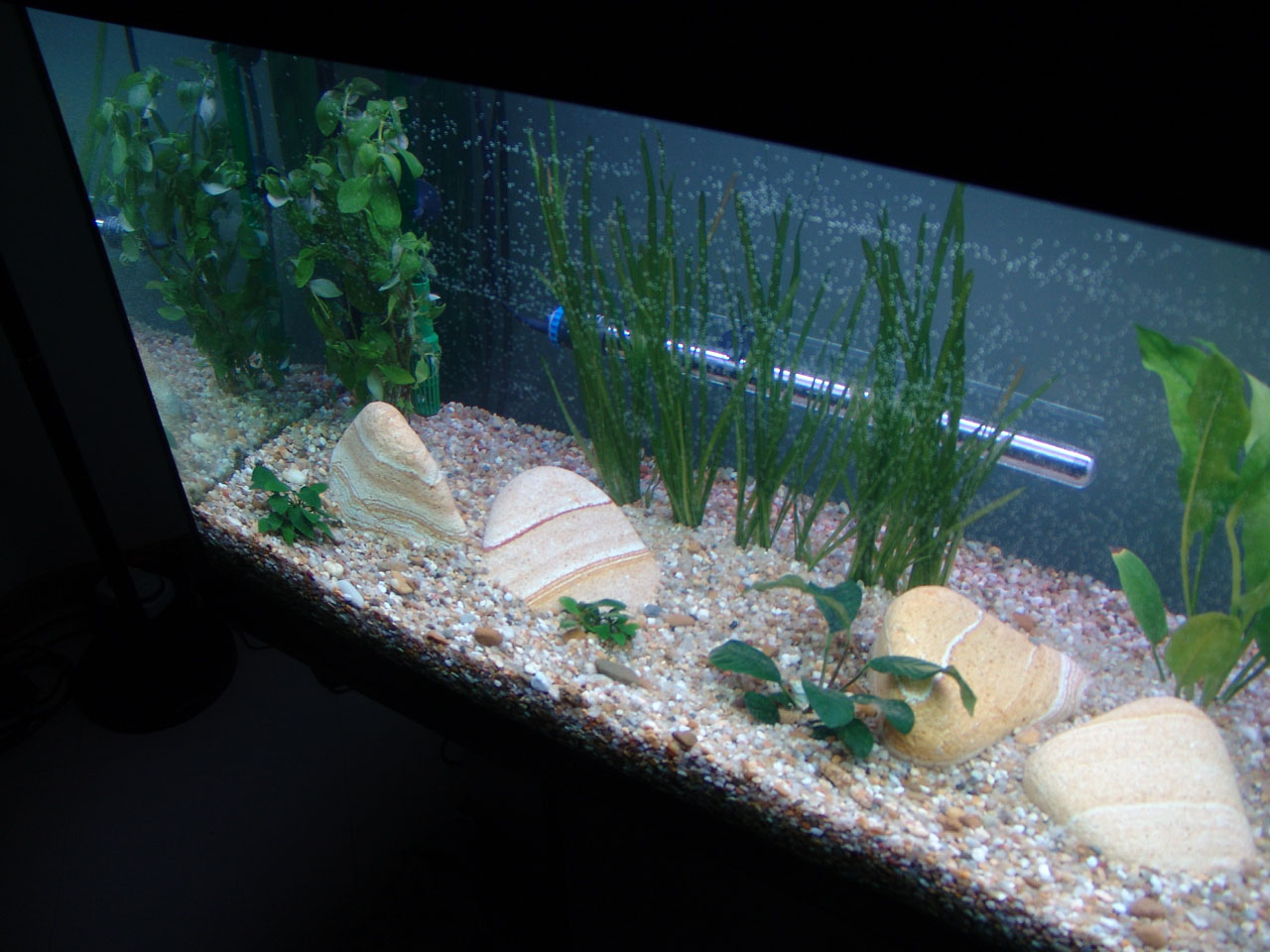

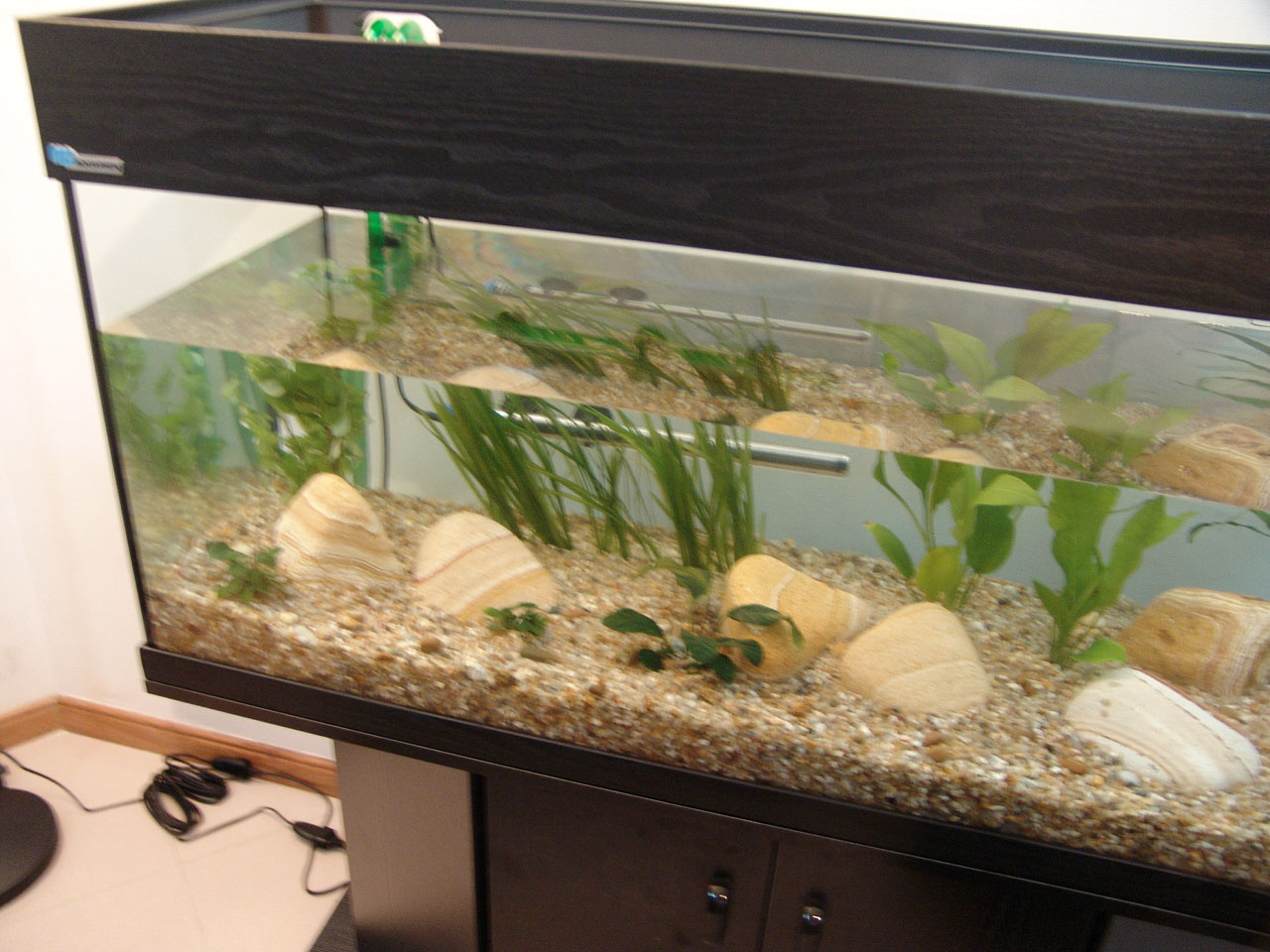

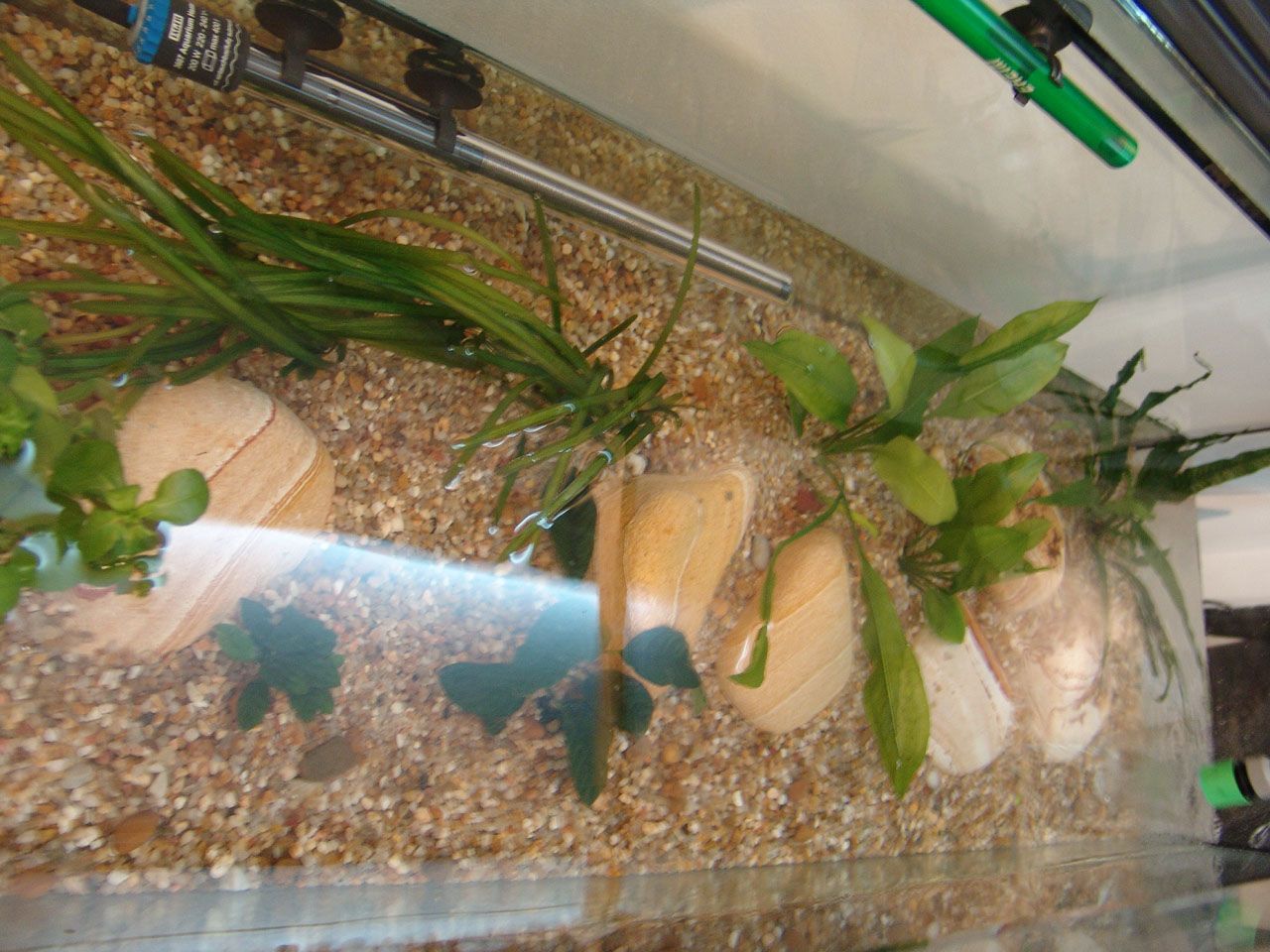

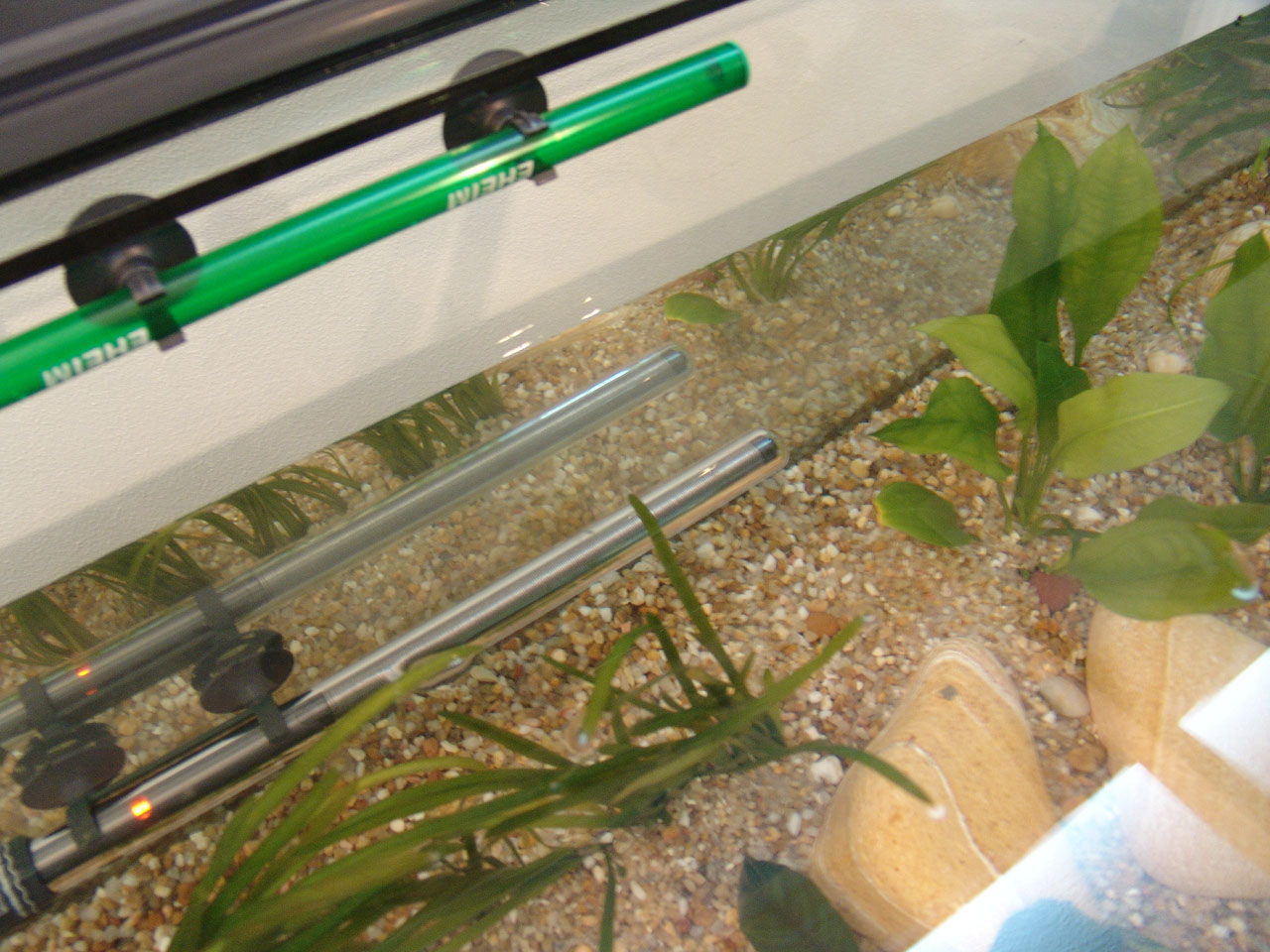

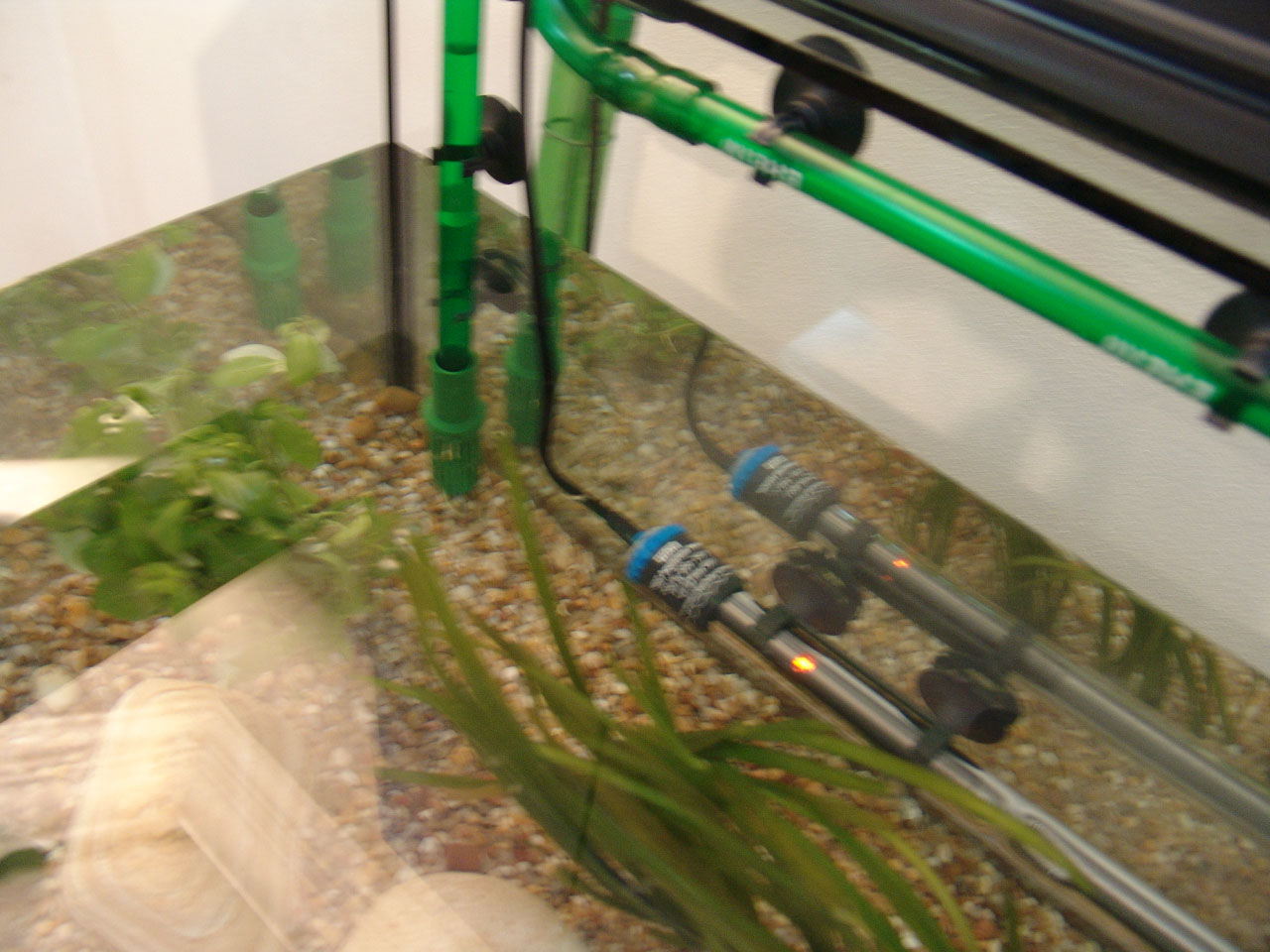

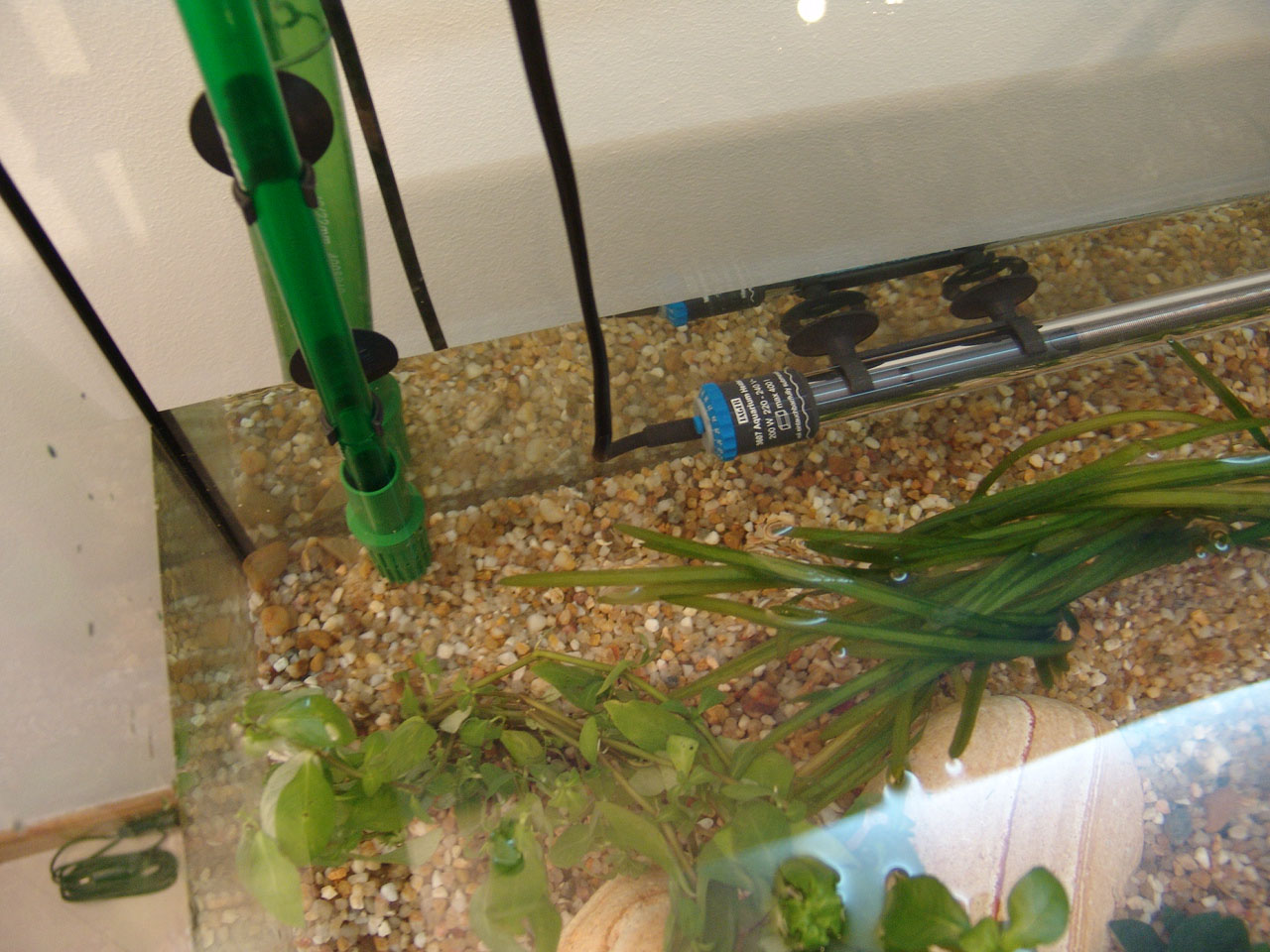

Water filling (dechlorinated with Waterlife Haloex). Low flow filling with no impact on gravel surface.



DSC02384.jpg (172530 bytes) DSC02388.jpg (198744 bytes) DSC02389.jpg (229168 bytes) DSC02390.jpg (249183 bytes) DSC02391.jpg (318292 bytes) DSC02392.jpg (346146 bytes) DSC02393.jpg (283231 bytes) DSC02394.jpg (359375 bytes)

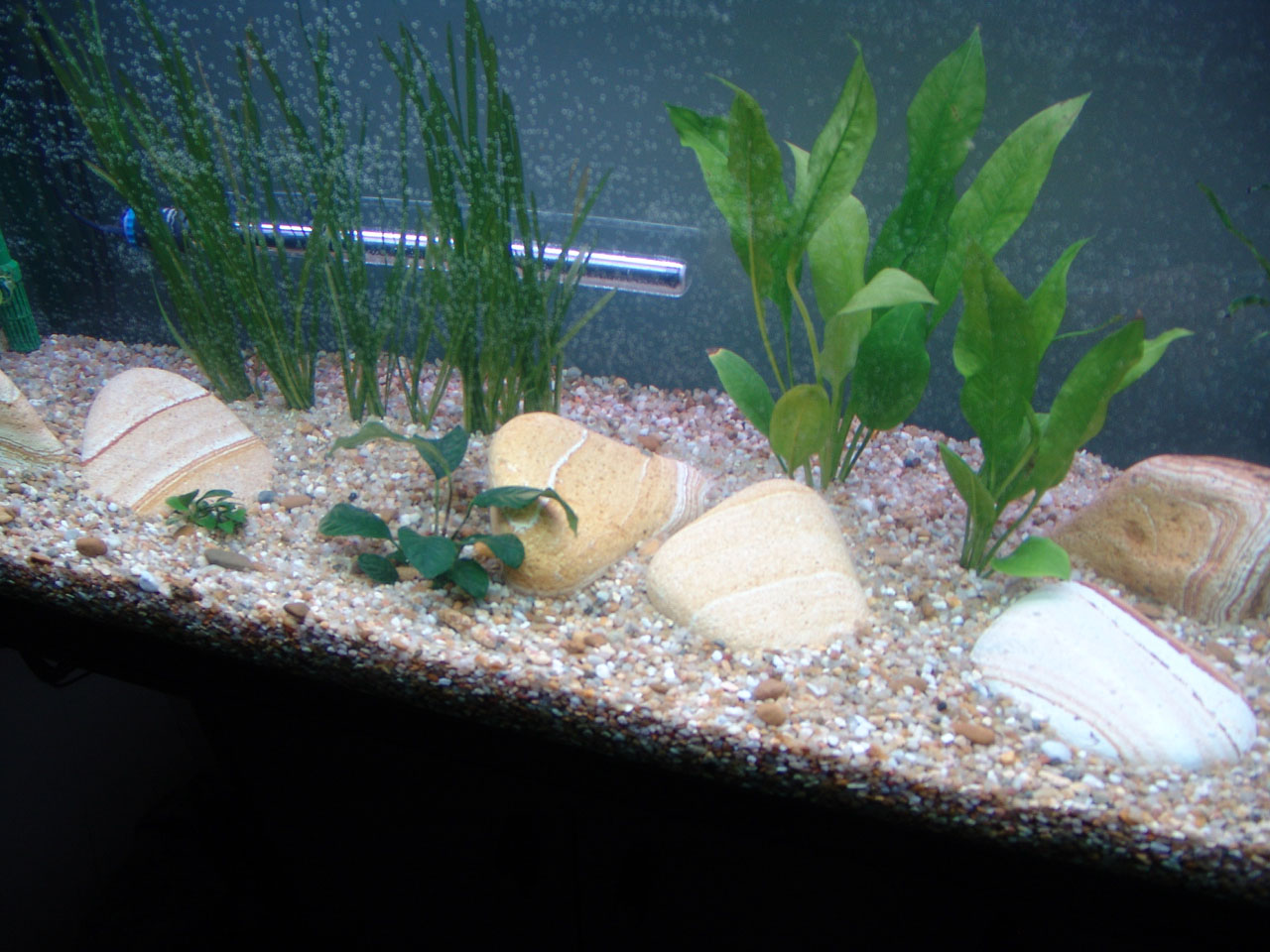

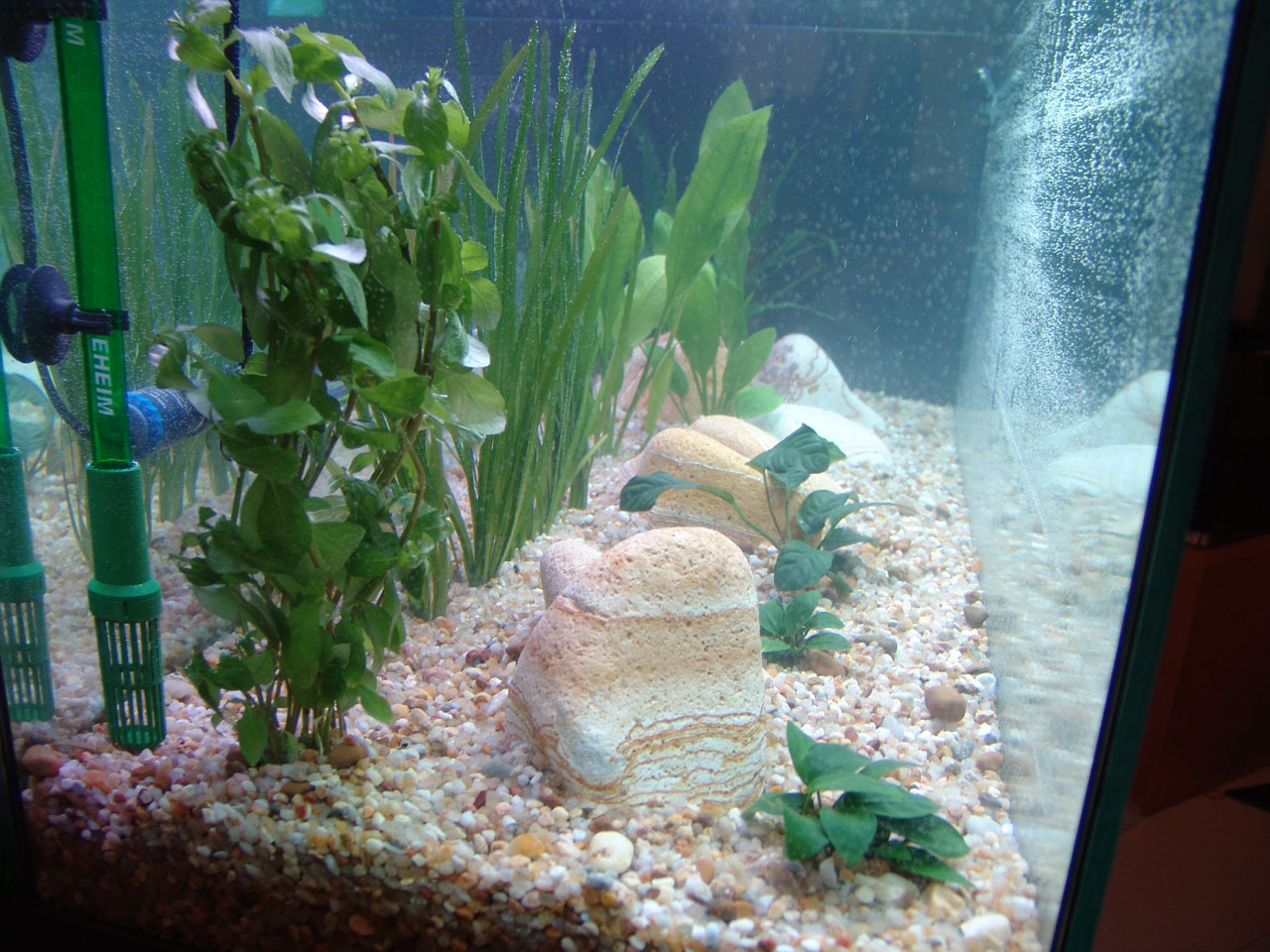

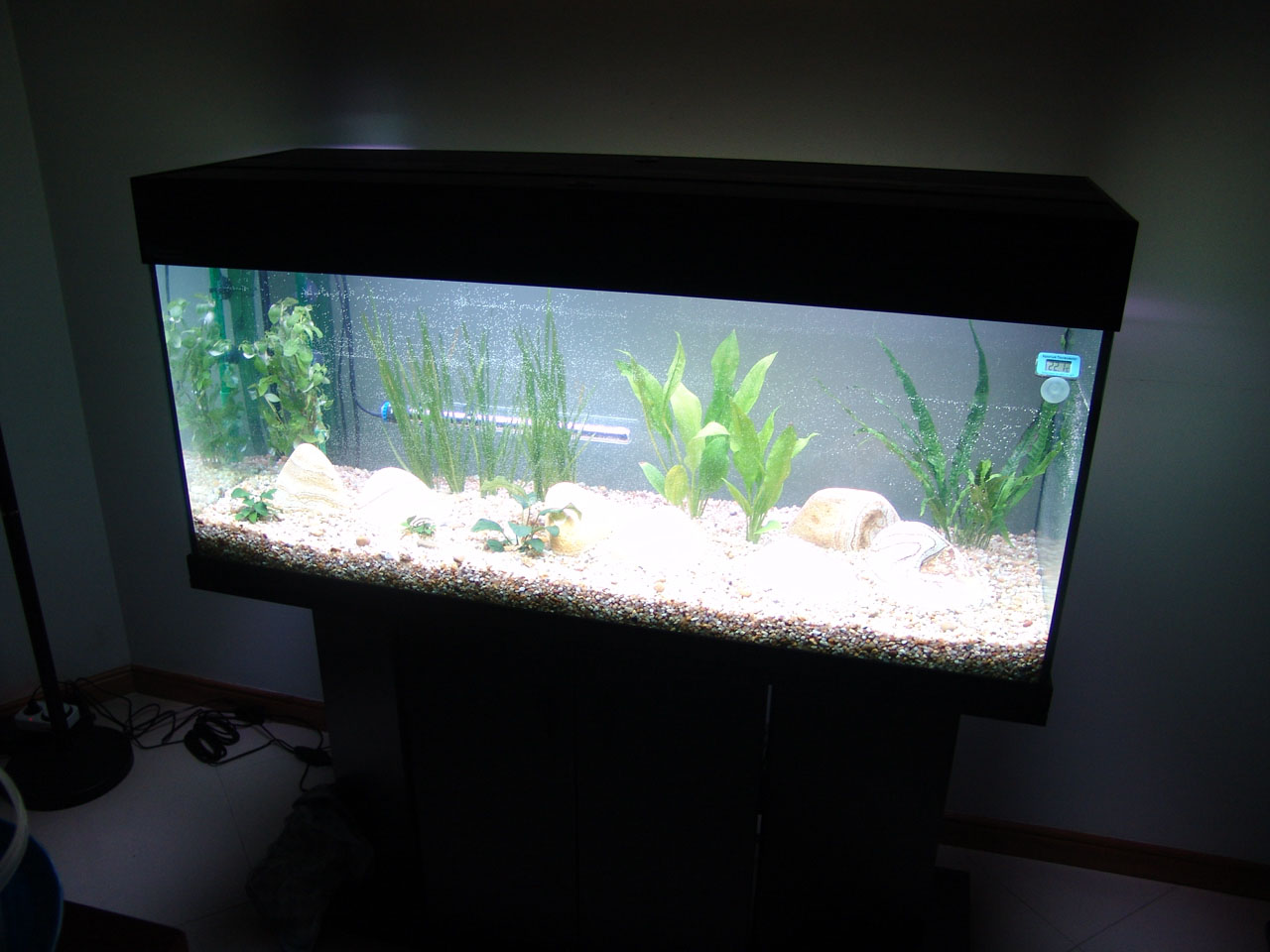

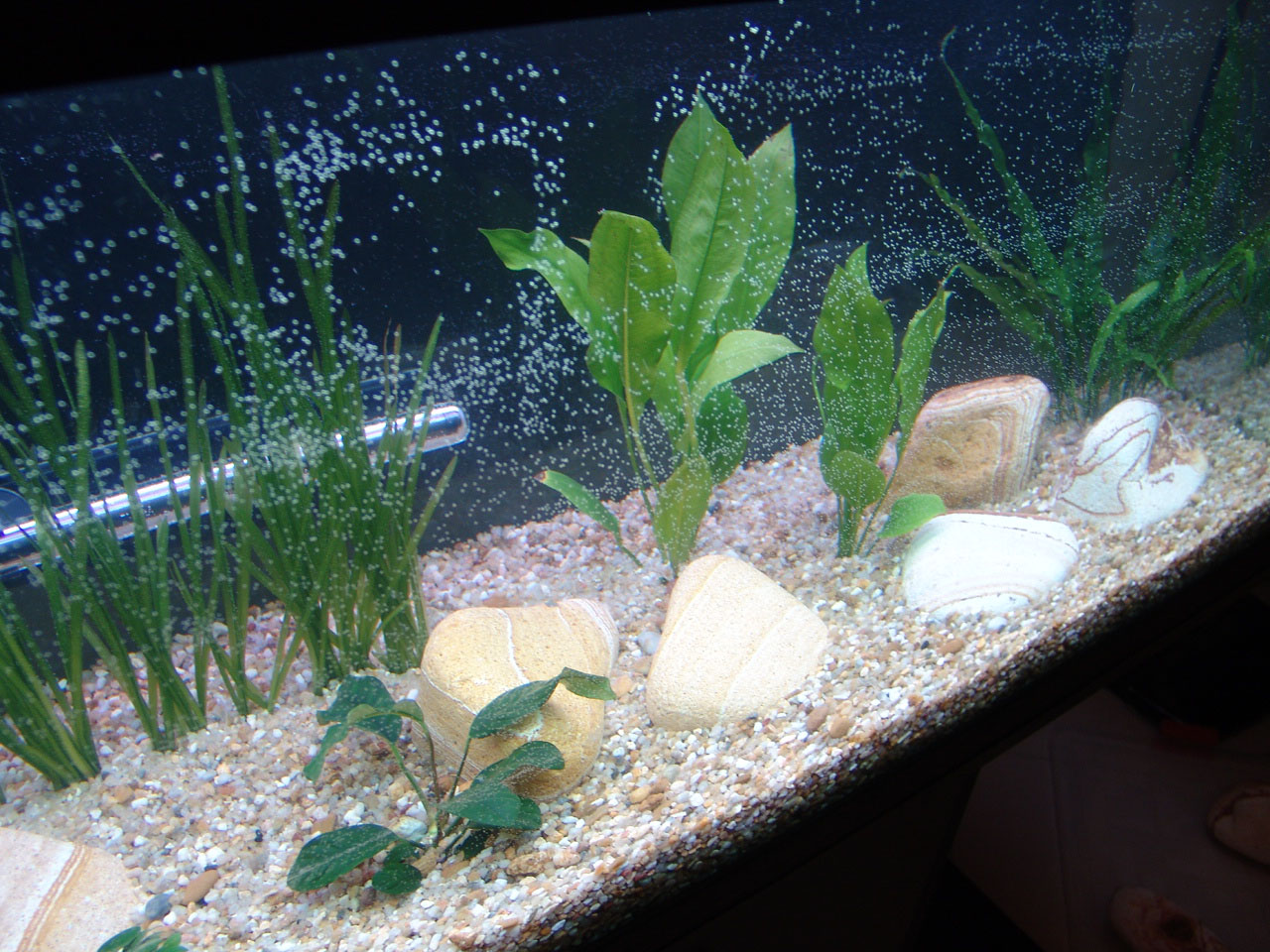

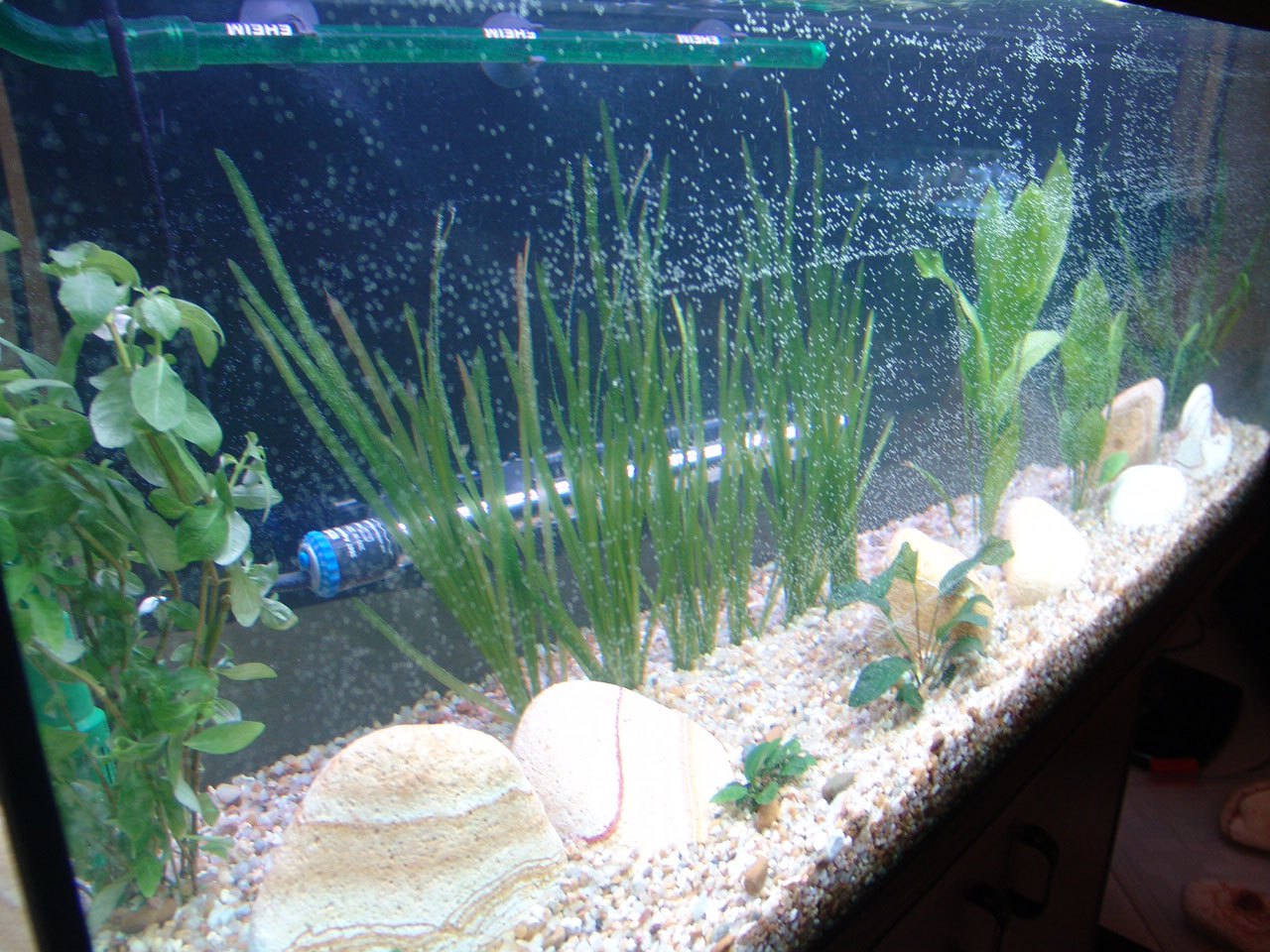

Lots of 02 bubbles cluttered all over the glass after the initial water filling.



DSC02403.jpg (238894 bytes) DSC02398.jpg (274064 bytes) DSC02404.jpg (304496 bytes) DSC02405.jpg (301184 bytes) DSC02406.jpg (291044 bytes) DSC02407.jpg (255265 bytes) DSC02408.jpg (246440 bytes) DSC02409.jpg (293313 bytes) DSC02412.jpg (262721 bytes) DSC02413.jpg (257647 bytes) DSC02422.jpg (188610 bytes) DSC02423.jpg (185825 bytes) DSC02424.jpg (192526 bytes) DSC02425.jpg (279363 bytes) DSC02427.jpg (285397 bytes) DSC02444.jpg (170347 bytes)

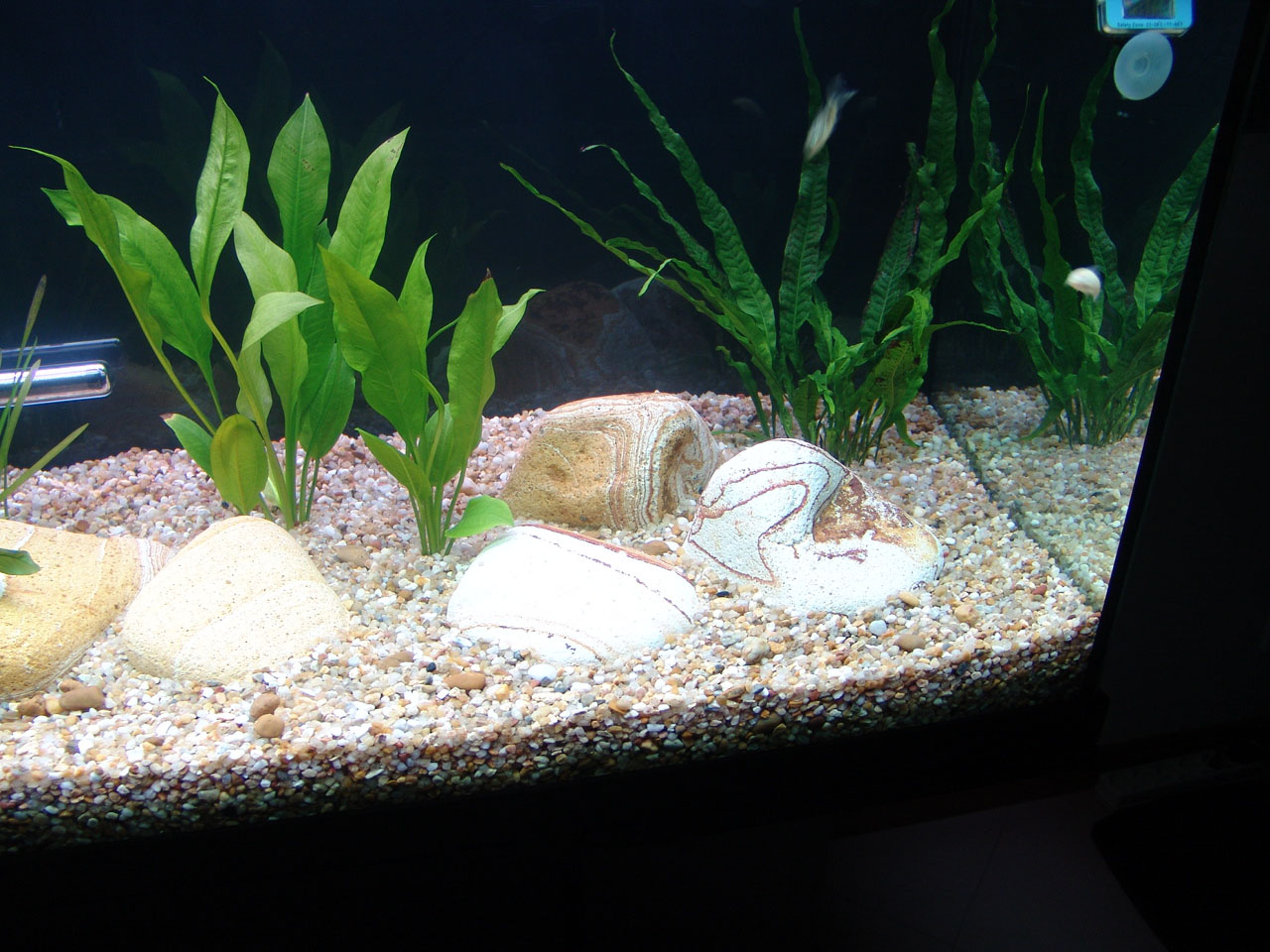

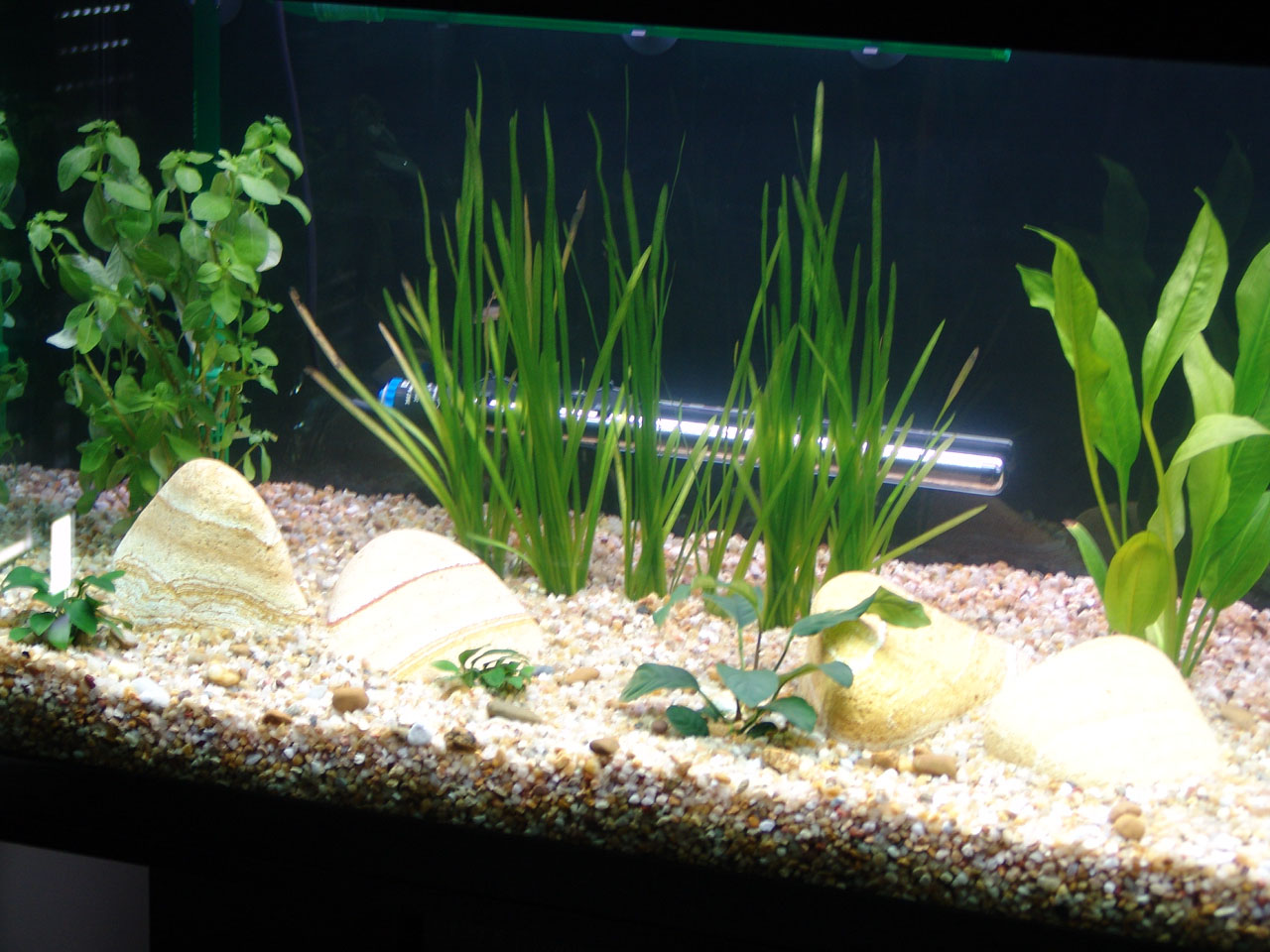

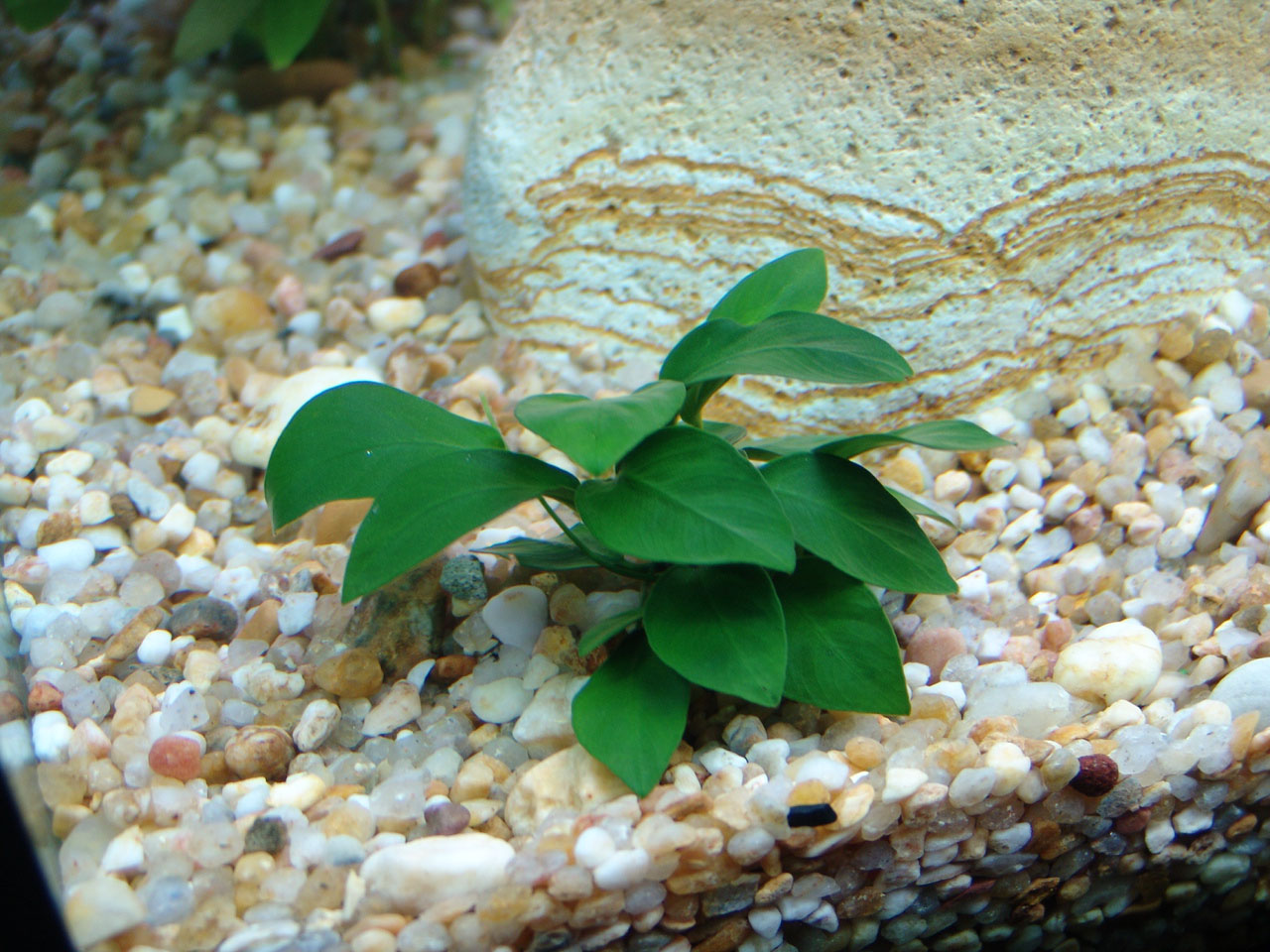

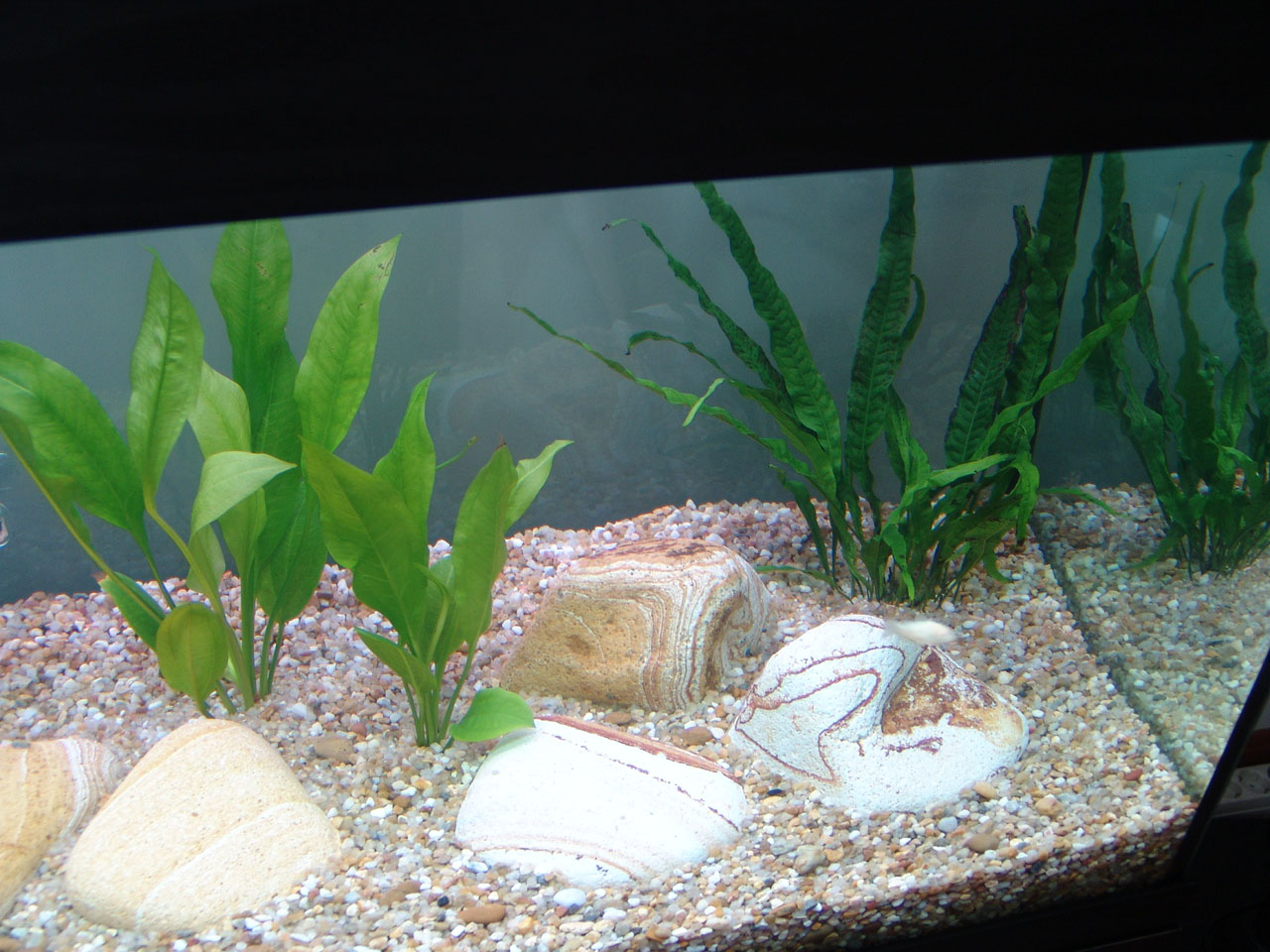

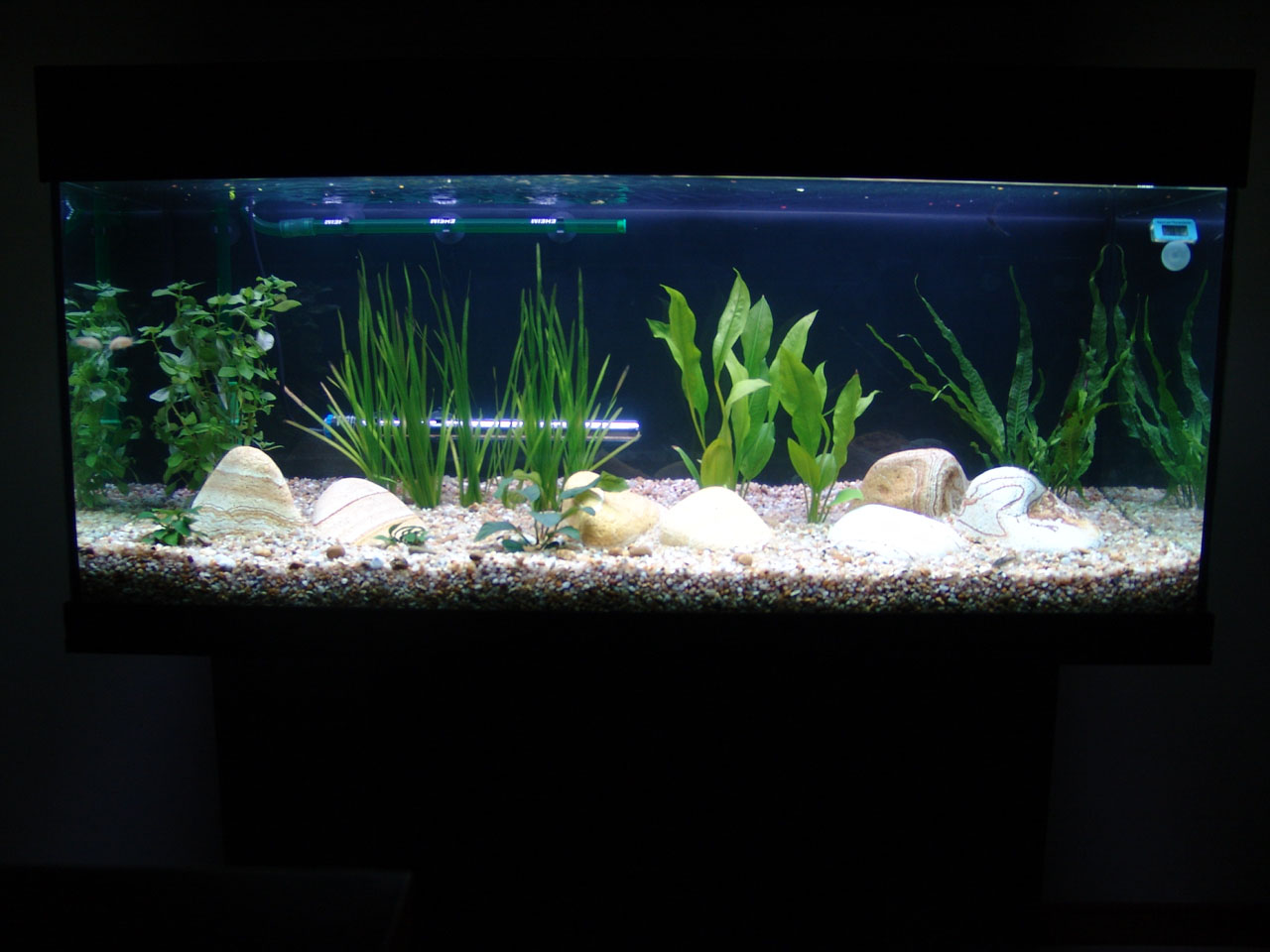

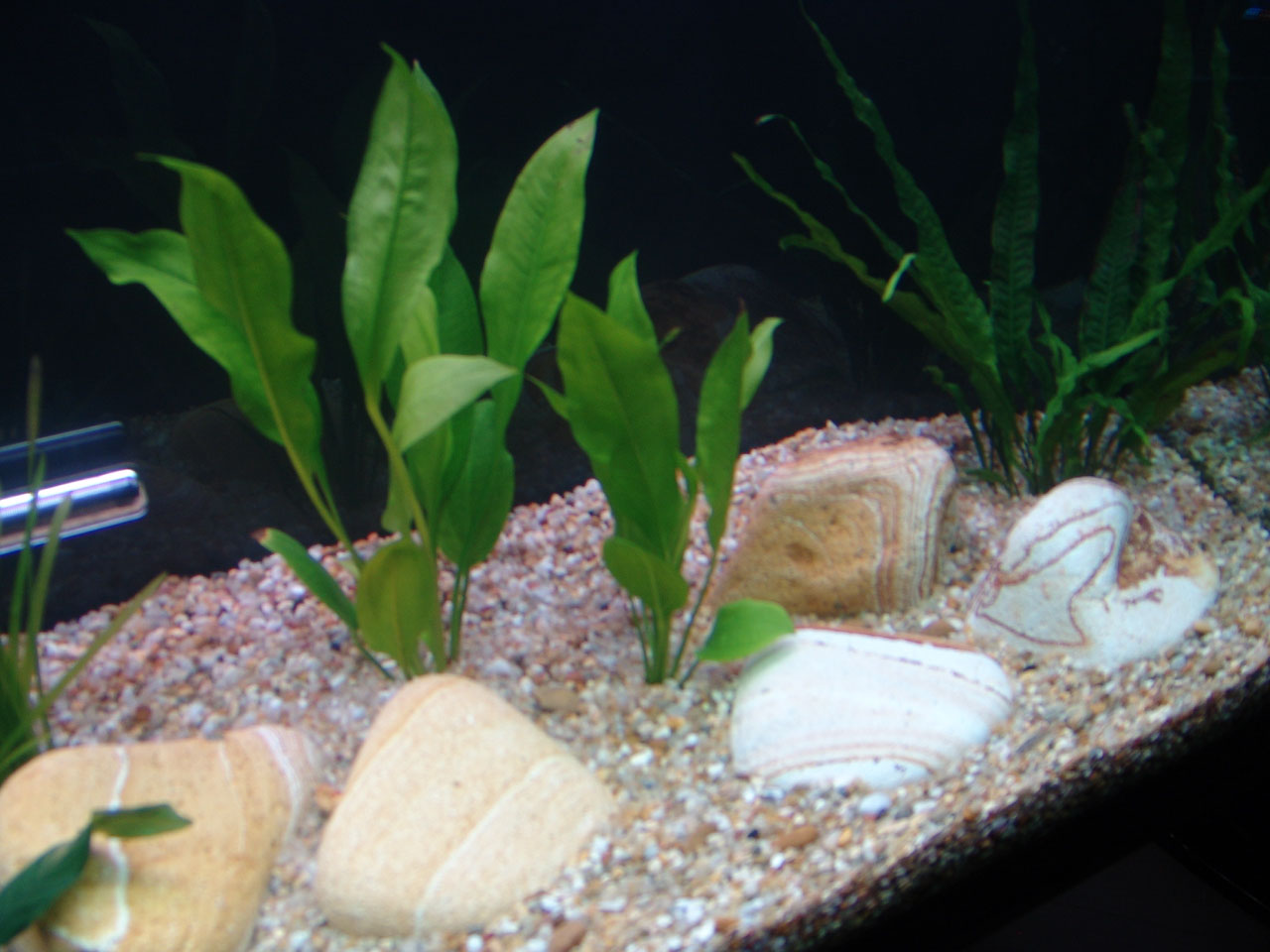

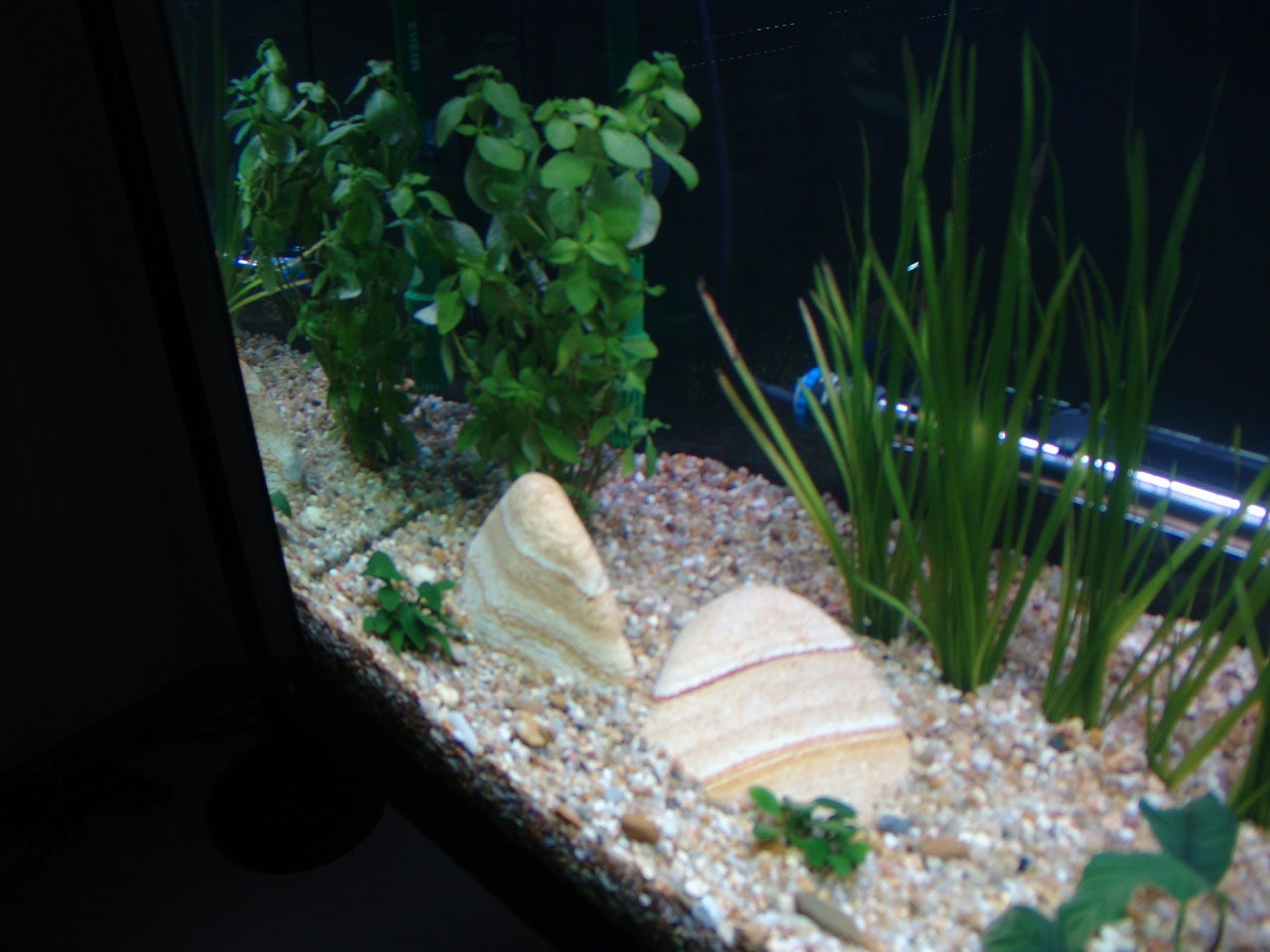

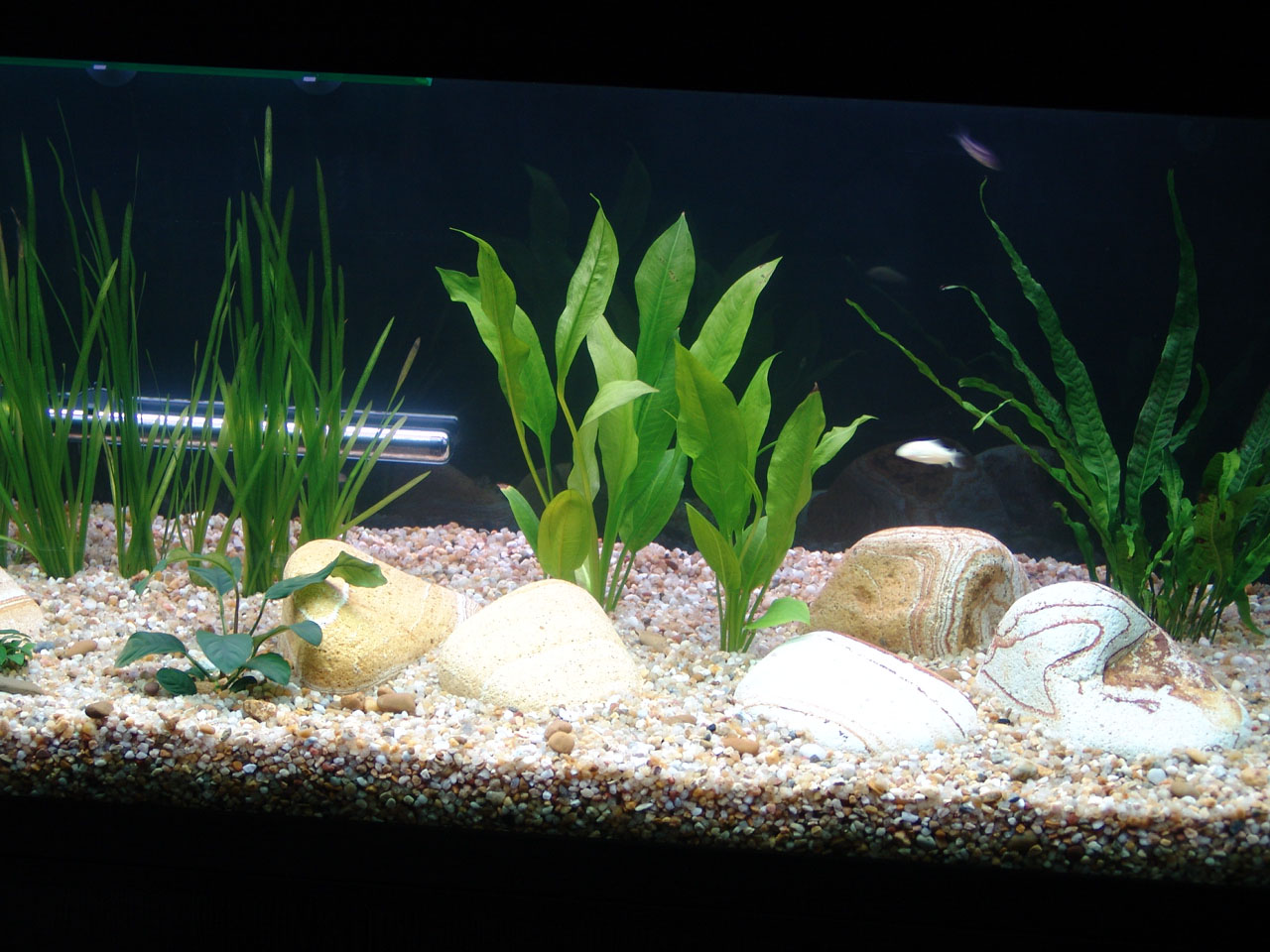

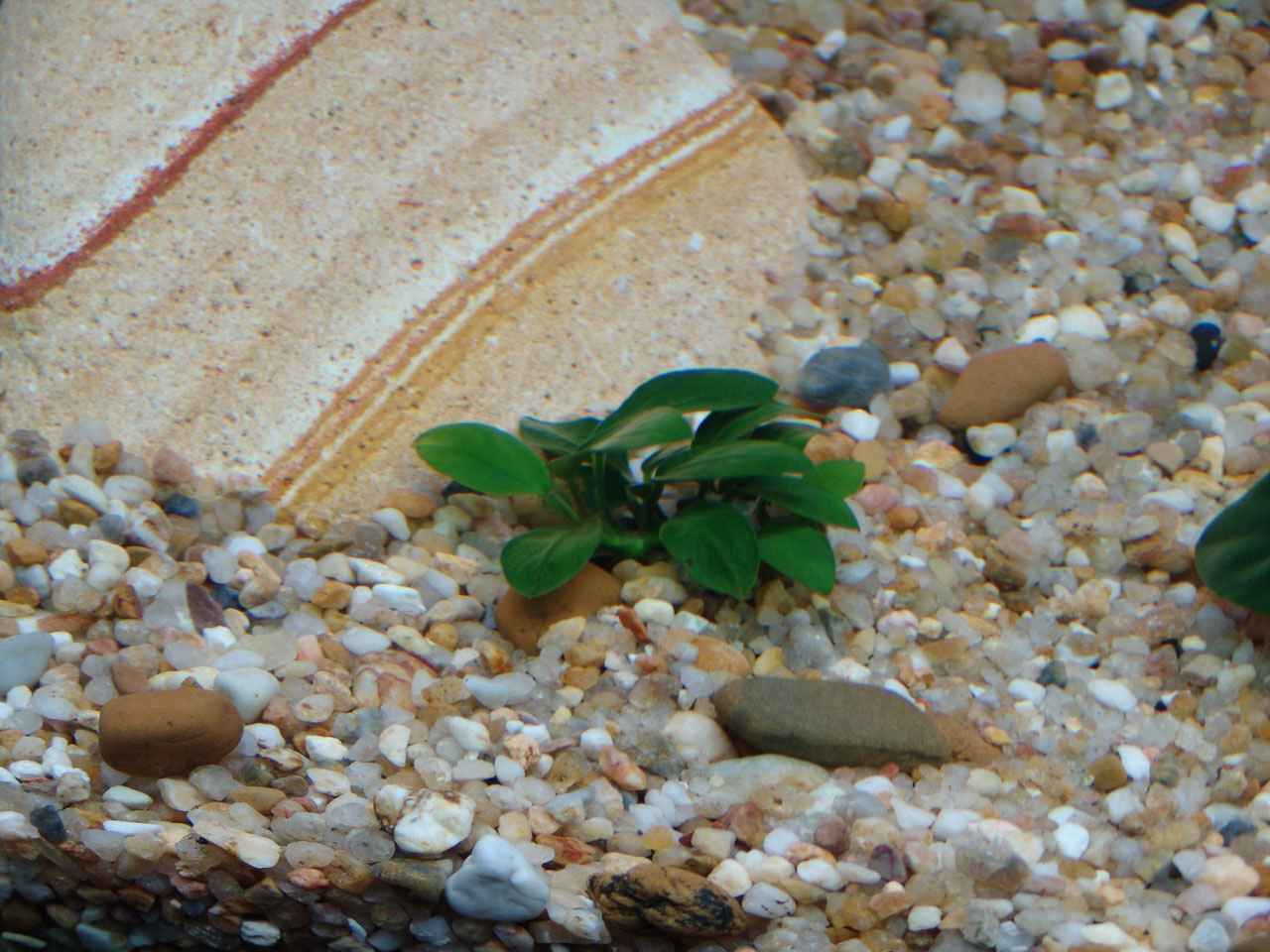

One day after filling. Mosy of the 02 bubbles are gone. Black cardboard fitted on the back.



DSC02431.jpg (270067 bytes) DSC02432.jpg (210203 bytes) DSC02433.jpg (187264 bytes) DSC02434.jpg (185853 bytes) DSC02435.jpg (217992 bytes) DSC02436.jpg (216791 bytes) DSC02437.jpg (261653 bytes)  DSC02449.jpg (288434 bytes)
DSC02454.jpg (326909 bytes) DSC02462.jpg (298209 bytes) DSC02463.jpg (313833 bytes) DSC02464.jpg (265241 bytes)
DSC02466.jpg (291768 bytes) DSC02467.jpg (293420 bytes) DSC02468.jpg (309847 bytes) DSC02469.jpg (283295 bytes)
DSC02470.jpg (320017 bytes) DSC02472.jpg (281107 bytes) DSC02476.jpg (177140 bytes) DSC02477.jpg (293446 bytes)
DSC02478.jpg (303745 bytes) DSC02479.jpg (322251 bytes) DSC02481.jpg (315819 bytes) DSC02488.jpg (331231 bytes)
DSC02482.jpg (269794 bytes) DSC02484.jpg (191055 bytes) DSC02485.jpg (289453 bytes) DSC02480.jpg (142677 bytes)

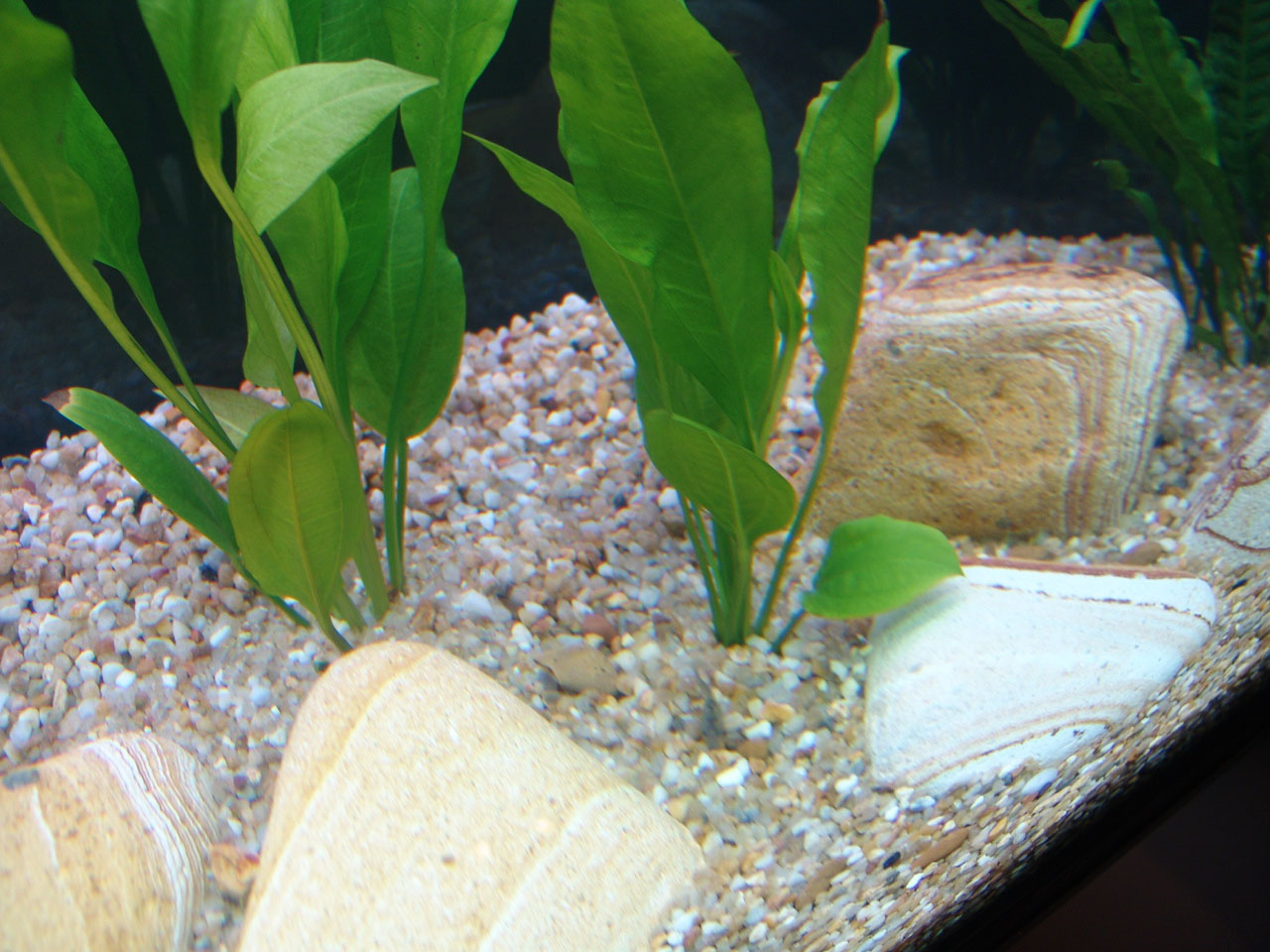

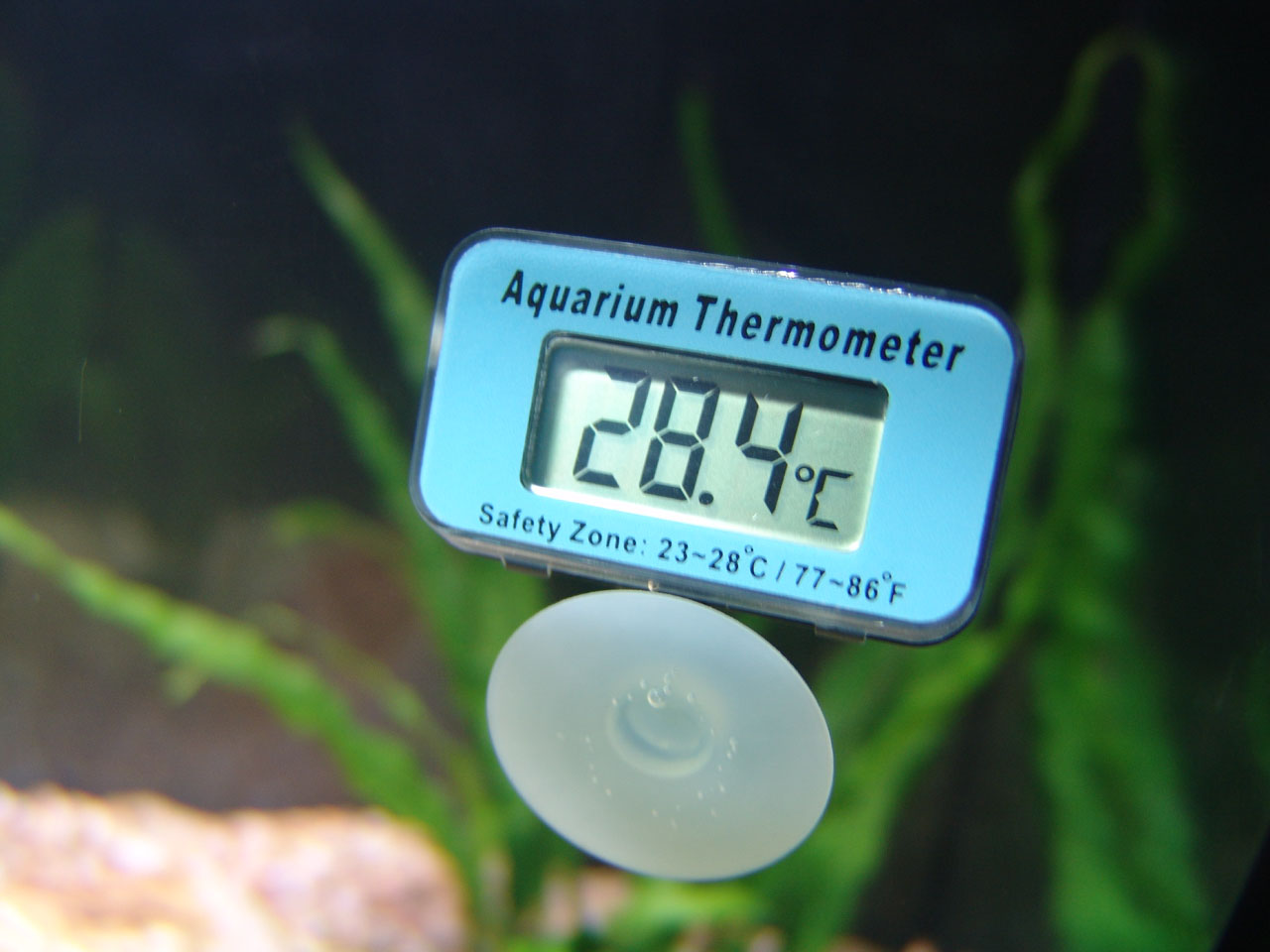

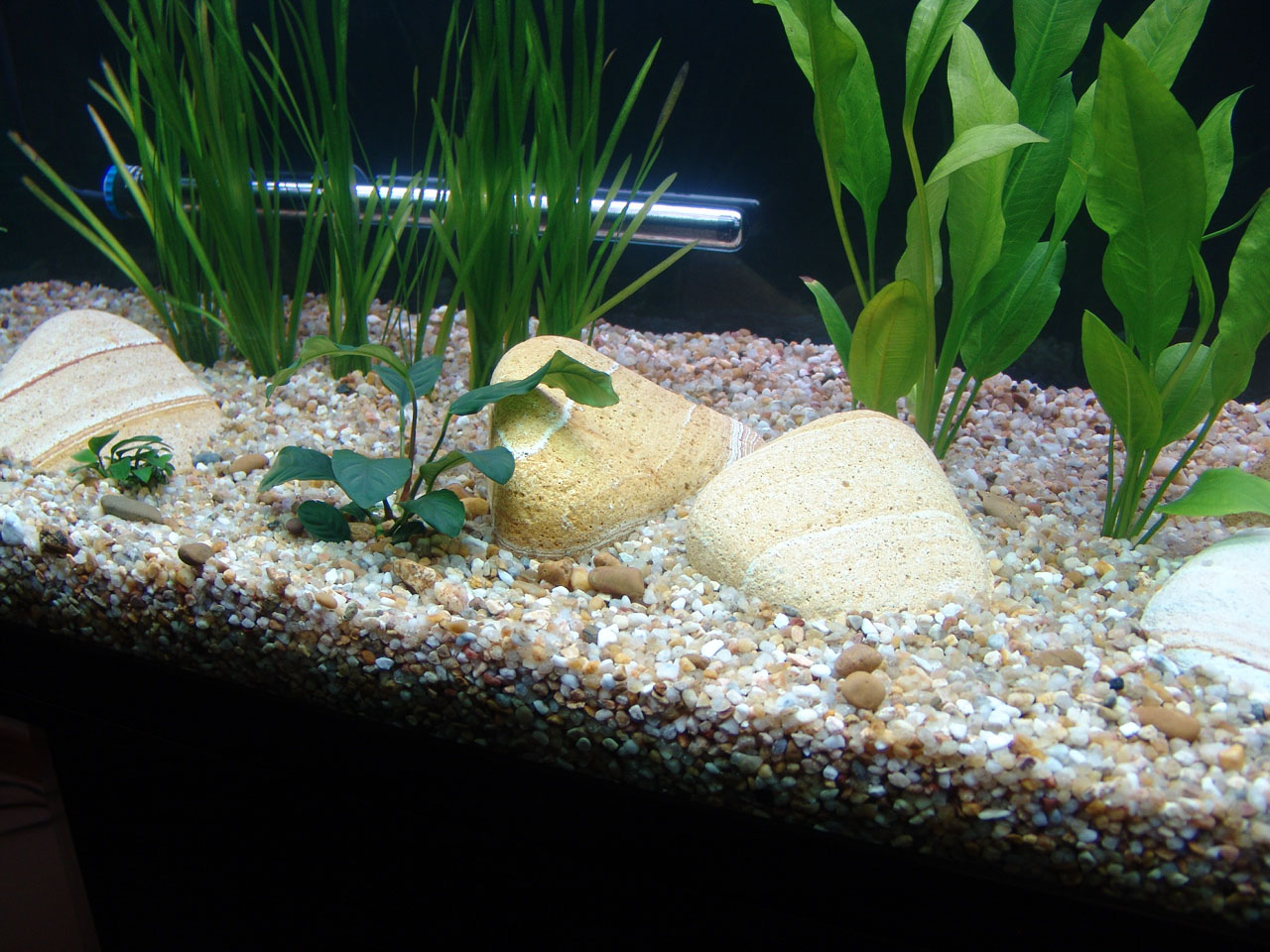

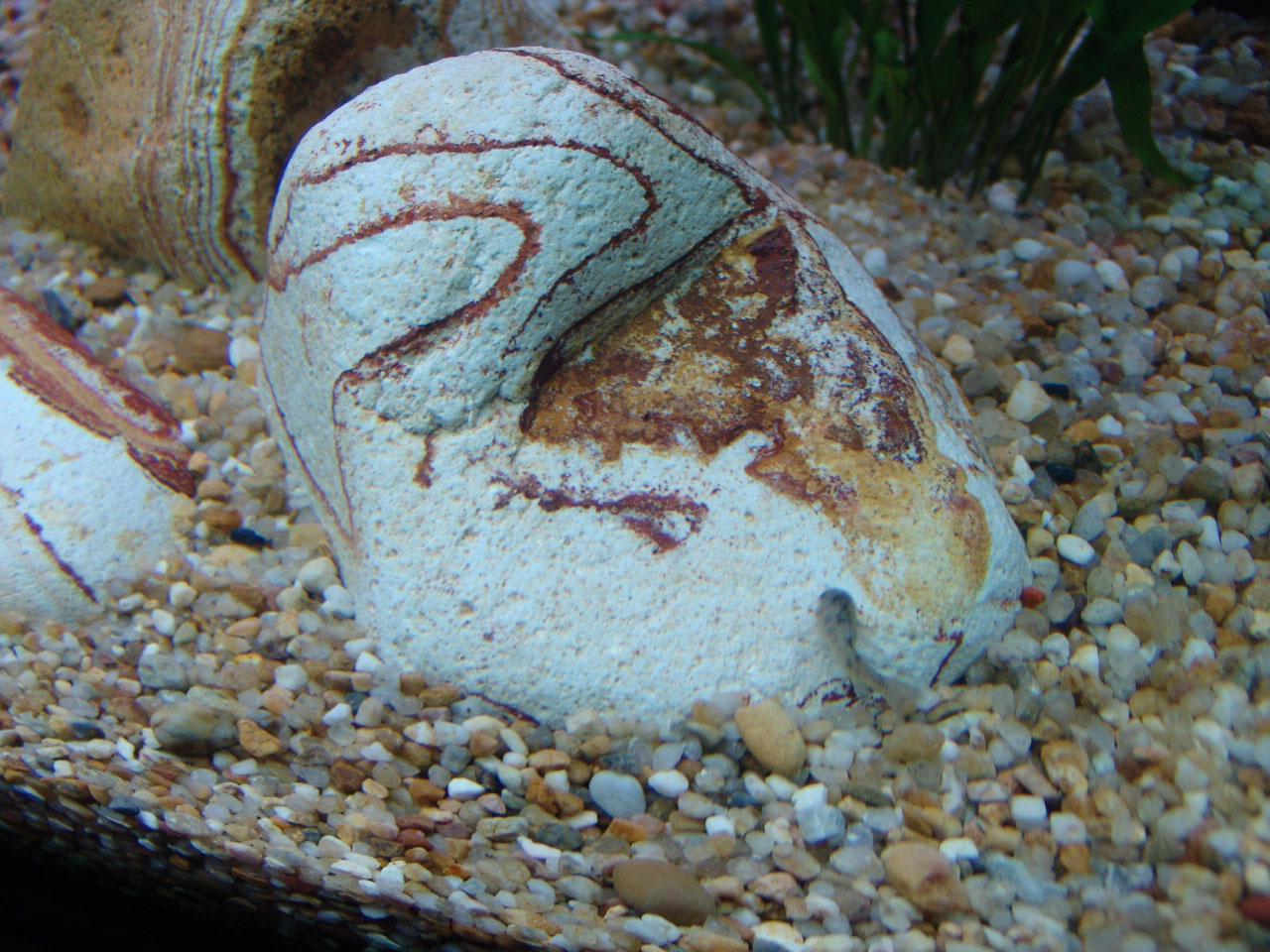

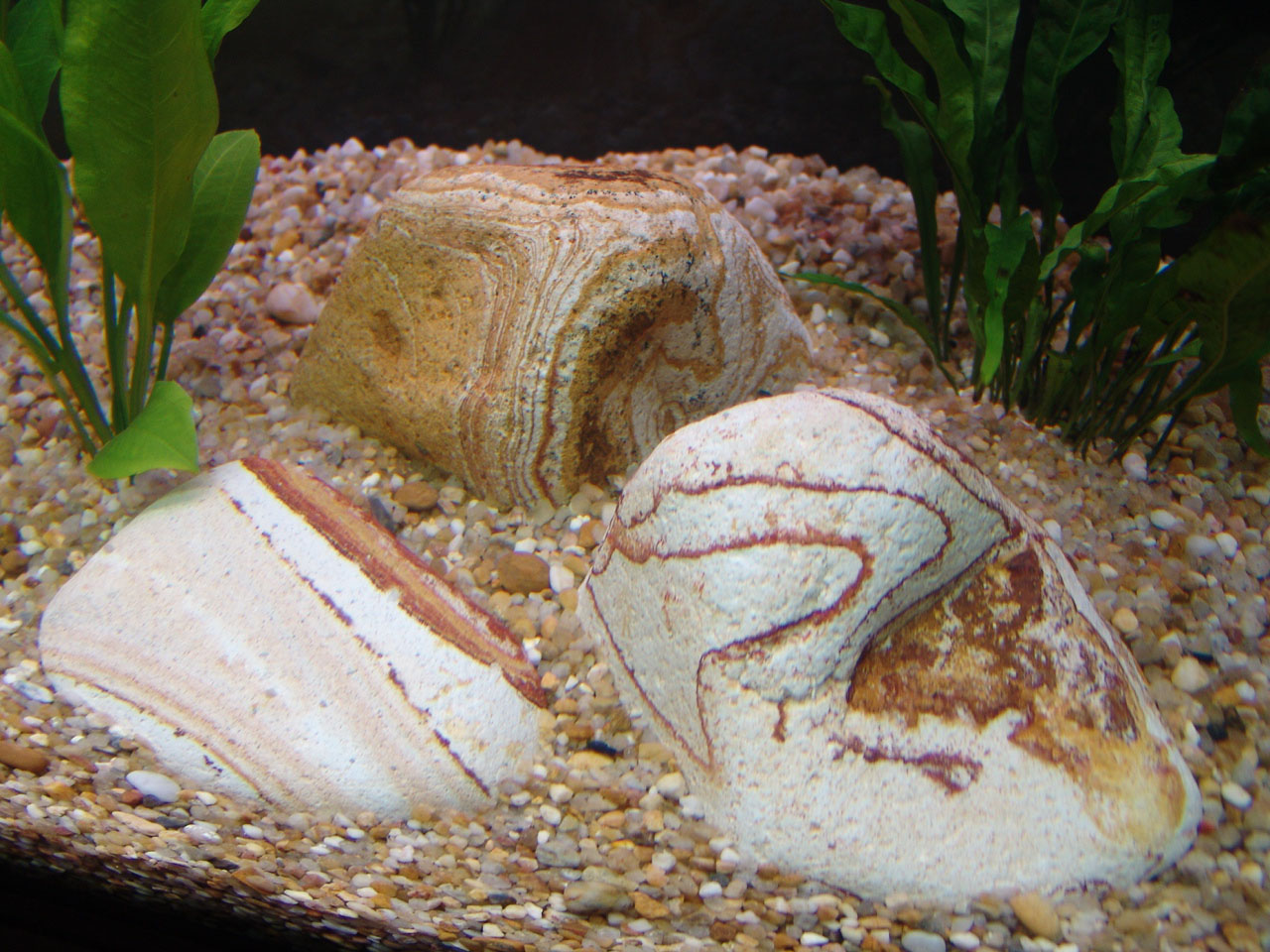

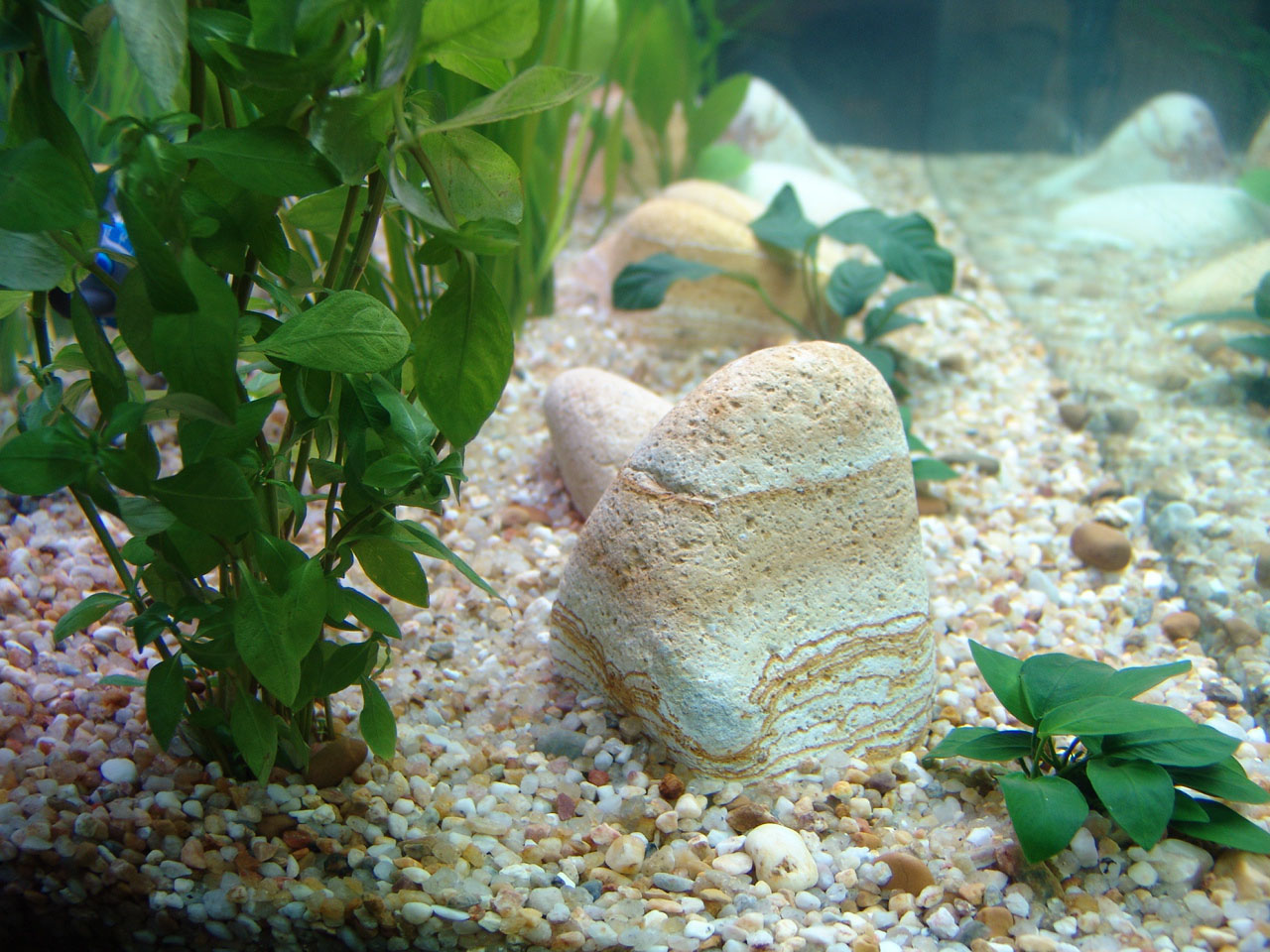

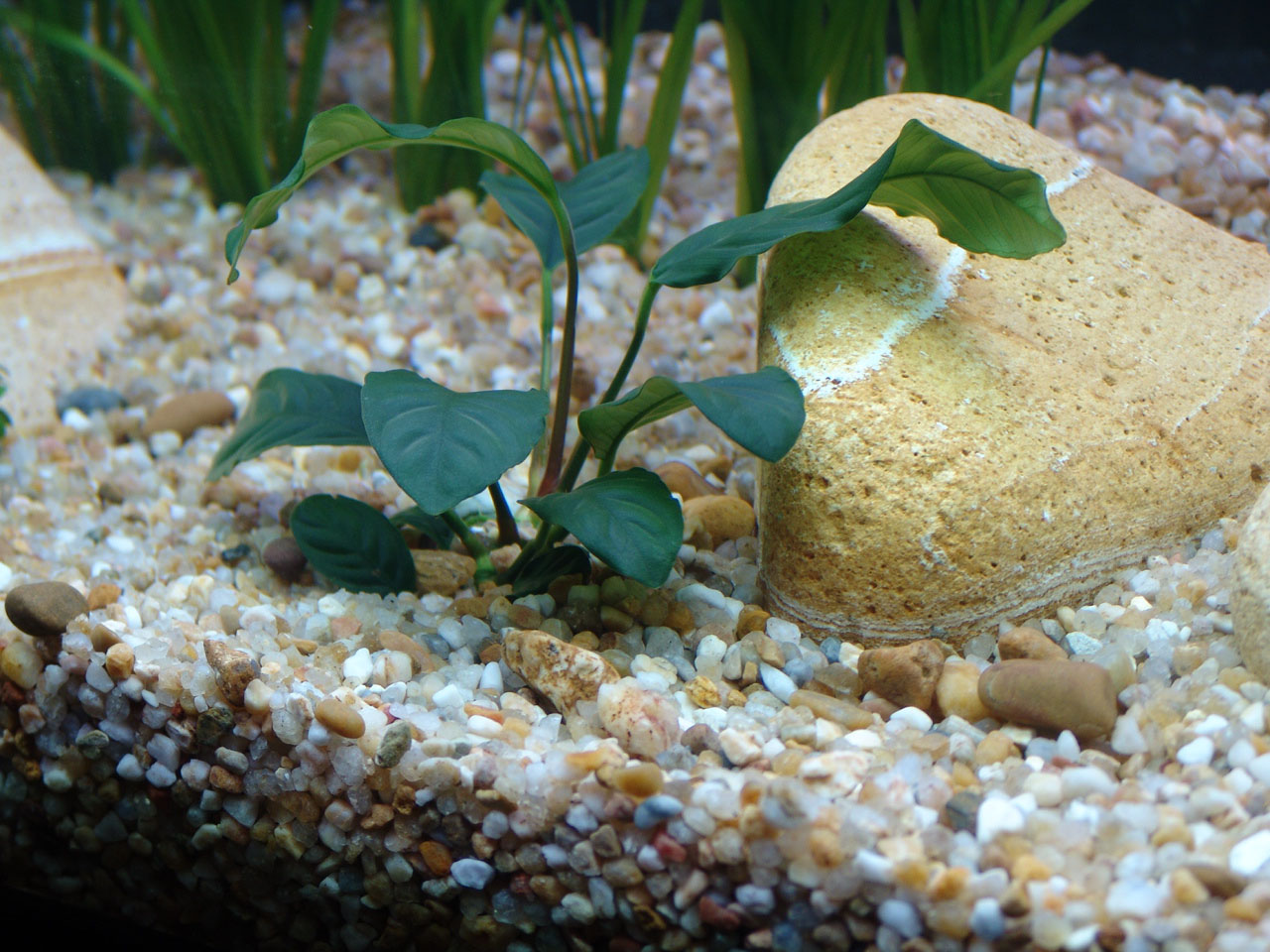

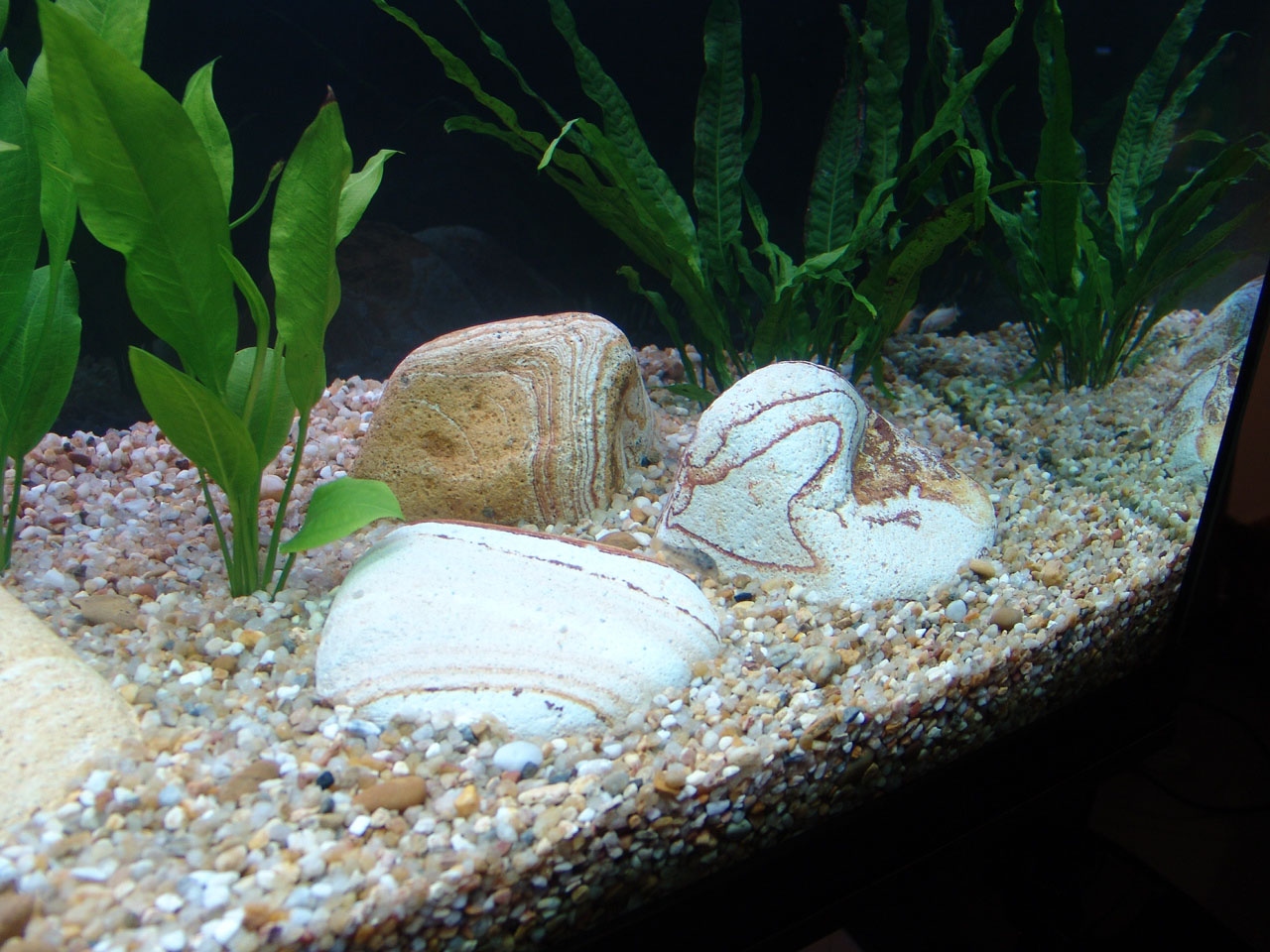

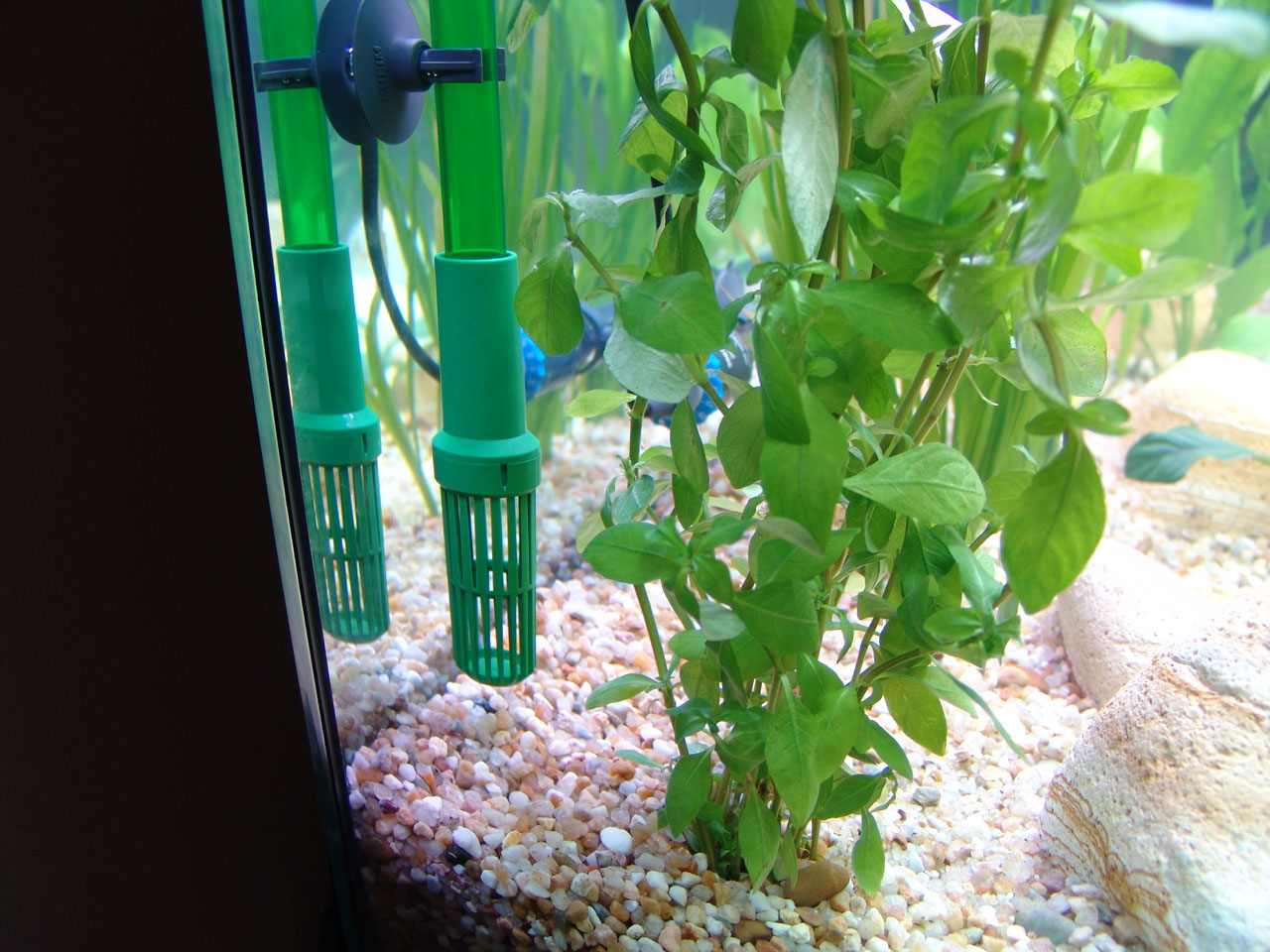

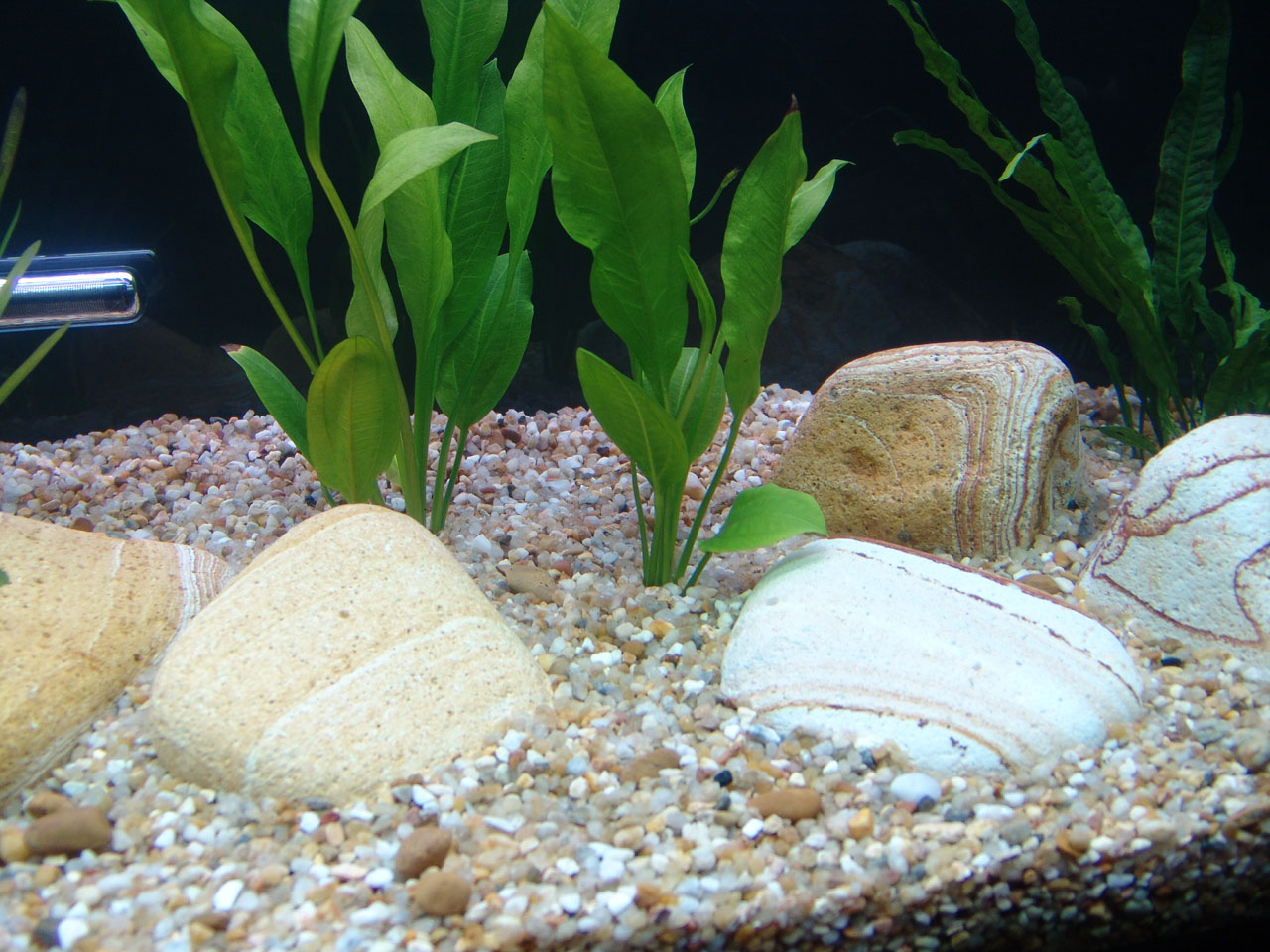

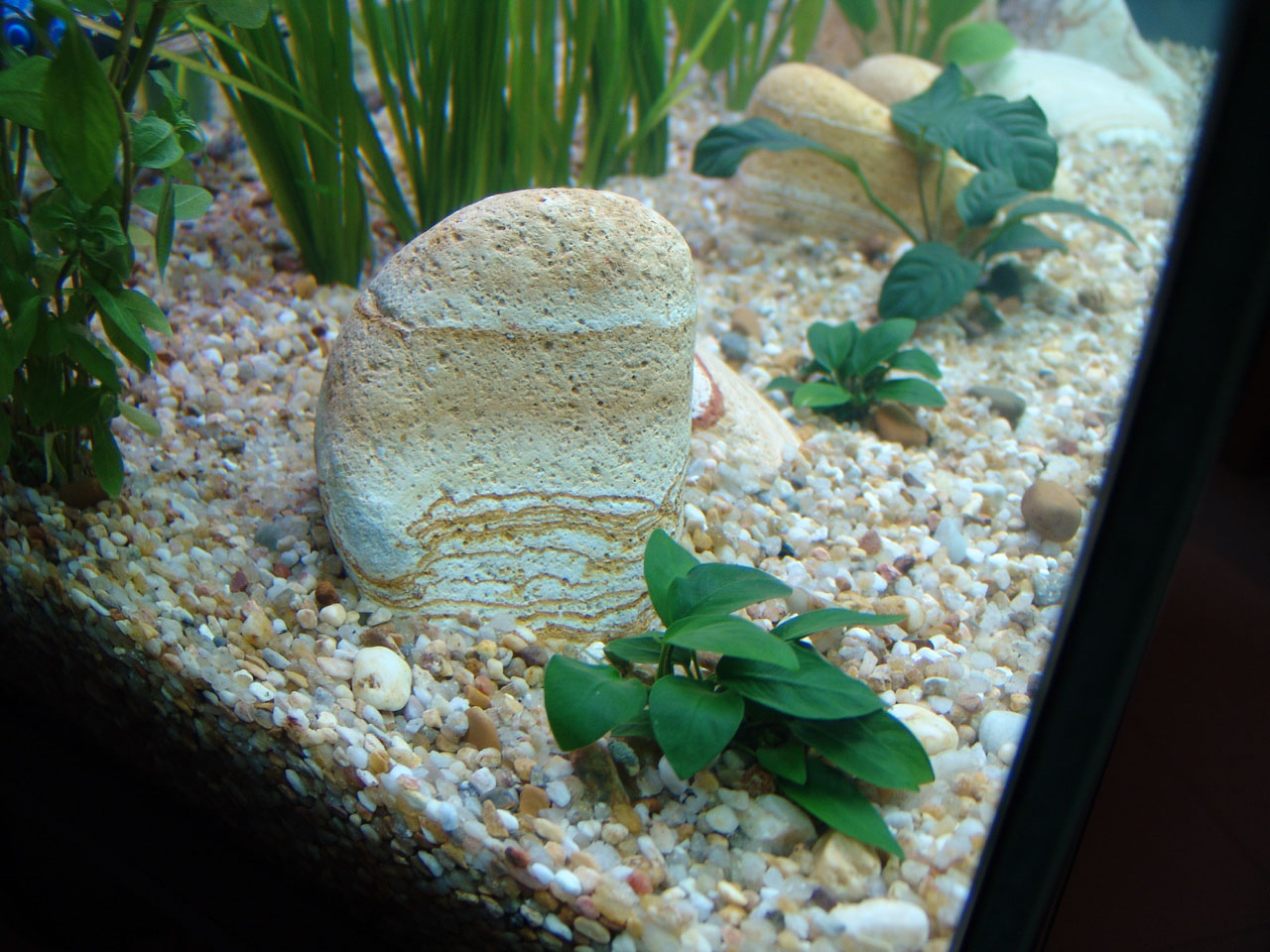

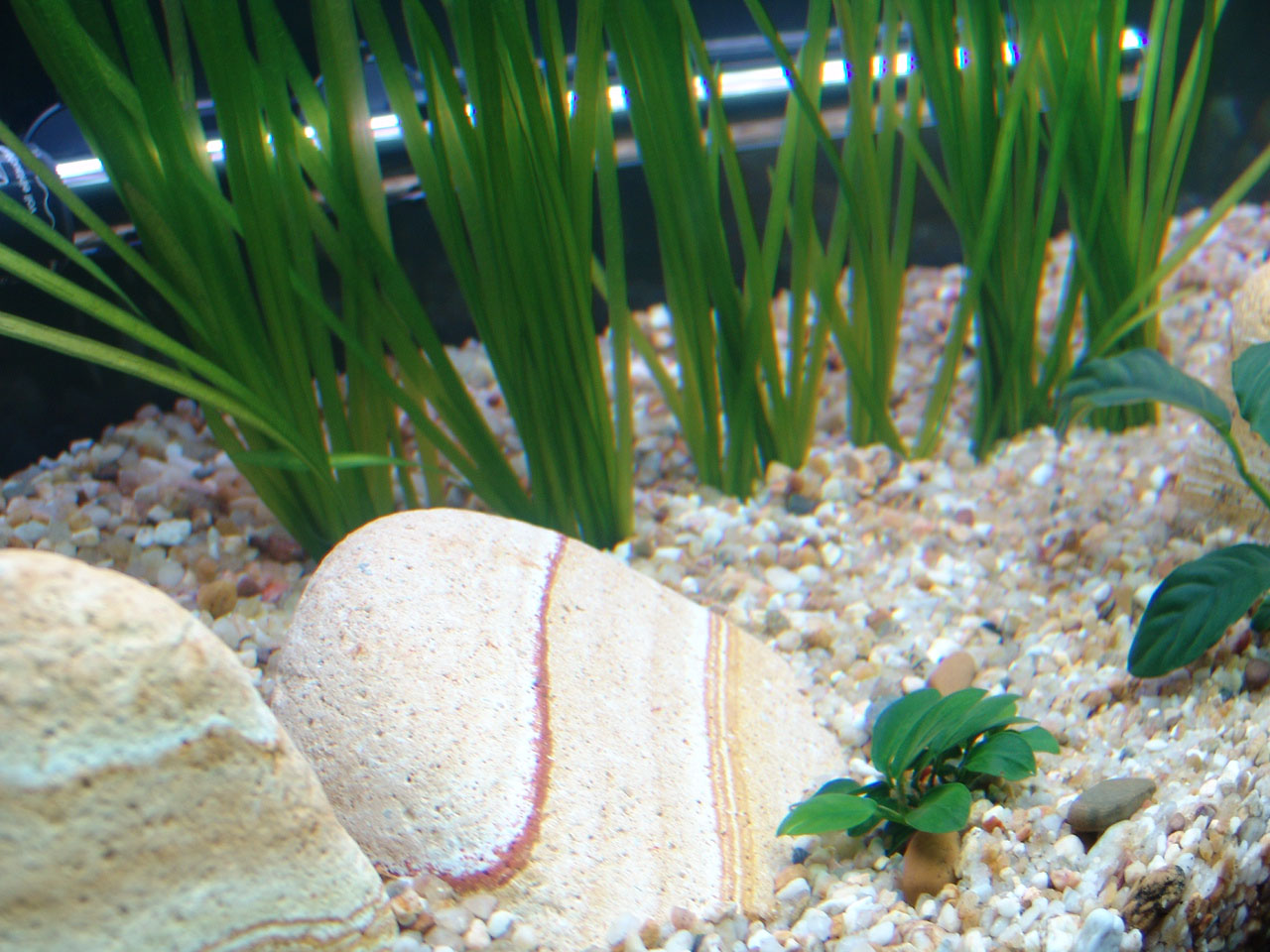

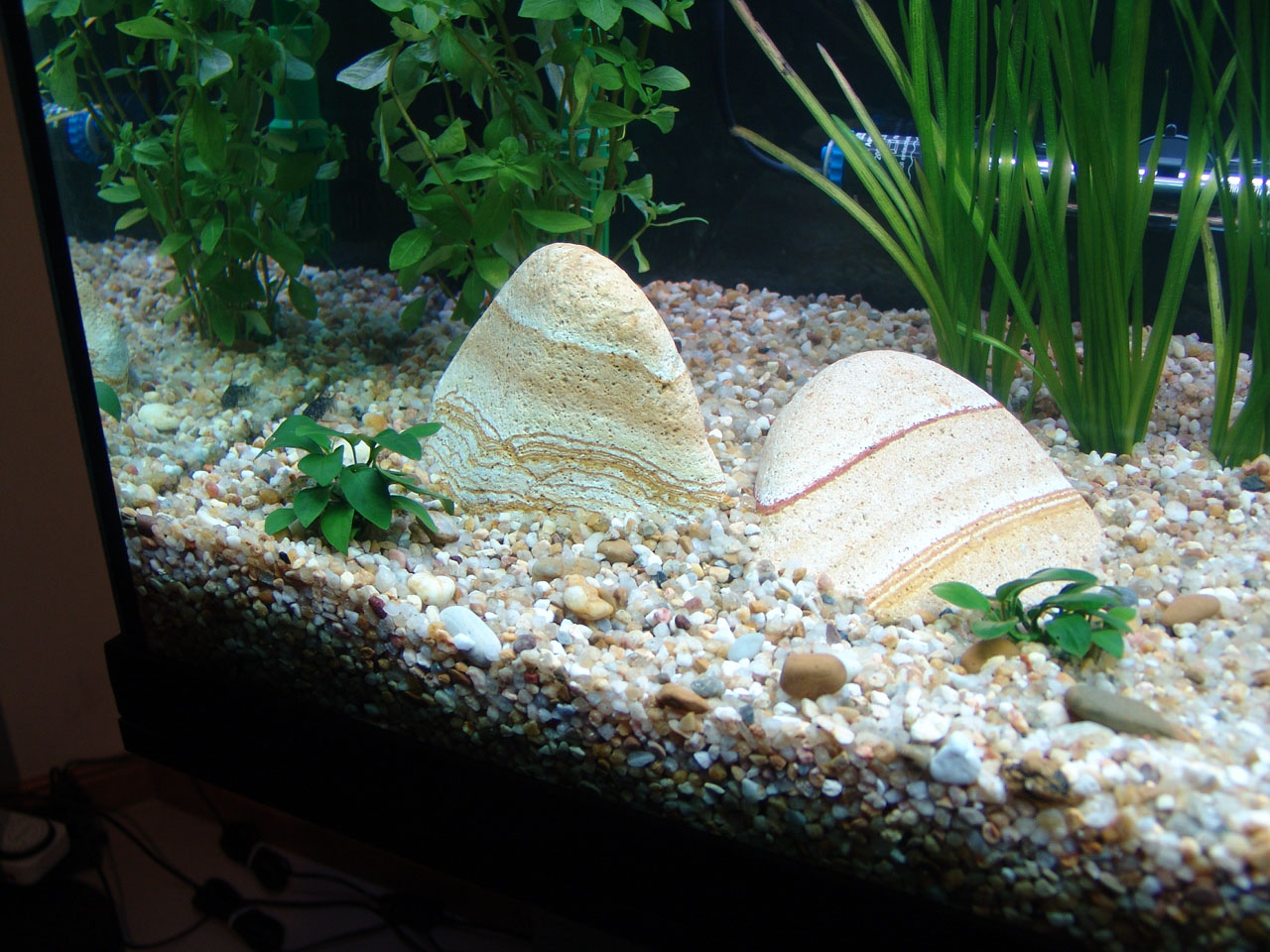

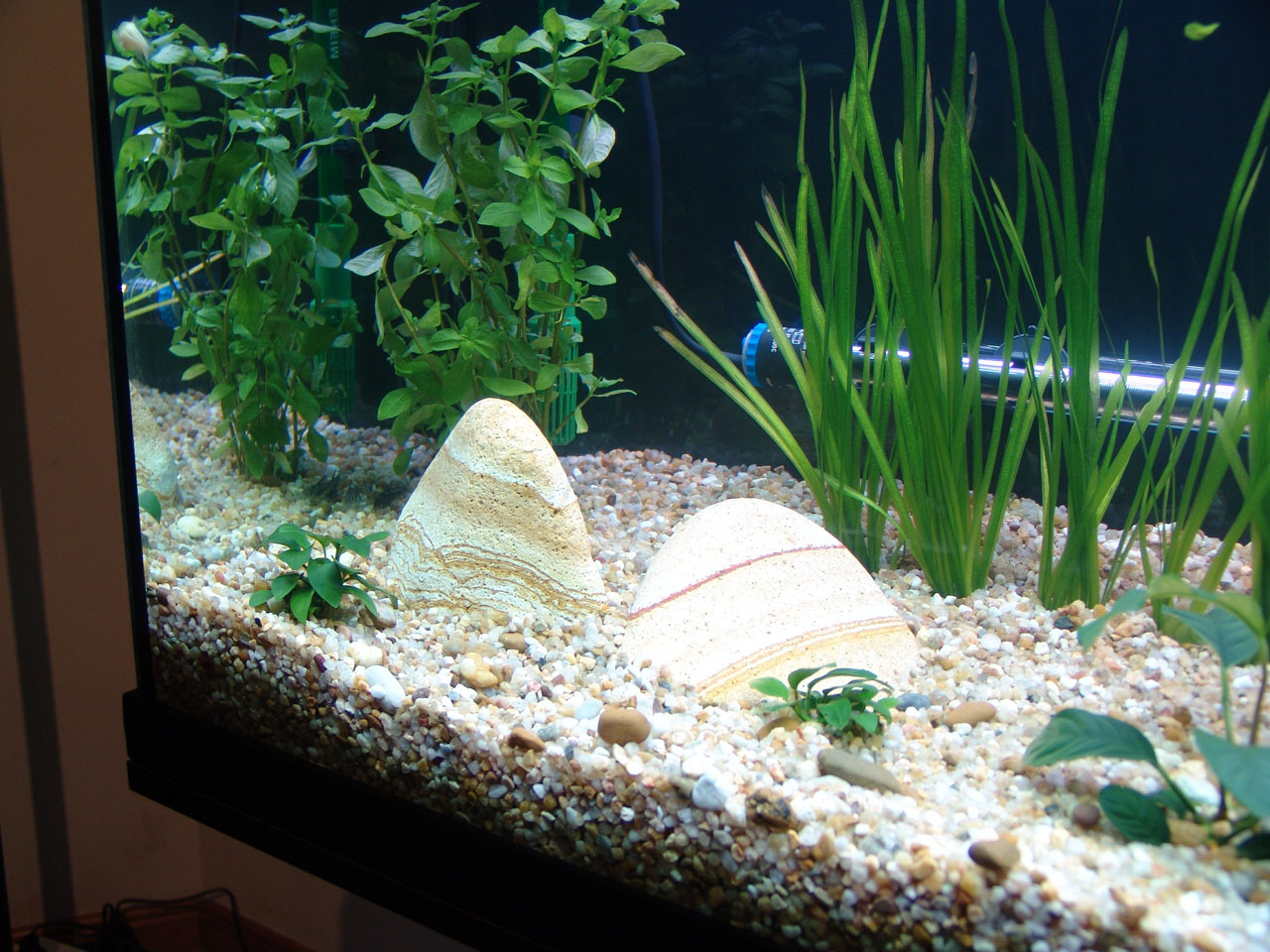

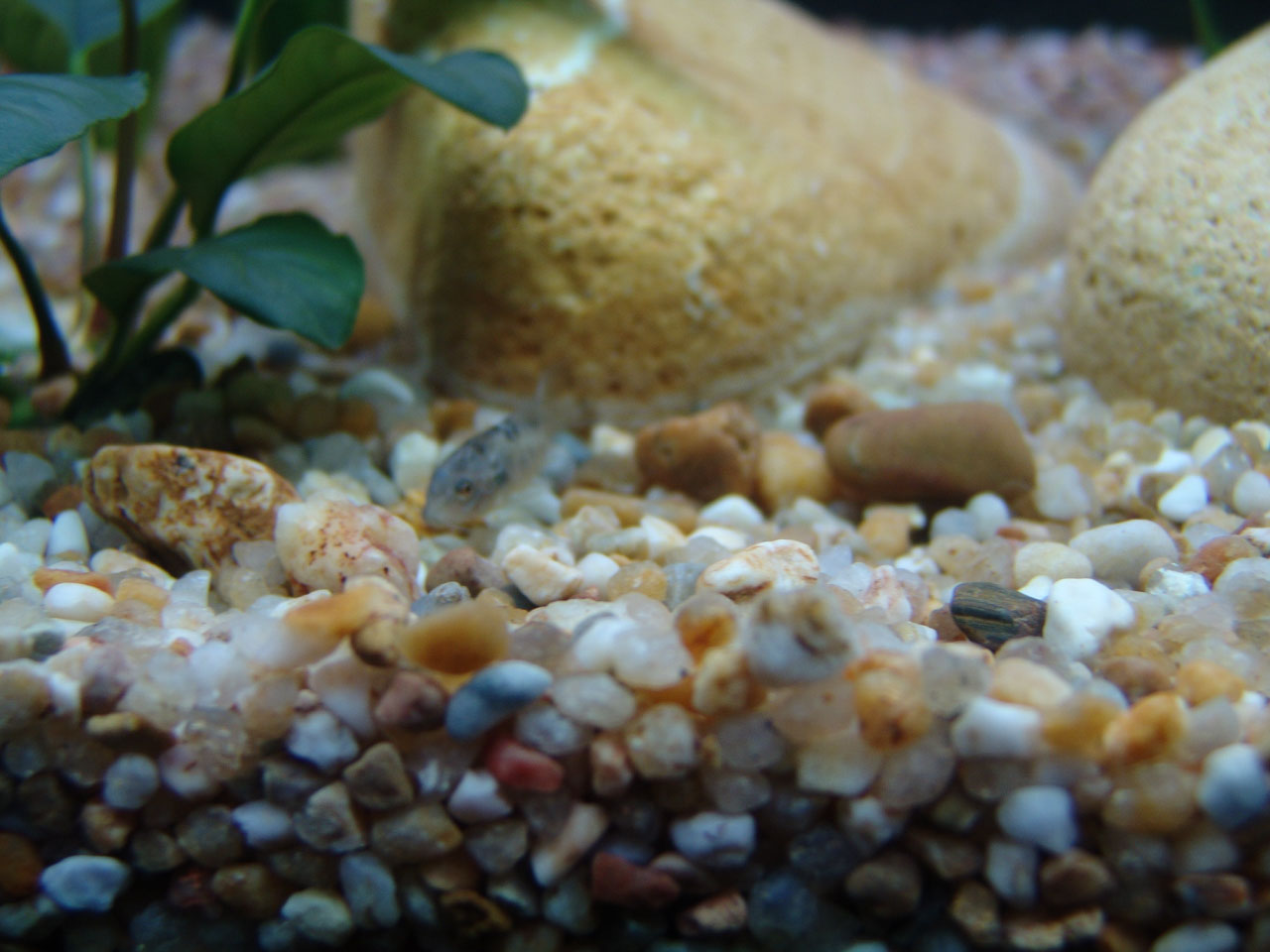

Details on plants and rocks.



DSC02489.jpg (339070 bytes) DSC02490.jpg (277285 bytes) DSC02520.jpg (236004 bytes) DSC02521.jpg (244432 bytes)
DSC02522.jpg (246452 bytes) DSC02523.jpg (251130 bytes) DSC02524.jpg (285698 bytes) DSC02525.jpg (223470 bytes)
DSC02526.jpg (223860 bytes) DSC02527.jpg (221622 bytes) DSC02530.jpg (182364 bytes) DSC02531.jpg (151306 bytes)

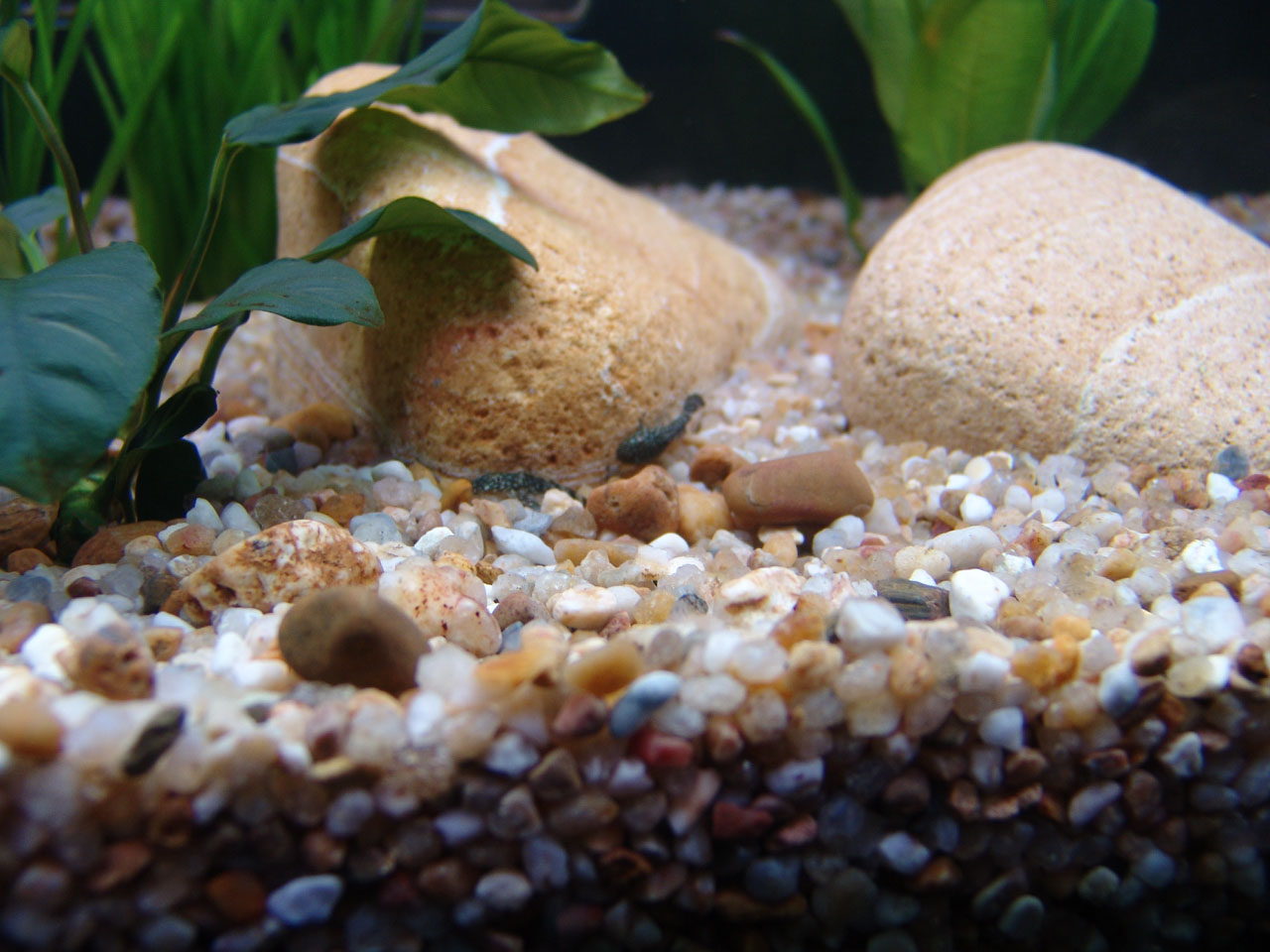

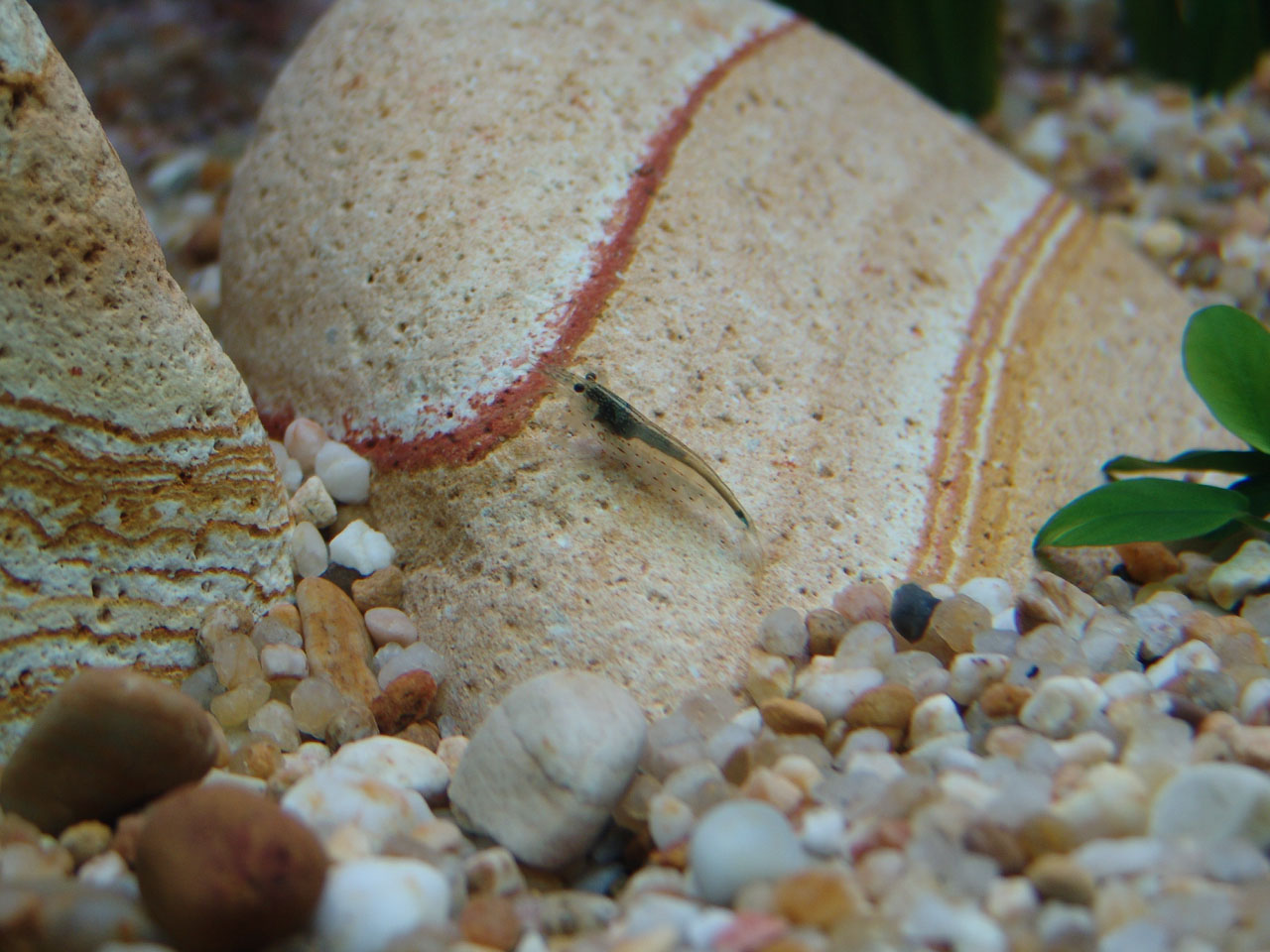

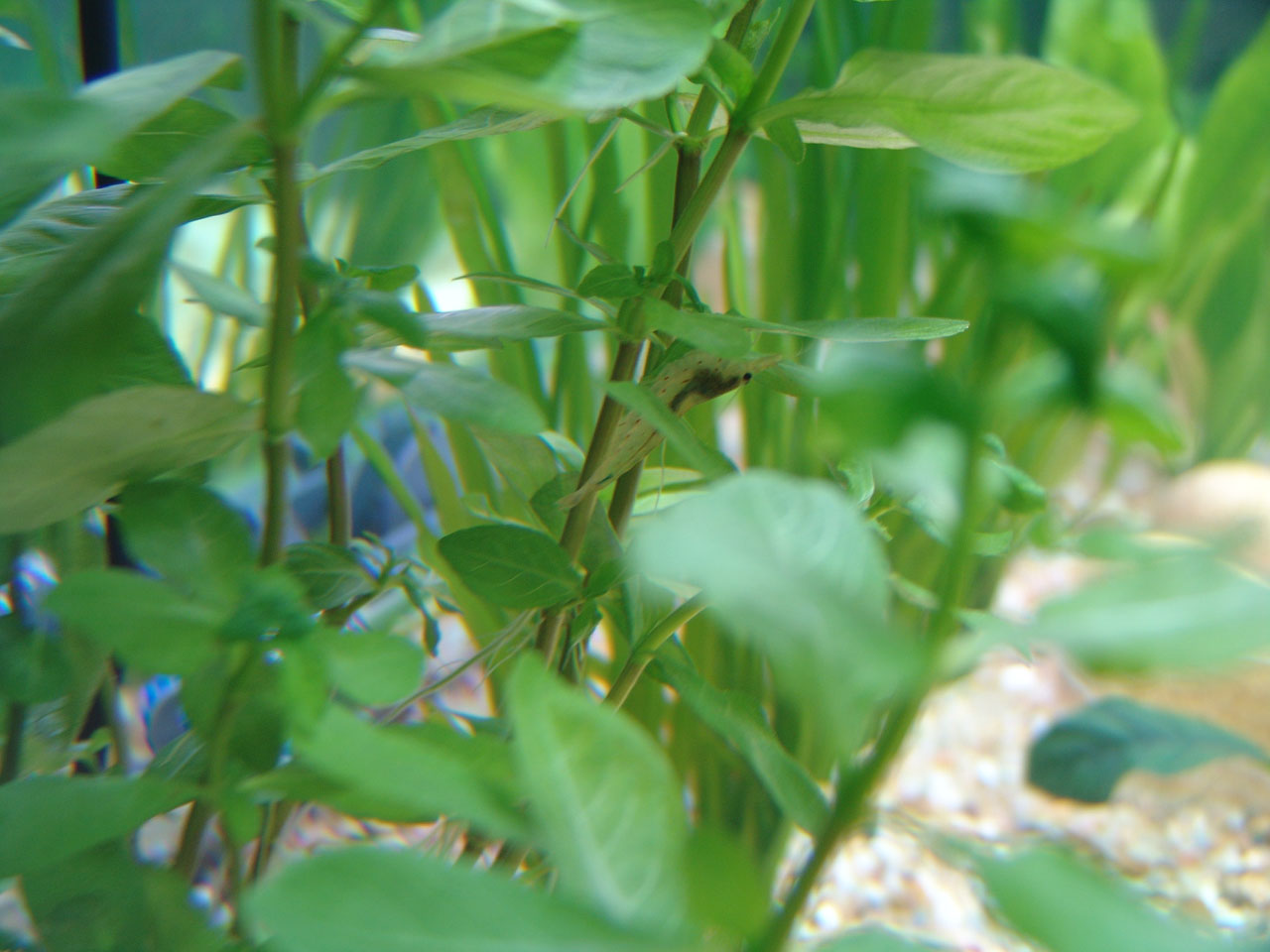

Details on one Japonica shrimp and two Ancistrus.
